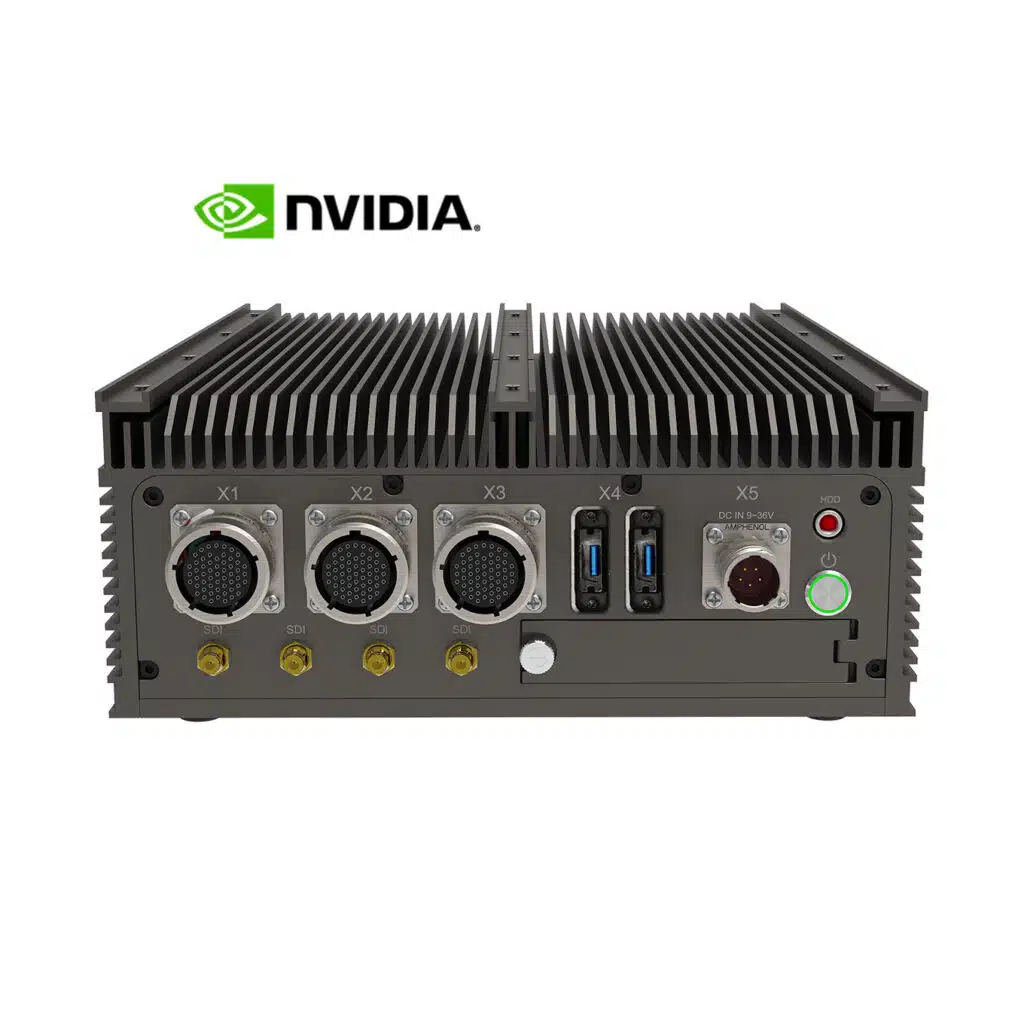

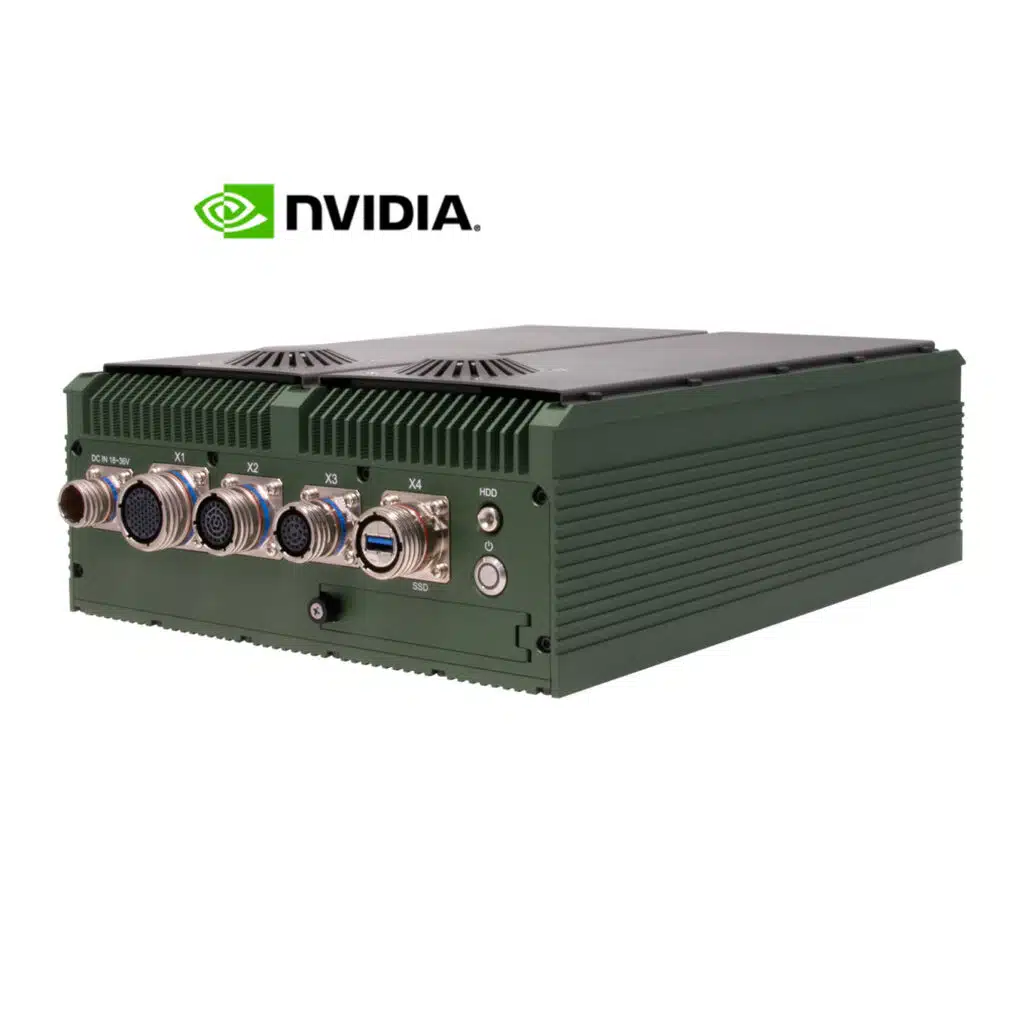

Blue Line Defense AI EDGE GPU Computer DPC-2000

The Defense AI EDGE GPU Computer DPC-2000 is designed to fit in harsh military environments. Its robust design and advanced functionality, including MIL-STD Amphenol type connectors and complete IP66 protection, empower the system to thrive in challenging conditions.

Military AI Edge GPU Computer
IP66 certified
MIL-STD-461G/810H certified
13th generation Intel Raptor Lake i7

Supports Windows 10/11 & Linux
Up to 64GB DDR5, non-ECC and ECC
Supports NVIDIA RTX A2000 or A4500
Wide temp -40°C to 60°C
Build-to-order configured to your requirements

Download datasheet

Fortified reliabilty

With support for extended temperatures ranging from -40°C to 70°C and a MIL-STD-461 18V to 36V DC-input power supply, the DPC-2000 is fortified against voltage surges, ensuring the safeguarding of critical components and overall system reliability.

Military-grade computing power

The DPC-2000 combines powerful computing capabilities with rugged military-grade construction.

Its advanced Intel Raptor Lake processor and support for NVIDIA RTX GPUs deliver exceptional AI processing power, while the completely sealed IP66-rated aluminium construction ensures reliable operation in the most demanding environments.

Product features

MIL-STD-461G/810H certified

Fortified against voltage surges

Specifications

Download datasheet

Rugged AI box PC

Compact

Aluminium

Fanless

Option for IP67 smart fan kit

Operating temperature -40°C to +60°C

Storage temperature -40°C to +85°C

Humidity 5% to 95%, non-condensing

Vibration MIL-STD-810

Shock MIL-STD-810

MIL-STD-810 Method 500.5, procedures I and II (Altitude, operation): 12,192 M, (40,000 ft) for the initial cabin altitude (18.8 Kpa or 2.73 Psia)

Method 500.5, procedures III and IV (Altitude, non-operation):
15,240, (50,000 ft) for the initial cabin altitude (14.9 Kpa or 2.16 Psia)

Method 501.5, procedure I (storage / high temperature)

Method 501.5, procedure II (operation / high temperature)

Method 502.5, procedure I (storage / low temperature)

Method 502.5, procedure II (operation/ low temperature)

Method 503.5, procedure I (temperature shock)

Method 507.5, procedure II (temperature & humidity)

Method 509.7 salt spray (50±5)g/L

Method 514.6, vibration category 24 / non-operating (category 20 & 4, vibration)

Method 514.6, vibration category 20 / operating (category 20 & 24, vibration)

Method 516.6, shock-procedure V non-operating (mechanical shock)

Method 516.6, shock-procedure I operating (mechanical shock)

MIL-STD-461 CE102 basic curve, 10 kHz to 30 MHz

RE102-4, (1.5 MHz) -30 MHz to 5 GHz

RS103, 200 MHz to 3.2 GHz, 50 V/m equal for all frequencies

EN 61000-4-2: Air discharge: 8 kV, contact discharge: 6kV

EN 61000-4-3: 10 V/m,

EN 61000-4-4: Signal and DC-Net: 1 kV

EN 61000-4-5: Leads vs. ground potential 1kV, signal und DC-Net: 0.5 kV

EN55022: Class A

MIL-STD-1275 (Options) Steady state: 20V to 33V

Surge low: 18V/500ms

Surge high: 100V/500ms

Intel Raptor Lake 13th generation Core i7-13800HE, 45W, 14C/20T, 2.5/5.0 Ghz, 24MB cache, 45W TDP

SoC

Integrated Intel Iris Xe Graphics

2 x 262-pin DDR5 SO-DIMM sockets, supports 4800 MHz SDRAM up to 64GB

On board 64GB NVMe SSD

1 x 2280 M key (SATA only)

1 x 2.5″ internal SSD / HDD drive bays

X5 1 x DC-IN, with D38999 connector

X1 1 x COM (RS232) + 3 x COM(RS232 / 422 / 485) with D38999 connector

X2 2 x GbE + 2 x USB 2.0 with D38999 connector

X3 1 x DIDO 4in/4out + 1 x VGA with D38999 connector

X4 1 x USB3.0 with D38999 connector

1 x SSD / HDD LED indicator

1 x IP65 power button, with LED indicator

1 x Full-size mini PCIe with mSATA supported

1 x Full-size mini PCIe

1 x M.2 2280 M key (SATA only)

1 x MXM socket support: Nvidia Quadro RTX A2000 8G or RTX A4500 16GB GDDR6

Windows 10 / 11

Windows 10 IoT Enterprise

Linux

TBD

Dimension H 122 x W 250 x D 325mm

Dimension w/fan kit TBD

Weight 10.5kg

4 x CH HD-SDI frame grabber

Dual 10GbE (Intel X710) ethernet ports

Conformal coating on electronics

MIL-STD-1275 – steady state: 20V to 33V – surge low: 18V/500ms – surge high: 100V/500ms

Standard 1 year (option for 3 years)

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
