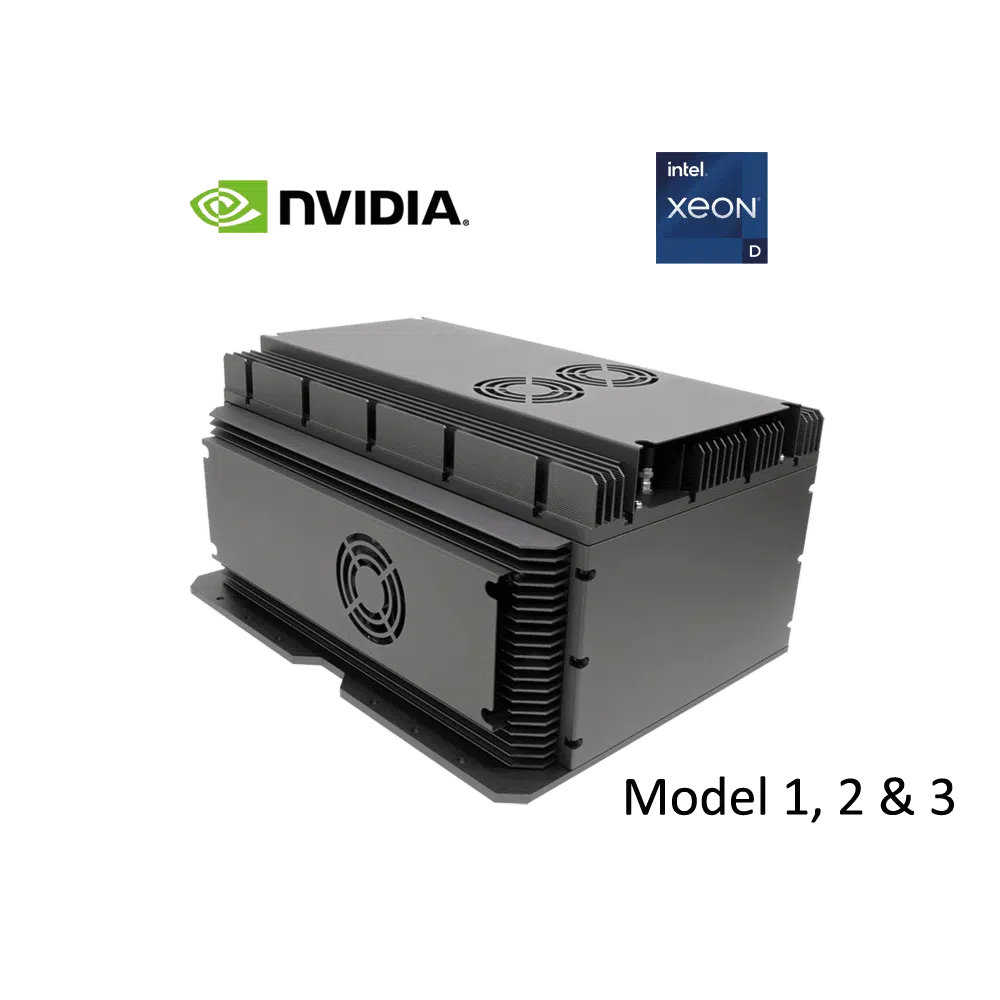

Blue Line Defense AI EDGE GPU Computer DPC-2100 - Model 1

Blue Line Defense AI EDGE GPU Computer DPC-2100

Blue Line Defense AI EDGE GPU Computer DPC-2100 is a robust AI Inference server-class platform engineered to withstand challenging environments. This ruggedized solution is equipped with an Intel Xeon Processor, offering up to 20 Cores, and is enhanced with NVIDIA technology.

  • Military AI Edge GPU Computer
  • IP65 certified
  • MIL-STD-461G/810H certified
  • Ultra high performance Intel Xeon Ice Lake-D
  • NVIDIA MXM-GPU Quadro RTX4500 5888 CUDA
  • 2 x 25GbE SFP28 and 2 x 10GbE
  • Up to 512GB LRDIMM and 2 x NVMe PCIe generation 4.0 U.2
  • Dual removable anti-drop SSD w/hardware secure erase (AES) by option
  • Wide temp -20 to 60°C
  • Build-to-order configured to your requirements

High-performance AI GPU

With its high-bandwidth networks and cutting-edge features, the DPC-2100 delivers exceptional performance for data-intensive industries like medical, defense, and transportation.

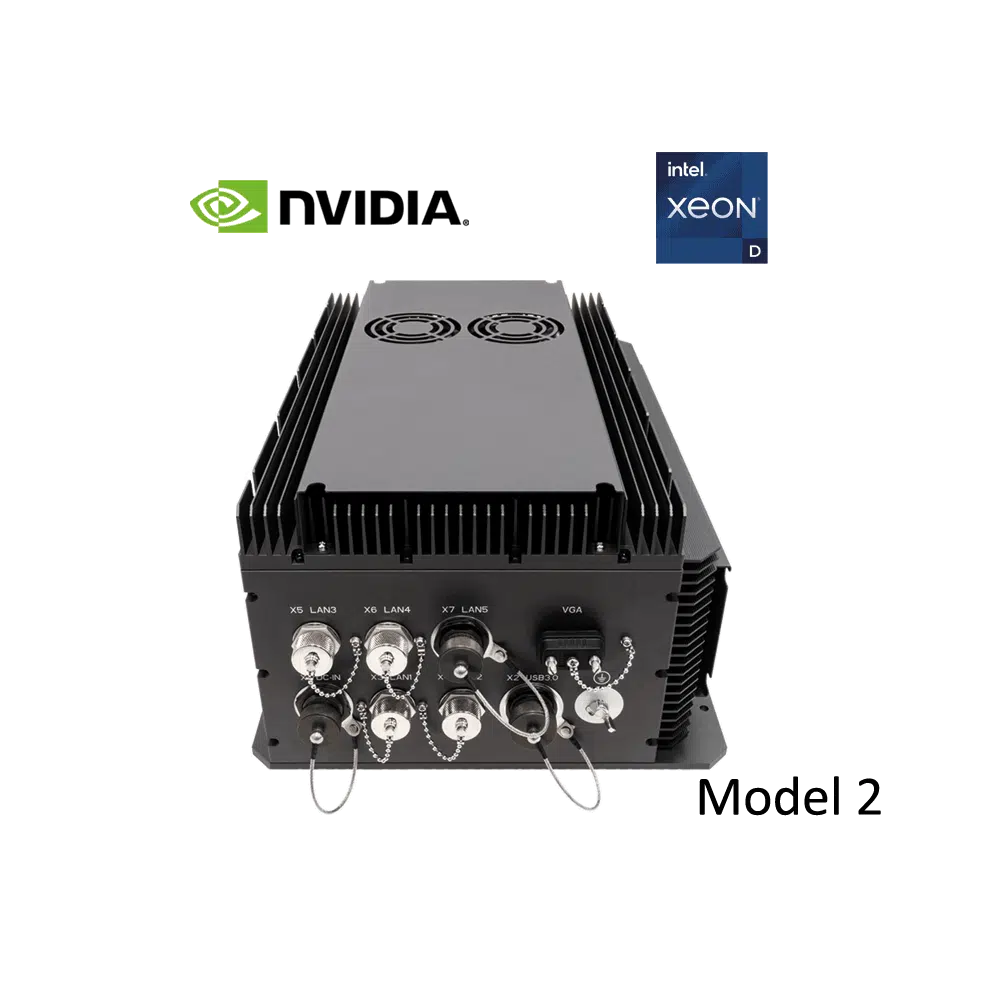

Blue Line Defense AI EDGE GPU Computer DPC-2100 - Model 2
Blue Line Defense AI EDGE GPU Computer DPC-2100 - Model 1

Military-grade computing power

Its Ethernet connectivity and secure smart network interface card (SmartNIC) bolster performance, security, virtualization, SDN/NFV, big data, and machine learning capabilities for data center applications.

Product features

Blue Line Defense AI EDGE GPU Computer DPC-2100 - Model 1

MIL-STD-461G/810H certified

Blue Line Defense AI EDGE GPU Computer DPC-2100 - Model 2

Equipped with an Intel Xeon Processor

Specifications

Model Type

Rugged AI box PC

Form Factor

Compact

Construction

Aluminium

Cooling

IP65 sealed with external smart fan

Environment

Operating temperature -20°C to +60°C
Storage temperature -40°C to +85°C
Humidity 5% to 95%, non-condensing

Certification

CE and FCC
MIL-STD-810G thermal, shock, vibration, humidity
MIL-461 EMC/EMI
MIL-STD-1275

Processor

CPU model 1, 2 & 3 Intel Xeon D-2733NT, 8C/16T, 2.1GHz, max turbo up to 3.2GHz, 80W TDP
Option for Intel Xeon D-2775TE, 16C/32T, 2.0GHz, max turbo up to 3.1GHz, 100W TDP
Option for Intel Xeon D-2796NT, 20C/40T, 2.0GHz, max turbo up to 3.1GHz, 120W TDP
GPU model 1 & 2 1 x Nvidia RTX A4500 16GB DDR6 MXM PCIe x16 generation 4.0, 125W TDP
  Total: 5888 CUDA cores, 184 Tensor cores and 80 RT cores
GPU model 3 2 x Nvidia RTX A4500 16GB DDR6 MXM PCIe x16 generation 4.0, 125W TDP
  Total: 11.776 CUDA cores, 368 Tensor cores and 160 RT cores

Chipset

SoC

RAM

4 x DDR4 sockets, supports 2933 MHz SDRAM up to 256GB RDIMM / 512GB LRDIMM

Storage

2 x 2TB 2.5” swappable SATA drive with AES function

Input / Output

Model 1
X1    1x CAN BUS TVS07RF-9-98S connector
X2    1x 10GbE(SFP+) LCFTV70NN connector
X3    1x 10GbE TVSS07RF-11-35SA connector (Intel X550-AT2)
X4    1x DC-IN TV07RW-13-4P connector
X5    4x RS232/422/485 24FD35SN connector
X6    1x GbE TVS07RF-11-35S-LC connector (Intel i350-AM4)
X7    1x GbE TVS07RF-11-35S-LC connector (Intel i350-AM4)
X8    1x USB3.0 USB3FTV7AZNF312 connector
X9    1x VGA D-sub 15 connector with waterproof cap
Model 2
X1 DC In connector
X2 1 x USB3.0 Amphenol USB3FTV7AZNF312 connector
X3 1 x 1GBase-T TV07RW-13-98S connector (Intel i350-AM4)
X4 1 x 1GBase-T TV07RW-13-98S connector (Intel i350-AM4)
X5 1 x 10GBase-T M20 RJ45 CAT6A connector (Intel X550-AT2)
X6 1 x 10GBase-T M20 RJ45 CAT6A connector (Intel X550-AT2)
X7 1 x 100G fiber ethernet Amphenol FSI MPOFTV70ZNN (Nvidia ConnectX-6)
VGA D-sub 15 connector with waterproof cap
Model 3
X0 1 x USB 3.0 Amphenol USB3FTV7AZNF 312 connector
X1 2 x 10GbE in 1 x 22-pin Amphenol TV07RW-13-35S (Intel X550-AT2)
X2 1 x 1GBase-T TV07RW-13-98S connector (Intel i350-AM4)
X3 1 x 1GBase-T TV07RW-13-98S connector (Intel i350-AM4)
X4 1 x 1GBase-T TV07RW-13-98S connector (Intel i350-AM4)
X5 DC In connector
X6 1 x 10GBase-T M20 RJ45 CAT6A connector
X7 1 x 10GBase-T M20 RJ45 CAT6A connector
X8 1 x 25G fiber ethernet Amphenol FSI MPOFTV70ZNN (Intel SoC)
X9 1 x 25G fiber ethernet Amphenol FSI MPOFTV70ZNN (Intel SoC)
VGA D-sub 15 connector with waterproof cap

Operating System

Windows 10 / 11
Windows 10 IoT Enterprise
Linux

Power Supply

+18V to 36V DC-in

Power Consumption

TBD

Dimension and Weight

Dimension W 405 x L 316 x H 195mm
Net weight 10kg
Gross weight TBD

Warranty and After Sales Support

Standard 1 year (option for 3 years)
