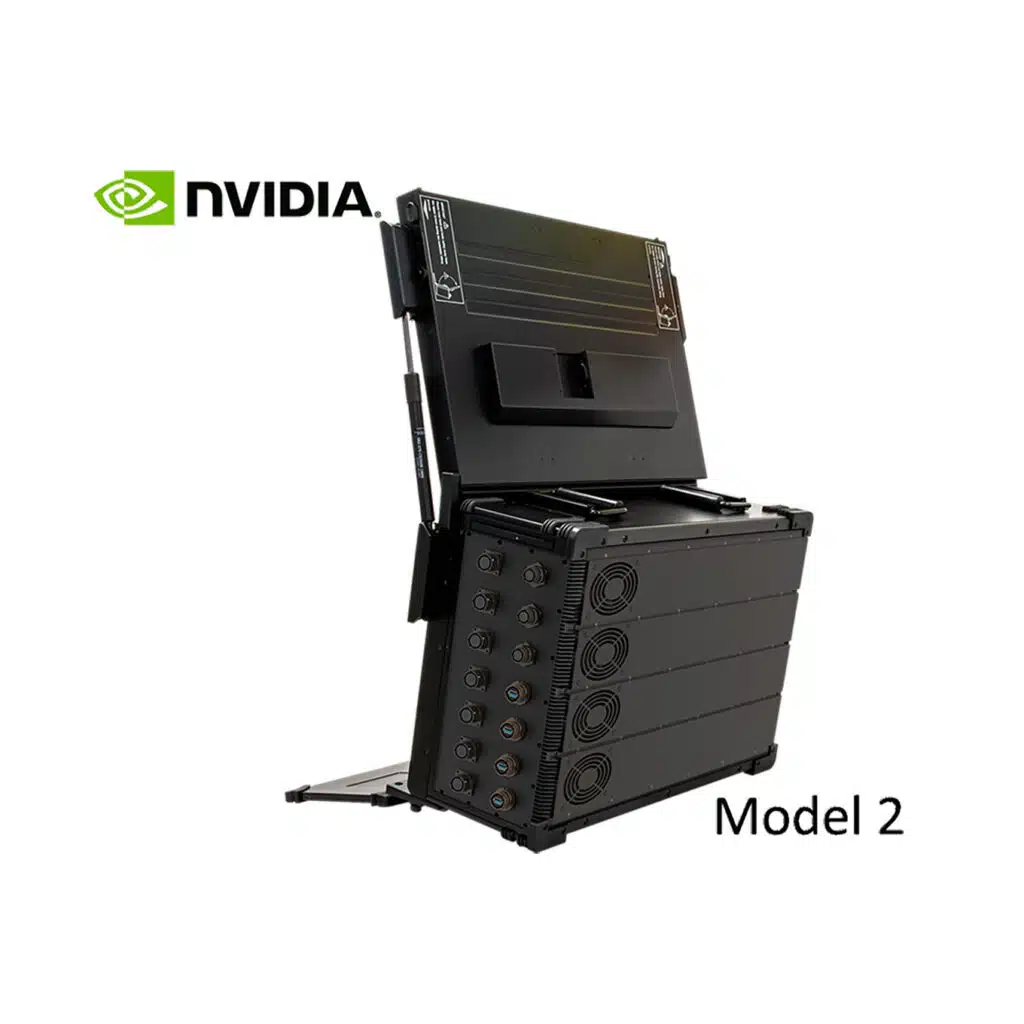

Blue Line Dual Display Portable Server DDPS-3000

Blue Line Dual Display Portable Server DDPS-3000 is a new Dual Display Portable GPU Server, that demonstrates outstanding performance and functionality for rugged and mobile applications within Military, Naval, and Air Defense.

Military AI Dual Display Portable GPU Server
IP65 certified flight case during transportation
MIL-STD-461G/810H certified
Intel Ice Lake 3rd Gen. Xeon Scalable CPU

Supports Windows 10/11 & Linux
Option for UHD 3840 x 2160
Supports NVIDIA Quadro RTXA4000 GPU (6,144 CUDA)
Wide temp -40°C to 55°C
QWERTY keyboard. Various language layouts available.
Build-to-order configured to your requirements

Download datasheet

Built for marine applications

The server system is designed as a Dual 23.8″ FHD TFT-LCD Multifunction Naval Console, providing a sophisticated, graphically oriented HMI for any naval or marine application.

The system can simultaneously display HMI graphics and text from multiple software applications, as well as display images from several video sensors and overlay high-resolution graphics and symbology over the video images.

Versatile HMI

In addition, the system allows the human user to interact with the application using a combination of QWERTY keyboard, mini touch-entry color TFT-LCD display, handgrip, rollerball, fast function keys, programmable soft-keys, and on-screen menus.

Product features

Dual 23.8” FHD TFT-LCD displays

Specifications

Download datasheet

Military AI Dual Display Portable GPU Server

Portable Dual Display GPU Server

Aluminium

Fanless with Conduction Cooled Heat sink

For high GPU and CPU TDP, Heat sink Aluminum Alloy with external Smart Fan is required

Model 1 IP65*

Model 2 No IP rating

Operating temperature -20°C to +60°C

Storage temperature -40°C to +85°C

Humidity 5% to 95%, non-condensing

CE and FCC

MIL-STD-810G thermal, shock, vibration, humidity, EMI, EMC resistance

Option for MIL-STD -461 18V to 36V DC-Input

Dual 23.8″ 1920 x 1080, 16:9, FHD (option for 3840 x 2160, 16:9, UHD) TFT-LCD , LCM

250 nits

Option for 1000 nits

Intel 2nd / 3rd Gen. Xeon scalable CPU

Support single socket LGA-4189

Intel C621 Chipset

ASPEED AST2500 BMC Graphics Chipset

6 DIMM slots

Up to 1.5TB 3DS ECC LRDIMM, DDR4 2933MHz; Up to 1.5TB 3DS ECC RDIMM

2 x SATA3 SSD (6Gbps) ports

Model 1 X1 1 x VGA , with D38999 connector

X2 2 x Giga LAN, with D38999 connector

X3 2 x COM, with D38999 connector

X4 2 x USB2.0, with D38999 connector

X5 1 x USB3.0, with D38999 connector

X6 1 x Power Input , with D38999 connector

Model 2 1 x VGA Port

2 x 1GbE RJ-45 LAN Port

1 x IPMI RJ-45 Port

2 x USB3.0 Type A Port

2 x USB2.0 Type A Port

1 x COM DB9 Port

1 x Power Input AC-in

Expansion Slot (PCI-E) 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8

Expansion Slot (M.2) M.2 Interface: PCI-E 3.0 x4 Form Factor: 2280, 2242 Key: M-Key

QWERTY keyboard Various language layouts available

105 keys with touchpad

BIOS AMI UEFI, ACPI 6.0

RTC (Real Time Clock) Wakeup

Windows 10 / 11

Windows 10 IoT Enterprise

Linux

AC 100V to 240V Input

TBD

Dimension H 414 x W 624 x D 268mm

Active cooled weight 15kg

Conduction cooled weight 20kg

GPU Option NVIDIA RTX A4000 Ampere GPU architecture 6,144 CUDA Cores, 16GB GDDR6 Memory with ECC Max. Power Consumption: 140W

NVIDIA RTX A2000 Ampere GPU architecture 3,328 CUDA Cores, 6GB /12GB GDDR6 Memory with ECC Max. Power Consumption: 70W

NVIDIA T1000 8GB GDDR6, 4x mDP, Power Consumption: 50W

Standard 1 year (option for 3 years)

TBD

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
