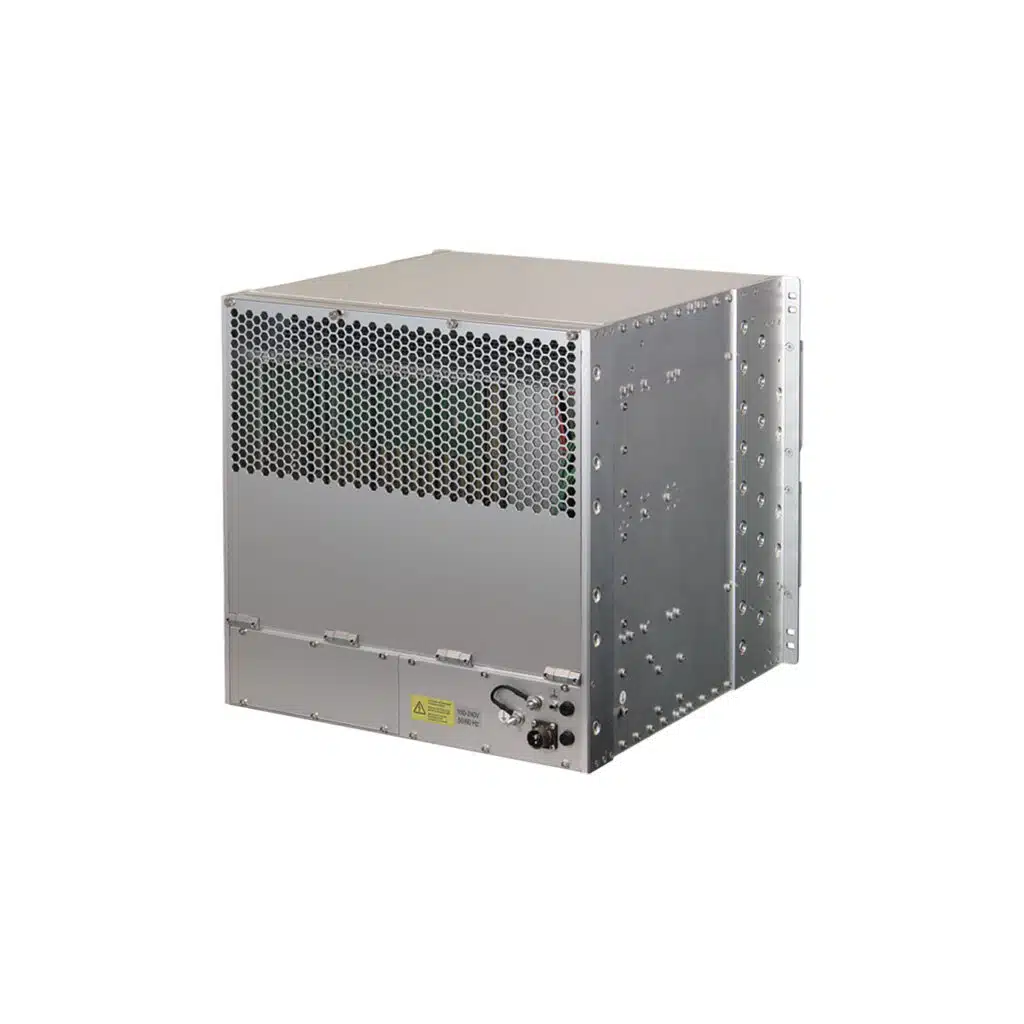

Blue Line Defense VPX System VPX-2000

Blue Line Defense VPX System VPX-2000 is a rugged 10U VPX enclosure designed for a wide range of military applications. With the capacity to accommodate up to 10 units of 6U-size VPX boards, including related rear I/O boards, the VPX-2000 offers unparalleled flexibility and versatility.

Military rugged VPX enclosure
MIL-STD-461/810F certified
Increased shock & vibration resistance for rugged applications
1000W pluggable power supply, with space for a second PSU

100 to 240 VAC input in rear, main switch in front
Front LED indicators for control monitors of fans, temperature and voltages
6U Front card cage & 6U rear I/O card cage w/10 slot VPX backplane
Backplane profile BKP6-CEN10-11.2.4.4 in accordance with VITA 65
Prepared for telescopic slides
Optimal EMC protection through hinged front & rear panel with integrated Honeycomb filter

Download datasheet

Highly configurable

By selecting system and I/O boards from our extensive collection of standardized VPX boards, customers can easily configure the system to meet their specific functionality requirements. Choose standard VPX boards such as CPU, GPU, FPGA, or a custom-made I/O board.

Flexible VPX system

Highly flexible solution with easy access and options for upgrading when time is needed. With a wide range of VPX boards, the possibilities are endless.

Get free advice from our experts to discuss your system requirements based on our VPX enclosure.

Product features

Compact chassis

Specifications

Download datasheet

VPX system

Compact chassis

Aluminium

Fan control module monitors the fans, the temperature and voltages

Airflow direction: Front to rear

For rugged applications with increased shock and vibration resistance

Vibration MIL-STD-810F

Shock MIL-STD-810F

CE, FCC compliance

IP20

MIL-STD-810F compliance

MIL-STD-461 compliance

MIL-STD-167 compliance

10 VPX boards 6 U, 1″, 160mm

10 rear I/O boards

The power for the system is supplied by a pluggable VPX power supply.

Number of slots: 10

Backplane Type: VPX, VITA 65

Data transfer: 10 GbE; PCIe generation 3

One pluggable power supply, 1000 W

Option for a second spare PSU

100 to 240 VAC input in rear, main switch on the front of the chassis

TBD

Power per slot: 50W

Dimension H 443.7 x W 480 x D 490mm

Weight Depends on choice of configurations

RACK mount

1 x Shielded 19″ chassis, Al, 19″ angle, closed top and bottom plate, front handles, hinged front panel, hinged rear panel, honeycombfilter, recessed front and rear board cage

10 x Front slot, IEEE guide rails, incl. ESD clips

10 x Rear slot, IEEE guide rails, incl. ESD clips

1 x VPX backplane for 6U boards, 10 Slot

2 x Power backplane for 6U plug-in power supplies

1 x Plug-in power supplies, 6U, 1000 W

1 x Fan unit, exchangeable from the front, temperature-dependent speed control

1 x Fan control module (FCM2) for fan monitoring/regulating

1 x Display module

1 x Main switch, front side

1 x AC mains input, mains filter, mains fuse

1 x Cable harness to connect all system components

Other types of VPX backplanes available – please contact sales

CPU VPX board – please contact sales

GPU VPX board – please contact sales

FPGA VPX board – please contact sales

Standard 1 year (option for 3 years)

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
