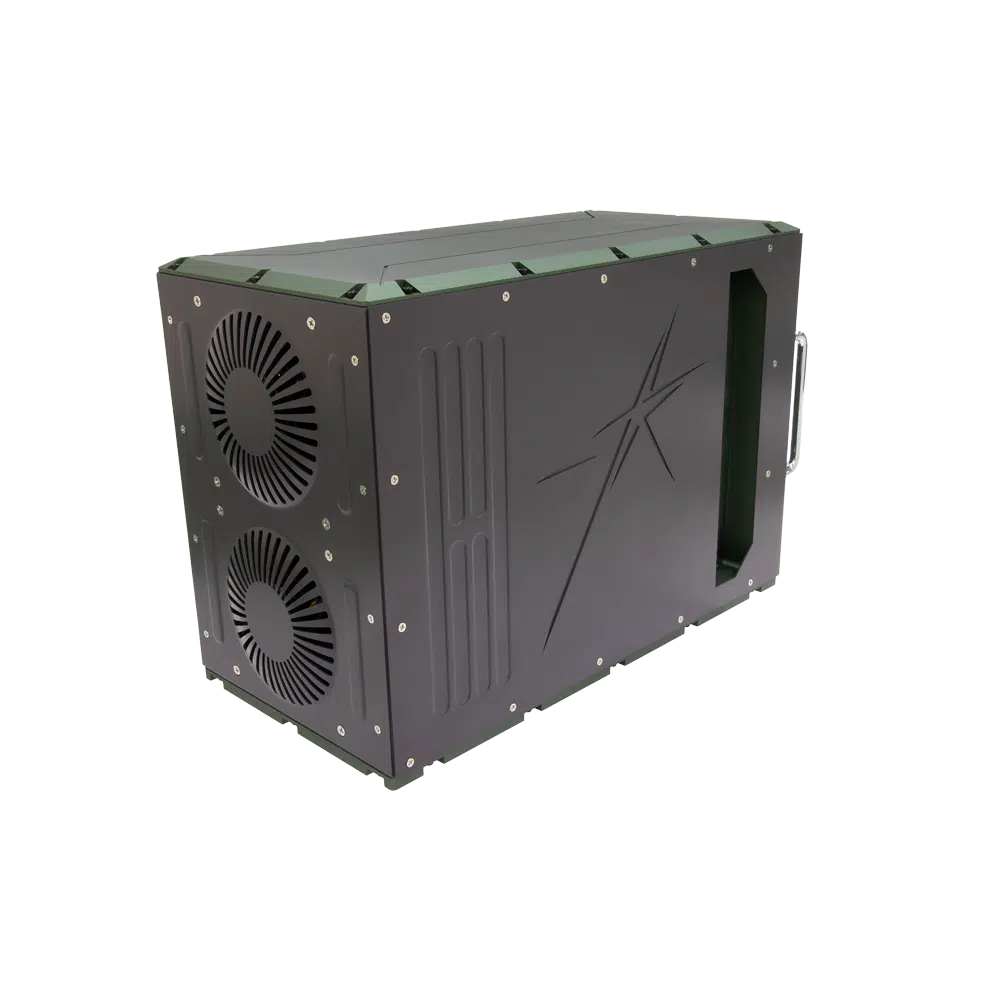

Defense VPX System VPX-3500
Defense VPX-3500 System is a Modular Military Rugged ATR enclosure, geared for 3U OpenVPX designs. The versatile design allows multiple customizable configurations based on proven components and design techniques. The Hybrid conduction cooling cold plate assisted by forced air sets with aggregate power demands over 300W, assisted by liquid up to 600W.
- 5 slot – 3 payload plus 2 peripheral
- Intel 11th Tiger Lake W-11865MRE
- Extreme temperature -40°C to 60°C
- MIL-STD-810, MIL-STD-461/1275/704, MIL-S-901D certified
- NVIDIA MXM RTX A4500 (5888 CUDA)
- 28V DC Input MIL-461/1275/704
- 300W payload by forced-air cooled, 600W payload by liquid cooled
- Custom backplanes with VPX and SOSA aligned slot profiles
- Custom I/O options including MIL-STD wiring & connectors
- Hybrid conduction cooled & heat exchanger sidewalls
- Customization according to your requirements
High-speed signal processing
Custom and standard 5 to 6 slot backplanes with VPX and SOSA aligned slot profiles in combinations supporting high-speed signal processing applications. Scalable to multi CPU-GPU-FPGA requirements. Designed expressly for Gen 4.0 ultra-high wattage military systems.
Military-grade computing
This rugged VPX ATR System is scalable and customizable, and enables compute-intensive, SWaP-constrained mission-critical applications for deployment in the world’s most demanding military and aerospace environments.
Product features
Proven components and design techniques
Specifications
Model Type
Form Factor
Construction
Cooling
Environment
Certification
Front Input / Output
Input / Output
Expansion
Special Function
Power Supply
Power Consumption
Dimension and Weight
Accessories Optional
Warranty and After Sales Support
From setup to delivery
Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.
Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
