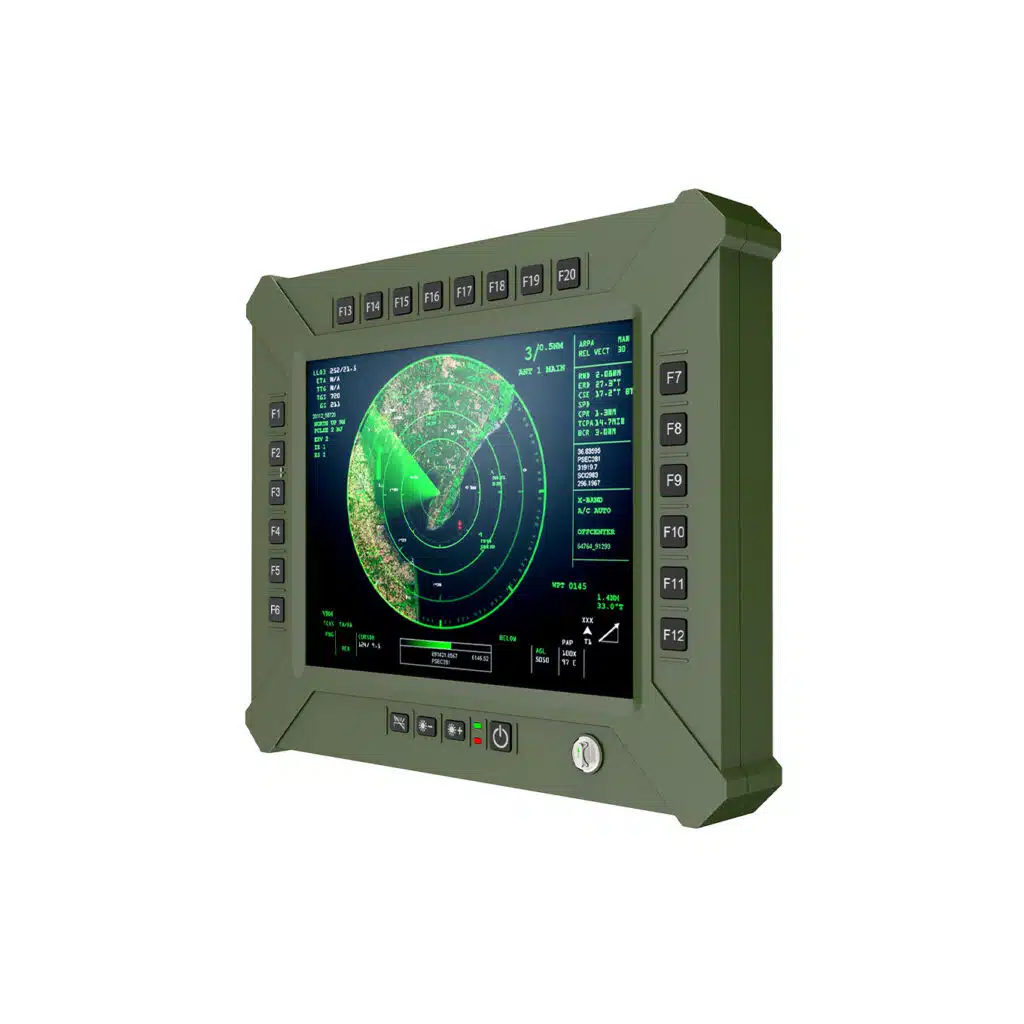

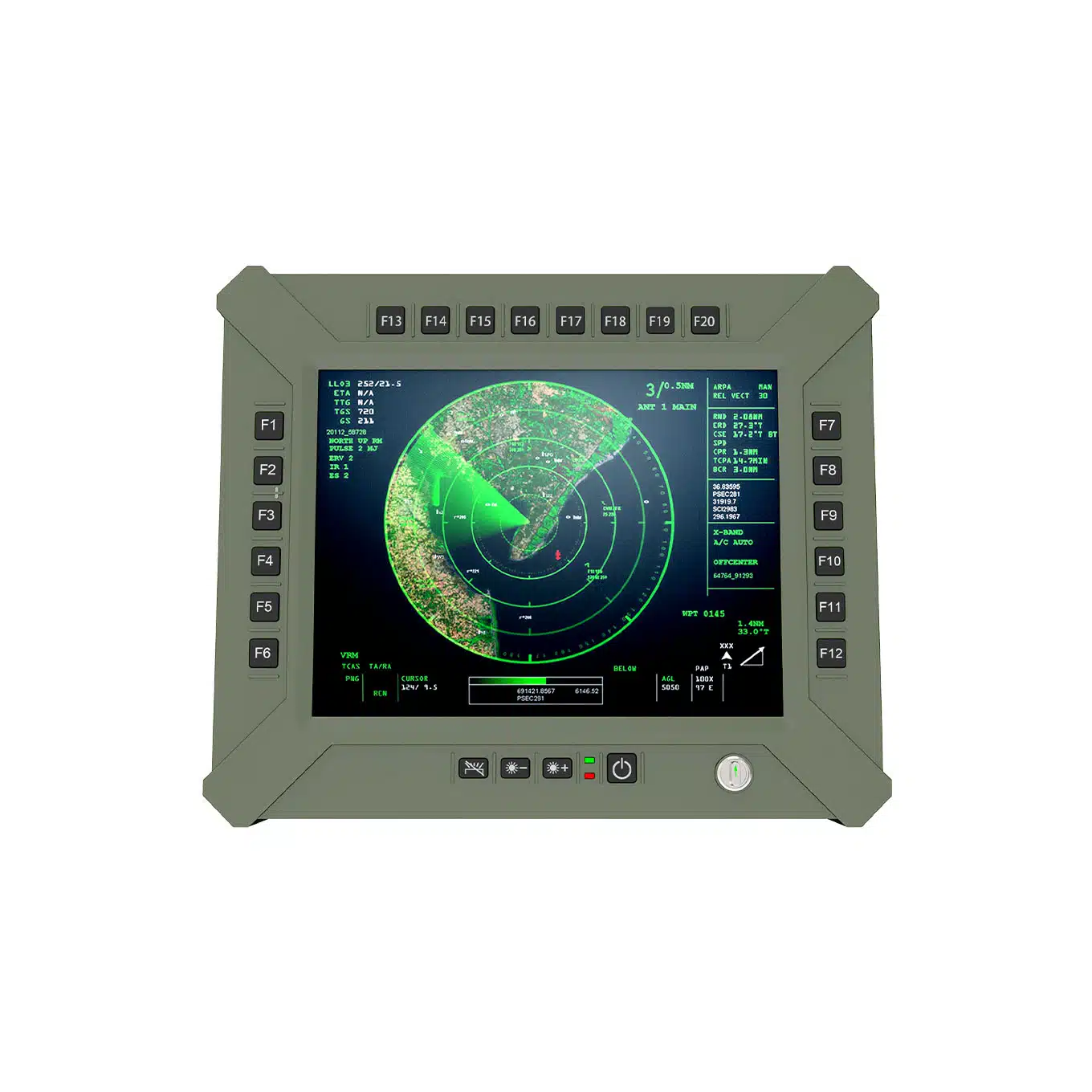

Blue Line Defense Panel Computer DPPC-2000

Blue Line Defense Panel Computer DPPC-2000 is A rugged mission-critical panel computer with a high LCD super brightness of up to 1000 nits and night vision (NVIS) capability at under 1 nit. It features optical bonding of protective glass (GFG) touch screens, EMI filtering/EMI mesh shielding, and anti-reflection/anti-glare (AR/AG) coatings.

Military 15” touch panel computer
IP65 certified
MIL-STD-461E/810G certified
Intel Xeon W-11865MLE & MXM-GPU RTX A2000

15″ colorful LCD XGA resolution
Sunlight readable
NVIS mode support dimmable < 1% nits
Optical bonding G.F.G resistive touch
20 programmable ruggedized function keys design
EMI MESH
Wide temp -40°C to 60°C

Download datasheet

Mission-critical operations

Engineered for survivability in military field operations, it is designed with IP65 protection to withstand rain, dust, shock, and vibration, making it reliable and ready for work in extreme conditions.

The computer also includes a built-in CPU module with an Intel Xeon and 20 programmable function keys.

Product features

Anti-reflecting and -glare screen (readable in sunlight)

Specifications

Download datasheet

Military Panel Computer

Aluminum alloy, corrosion resistant

Anodic aluminum oxide

Fanless

IP65

Operating temperature -40°C to 60°C w/ambient air flow

Storage temperature -40°C to 85 °C

MIL-STD-810G (Operation Test)

Low temperature Method 502.5 procedure 2 Exposure (24h x 3 cycles) at -40℃ min.

High temperature Method 501.5 procedure 2 60ºC for 2 hrs after temperature stabilization.

Humidity Method 507.5 procedure 2 RH -95%. Test cycles: ten 24-hrs, functional test after 5th and 10th cycles

Vibration Method 514.6 category 20 10-500Hz 1.04Grms test duration: 1 hr x 3 axis (total 3 hrs)

Shock Method 516.6 procedure 1 20G, 11mSec, 3 per axis

MIL-STD-810G (Non-operating tests)

Low temperature Method 502.5 Exposure (24h x 7 cycles) at -40℃ min.

High temperature Method 501.5 procedure 1 71ºC for 2 hrs after temperature stabilization.

Vibration Method 514.6 category 24 200 to 2000Hz test duration: 1hr per axis; rms = 7.7 gs

Shock Method 516.6 procedure 1 20G, 11mSec, 3 per axis

Option for MIL-STD-461

CE102 2MHz to 30 MHz

RE102-4, (1.5 MHz) 1.5 MHz to 30 MHz to 5 GHz

RS103 1.5 MHz to 5 GHz

CE, FCC compliance

MIL-STD-810G compliance

MIL-STD-461E compliance

Option for MIL-STD-461

15″ 1024 x 768, 4:3, XGA TFT LCD

Glass-Film-Glass 5-Wire resistor touch panel

Option for IR touch

Option for no touch

1000 nits Day mode: Ultra-brightness 1000 nits

Night mode: NVIS (down to 1.7 nits)

Invisible mode: Backlight off

Model 1 & 2 Intel Core i7-1185G7E, 4C/8T 12W TDP

Model 3 Intel Xeon W-11865MLE, 8C/16T 25W TDP

Model 4 Intel Xeon W-11865MRE, 8C/16T 35W TDP

SoC

Model 1 & 2 Up to 32GB DDR4

Model 3 & 4 Up to 96GB DDR4 (supports ECC memory)

Model 1 & 2 M.2 M key

Model 3 & 4 1 x mSATA, 1 x M.2 M key, 1 x 2.5″

OSD Backlight+

Backlight-

Function key backlight on/off

1 for power button on/off

Function keys 20 programmable function keys (F1 to F20)

DC-IN (Amphenol TV07RW-11-54P) w/IP68 waterproof valve

X1: Mini-DP (Amphenol MDPFTV7AGF312) w/IP68 waterproof valve

X2: 2 x USB2.0 + 2x RS232 w/IP68 waterproof valve

X3: 2 x GbE LAN w/IP68 waterproof valve (model 1 & 2: 1 x 1GbE & 1 x 2.5GbE. model 3 & 4: 2 x 1GbE)

X4, X5: 1 x BNC w/IP68 waterproof valve

Model 1 1 x M.2 E key

Model 2 1 x M.2 E key, 2 x mini PCIe

Model 3 1 x M.2 M key 2 x 3G-SDI

Model 4 1 x M.2 M key, 2 x mini PCIe

Model 3 & 4 Nvidia MXM Quadro A2000 8GB GDDR6

Windows 10 / 11

Windows 10 IoT Enterprice

Linux

+18V to 36V DC-IN

Option for +12V to 40V DC-IN, MIL-STD-461/1275

TBD

Standard VESA 100×100 or 75×75

Panel mount

15″ H 370 x W 442.5 x D 82mm 8.8kg

Standard 1 year (option for 3 years)
