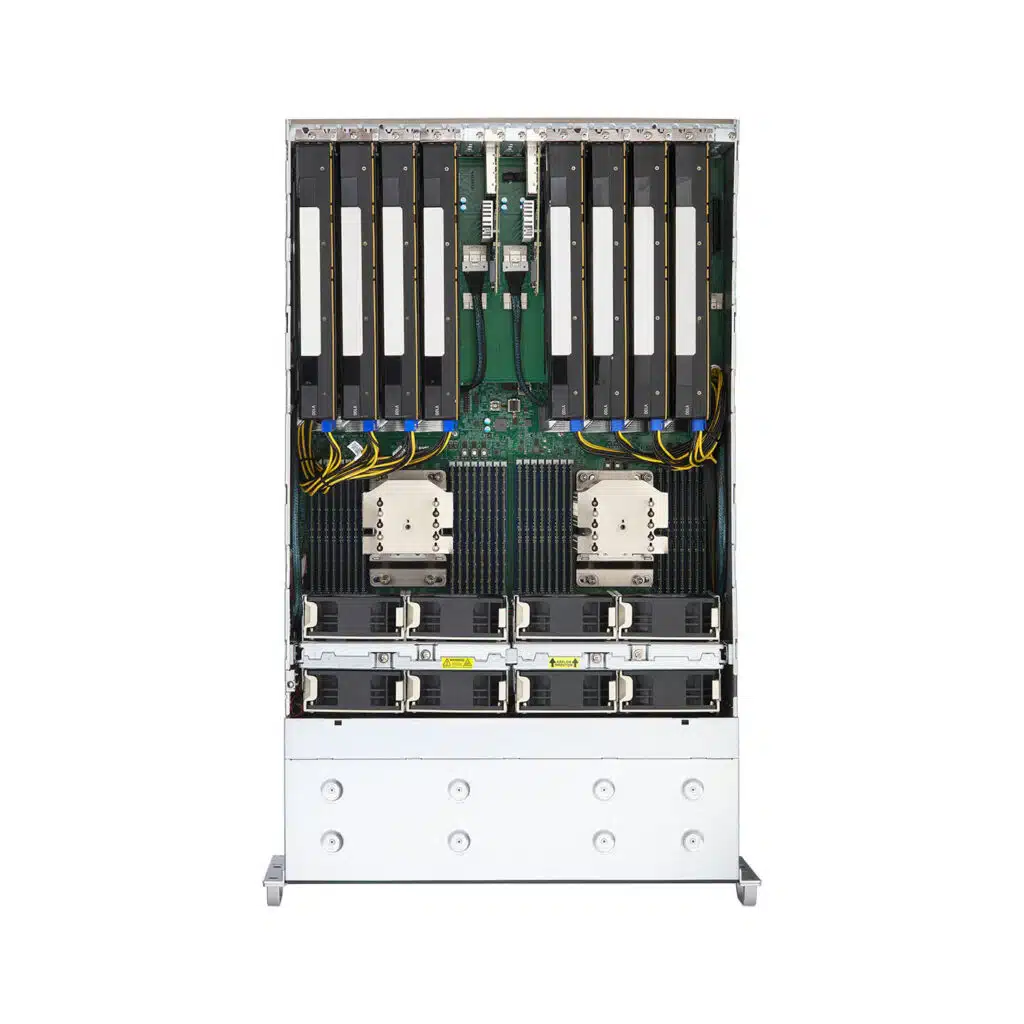

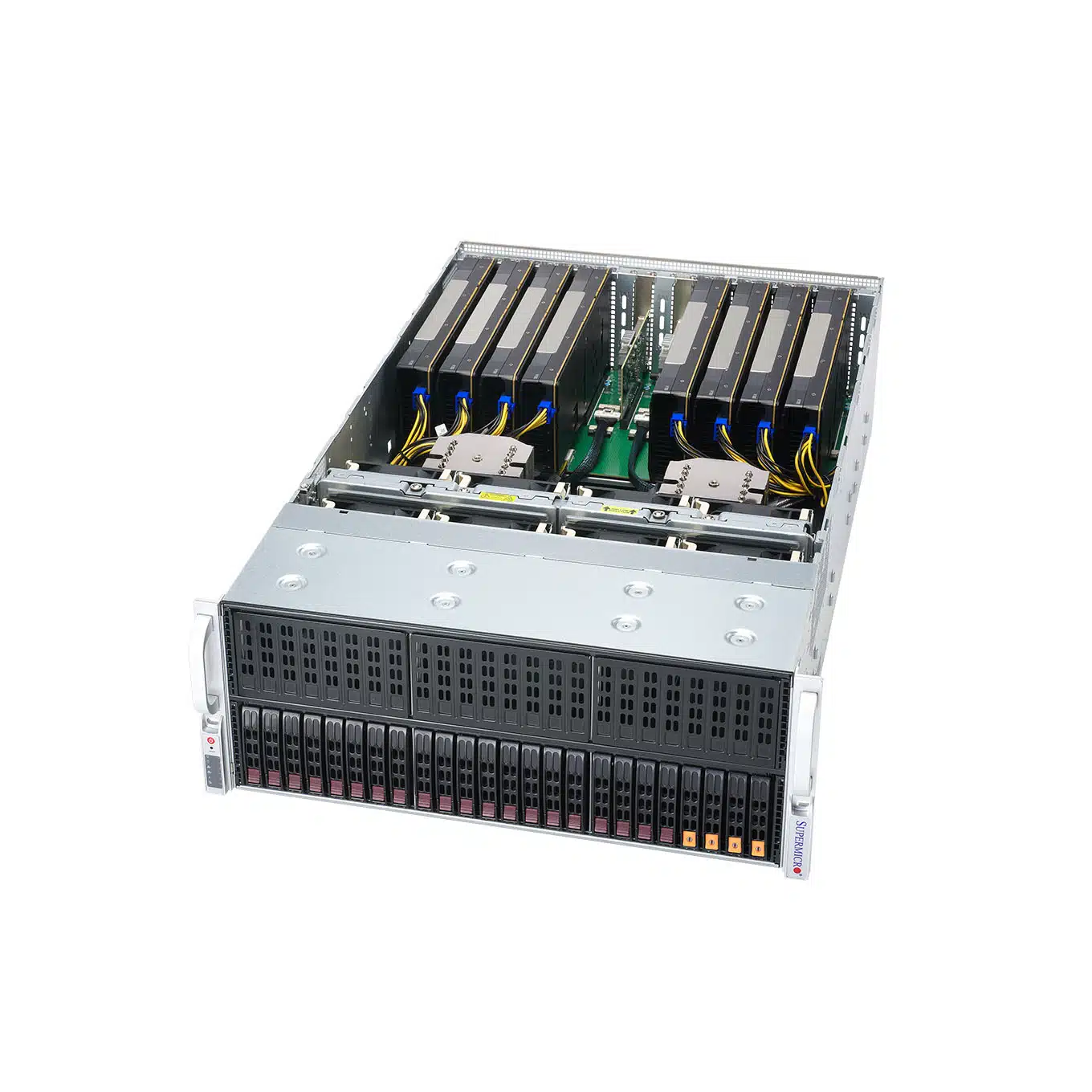

Supermicro GPU Server 4124GS-TNR

High performance Supermicro GPU server for AI, deep learning training, and big data analytics. This powerful computing solution is designed for intensive computational workloads, featuring dual AMD EPYC processors and support for up to 10 double-width GPUs with direct connect architecture for maximum performance.

4U rack mount chassis
Dual AMD EPYC 7002 Series Processors
Up to 10 double-width GPUs
Direct connect for maximum performance

Build-to-order configured to your requirements

Download datasheet

Robust construction

The Supermicro GPU Server 4124GS-TNR delivers exceptional performance for demanding AI and data analytics workloads.

The direct connect architecture ensures maximum data throughput between GPUs, significantly accelerating complex calculations and model training.

Product features

Dual AMD EPYC™ 7002 Series Processors

Specifications

Download datasheet

GPU server

4U rackmount

Rackmount kit (MCP-290-00057-0N)

8 x 11.5K RPM Heavy duty fans

Operating temperature 10°C to 35°C

Non-operating temperature -40°C to 60°C

Operating humidity 8% to 90% (non-condensing)

Non-operating humidity 5% to 95% (non-condensing)

CPU Dual AMD EPYC™ 7002 Series Processors
Socket SP3
Supports CPU TDP up to 280W*

Cores / cache up to 128 Cores (64 per CPU)

Notice* CPUs with high TDP may be supported only under specific conditions. Please contact Blue Line for additional information

System on Chip (SoC)

Memory capacity 32 DIMM slots
up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM

Memory type 3200MHz ECC DDR4 RDIMM/LRDIMM

Up to 24 x 2.5″ SAS/SATA drive bays

4 x 2.5″ SATA supported natively

4 x 2.5″ NVMe supported natively

Rear 2 x RJ45 GbE LAN ports
1 x RJ45 Dedicated IPMI LAN port

2 x USB 3.0 ports
1 x USB 2.0 port

1 x VGA Connector

Internal 24 x SATA3 (6Gbps) ports

1 x COM port

10 x PCI-E 4.0 x16 (FH, FL) slots

1 x PCI-E 4.0 x8 (FH, FL) slot

IPMI 2.0

KVM with dedicated LAN

SSM, SPM, SUM

SuperDoctor® 5

Watchdog

Windows 10

Windows Server 2019

Linux

2000W redundant power supplies with PMBus

Total output power 1000W: 100 to 127Vac
1800W: 200 to 220Vac
1980W: 220 to 230Vac
2000W: 230 to 240Vac
2000W: 220 to 240Vac (UL only)

Input 100 to 127Vac/12 to 9A/50 to 60Hz
200 to 220Vac/10 to 9.8A/50 to 60Hz
220 to 230Vac/10 to 9.8A/50 to 60Hz
230 to 240Vac/10 to 9.8A/50 to 60Hz
220 to 240Vac/11 to 10A/50 to 60Hz (UL only)

+12V max: 83A / Min: 0A (100 to 127Vac)
max: 150A / Min: 0A (200 to 220Vac)
max: 165A / Min: 0A (220 to 230Vac)
max: 166A / Min: 0A (230 to 240Vac)
max: 166A / Min: 0A (220 to 240Vac) (UL only)

12Vsb max: 3.5A / Min: 0A

Output type 25 pairs gold finger connector

H 178 x W 437 x D 737mm Net weight 29.7kg
Gross weight 45.3kg

MCP-290-00057-0N Rail set, quick/quick, default for 4U 17.2″; W

SFT-OOB-LIC OOB management package (per node license)

MCP-230-41803-0N Top cover for GTX card support

MCP-230-41806-0N Top cover for NVLINK BRIDGE support

MCP-220-00121-0B Black Gen-3 2.5″ NVMe drive tray. Orange tab with lock

MCP-220-00167-0B Black Gen-3 2.5″ NVMe drive tray. Orange tab with lock, Tool-less

MCP-240-00096-0N GPU / Add-on card dummy assembly (2 Slots)

CBL-PWEX-0665 GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin female BLK to 8pin female WHT. 30cm 18AWG

CBL-PWEX-1017 GPU power cable (for NVIDIA QUADRO, GTX). 8pin female CPU blue to 2x 6pin female / 2x 1pin female. 20cm 16AWG/20AWG

CBL-PWEX-1040 GPU power cable (for NVIDIA QUADRO, GTX). 8pin male CPU to 2x 6pin female / 2x 1pin female. 5cm 20AWG/16AWG

AOC-S3008L-L8I2 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port – SAS HBA adapter card, RAID 0,1,1E,10

AOC-S3008L-L8E2 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port – SAS HBA adapter card, HBA only

AOC-S3108-H8IR2 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port – SAS HBA adapter card, RAID 0,1,5,6,10,50,60

AOC-S3108L-H8IR-16DD Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port – SAS HBA adapter card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane

CBL-SAST-0531 n/a

MCP-240-00127-0N Remote mounting bracket for supercap. Installs in 2.5″ drive tray

BKT-BBU-BRACKET-05 Remote mounting board for supercap. Installs in 2.5″ drive tray.

Standard 1 year hardware warranty for barebone

3 year hardware warranty & 1 year cross shipment for complete system CPU / MEM / DISK

Option for 5 year hardware warranty & 1 year cross shipment / 3 year hardware warranty & 3 year cross shipment
