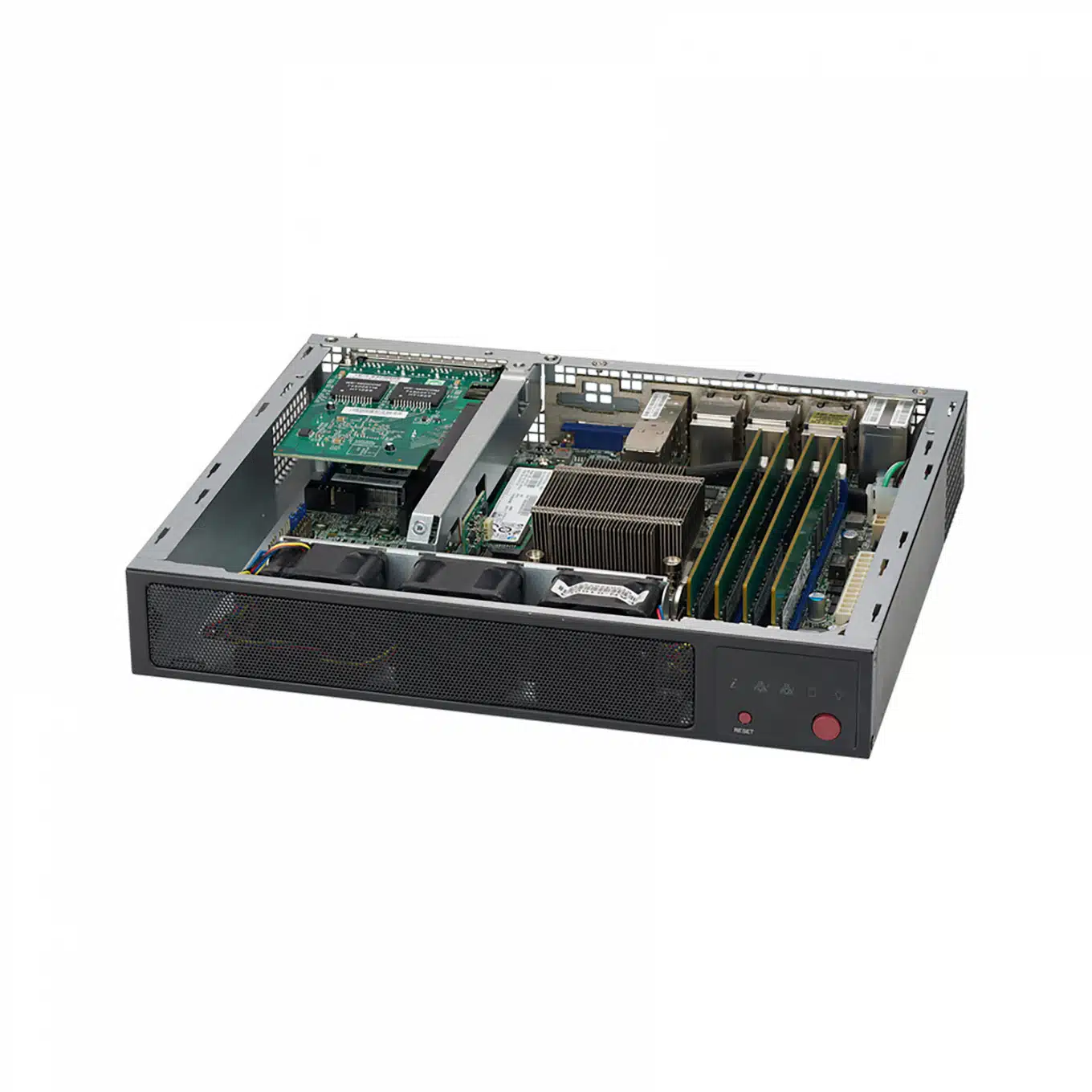

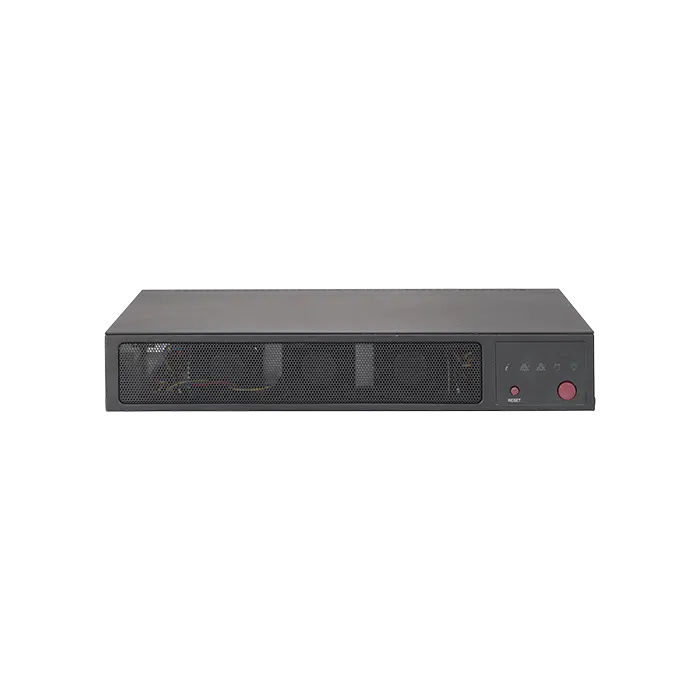

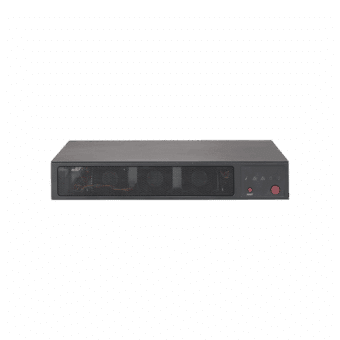

Supermicro Server E300-8D

Embedded server for networking applications, security, firewall, and virtualization. This compact system delivers powerful network processing capabilities in a small form factor for edge computing and network security deployments.

Mini chassis
Intel onboard Xeon D-1518 CPU
Dual 10G SFP+ & 6 GbE LAN
AC to DC power adapter

Option for 1U rackmount kit
Build-to-order configured to the requirements

Download datasheet

Compact server

The Supermicro Server E300-8D delivers enterprise-grade networking capabilities in an ultra-compact form factor.

Powered by the Intel Xeon D-1518 processor with 4 cores/8 threads, this system is specifically engineered for network security, firewall applications, and virtualized network environments.

Product features

Features Intel® Xeon® D-1518 processor

Specifications

Download datasheet

Server

Mini-1U

Passive CPU heat sink & max 3 x 40mm chassis fans

Operating temperature 0°C to 40°C

Non-operating temperature -40°C to 70°C

Operating humidity 8% to 90% (non-condensing)

Non-operating humidity 5% to 95% (non-condensing)

CPU Intel® Xeon® D-1518 2.2GHz CPU TDP supports 35W
FCBGA 1667

Cores/cache 4 cores / 8 threads / 6MB

System on chip

Memory capacity 4 x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory type 1600 / 1866 / 2133MHz ECC DDR4 ECC RDIMM & ECC/non-ECC UDIMM

DIMM sizes 4GB / 8GB / 16GB / 32GB

Memory voltage 1.2V

Error detection Corrects single-bit errors
Detects double-bit errors

1 x Fixed 2.5″ drive bay with bracket (when AOC area is not occupied)

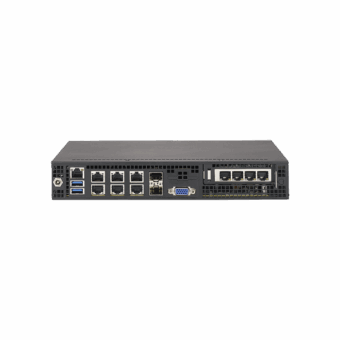

Rear 2 x 10G SFP+ LAN, 6 x 1GbE LAN
1 x dedicated IPMI LAN
2 x USB 3.0, 1 x VGA
2 x super DOM power connectors

Internal 4 x SATA3 (6Gbps) ports
1 x TPM 2.0

1 x PCI-E 3.0 x8 slots

M.2 interface PCI-E 3.0 x4
Form factor MKey 2242 / 2280 / 22110
Supports SATA devices

Mini PCI-E interface PCI-E 2.0 x1
Supports mSATA

WHQL

RHEL / Ubuntu / SUSE

DC power adapter

10″ H 240 x W 210 x D 279mm 1.45kg

15″ H 276 x W 381 x D142mm

1 x 84W DC power adapter

RJ45 serial cable for console

4028mm 13K RPM 4pin PWM fan

120W DC power adapter

Standard 1 year hardware warranty for barebone

3 year hardware warranty & 1 year cross shipment for complete system CPU / MEM / DISK

Option for 5 year hardware warranty & 1 year cross shipment / 3 year hardware warranty & 3 year cross shipment
