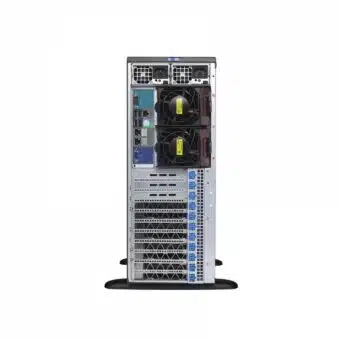

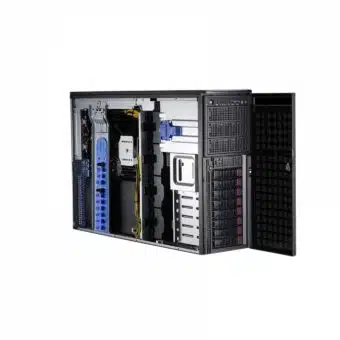

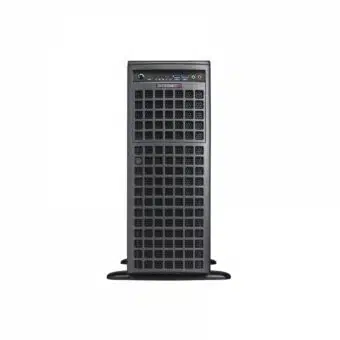

Supermicro GPU Workstation 7049GP-TRT

High performance GPU workstation for AI, deep learning training, and big data analytics. This powerful system supports multiple GPUs for accelerated compute-intensive workloads in research, engineering, and enterprise applications.

Workstation tower
Option for 4U rack mount kit
2 x Intel 2nd generation Xeon Scalable
Up to 4 double-width GPUs

Dual 10GbE
Build-to-order configured to the requirements

Download datasheet

GPU computing platform

The Supermicro GPU Workstation 7049GP-TRT delivers exceptional processing power for demanding computational workloads.

Designed specifically for AI, deep learning, and big data applications, this system features dual Intel Xeon Scalable processors and supports up to four double-width GPUs for massive parallel processing capabilities.

Product features

High-performance workstation

Specifications

Download datasheet

GPU Workstation

Tower (option for 4U rackmount)

4 x heavy duty fans

2 x rear exhaust fans (option for 2 x rear fans, required for passive GPUs)

2 x active heatsink (with optimal speed control)

Operating temperature 10°C to 35°C

Non-operating temperature -40°C to 60°C

Operating humidity 8% to 90% (non-condensing)

Non-operating humidity 5% to 95% (non-condensing)

UL / cUL / CB / BSMI / CE / CCC

CPU Intel Xeon scalable (cascade lake / skylake) dual socket P
3 UPI up to 10.4GT/s)
Supports CPU TDP 70-205W

Cores Up to 28 Cores

Intel C621

16 x DIMM slots

Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 (up to 2666MHz)

2133 / 2400 / 2666MHz ECC DDR4 SDRAM

8 x Hot-swap 3.5″ SAS3/SATA3 drive bays (SATA3 default)

Front 2 x front USB 3.0 ports

Rear 1 x VGA port
2 x RJ45 10GBase-T ports, 1 x RJ45 dedicated IPMI
5 x USB 3.0 ports (2 rear, 2 via header, 1 Type A)
4 x USB 2.0 ports (2 rear, 2 via headers)

Internal 10 x SATA3 (6Gbps) ports

6 x PCI-E 3.0 x16 (double-width) slots

1 x PCI-E 3.0 x4 (in x8 slot)

WHQL

RHEL / Ubuntu / SUSE

Citrix

2200W redundant power supplies with PMBus

Total output power and input 1200W with input 100V to 127V AC
1800W with input 200V to 220V AC
1980W with input 220V to 230V AC
2090W with input 230V to 240V AC
2200W with input 220V to 240V AC (for UL/cUL use only)
2090W with input 230V to 240V DC (for CCC only)

AC input frequency 50 to 60Hz

+12V max 100A / min 0A (100V to 127V AC)
max 150A / min 0A (200V to 220V AC)
max 165A / min 0A (220V to 230V AC)
max 174.17A / min 0A (230V to 240V AC)
max 183.3A / min 0A (220V to 240V AC)

5Vsb max: 1A / Min: 0A

Output type Backplanes (gold finger)

H 460 x W 178 x D 673mm 20.9kg

2 x MINI SAS-4 SATA, INT, 64 / 54 / 44 / 34cm, 64cm SB, 30AWG

2 x 1U 2200W redundant, titanium, power supply, 76 x 40 x 336mm

Optional rackmount kit

Standard 1 year hardware warranty for barebone

3 year hardware warranty & 1 year cross shipment for complete system CPU / MEM / DISK

Option for 5 year hardware warranty & 1 year cross shipment / 3 year hardware warranty & 3 year cross shipment
