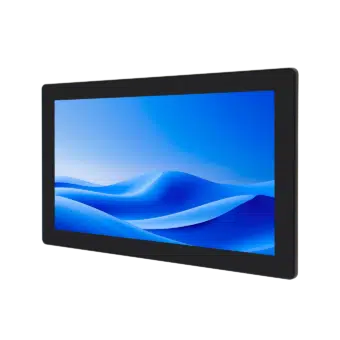

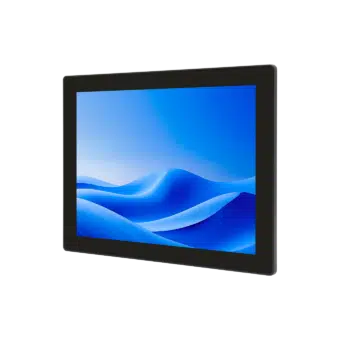

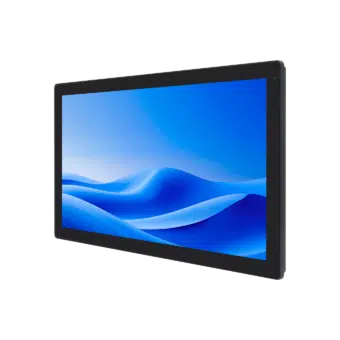

Blue Line Flex Panel PC-1300

Simplify industrial automation with a flexible panel PC designed to adapt to your application. The Blue Line Panel PC Flex-1300 combines reliable computing performance, modular expansion and a narrow bezel design to support HMI, machine control and smart manufacturing environments.

Industrial environment
IP66 front panel
Fanless operation for maximum reliabilty

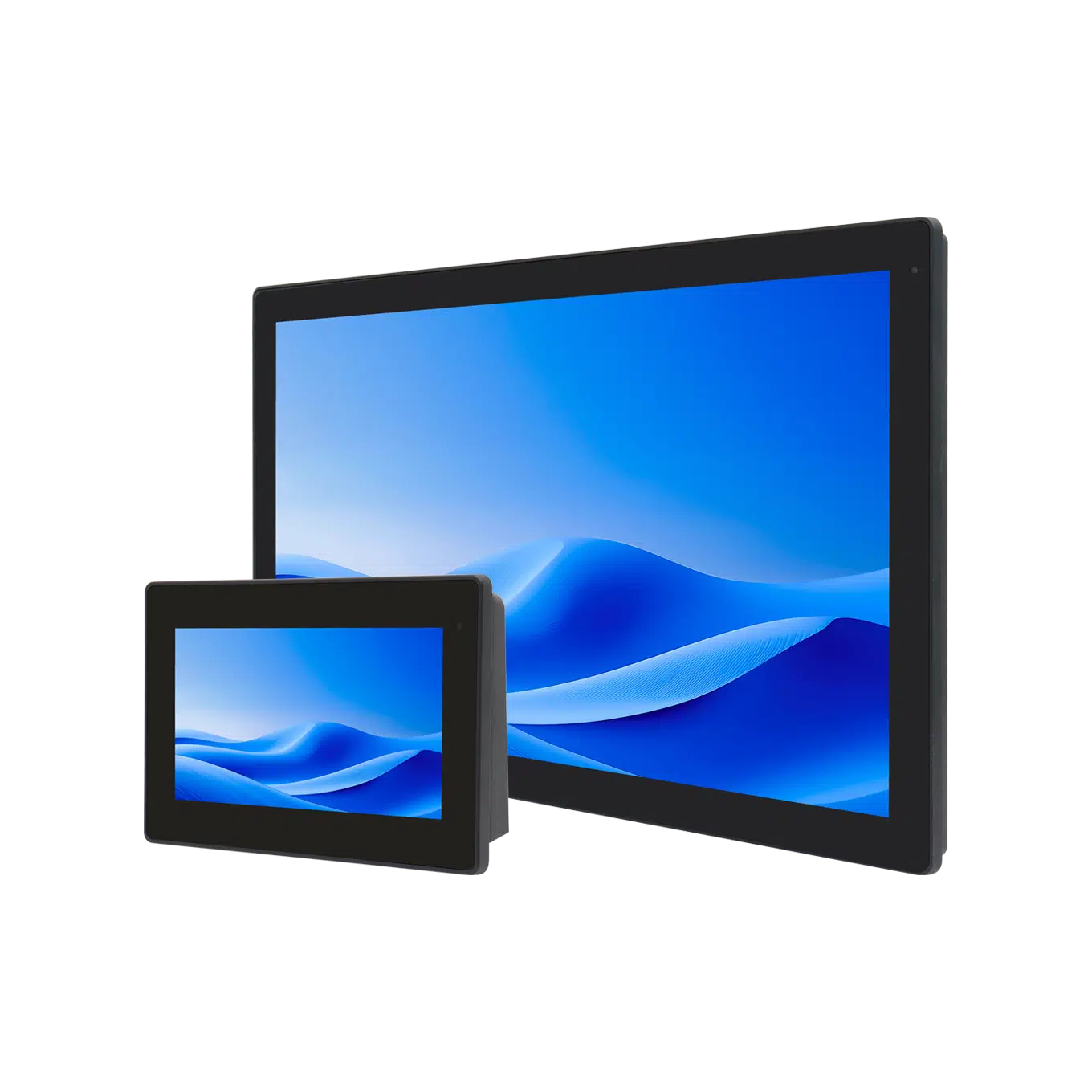

7” to 21.5” projected capacitive touch display

Resolution up to full HD 1920 x 1080
Integrated PC/client
Intel® Celeron® N97 processor for HMI and industrial applications
Optional Intel® Core™ Ultra 5 / 7 for advanced automation and SCADA
Supports Windows 10/11 & Linux
Optional high brightness display up to 1000 nits
VESA / panel mount
Other mounting wall / pipe / swivel arm / gas arm

Download datasheet

Adapt your HMI to changing requirements

Your automation requirements evolve over time. The Flex-1300 gives you the flexibility to choose the performance, display size and connectivity that match your application, making future upgrades and system customization simple.

Improve productivity through seamless integration

Seamless integration is essential for efficient automation. The Flex-1300 provides flexible I/O and mounting options that simplify the connection of machines, controllers and production equipment while reducing overall system complexity.

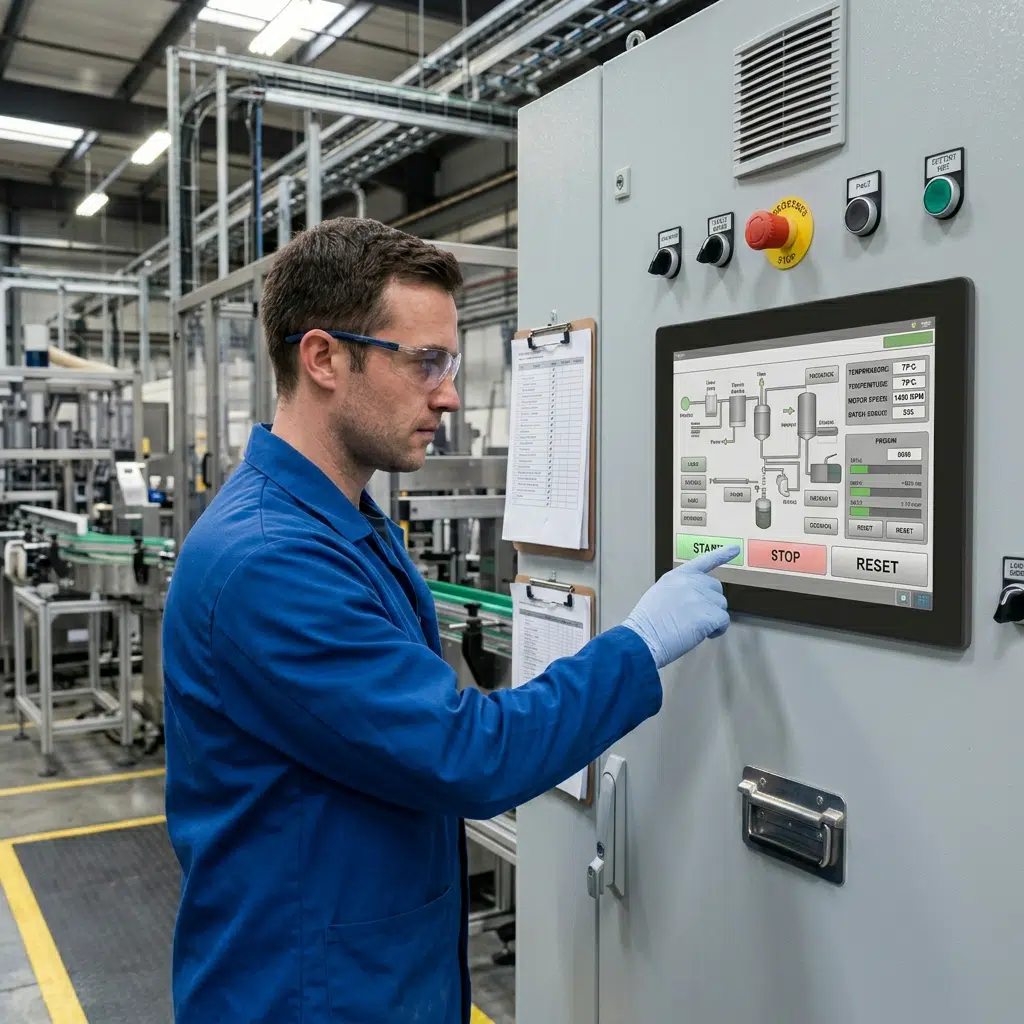

Factory operator using a touchscreen industrial Panel PC Flex-1300 integrated into a machine control cabinet.

Designed for reliable industrial operation

Keep your production running with a panel PC built for demanding industrial environments. The fanless design and IP66-rated front panel help protect against dust and moisture while ensuring stable and reliable operation throughout the day.

Specifications

Download datasheet

Panel PC

Aluminum bezel

Fanless

Front IP66 – Rear IP5X

Operating temperature 0°C to +60°C

Option for wide temperature -20°C to +60°C

Storage temperature -30°C to +70°C

Humidity 10 to 95% @ +40˚C (non-condensing)

CE / FCC Class A

7″ 1024 x 600, 16:9, WSVGA TFT LCD

10.1″ 1280 x 800, 16:10, WXGA TFT LCD

12.1″ 1024 x 768, 4:3, XGA TFT LCD

15″ 1024 x 768, 4:3, XGA TFT LCD

15.6″ 1920 x 1080, 16:9, FHD TFT LCD

21.5″ 1920 x 1080, 16:9, FHD TFT LCD

Projected capacitive multi touch (supports gloves)*

* Supports 7H anti-scratch surface

7″ 350 nits

10.1″ 350 nits

12.1″ 450 nits

15″ 350 nits

15.6″ 500 nits

21.5″ 250 nits

Option for 800 to 1000 nits high brightness

16.7M

160/160 – 178/178

7″ to 21.5″

Intel Celeron N97 4C/4T 2.0GHz TDP 12W Option for: Intel Atom x7425E 4C/4T 1.5GHz TDP 12W

10.1″ to 21.5″

Intel Core Ultra 5 125U (2 P-Cores x 1.3GHz, 8 E-Cores x 0.8GHz,12MB cache, 15W) Option for: Intel Core Ultra 7 155U (2 P-Cores x 1.7GHz, 8 E-Cores x 1.2GHz, 12MB cache, 15W)

SoC

AMI UEFI BIOS

Onboard TPM2.0 SPI

Watchdog Auto reset for unresponsive system (custom 1-255 sec/min settings in BIOS)

Celeron N97 / x7425E 1 x DDR5 SO-DIMM socket, max 32GB 4800MHz

Core Ultra 5 / 7 1 x DDR5 SO-DIMM socket, max 48GB 5600MHz

1 x M.2 M-Key 2280 SATA or PCIe3.0 x4

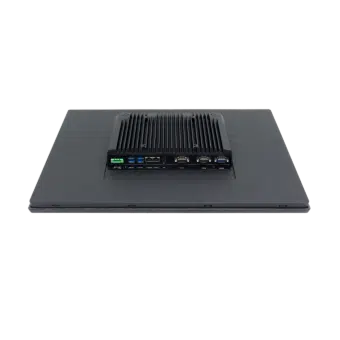

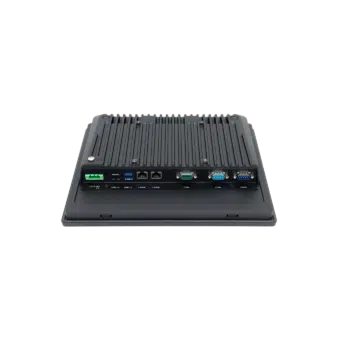

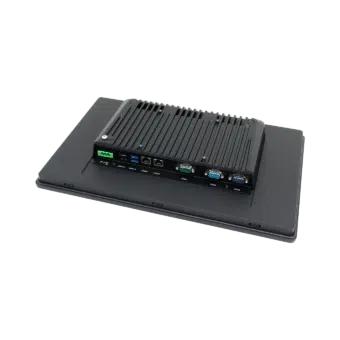

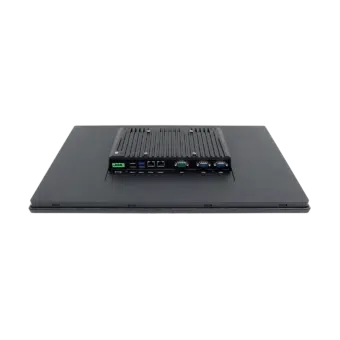

Celeron N97 / x7425E

7″ 2 x UBS 3.2 Gen1 Type A, 2 x USB 2.0 Type A
1 x RS-232/422/485 (Default RS-232) DB9 Port
2 x 2.5GbE Intel i226V/IT LAN RJ-45 Port
1 x HDMI 1.4
1 x 3-pin DC power input via terminal block

10″ to 21.5″ 2 x UBS 3.2 Gen1 Type A, 2 x USB 2.0 Type A
2 x RS-232/422/485 (Default RS-232) DB9 Port
2 x 2.5GbE Intel i226V/IT LAN RJ-45 Port
1 x HDMI 1.4
1 x 3-pin DC power input via terminal block

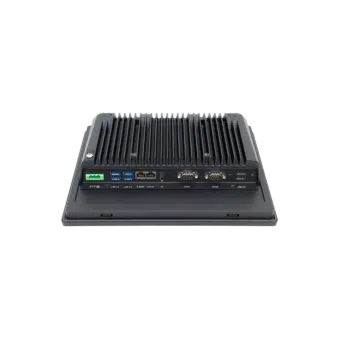

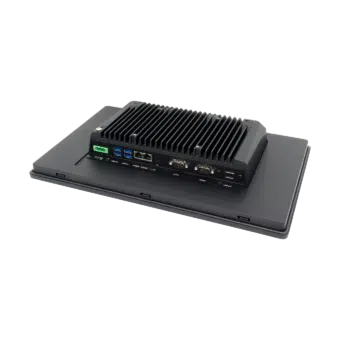

Core Ultra 5 / 7

10.1″ to 21.5″ 4 x UBS 3.2 Gen1 Type A
2 x RS-232/422/485 (Default RS-232) DB9 Port
2 x 2.5GbE Intel i226V/IT LAN RJ-45 Port
1 x HDMI 2.1
1 x DP1.4
1 x 3-pin DC power input via terminal block

1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3042/3052 B-key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
Internal Nano SIM Card holder

Windows 10 / 11

Windows 10 / 11 IoT Enterprise

Linux 24.04

+9 to +36V DC-in by terminal block

Celeron N97 /x7425E 36 to 53W (Max)

Core Ultra 5 / 7 35W to 62W (Max)

7″ Panel mounting* / VESA 75×75

10″ to 21.5″ Panel mounting* / VESA 100×100

*The screen must be mounted from the back

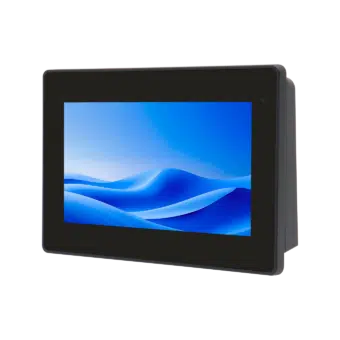

7″

N97 / x7425E Outer: H 135 x W 197 x D 48mm
Cut-out: H 124 x W 186mm Net Weight 1,0kg

10.1″

N97 / x7425E Outer: H 184,9 x W 270,0 x D 57,0mm
Cut-out: H 186 x W 261mm Net weight 1.86kg

Core Ultra 5 / 7 Outer: H 184,9 x W 270 x D 66mm
Cut-out: H 186 x W 261mm Net Weight 2.37kg

12.1″

N97 / x7425E Outer: H 230 x W 291 x D 55mm
Cut-out: H 220 x W 281mm Net weight 2.31kg

Core Ultra 5 / 7 Outer: H 230 x W 291 x D 64mm
Cut-out: H 220 x W 281mm Net weight 2.74kg

15″

N97 / x7425E Outer: H 283,6 x W 359,6 x D 56,6mm
Cut-out: H 247,7 x W 350,7mm Net weight 3.42kg

Core Ultra 5 / 7 Outer: H 283,6 x W 359,6 x D 65,5mm
Cut-out: H 247,7 x W 350,7mm Net weight 3,75kg

15.6″

N97 / x7425E Outer: H 245,7 x W 396,3 x D 55mm
Cut-out: H 236,2 x W 386,8mm Net weight 3.85kg

Core Ultra 5 / 7 Outer: H 245,7 x W 396,3 x D 64mm
Cut-out: H 236,2 x W 386,8mm Net weight 3.49kg

21.5″

N97 / x7425E Outer: H 321,3 x W 529,6 x D 56,5mm
Cut-out: H 312 x W 520,7mm Net weight 5.14kg

Core Ultra 5 / 7 Outer: H 321,3 x W 529,6 x D 65,5mm
Cut-out: H 312 x W 520,7mm Net weight 5.5kg

AC to DC power adapter with terminal block

Power core 1.8m cable

Panel mount kit

Wall mount kit

Desktop stand

WIFI / BT modul and Antenna kit

4G LTE or 5G modem and Antenna kit

High Brightness

Support Auto-Dimming

Internal RFID 13.56MHz reader

Optional panel mount dustproof covers when VESA mounted
• 4pcs. for 7″
• 8pcs. for 10.1″ & 12.1″
• 10pcs. for 15″ & 15.6″
• 12pcs. for 21.5″

1 x COM (RS-232) or 2 x USB 2.0 Type A

Standard 1 year (option for 3 years)

Proven results

Flexible performance

Choose the processor and configuration that fit your application.

Industrial reliability

Fanless design and IP66 front for continuous operation in demanding environments.

Easy integration

Flexible mounting and I/O options simplify installation across industrial applications.

Ready for growth

Scalable platform with expansion options for future connectivity and performance needs.

Product features

Aluminium bezel

Multi-touch display

Suitable for industrial environment

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
