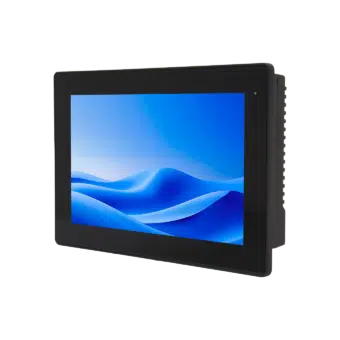

Blue Line Flex Panel PC-1200

Power your industrial applications with an integrated Panel PC designed for demanding automation environments. The Blue Line Flex Panel PC-1200 combines 11th generation Intel® Core™ performance, industrial reliability and flexible connectivity to support HMI, SCADA and machine control applications.

Industrial environment
IP66 front panel
Fanless operation for maximum reliability
10.1″ to 21.5“ projected capacitive touch display

Resolution up to full HD 1920 x 1080
Integrated PC / client
11th generation Intel Core i3 / i5 for multi-task and SCADA
Supports Windows 10/11 & Linux
VESA / panel mount
Other mounting wall / pipe / swivel arm / gas arm

Download datasheet

Handle demanding industrial workloads

As industrial applications become more data intensive, reliable computing performance becomes essential. The Flex Panel PC-1200 delivers the processing power needed for HMI, SCADA and production monitoring while combining display and computing in one integrated platform.

Integrate seamlessly into your automation system

Reduce installation complexity with a Panel PC designed for industrial environments. Flexible I/O options, multiple mounting solutions and fanless operation make the Flex Panel PC-1200 easy to integrate into machines, control cabinets and production lines while supporting reliable long-term operation.

Product features

Suitable for industrial environment

Aluminium bezel

Multi-touch display

Accessories

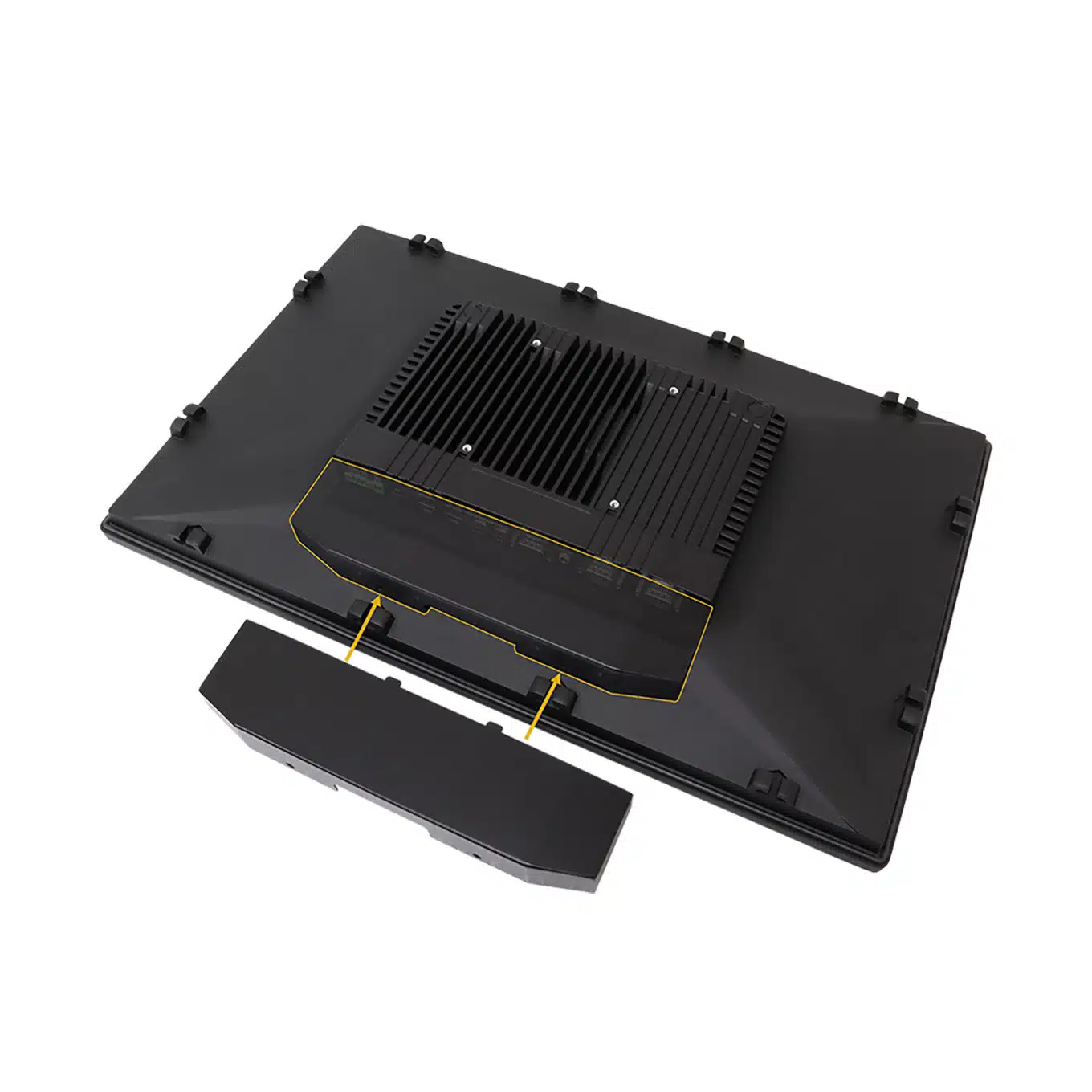

Cable cover kit for 15.6″ and 21.5″

Mounting options

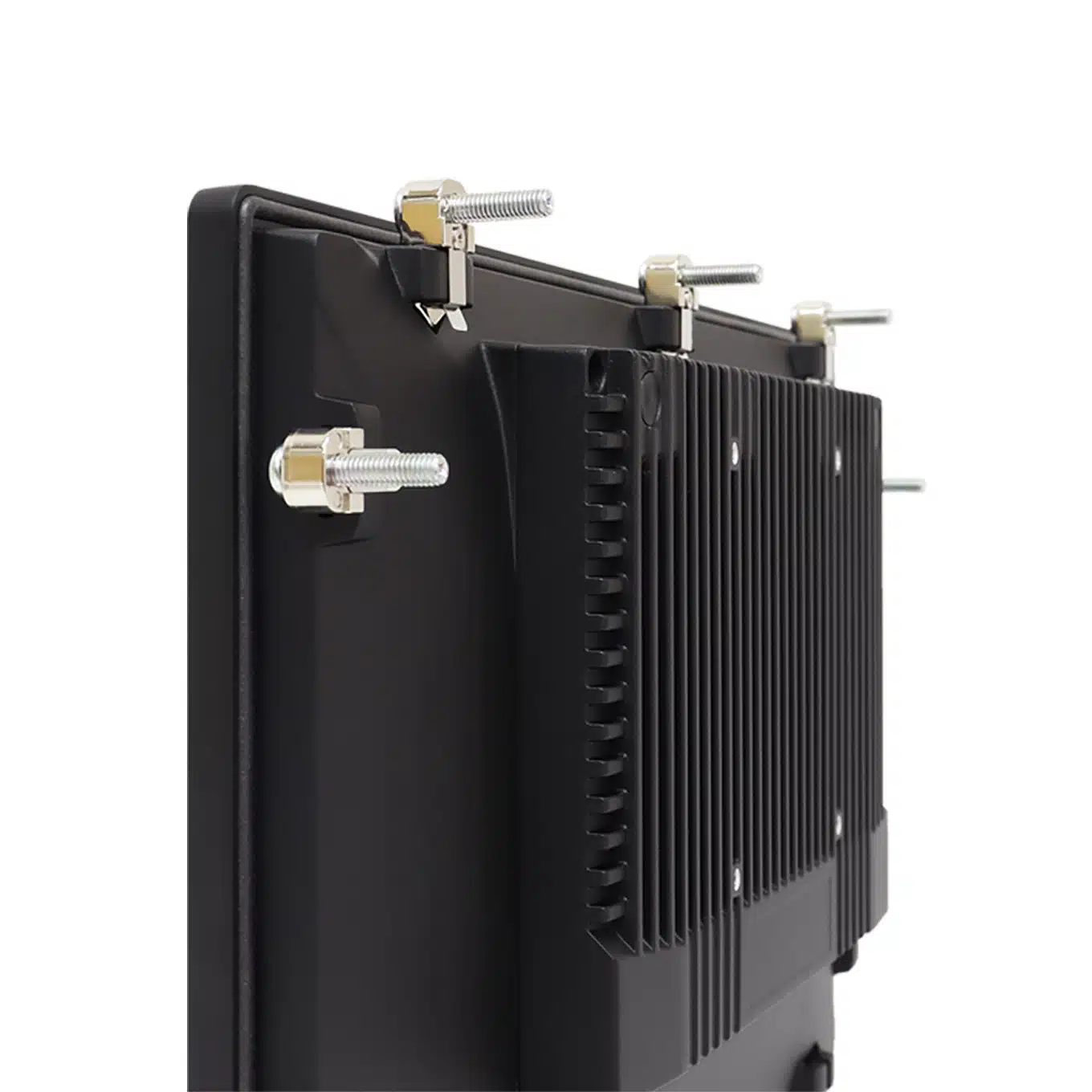

Panel mount kit

Specifications

Download datasheet

Panel PC

Aluminum bezel

Fanless

Front IP66

Operating temperature 0°C to +50°C

Option for wide temperature -20°C to +60°C

Storage temperature -30°C to +70°C

Humidity 10 to 90% @ +40˚C (non-condensing)

CE / FCC Class A

10.1″ 1280 x 800, 8:5, WXGA TFT LCD

15.6″ 1366 x 768, 16:9, WXGA
(option for 1920 x 1080, 16:9, FHD) TFT LCD

21.5″ 1920 x 1080, 16:9, FHD TFT LCD

Projected capacitive multi touch (supports gloves)

Resistive touch (optional)

10.1″ 350 nits

15.6″ 400 / 450 nits

21.5″ 250 nits

All sizes Option for high brightness 1000 nits

16.7M

160/160 – 178/178

Intel 11th Gen. Core i3-1115G4E 2C/4T 2.20GHz (Turbo 3.9GHz) 15W TDP
Option for i5-1145G7E 4C/8T 1.50GHz (Turbo 4.1GHz) 15W TDP

SoC

Intel Core i3 / i5 Up to 64GB, 2 x 260-pin DDR4 SO-DIMM 3200 MHz

1 x M.2 M-Key 2280 (Support PCIe/SATA3)

4 x USB 3.0 type A

2 x GbE LAN RJ-45

1 x audio line out

1 x DP

1 x 3-pin terminal block connector

1 x 2-pin power switch connector

1 x DB-9 connector, including*
*COM1: 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper
*COM2: 1 x RS-232(Tx, Rx)/422/485 by Y cable

1 x Mini-PCIe slot (full size)

1 x M.2 E key for WIFI / Bluetooth module

1 x Nano SIM slot

Windows 10 / 11

Windows 10 IoT Enterprise

Linux

ThinManager, Microsoft Remote Desktop (RPD), NoTouch OS, VNC, Citrix and others

+9 to +36V DC-in by terminal block

Up to 92W

Panel mounting / VESA 100*

*The screen must be mounted from the back

10.1″ H 189 x W 269 x D 51mm
Cut-out: H 176 x W 256mm 1.8kg

15.6″ H 256 x W 405 x D 59mm
Cut-out: H 242 x W 391mm 3.7kg

21.5″ H 333 x W 541 x D 59mm
Cut-out: H 319 x W 527mm 6.3kg

AC to DC power adapter with terminal block

Power core 1.8m cable

Panel mount kit

Wall mount kit

Desktop stand

Cable cover kit*

WIFI / BT M.2 module and Antenna kit

4G LTE Model M.2 module and Antenna kit

Backup battery

4 x USB 2.0 type A I/O Module

4 x USB 2.0 type A + 1 x Mini-PCIe + 1 SIM slot I/O Module

1 x COM (RS-232) + 2 x USB 2.0 I/O Module

1 x COM (RS-232) + 2 x USB 2.0 + 1 x power button I/O Module

2 x COM (RS-232) I/O Module

2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot I/O Module

2 x COM (RS-422/485, isolated) I/O Module

2 x CAN I/O Module

1 x LAN + 2 x USB 2.0 I/O Module

1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A I/O Module**

*Only for 15.6″ and 21.5″

**PoE limitation: CPU turbo off, rear I/O no loading, 70% LED backlight, PSE cable length < 50m

(Only one I/O Module or backup battery can be inserted in the unit)

Standard 1 year (option for 3 years)
