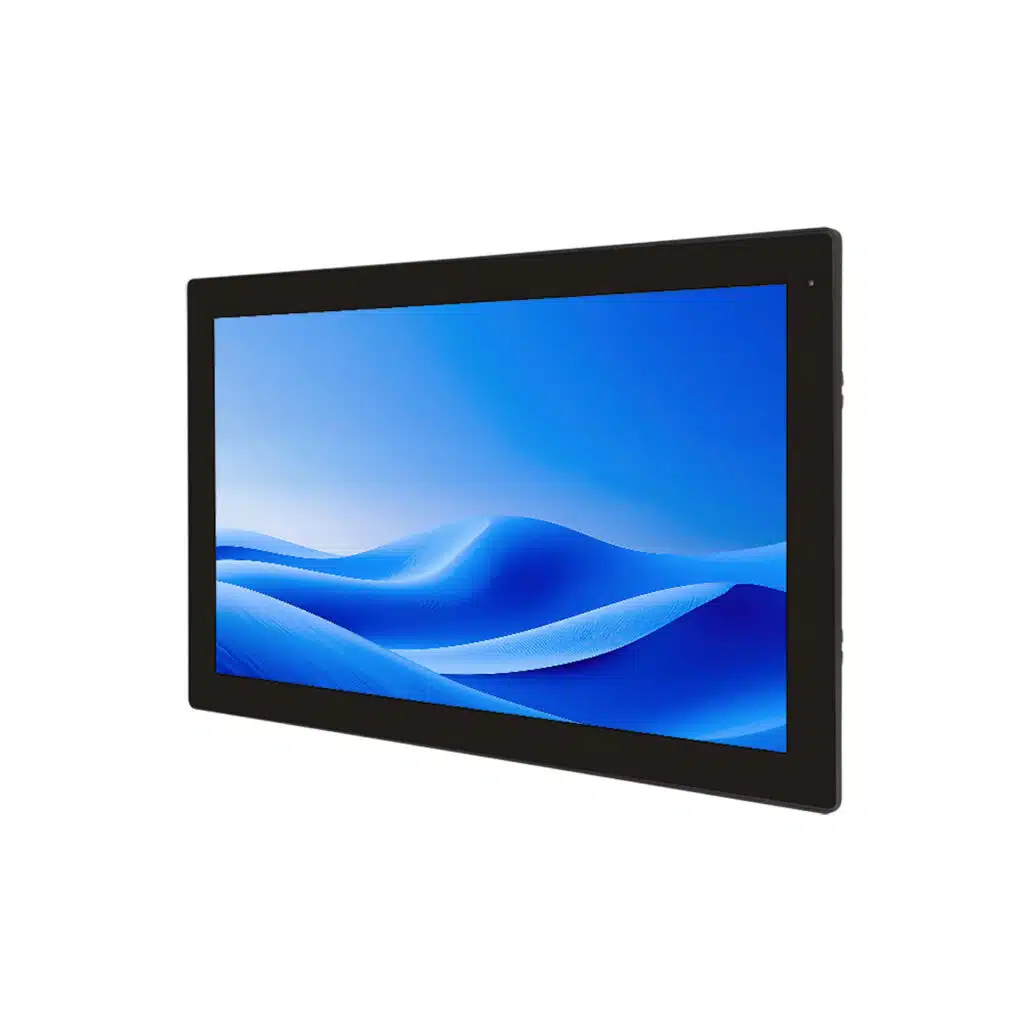

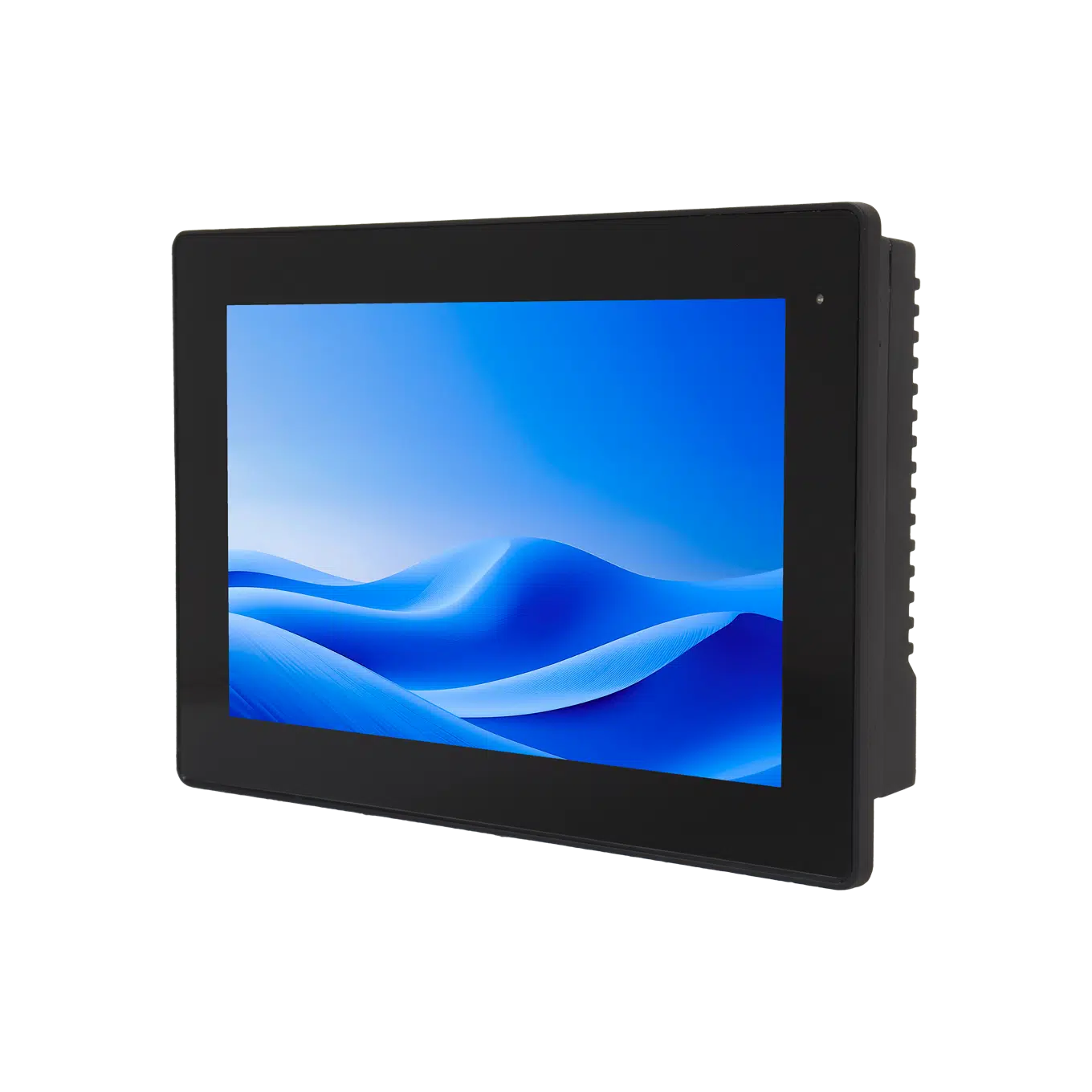

Blue Line Flex Monitor-1200

Keep critical process information clearly visible with an industrial monitor designed for demanding automation environments. The Blue Line Flex Monitor-1200 combines high-quality visualization, flexible connectivity and reliable operation to support HMI, SCADA and machine control applications.

Industrial environment
IP66 front panel
Fanless operation for maximum reliability
10.1″ to 21.5“ projected capacitive touch display

Resolution up to full HD 1920 x 1080
Integrated PC/client
VESA/panel mount
Other mounting wall/pipe/swivel arm/gas arm

Download datasheet

Industrial monitor

The Flex Monitor-1200 delivers exceptional display capabilities with multiple input options including VGA, HDMI, and DisplayPort. Its versatile design makes it perfect for applications requiring a reliable, industrial-grade display that can connect to remote PCs or industrial controllers.

Product features

Suitable for industrial environment

Aluminium bezel

Multi-touch display

Accessories

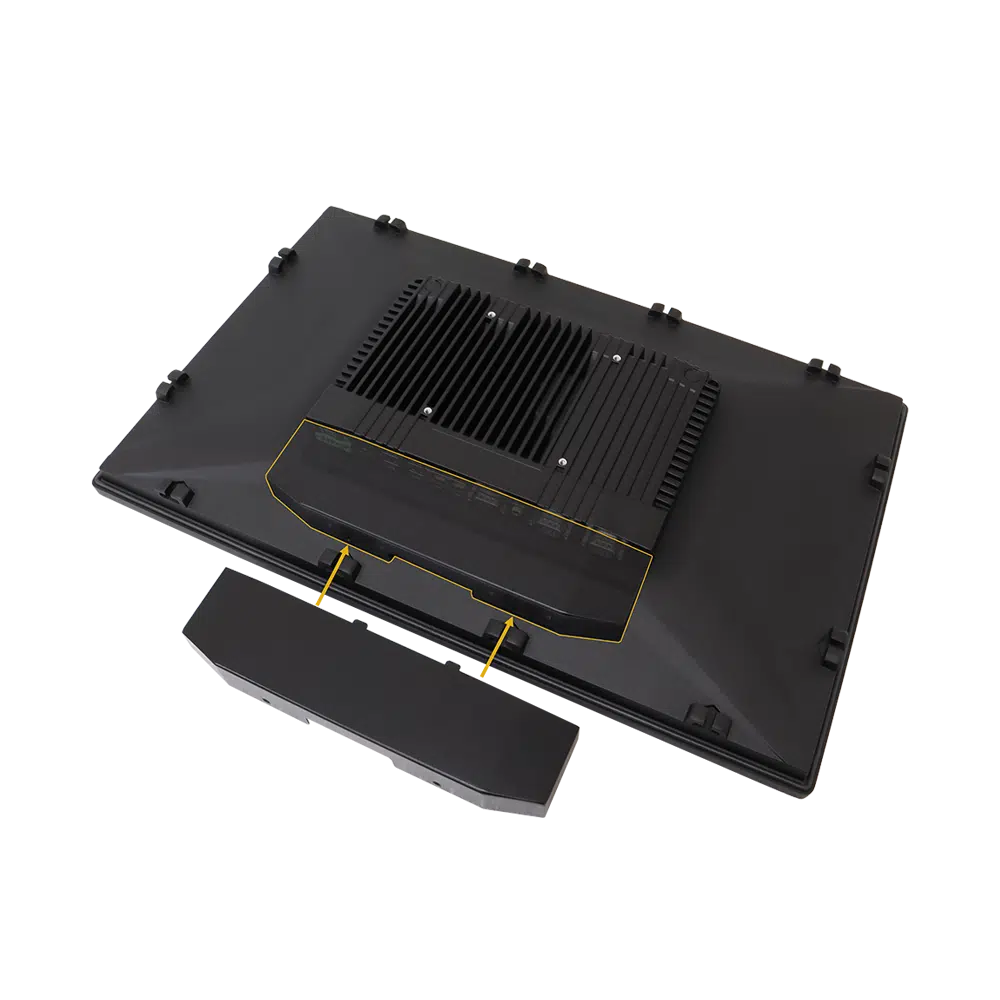

Blue Line Flex Series-1200_Cable Cover Kit for 15.6inch and 21.5inch

Cable cover kit for 15.6″ and 21.5″

Mounting options

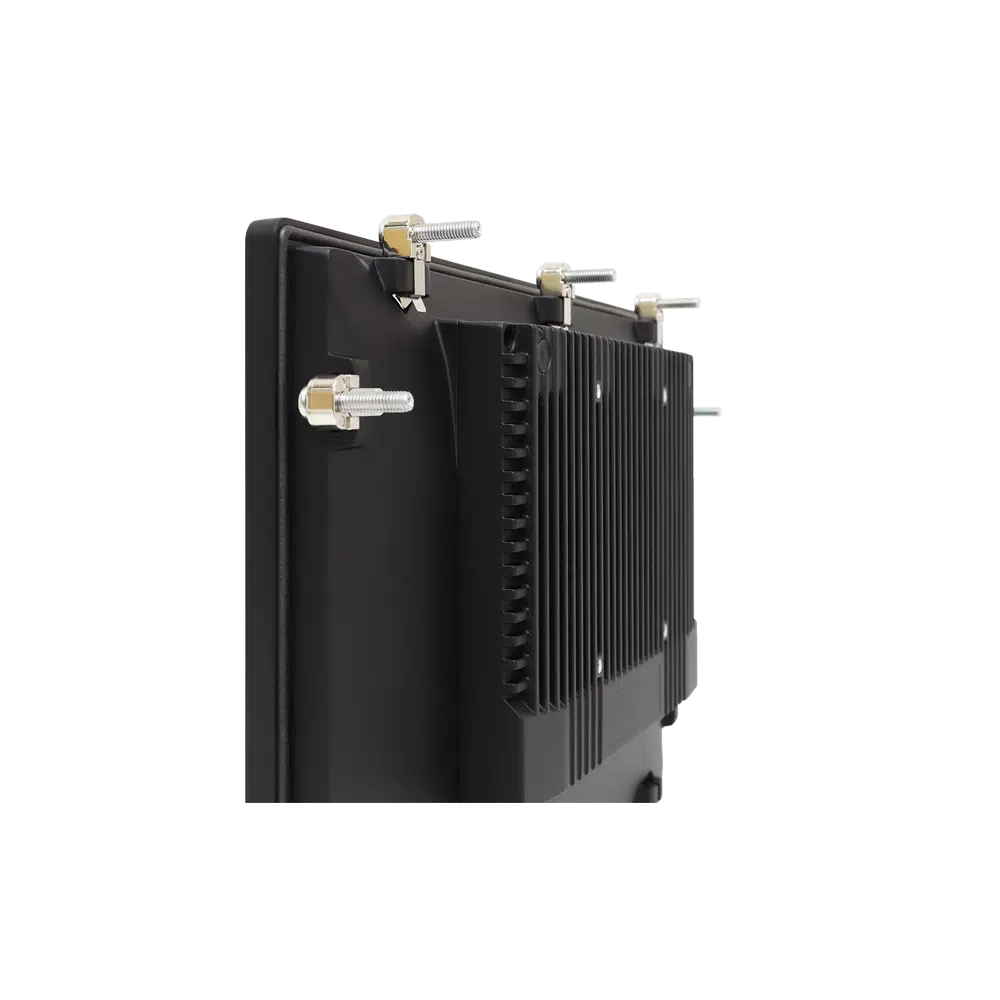

Panel mount kit

Specifications

Download datasheet

Monitor

Aluminum bezel

Fanless

Front IP66

Operating temperature 0°C to +50°C

Option for wide temperature -20°C to +60°C

Storage temperature -30°C to +70°C

Humidity 10 to 90% @ +40˚C (non-condensing)

CE / FCC Class A

10.1″ 1280 x 800, 8:5, WXGA TFT LCD

15.6″ 1366 x 768, 16:9, WXGA
(option for 1920 x 1080, 16:9, FHD) TFT LCD

21.5″ 1920 x 1080, 16:9, FHD TFT LCD

Projected capacitive multi touch (supports gloves)

Resistive touch (optional)

10.1″ 350 nits

15.6″ 400 / 450 nits

21.5″ 250 nits

All sizes Option for high brightness 1000 nits

16.7M

160/160 – 178/178

1 x USB type A for touch

1 x VGA

1 x HDMI

1 x DP

1 x audio line-in phone jack

5 x keys on rear side

1 x 3-pin terminal block connector

+24V DC-in by terminal block

5.28W to 32.9W (Max)

Panel mounting / VESA 100*

*The screen must be mounted from the back

10.1″ H 189 x W 269 x D 51mm
Cut-out: H 176 x W 256mm 1.6kg

15.6″ H 256 x W 405 x D 59mm
Cut-out: H 242 x W 391mm 3.5kg

21.5″ H 333 x W 541 x D 59mm
Cut-out: H 319 x W 527mm 6.3kg

AC to DC power adapter with terminal block

Power core 1.8m cable

Panel mount kit

Wall mount kit

Desktop stand

Cable cover kit*

HDMI Cable

DP Cable

USB Touch Cable (Type A to Type A, max 5m)

*Only for 15.6″ and 21.5″

Standard 1 year (option for 3 years)

Modular design philosophy

Blue Line’s modular design makes it possible to configure to specific needs in functionality, finish and environment. Get free advice from our experts and let us set up a Teams meeting for an online demo and Q&A.

Benefit from our experience and knowledge based on numerous installations in biotech and pharmaceutical sites around the world.

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
