Blue Line Flex Monitor-1100

Cost-effective industrial monitor series designed for seamless display integration in industrial environments. This versatile display solution features flexible I/O expansion ports for connecting to your existing systems. Fanless operation and IP66 dust/waterproof front provide reliable operation 24/7/365.

  • Industrial environment
  • IP66 front panel
  • Fanless operation for maximum reliabilty
  • 7” to 32” projected capacitive touch display
  • Resolution up to full HD 1920 x 1080
  • Option for resistive touch or no touch
  • VESA/panel mount
  • Other mounting wall / pipe / swivel arm / gas arm

Versatile industrial display

The Flex Monitor-1100 series offers exceptional display capabilities for industrial environments, with flexible connectivity options to integrate with your existing computing infrastructure.

Perfect for applications where you need a reliable, industrial-grade display that can connect to remote PCs or industrial controllers.

Flexible HMI

The flexible platform and large product range makes this HMI an optimal choice for many industrial scenarios.

With a fanless operation and IP66 dust-/waterproof front, the HMI has excellent reliability. Several models in this series are UL certified.

Product features

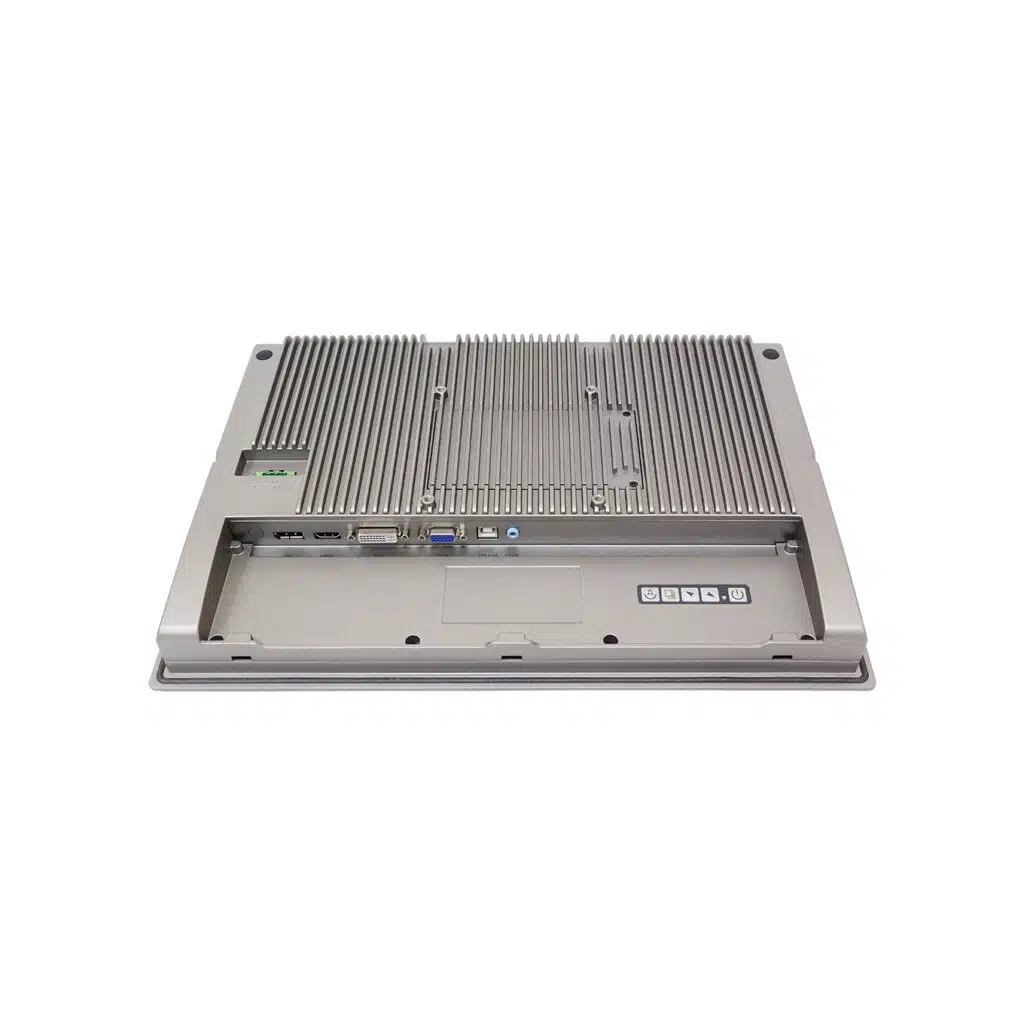

Blue Line Flex Panel PC-1100 from the back

Aluminium bezel

Blue Line Flex Panel PC-1100 32 Inch

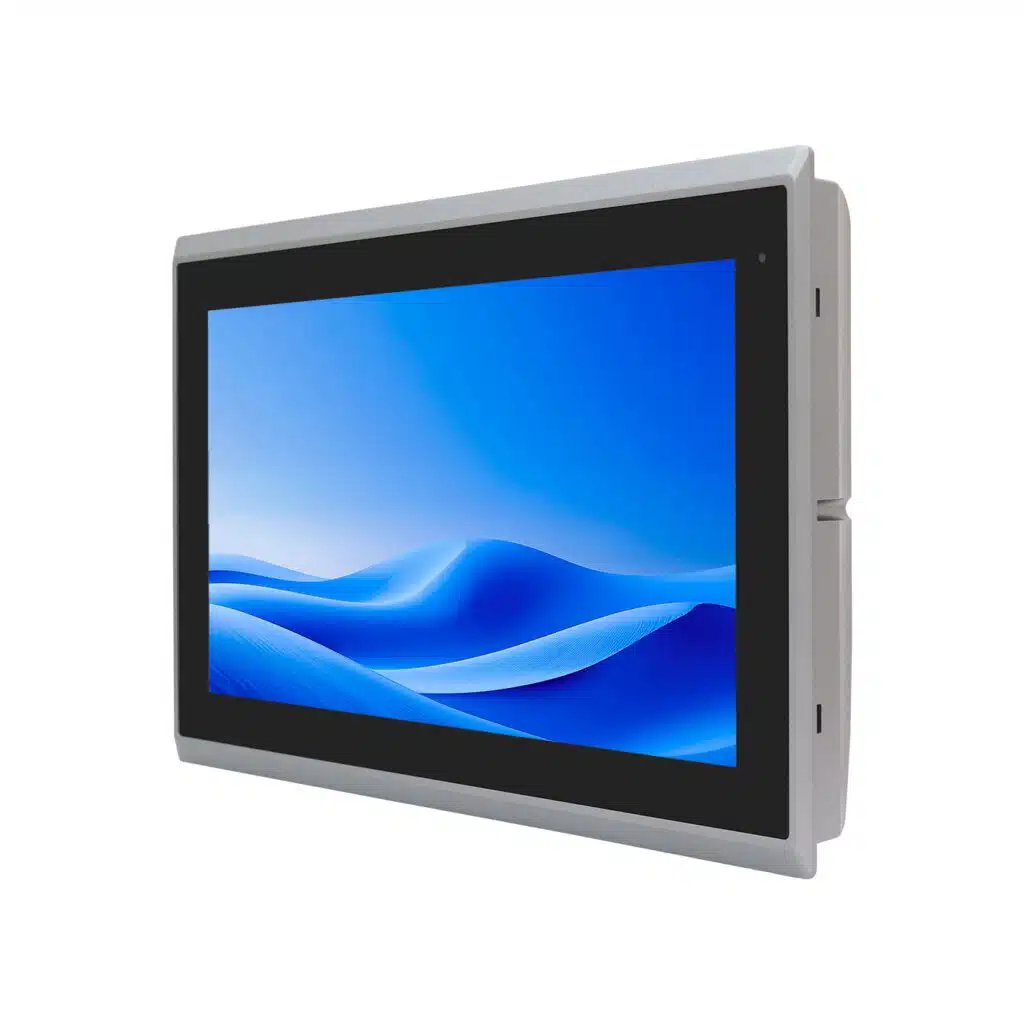

Multi-touch display

Blue Line Flex 1100 series

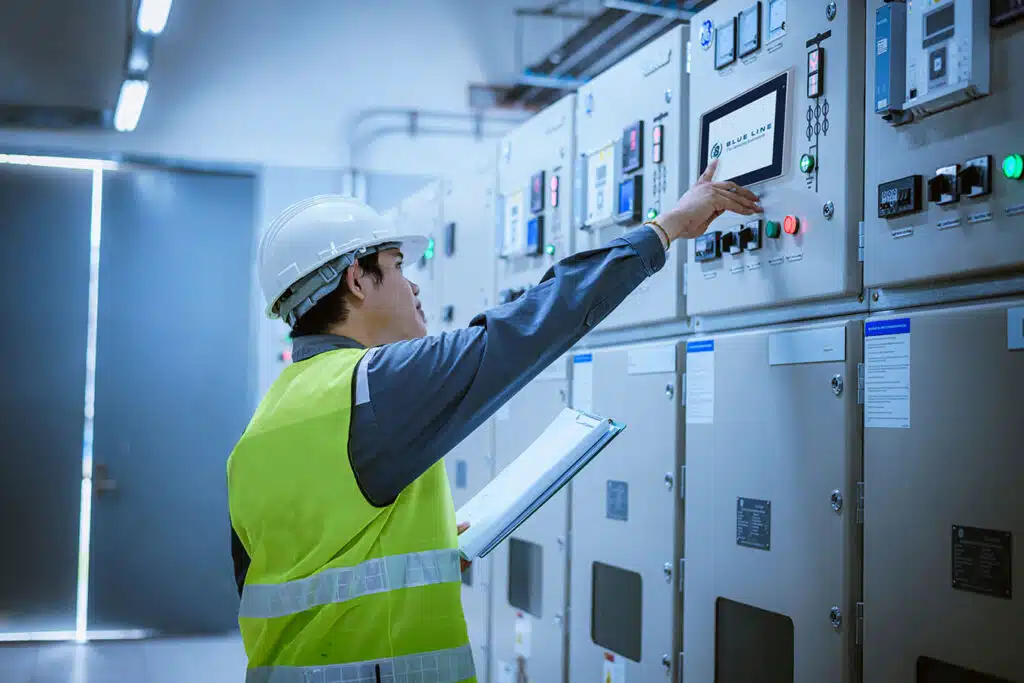

Suitable for industrial environment

Specifications

Model Type

Monitor

Construction

Aluminum bezel

Cooling

Fanless

Ingress Protection

Front IP66 – Rear IP5X

Environment

Operating temperature 0°C to +50°C
Option for wide temperature -20°C to +60°C
Storage temperature -30°C to +70°C
Humidity 10 to 95% @ +40˚C (non-condensing)

Certification

CE / FCC Class A

Display

7″ 800 x 480, 5:3, WVGA TFT LCD
8″ 800 x 600, 4:3, SVGA TFT LCD
10.1″ 1280 x 800, 8:5, WXGA TFT LCD
12.1″ 800 x 600, 4:3, SVGA
(option for 1024 x 768, 4:3,  XGA)
TFT LCD
15″ 1024 x 768, 4:3, XGA TFT LCD
15.6″ 1366 x 768, 16:9, WXGA
(option for 1920 x 1080, 16:9, FHD)
TFT LCD
17″ 1280 x 1024, 5:4, SXGA TFT LCD
18.5″ 1366 x 768, 16:9, WXGA
(option for 1920 x 1080, 16:9, FHD)
TFT LCD
19″ 1280 x 1024, 5:4, SXGA TFT LCD
21.5″ 1920 x 1080, 16:9, FHD TFT LCD
23.8″ 1920 x 1080, 16:9, FHD TFT LCD
32″ 1920 x 1080, 16:9, FHD TFT LCD

Touch

Projected capacitive multi touch (supports gloves)*
Resistive touch (optional)
No touch (optional)*
* Supports 7H anti-scratch surface

Brightness

7″  350 nits
8″ 350 nits
10.1″ 350 nits
12.1″ 450 nits
15″ 300 nits
15.6″ 300 nits
17″ 350 nits
18.5″ 300 nits
19″ 350 nits
21.5″ 250 nits
23.8″ 250 nits
32″ 500 nits

Colors

16.7M

Viewing Angle

160/160 – 178/178

Rear Input / Output

1 x USB type B for touch (1 x RS-232 optional)
1 x VGA
1 x DVI-D
1 x HDMI
1 x DP
1 x Audio line-in phone jack
1 x 3-pin DC power input terminal (32″ AC input)
OSD Control Membrane

Power Supply

7″ to 23.8″ +9 to +36V DC-in by terminal block
32″ +90 to 264V AC input

Power Consumption

4W to 47W (Max)

Mounting

7″ to 8″ Panel mounting / VESA 75*
10″ to 21.5″ Panel mounting / VESA 100*
23.8″ Panel mounting / VESA 200×100*
32″ Panel mounting / VESA 200*
  *The screen must be mounted from the back

Dimension and Weight

7″ Outer: H 149 x W 202 x D 40mm
Cut-out: H 138 x W 192mm
1.6kg
8″ Outer: H 176.1 x W 231.1 x D 50mm
Cut-out: H 167 x W 222mm
1.8kg
10.1″ Outer: H 189 x W 285 x D 48.9mm
Cut-out: H 176 x W 272mm
1.9kg
12.1″ Outer: H 245 x W 319 x D 51.7mm
Cut-out: H 229 x W 303mm
2.6kg
15″ Outer: H 310 x W 410 x D 54.67mm
Cut-out: H 292 x W 392mm
4.3kg
15.6″ Outer: H 277.5 x W 412 x D 58.9mm
Cut-out: H 259.5 x W 394mm
4.4kg
17″ Outer: H 348 x W 439 x D 64.8mm
Cut-out: H 331 x W 422mm
6kg
18.5″ Outer: H 314.6 x W 499.6 x D 65.4mm
Cut-out: H 297 x W 482mm
6.4kg
19″ Outer: H 380 x W 468 x D 64.8mm
Cut-out: H 362 x W 450mm
7.2kg
21.5″ Outer: H 362.3 x W 557.3 x D 64.8mm
Cut-out: H 344 x W 539mm
7.5kg
23.8″ Outer: H 395 x W 640 x D 44mm
Cut-out: H 362 x W 600mm
9.5kg
32″ Outer: H 490 x W 810 x D 65mm
Cut-out: H 472 x W 792mm
16.4kg

Accessories Included

AC to DC power adapter with terminal block
USB 2.0 Cable Type-A to Type-B for touch signal 1.8m
VGA Cable 1.8m
DVI-D Cable 1.8m
Panel mount kit

Accessories Optional

Wall mount kit
Desktop stand
Internal speaker
DVI-D Cable
HDMI Cable
DP Cable

Warranty and After Sales Support

Standard 1 year (option for 3 years)
