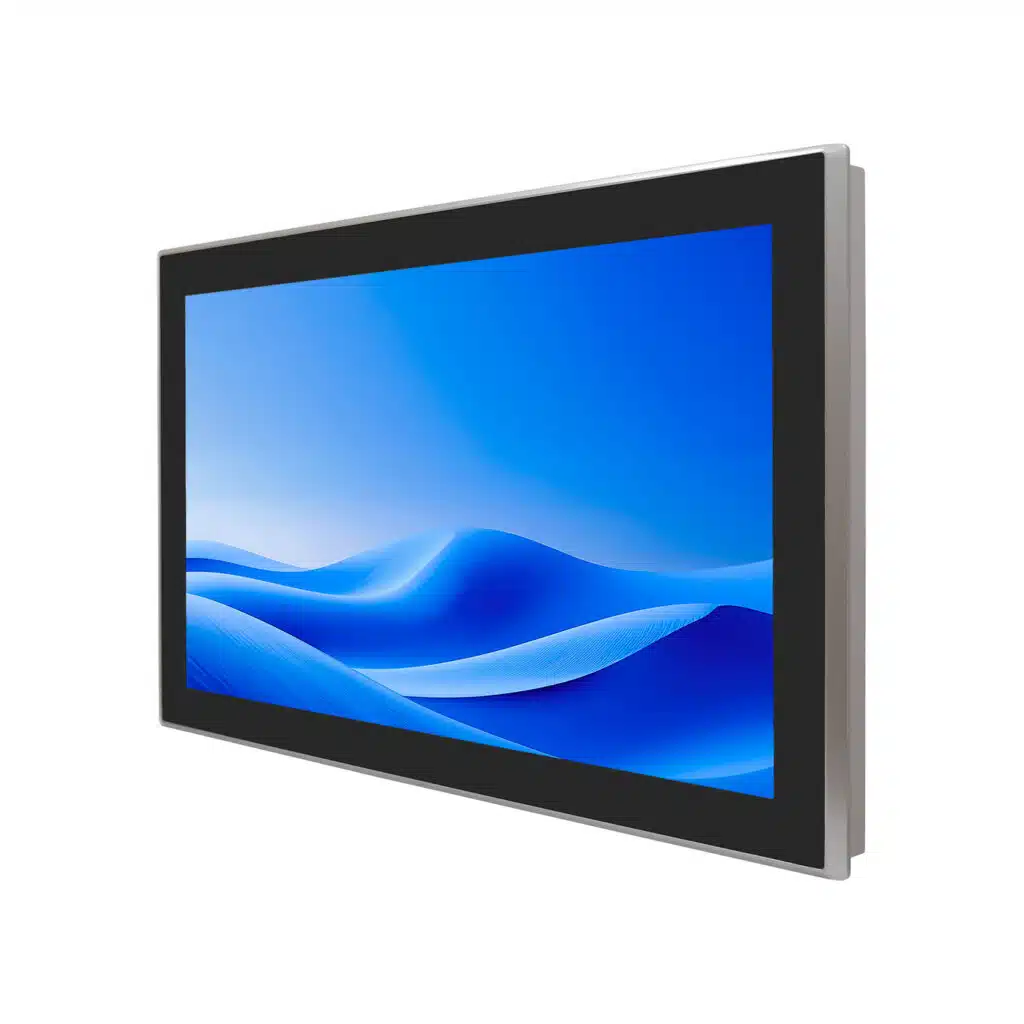

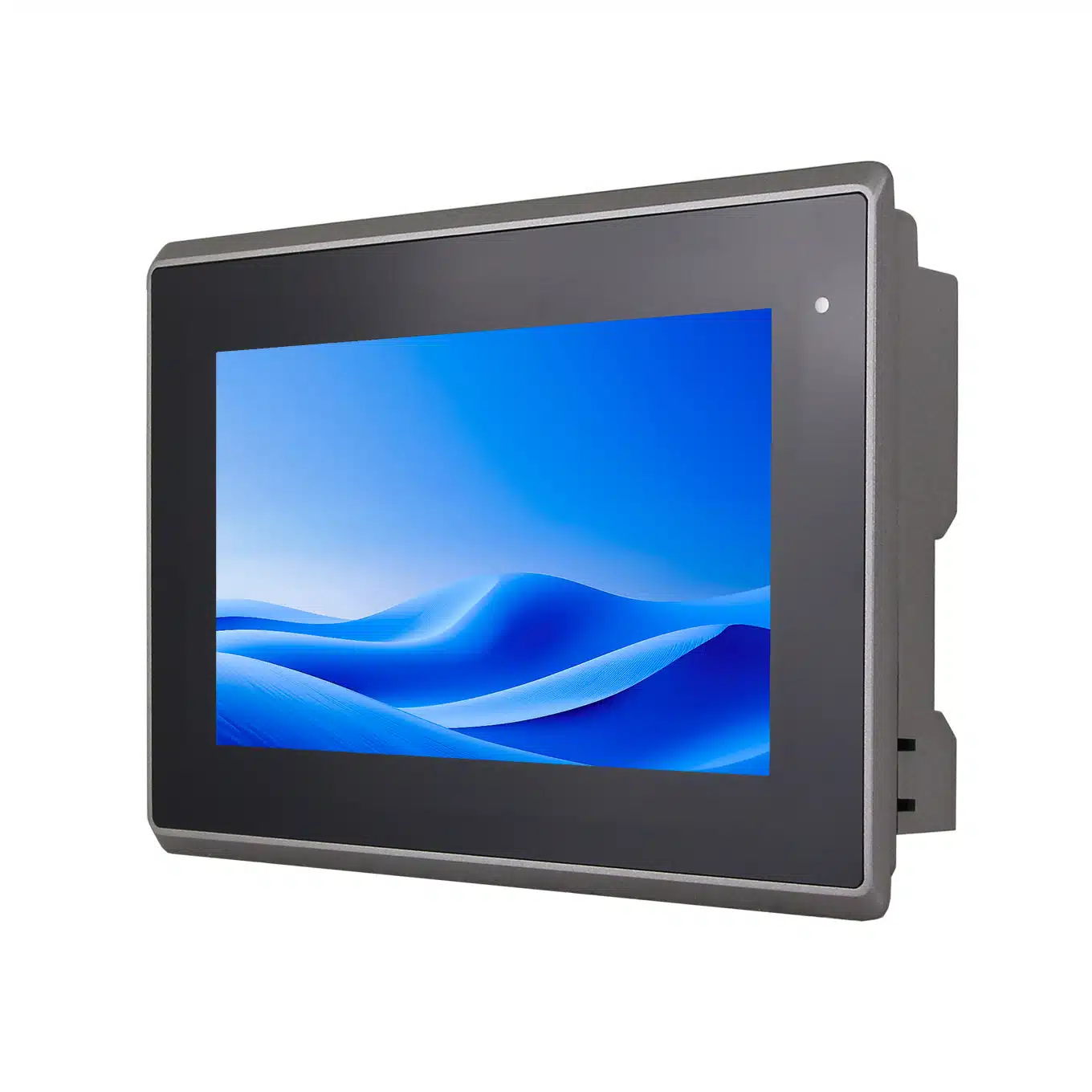

Blue Line Flex Panel PC-1100

Cost-effective industrial panel PC series combining powerful computing capabilities with flexible I/O expansion ports. This all-in-one industrial computing solution integrates display and processing power for use in many types of industrial environments. Fanless operation and IP66 dust/waterproof front provide reliable operation 24/7/365.

Industrial environment
IP66 front panel
Fanless operation for maximum reliabilty
7” to 32” projected capacitive touch display

Resolution up to full HD 1920 x 1080
Integrated PC/client
Celeron J6412 for simple task and data processing
8th generation Intel Core i3/i5 for multi-task and SCADA
Supports Windows 10/11 & Linux
UL certified (Ask a Blue Line representative for UL certified products)
VESA / panel mount
Other mounting wall / pipe / swivel arm / gas arm

Download datasheet

Complete industrial computing

The Flex Panel PC-1100 series combines display and computing power in one integrated unit, eliminating the need for separate PC hardware.

With options ranging from basic Pentium to powerful Intel Core processors, it handles everything from simple data processing to complex SCADA applications.

Flexible HMI

The flexible platform and large product range makes this HMI an optimal choice for many industrial scenarios. With a fanless operation and IP66 dust-/waterproof front, the HMI has excellent reliability. Several models in this series are UL certified.

Product features

Blue Line Flex Panel PC-1100 from the back

Aluminium bezel

Multi-touch display

Suitable for industrial environment

Specifications

Download datasheet

Panel PC

Aluminum bezel

Fanless

Front IP66 – Rear IP5X

Operating temperature 0°C to +50°C

Option for wide temperature -20°C to +60°C

Storage temperature -30°C to +70°C

Humidity 10 to 95% @ +40˚C (non-condensing)

Intel Celeron J6412 and Core i3/i5 UL

Intel Celeron J6412 and Core i3/i5 CE / FCC Class A

7″ 800 x 480, 5:3, WVGA TFT LCD

8″ 800 x 600, 4:3, SVGA TFT LCD

10.1″ 1280 x 800, 16:10, WXGA TFT LCD

12.1″ 800 x 600, 4:3, SVGA
(option for 1024 x 768, 4:3, XGA) TFT LCD

W12.1″ 1280 x 800, 16:10, WXGA TFT LCD

15″ 1024 x 768, 4:3, XGA TFT LCD

15.6″ 1366 x 768, 16:9, WXGA
(option for 1920 x 1080, 16:9, FHD) TFT LCD

17″ 1280 x 1024, 5:4, SXGA TFT LCD

18.5″ 1366 x 768, 16:9, WXGA
(option for 1920 x 1080, 16:9, FHD) TFT LCD

19″ 1280 x 1024, 5:4, SXGA TFT LCD

21.5″ 1920 x 1080, 16:9, FHD TFT LCD

23.8″ 1920 x 1080, 16:9, FHD TFT LCD

32″ 1920 x 1080, 16:9, FHD TFT LCD

Projected capacitive multi touch (supports gloves)*

Resistive touch (optional)

* Supports 7H anti-scratch surface

7″ 350 nits

8″ 350 nits

10.1″ 350 nits

12.1″ 450 nits

W12.1″ 600 nits

15″ 300 nits

15.6″ 300 nits

17″ 350 nits

18.5″ 300 nits

19″ 350 nits

21.5″ 250 nits

23.8″ 250 nits

32″ 500 nits

16.7M

160/160 – 178/178

7″ to 32″ Intel Celeron J6412 4C/4T 2.0GHz (Turbo 2.6GHz)

12.1″ to 32″ Intel 8th Gen. Core i3-8145UE 2C/4T 2.2GHz (Turbo 3.9GHz)
Option for i5-8365UE 4C/8T 1.6GHz (Turbo 4.1GHz)

SoC

Celeron J6412 1 x DDR4 SO-DIMM socket, max 32GB 3200MHz

Core i3 / i5 1 x DDR4 SO-DIMM socket, max 32GB 2400MHz

Celeron J6412 7″ to 8″ 1 x M.2 B-Key 2242 SATA

Celeron J6412 10.1″ to 32″ 1 x M.2 B-Key 2242/2280 SATA

Core i3 / i5 12.1″ to 32″ 1 x M.2 M-Key slot (Support PCIe/SATA 2242/2280)

Celeron J6412 2 x UBS 3.2 Gen2 Type A, 2 x USB 2.0 Type A

1 x RS-232/422/485 (Default RS-232)

2 x 2.5GbE LAN RJ-45 Port

1 x DP, support DP++

1 x line out

1 x 3-pin DC power input terminal (32″ AC input)

1 x 2-pin connector for power on/ off button

Core i3 / i5 4 x USB 3.0 type A

1 x RS-232 by DB9

1 x Displayport

2 x GbE LAN RJ-45 Port

1 x line out

1 x 3-pin DC power input terminal (32″ AC input)

1 x 2-pin connector for power on/ off button

Core i3 / i5 Internal Nano SIM Card holder

Windows 10 / 11

Windows 10 / 11 IoT Enterprise

Linux

ThinManager, Microsoft Remote Desktop (RPD), NoTouch OS, VNC, Citrix and others

+9 to +36V DC-in by terminal block

Celeron J6412 TBD

Core i3 / i5 47W to 80W (Max)

7″ to 8″ Panel mounting / VESA 75*

10″ to 21.5″ Panel mounting / VESA 100*

23.8″ Panel mounting / VESA 200×100*

32″ Panel mounting / VESA 200*

*The screen must be mounted from the back

7″ Outer: H 149 x W 202 x D 40mm
Cut-out: H 138 x W 192mm 1.1kg

8″ Outer: H 176.1 x W 231.1 x D 50mm
Cut-out: H 167 x W 222mm 1.9kg

10.1″ Outer: H 189 x W 285 x D 48.9mm
Cut-out: H 176 x W 272mm 2.5kg

12.1″ Outer: H 245 x W 319 x D 51.7mm
Cut-out: H 229 x W 303mm 2.8kg

W12.1″ Outer: H 227 x W 328 x D 57.6mm
Cut-out: H 211 x W 309mm TBD

15″ Outer: H 310 x W 410 x D 54.67mm
Cut-out: H 292 x W 392mm 4.6kg

15.6″ Outer: H 277.5 x W 412 x D 58.9mm
Cut-out: H 259.5 x W 394mm 4.5kg

17″ Outer: H 348 x W 439 x D 64.8mm
Cut-out: H 331 x W 422mm 6.3kg

18.5″ Outer: H 314.6 x W 499.6 x D 65.4mm
Cut-out: H 297 x W 482mm 6.6kg

19″ Outer: H 380 x W 468 x D 64.8mm
Cut-out: H 362 x W 450mm 7.2kg

21.5″ Outer: H 362.3 x W 557.3 x D 64.8mm
Cut-out: H 344 x W 539mm 7.5kg

23.8″ Outer: H 395 x W 640 x D 44mm
Cut-out: H 362 x W 600mm TBD

32″ Outer: H 490 x W 810 x D 65mm
Cut-out: H 472 x W 792mm 17.4kg

AC to DC power adapter with terminal block

Power core 1.8m cable

Panel mount kit

Wall mount kit

Desktop stand

WIFI / BT modul and Antenna kit

4G LTE modem and Antenna kit

Internal RFID 13.56MHz reader

2 x COM (RS-422/485, isolated)*/**

2 x COM (RS-232)*/**

1 x GbE RJ-45 LAN + 2 x USB 2.0 type A*/**

1 x GbE 45W PoE RJ-45 LAN + 2 x USB 2.0 type A*/**

2 x CAN*/**

*Only supports one option

** Only from 10.1″ to 32″

Standard 1 year (option for 3 years)

1071-0: Intel Core i3 / i5 Series
