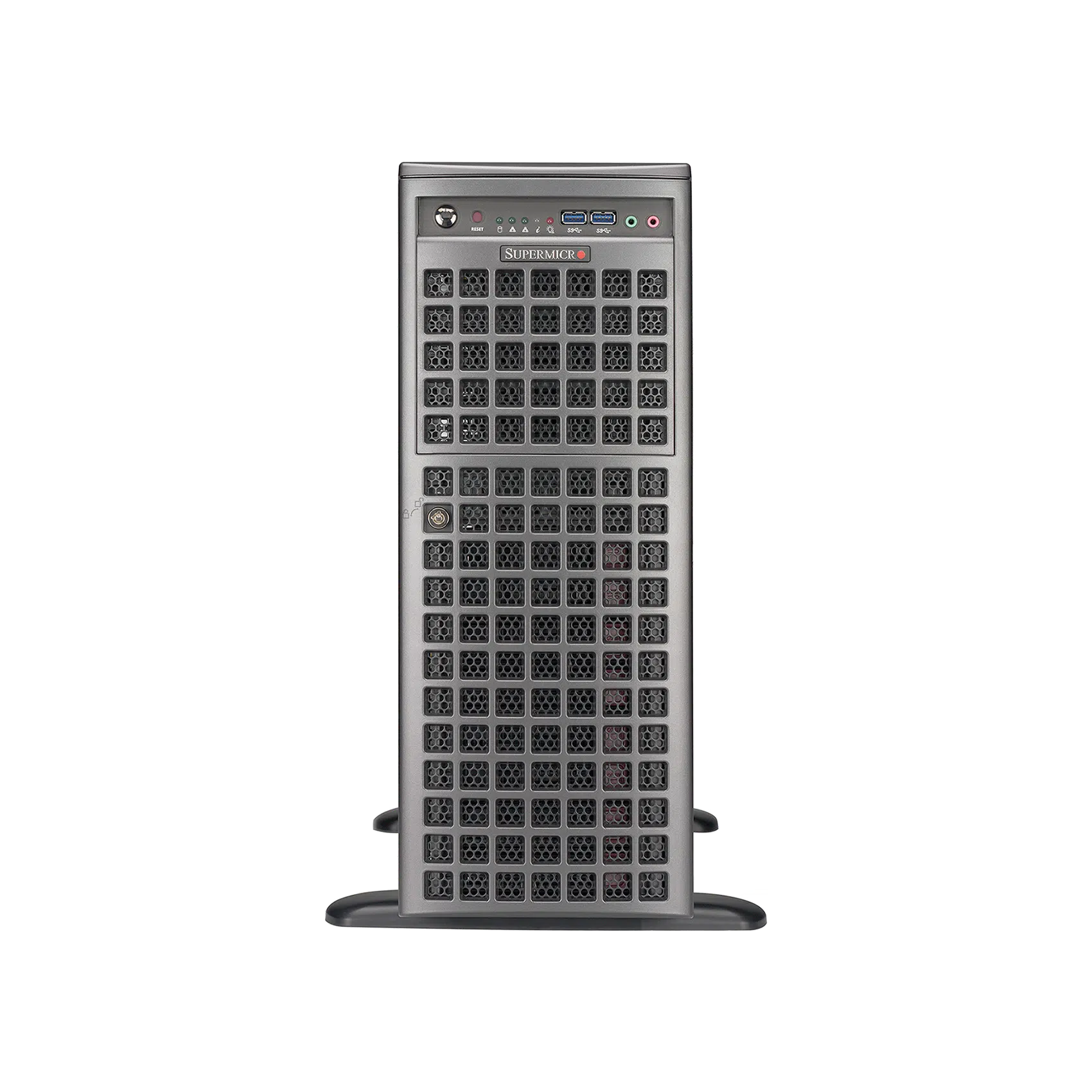

Supermicro Workstation 5049A-TR

Single CPU Extreme Workstation. High end GPU Workstaton for real-time design, 8K production and Deep Learning.

Workstation tower
Option for 4U rack mount kit
1 x Intel Xeon W-3200 Series or Intel 2nd generation Xeon Scalable
4 PCI-E 3.0 x16 supports up to 4 dual width GPU

8 x Hot-swap 3.5″ drive bays
2200W Redundant Power Supplies Titanium Level
Build-to-order configured to the requirements

Download datasheet

Product features

High-performance workstation

Specifications

Download datasheet

Workstation

4U rackmount / tower (option for rackmount kit)

4 x 92mm hot-swap fans

2 x 80mm rear hot-swap exhaust PWM fans

Operating temperature 10°C to 35°C

Non-operating temperature -40°C to 60°C

Operating humidity 8% to 90% (non-condensing)

Non-operating humidity 5% to 95% (non-condensing)

CPU Single Socket P (LGA 3647)

2nd Gen Intel Xeon Scalable Processors*

Intel Xeon W-32xx Processors

Supports CPU TDP up to 205W

Cores Up to 28 Cores

Notice* BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon Scalable processors (codenamed Cascade Lake-R). Please contact Blue Line for additional information

Intel C621

Memory capacity 12 DIMM slots

Intel Xeon Scalable Processors: Supports up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots

Intel® Xeon® W-3200 Processors: Supports up to 2TB 3DS ECC RDIMM/LRDIMM; up to 1TB 3DS RDIMM/LRDIMM

8 x Hot-swap 3.5″ SAS3/SATA3 drive bays (SATA3 default)

3 x 5.25″ drive bays

Rear 1 x RJ45 gigabit ethernet LAN port
1 x RJ45 10GBase-T ethernet LAN port
1 x RJ45 dedicated IPMI LAN port

6 x USB 3.1 Gen1 ports (4 rear, 2 headers)
4 x USB 3.1 Gen2 ports (1 rear Type A + 1 rear Type C)
2 x USB 2.0 ports (2 headers, type A)

1 x VGA port

Internal 8 x SATA3 (6Gbps) ports

7.1 HD Audio with optical S/PDIF

1 x COM port (header)

2 x SuperDOM (Disk on Module) ports

1 x TPM 2.0 Header

4 x PCI-E 3.0 x16 slots

3 x PCI-E 3.0 x8 (in x16 slot)

PCI-E x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8) (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)

M.2 Interface: PCI-E 3.0 x4

Form Factor: 2260, 2280, 22110

Key: M-Key

M.2 shares PCI-E lanes with PCI-Ex16 slot#1, VROC key is required for RAID

Intel Node Manager

IPMI 2.0

SSM, SPM, SUM

SuperDoctor 5

Watchdog

Windows 10

Windows Server 2019

Linux

2200W redundant power supplies with PMBus

Total output power and input 1200W with input 100 to 127Vac
1800W with input 200 to 220Vac
1980W with input 220 to 230Vac
2090W with input 230 to 240Vac
2200W with input 220 to 240Vac (for UL/cUL use only)
2090W with input 230 to 240Vdc (for CCC only)

AC input frequency 50 to 60Hz

+12V max: 100A / Min: 0A (100 to 127Vac)
max: 150A / Min: 0A (200 to 220Vac)
max: 165A / Min: 0A (220 to 230Vac)
max: 174.17A / Min: 0A (230 to 240Vac)
max: 183.3A / Min: 0A (220 to 240Vac)

5Vsb max: 1A / Min: 0A

Output type Backplanes (gold finger)

H 460 x W 178 x D 673mm Gross weight: 32.66kg
Net weight: 25.85kg

CBL-PWEX-1040 Adapter cable converts 8M/CPU to two (2x3F+2x1F)/PCIe. This is required for GeForce and Quadro video cards

MCP-220-93801-0B Black Hotswap Gen 6 3.5 to 2.5 HDD Tray

AOC-S3008L-L8E Std LP, 8 internal ports, 12Gb/s per port- Gen-3, 122HDD – HBA

AOC-S3008L-L8i Std LP, 8 internal ports, 12Gb/s per port- Gen-3, 63HDD – RAID 0,1,10

AOC-S3108L-H8iR Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60

AOC-S3108L-H8iR-16DD Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60

BTR-TFM8G-LSICVM02 LSI Supercap w 8GB CV 24 cable (whole kit)

BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location

Intel VROC Intel VROC, RAID 0, 1, 5, 10 for NMVe drive

MCP-290-00059-0B Rail set+handles, quick/quick, optional for 4U 17.2″W tower

MCP-210-74703-0B Front bezel cover (for 5.25″ bay) for rackmount

Standard 1 year hardware warranty for barebone

3 year hardware warranty & 1 year cross shipment for complete system CPU / MEM / DISK

Option for 5 year hardware warranty & 1 year cross shipment / 3 year hardware warranty & 3 year cross shipment
