Supermicro Server 5028D-TN4T

A compact design for network security appliance, high performance NAS servers, and small/medium business. This space-efficient mini-tower combines powerful processing capabilities with extensive connectivity options for demanding applications.

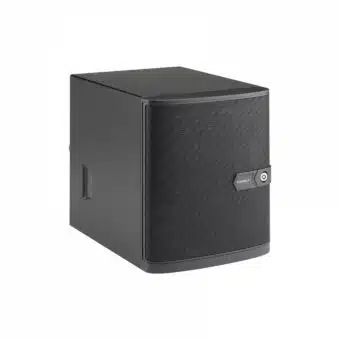

Space-efficient mini-tower
Intel onboard Xeon D-1541 CPU
4 x 3.5″ & 2 x 2.5″ drive bays
Dual 1GbE & Dual 10GbE

Build-to-order configured to your requirements

Download datasheet

Compact server

The Supermicro Server 5028D-TN4T delivers exceptional performance in a space-efficient design. Featuring the Intel Xeon D-1541 system-on-chip processor, this server provides robust computing capabilities for network security, data storage, and business applications.

Product features

Features Intel Xeon D-1541 processor

Specifications

Download datasheet

Server

Mini tower

Operating temperature 0°C to 40°C

Non-operating temperature -20°C to 60°C

Operating humidity 10% to 85% (non-condensing)

Non-operating humidity 10% to 95% (non-condensing)

Intel Xeon D-1541

FCBGA 1667 supported

CPU TDP supports 45W

System-on-chip

Memory capacity 4 x DDR4 DIMM sockets
up to 128GB ECC RDIMM
up to 64GB DDR4 ECC/non-ECC UDIMM

Memory type 2400 / 2133 / 1600 / 1333MHz ECC DDR4 SDRAM

DIMM sizes 4GB / 8GB / 16GB / 32GB

Memory voltage 1.2V

Error detection corrects single-bit errors
detects double-bit errors

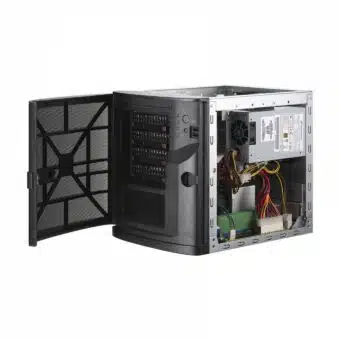

4 x Hot-swap 3.5″ drive bays

2 x Internal 2.5″ drive bays

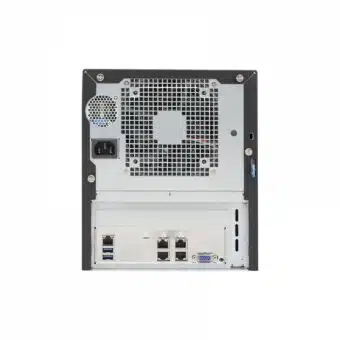

Rear 2 x RJ45 gigabit, 2 x RJ45 10GBase-T
1 x RJ45 dedicated IPMI
2 x USB 3.0 (rear), 2 x USB 2.0 (front)
1 x SATA DOM, 1 x VGA

Internal 6 x SATA3 (6Gbps) ports
1 x COM, 1 x TMP 2.0

1 x PCI-E 3.0 x16 (low profile)

1 x M.2 PCI-E 3.0 x4, Mkey 2242 / 2280

WHQL

RHEL / Ubuntu / SUSE

VMware

250W flex ATX multi-output bronze power supply

AC voltage 100V to 240V / 50 to 60Hz

+5V standby max 14Amp / min 0.5Amp

+12V max 18Amp / min 1Amp / 100V to 240V

-12V max 0.3Amp

+3.3V max 12Amp / min 0.3Amp

5VSB max 2.5Amp

H 240 x W 210 x D 279mm

6.8kg

1 x Air shroud

1 x SATA, INT, round, ST, 29cm, 30AWG

4 x SATA, INT, round, ST, 21cm, 30AWG

1 x CBL, SGPIO, 2x4F to 2x4F, P2.54, ribbon in round tube, 40cm, 28AWG

1 x 1U 250W flex ATX multi-output bronze power supply

Black teac slim DVD-RW SATA drive, HF, RoHS / REACH, PBF

Slim SATA DVD kit

Big 4pin (male) to big 4pin (female) power extension 15cm, 20AWG, RoHS / REACH

Standard 1 year hardware warranty for barebone

3 year hardware warranty & 1 year cross shipment for complete system CPU / MEM / DISK

Option for 5 year hardware warranty & 1 year cross shipment / 3 year hardware warranty & 3 year cross shipment
