What is the Thin Client Fanless FPC-3200 used for?

The Blue Line Thin Client Fanless FPC-3200 is designed for HMI, SCADA, industrial automation and production monitoring applications. It provides reliable computing performance, flexible connectivity and fanless operation for continuous use in demanding industrial environments.

Why choose the Thin Client Fanless FPC-3200?

The Thin Client Fanless FPC-3200 combines powerful Intel® Core™ processing, industrial-grade reliability and flexible integration options. It helps simplify automation projects while supporting stable 24/7 operation and future system expansion.

Which operating systems does the Thin Client Fanless FPC-3200 support?

The Thin Client Fanless FPC-3200 supports Windows 10, Windows 11 and Linux, making it easy to integrate into existing industrial automation and HMI systems.

Can the Thin Client Fanless FPC-3200 be customized?

Yes. The Thin Client Fanless FPC-3200 can be configured with different processors, memory, storage and optional I/O expansion to match your specific industrial application and performance requirements.

Blue Line Thin Client Fanless FPC-3200

Keep your industrial applications running efficiently with a Thin Client designed for demanding environments. The Blue Line Thin Client Fanless FPC-3200 combines powerful computing performance, flexible connectivity and fanless reliability to help you manage HMI, SCADA and automation systems with confidence.

Industrial Thin Client
Intel® Core™ processor
Fanless operation for maximum reliability

Supports Windows 10 / 11 & Linux
Dual Gigabit Ethernet
Multiple display outputs
Flexible industrial I/O
Wall / VESA mount
Built for HMI, SCADA and industrial automation
Build-to-order configured to your requirements

Download datasheet

Handle demanding industrial workloads

As your automation systems become more advanced, reliable computing performance becomes increasingly important.

The Thin Client Fanless FPC-3200 provides the power needed for HMI, SCADA and production monitoring, helping you maintain stable operation while supporting future growth.

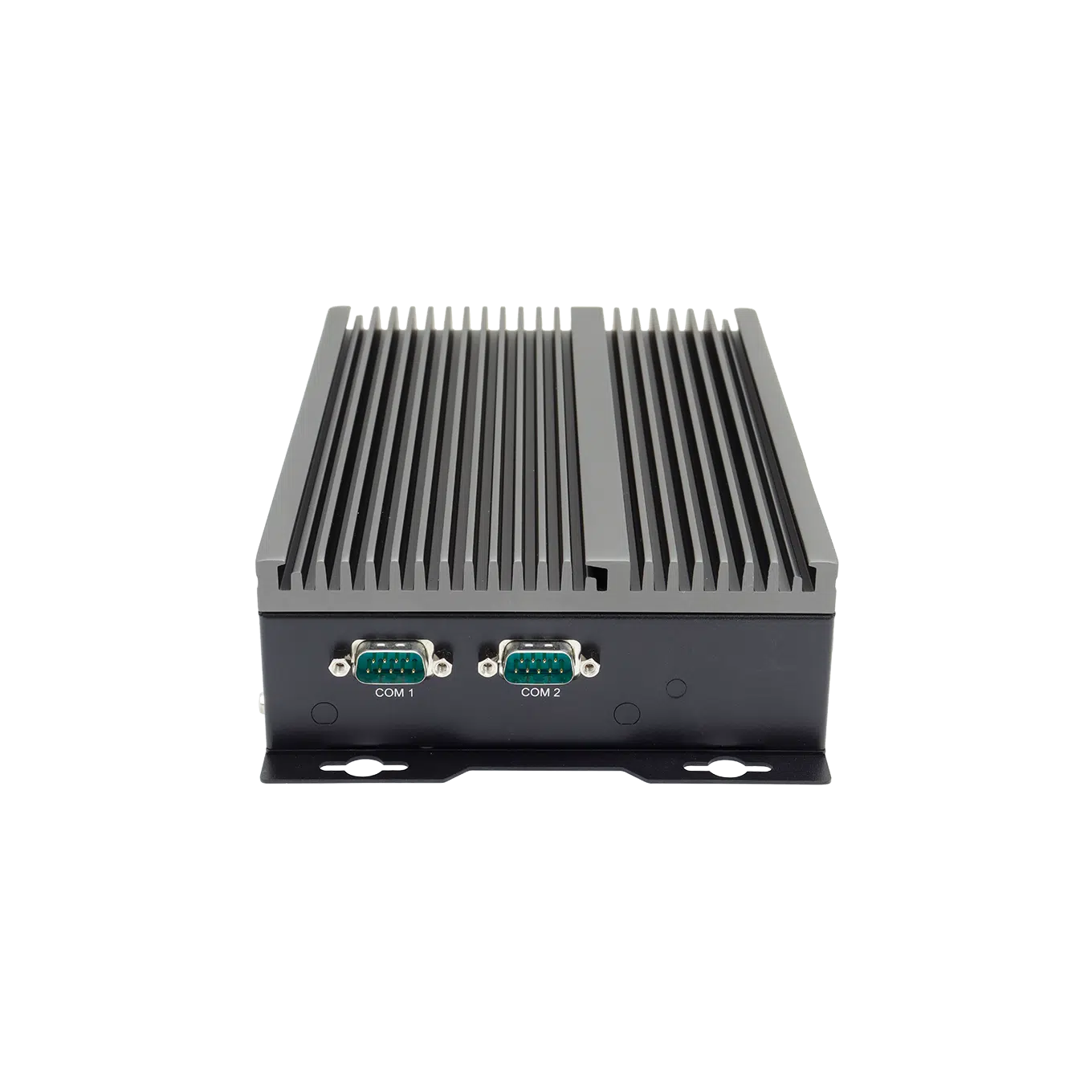

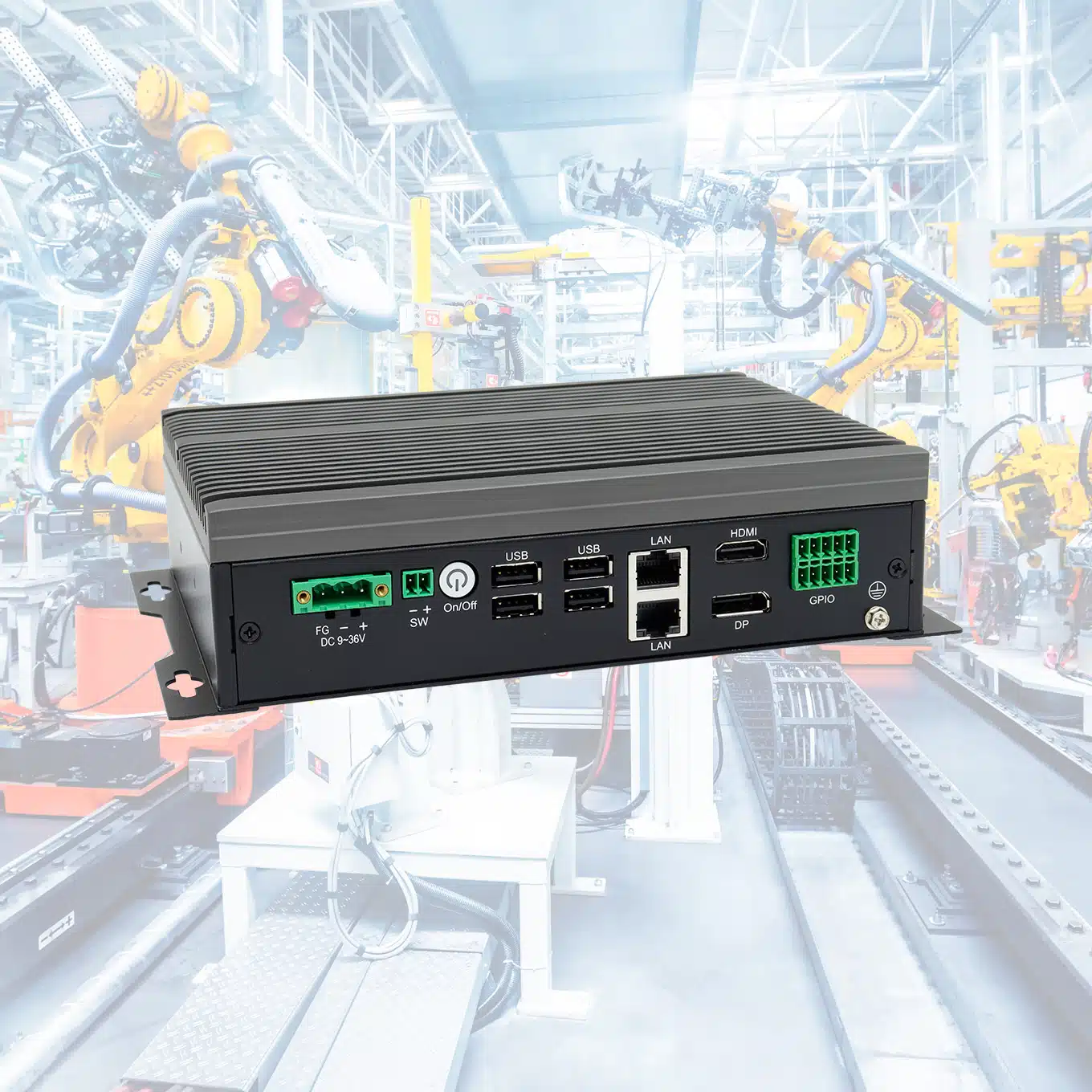

Thin Client Fanless FPC-32000 is a compact, industrial PC

Integrate seamlessly into your infrastructure

Expanding your automation system should be straightforward.

The Thin Client Fanless FPC-3200 provides flexible connectivity and configuration options that simplify integration into existing industrial environments.

Connect displays, controllers and industrial networks with confidence while reducing installation complexity.

Proven results

Performance

Support demanding industrial applications with confidence.

Reliable operation

Built for continuous use in industrial environments.

Flexible integration

Connect seamlessly to your existing automation systems.

Future growth

Adapt your system as your operational requirements evolve.

Accessories

Optional rear I/O expansion (Option A): 4 × RS-232/422/485 and 8 × GPIO

Optional rear I/O expansion (Option B): 2 × USB 2.0 and 2 × LAN (RJ-45)

Specifications

Download datasheet

Fanless PC

Compact design

Aluminum heatsink and black steel chassis

Fanless

Operating temperature 0°C to +60°C ambient w/ air flow and option for -30°C to +70°Cwith wide temp MEM / SSD

Storage temperature -40°C to +85°C

Humidity 10% to 90% @40°C non-condensing

Vibration IEC 60068-2-64 2Grms / 5 to 500Hz (random) / operation

Shock IEC 60068-2-27 50G peak acceleration (11 msec. Duration) / operation

Ingress Protection IP20

CE/FCC Class A

UKCA, LVD

UL 61010-2-201

Intel Celeron N97 4C/4T 3.6GHz, 12W TDP

Option: Intel Atom x7425E 4C/4T 3.4GHz, 12W TDP

Intel SoC

TPM 2.0 (Intel PTT)

Watchdog Timer (0~256 steps)

Up to 32GB, 1 x 262-pin DDR5 SO-DIMM 4800MHz

1 x M.2 B+M key 2242, supports SATA SSD

4 x USB 2.0 Type A
2 x 2.5GbE RJ45 port by Intel i226V/IT
2 x RS-232/422/485 DB9 port – COM1&2
1 x DP++ 1.4
1 x HDMI 2.0b
8 x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
1 x Line-out 3.5mm Phone Jack connector
1 x 3-PIN DC power input via Terminal Block
1 x 2-PIN power switch
1 x Grenn power LED light
1 x Ground screw
2 x PreCut SMA holes for antennas

1 x Mini PCIe 3027/3051 for optional WIFI / Bluetooth
1 x M.2 B key 3042/3052 for optional 4G / 5G / GPS

Rear I/O expansion Option A
UART: 4 x RS-232/422/485 (BIOS selectable)
GPIO: 8 x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)

Rear I/O expansion Option B
2 x USB 2.0 (Type-A)
2 x LAN ports (RJ-45)

Windows 10 / 11

Windows 10 / 11 IoT Enterprise

Linux (Ubuntu 20.04/22.04)

+9V to +36V DC-in by 3-pin terminal block

Max. power consumption: 27W

H 200,0 x W 55,0 x D 140,0mm
2,2kg (gross weight 3,2kg)

*All dimension & weight are without DIN or Wall mount kit

DIN-RAIL

Wall mount

Wall mount kit

AC to DC 12V/60W Power adapter with 3-pin Terminal block

DIN-RAIL kit

GPS module + antenna kit

WIFI / Bluetooth module + antenna kit

4G/5G/LTE module + antenna kit

120W DIN-RAIL AC/DC adapter (85~276V AC to 12V DC @ 10A)

Standard 1 year (option for 3 years)

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
