FPC-3100 | Blue Line

Blue Line Thin Client Fanless FPC-3100

The Blue Line Fanless FPC-3100 is a slim, industrial PC designed for automation, robotics, IIoT and monitoring systems. Low power consumption and silent, fanless design offer clean and efficient integration into controlled manufacturing areas or monitoring stations.

  • Intel Atom J6412 processor
  • Supports DIN-RAIL and Wall mount
  • Compact slim design
  • Optional ThinManager Ready configuration
  • 1 to 6 x COM, 4~6 x USB, 2 x LAN
  • Windows 10/11 & Linux
  • Wide temp -30°C to 70°C
  • Wide range DC input (9 to 36V)
  • Fanless operation
  • Build-to-order configured to your requirements
Download datasheet

ThinManager® Ready integration

The Blue Line Thin Client Fanless FPC-3100 is ThinManager® Ready, allowing you to connect directly to a centralized ThinManager® environment where applications, user sessions and device management are delivered from a central server instead of running locally on each device.

For you, this means less time spent maintaining individual workstations and more time focusing on production. Software updates, application management and user access can all be handled centrally, helping you improve security, simplify maintenance and reduce downtime across your automation environment.

What this means for you:

  • Centralized application and user session management
  • Reduced maintenance and software administration
  • Faster deployment of new Thin Clients
  • Consistent user experience across all workstations
  • Scalable infrastructure for future expansion

Whether you are deploying a single workstation or a complete ThinManager® infrastructure, the Thin Client Fanless FPC-3100 helps you simplify device management while supporting reliable industrial operation.

Reliable performance

Built to perform in demanding industrial settings, the fanless FPC-3100 offers multiple configuration options to match your infrastructure needs.

Whether integrating into robotic control, automation, or a smart viewer platform, it delivers consistent uptime, remote access, and long-term reliability.


Validated for use with Mobile Operator Stations

Fanless PC-3100 Model 4 is a compact thin client, fully validated for integration with Blue Line Mobile Operator Stations.

Its slim and flexible design allows it to be mounted in the lower compartment of the unit, making it ideal for space-constrained environments.

Designed for both industrial and pharmaceutical use, it meets strict requirements for hygiene, mobility, and reliability.

Explore Mobile Station compatibility


Product features

Fanless operation

Compact

Accessories

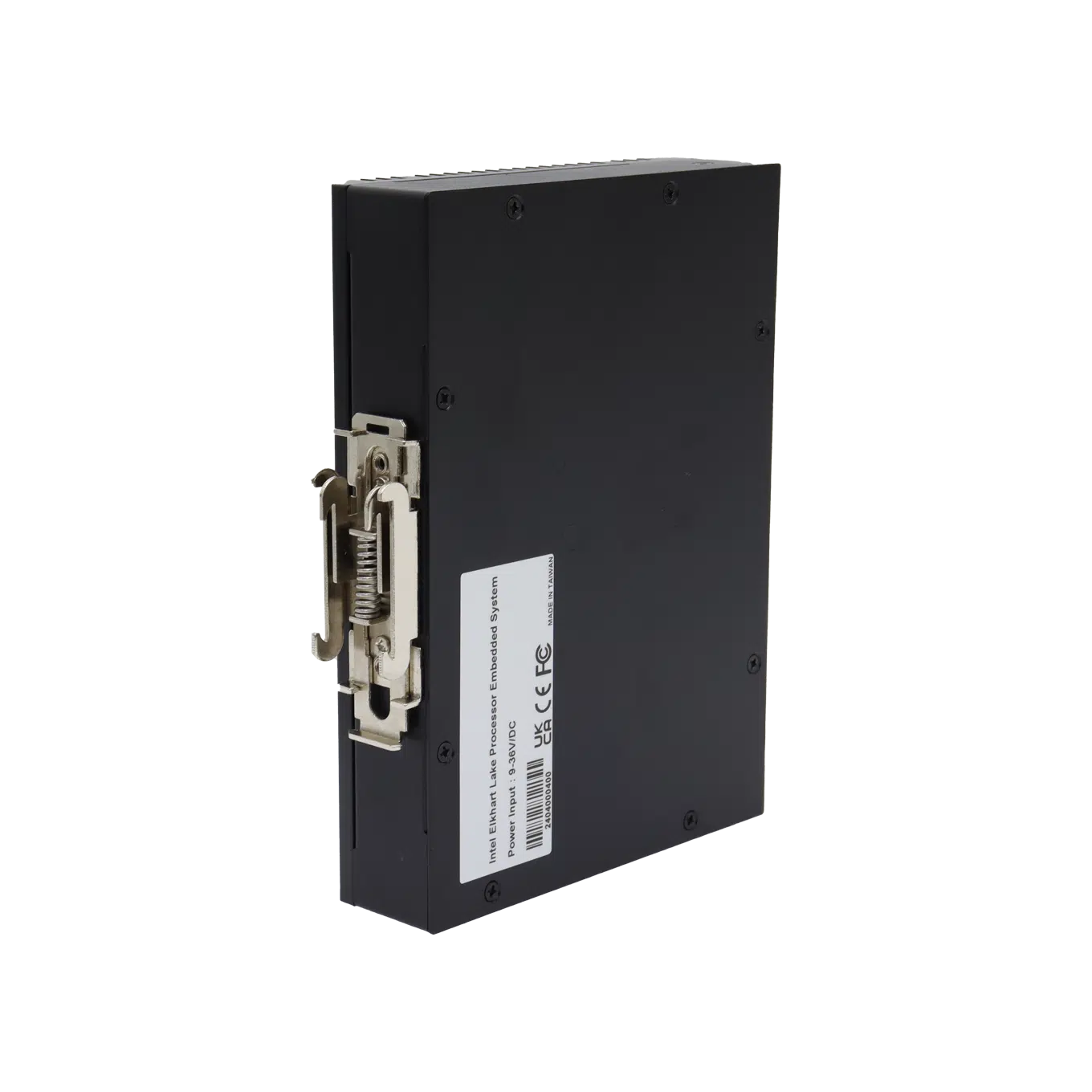

DIN RAIL – attachment kit for model 2 & 3

Specifications

Download datasheet

Model Type

Fanless PC

Form Factor

Compact and slim with front I/O

Construction

Aluminum heatsink and black steel chassis

Cooling

Fanless

Environment

Operating temperature 0°C to +60°C ambient w/ air flow and option for -30°C to +70°Cwith wide temp MEM / SSD
Storage temperature -40°C to +85°C
Humidity 10% to 90% @40°C non-condensing
Vibration IEC 60068-2-64 2Grms / 5 to 500Hz (random) / operation
Shock IEC 60068-2-27 15G peak acceleration (11 msec. Duration) / operation

Certification

CE/FCC Class A

Processor

Fanless Intel Celeron J6412 4C/4T 2GHz, 10W TDP

Chipset

Intel SoC
TPM 2.0 (Intel PTT)
Watchdog Timer (256 steps)

RAM

Up to 32GB, 1 x 260-pin DDR4 SO-DIMM 3200MHz

Storage

1 x M.2 M key 2242/2280, supports SATA SSD
Option for 1 x MO-297 SATA

Front Input / Output

Model 1 (EOL) 2 x USB 3.0 Type A, 4 x USB 2.0 Type A
2 x GbE LAN RJ-45
1 x RS-232/422/485 DB9 port, COM1, default RS-232
2 x RS-232 DB9 port, COM2 and COM3
1 x VGA, 1 x HDMI
1 x Line-out 3.5mm Phone Jack connector
1 x 3-PIN DC power input via Terminal Block, 1 x Grenn power LED light

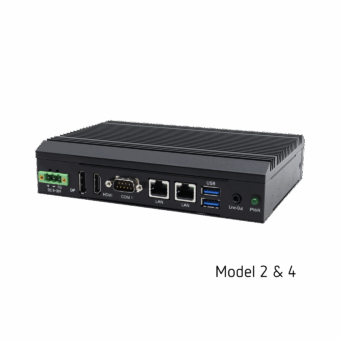

Model 2 2 x USB 3.2 generation 1 Type A
1 x 2.5GbE RJ45 port by Intel i225LM
1 x 1GbE RJ45 port by Intel i210AT
1 x RS-232/422/485 DB9 port – COM1
1 x DP++ 1.4
1 x HDMI 2.0b
1 x Line-out 3.5mm Phone Jack connector
1 x 3-PIN DC power input via Terminal Block, 1 x Grenn power LED light
4 x PreCut SMA holes for antennas

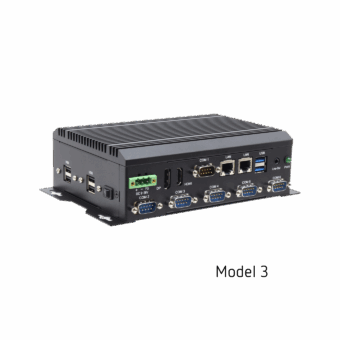

Model 3 2 x USB 3.2 generation 1 Type A
4 x USB 2.0 Type A
1 x 2.5GbE RJ45 port by Intel i225LM
1 x 1GbE RJ45 port by Intel i210AT
1 x RS-232/422/485 DB9 port – COM1
5 x RS-232 DB9 port – COM2/3/4/5
1 x DP++ 1.4
1 x HDMI 2.0b
1 x Line-out 3.5mm Phone Jack connector
1 x 3-PIN DC power input via Terminal Block, 1 x Grenn power LED light, 1 x Power Button
2 x PreCut SMA holes for antennas

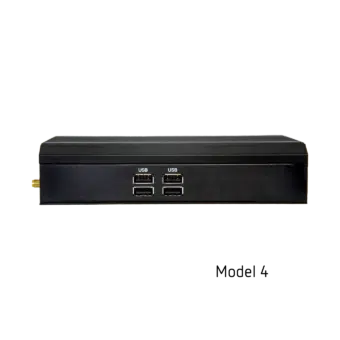

Model 4 2 x USB 3.2 generation 1 Type A
4 x USB 2.0 Type A
1 x 2.5GbE RJ45 port by Intel i225LM
1 x 1GbE RJ45 port by Intel i210AT
1 x RS-232/422/485 DB9 port – COM1
1 x DP++ 1.4
1 x HDMI 2.0b
1 x Line-out 3.5mm Phone Jack connector
1 x 3-PIN DC power input via Terminal Block, 1 x Grenn power LED light
4 x PreCut SMA holes for antennas

Expansion

Model 1 2 x Mini-PCIe full size slot
Model 2/3/4 1 x M.2 E key 2230 for WIFI / Bluetooth
1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
1 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot *

Operating System

Windows 10 / 11
Windows 10 IoT Enterprise
Linux Kernel 4.15 (Ubuntu 18.04)

Power Supply

+9V to +36V DC-in by 3-pin terminal block

Power Consumption

Model 1 TBD
Model 2 & 4 Max. power consumption: 24.44W
Model 3 Max. power consumption: 25.66W

Dimension and Weight

Model 1* H 130 x W 35,5 x D 180mm
1kg (gross weight NNkg)
Model 2* H 180 x W 40 x D 130mm
1,5kg (gross weight 2,5kg)
Model 3* H 180 x W 58,5 x D 130mm
2kg (gross weight 3kg)
Model 4* H 182,4 x W 45,9 x D 130mm
1,5kg (gross weight 2,5kg)
*All dimension & weight are without DIN or Wall mount kit

Mounting

DIN-RAIL
Wall mount

Accessories Included

Wall mount kit
AC to DC 12V/60W Power adapter with 3-pin Terminal block

Accessories Optional

DIN-RAIL kit
GPS module + antenna kit
WIFI / Bluetooth module + antenna kit
4G/5G/LTE module + antenna kit
120W DIN-RAIL AC/DC adapter (85~276V AC to 12V DC @ 10A)

Warranty and After Sales Support

Standard 1 year (option for 3 years)

Ordering Information

TBD
