Blue Line Fanless FPC-2600 DIN RAIL

Industrial fanless PC series for DIN RAIL mounting. Blue Line Fanless FPC-2600 is one of the first industrial computers supporting Intel 11th generation processors. You get an efficient and modern industrial computer for 24/7 operation in many types of environments. High performance industrial pc with a large range of options and configurations.

Intel Atom to 11th Gen. Core i7 Mobile
Hailo-8 AI acceleration modules
Windows 10/11
Up to 2 x COM, 5 x USB, 4 x GbE

Compact design
Wide temp -40°C to 60°C
DIN RAIL mounting
Fanless operation
Build-to-order configured to your requirements

Download datasheet

Powerful fanless PC

The Fanless FPC-2600 series combines powerful processing capabilities with robust industrial design.

With support for processors ranging from Intel Atom to 11th generation Core i7, this versatile computer delivers reliable 24/7 performance in demanding industrial environments.

The fanless design and wide temperature range from -40°C to +60°C ensures operational reliability in various industrial settings.

Product features

Fanless compact design

Accessories

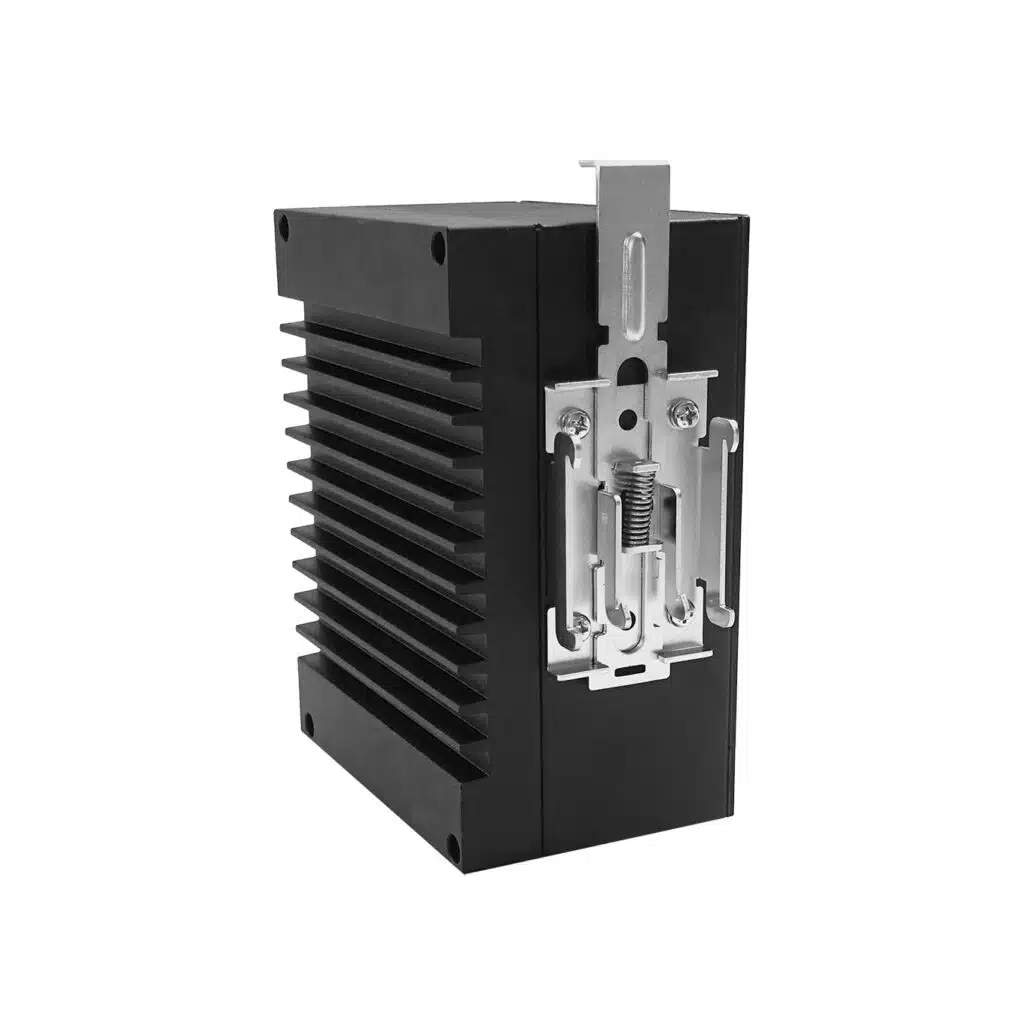

DIN RAIL attachment kit

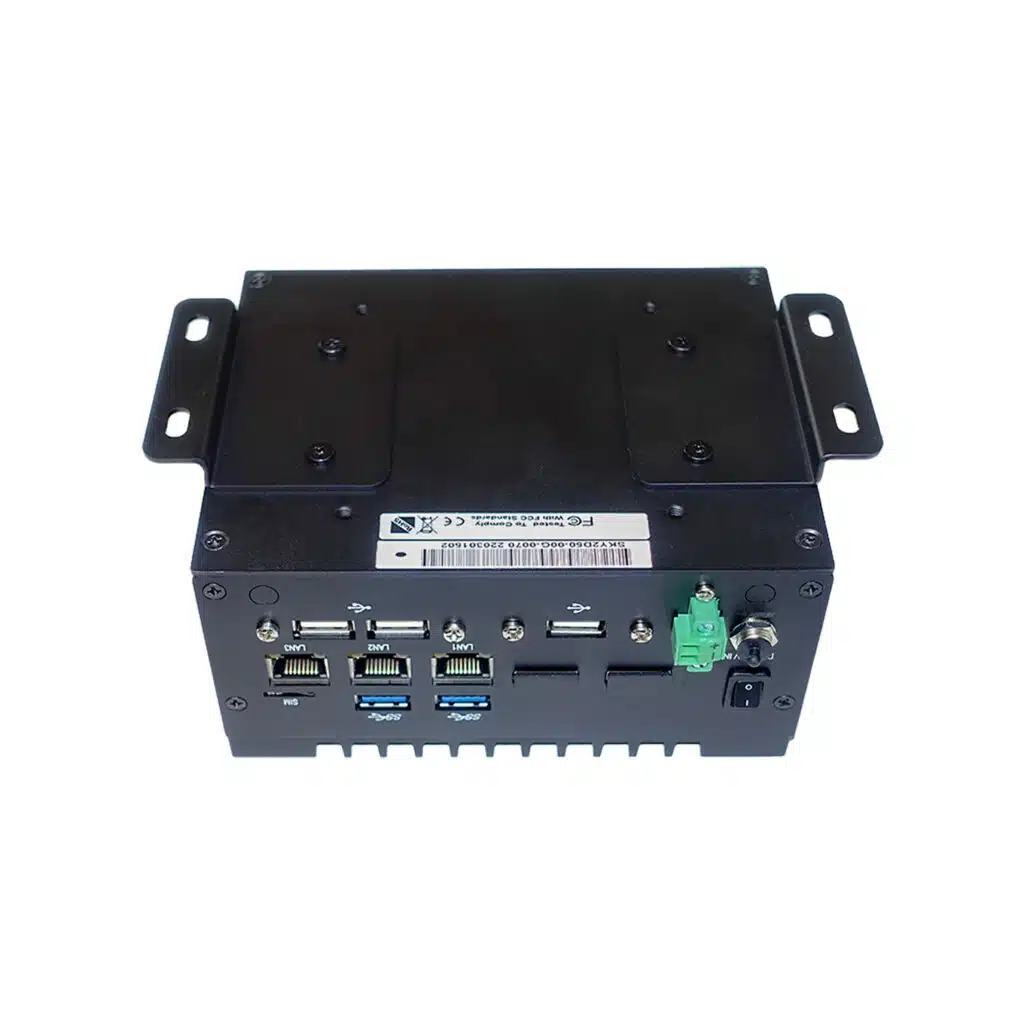

Wall mount kit

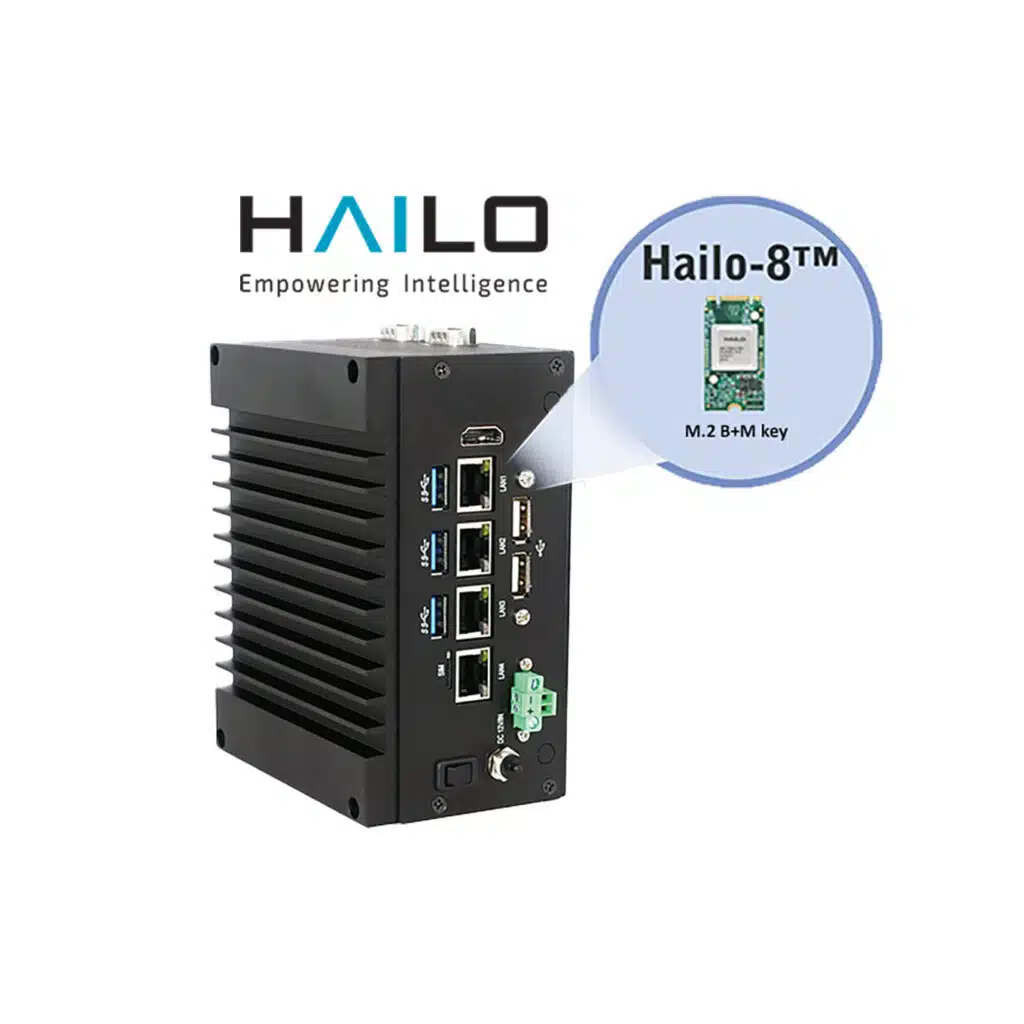

Hailo-8 AI acceleration module

Specifications

Download datasheet

Fanless PC

Compact

Aluminium

Fanless

Operating temperature -40°C to +60°C, with wide temp SSD
-20°C to +60°C with wide temp SSD (Model 3 – J6412 CPU)

Storage temperature -20 to 70 °C

Humidity 95% @ 40°C (non-condensing)

CE / FCC class A

Model 1 & 2 Intel Core i3-1115GRE UP3 2C/4T 2.2GHz (Turbo 3.9GHz) 15W TDP
Intel Core i7-1185GRE UP3 4C/8T 1.8GHz (Turbo 4.4GHz) 15W TDP

Model 3 Intel Atom x6413E 4C/4T 1.5GHz (Turbo 3GHz) 9W TDP
Intel Celeron J6412 4C/4T 2GHz (Turbo 2.6GHz) 10W TDP

Model 4 Intel Core i5-1335UE 10C/12T 1.3GHz (Turbo 4.5GHz) 15W TDP

Model 1 & 2 Intel Tiger Lake-UP3 SoC

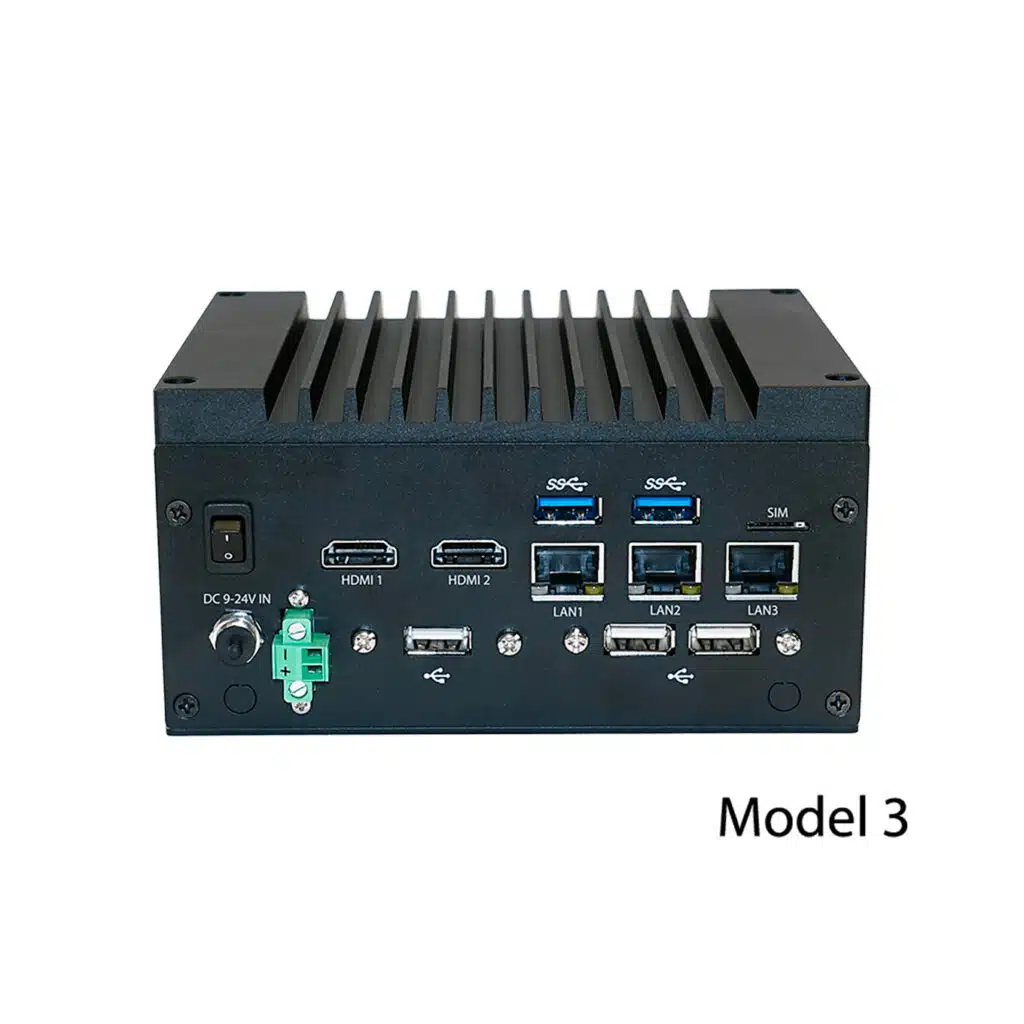

Model 3 Intel Elkhart Lake SoC
Intel UHD Graphics, support DirectX 12 & OpenGL 4.5

Model 4 Intel Raptor Lake SoC

Model 1, 2 & 3 1 x DDR4 SODIMM socket, max. 32GB 3200MHz

Model 4 1 x DDR5 SODIMM socket, max. 32GB 5200MHz

Model 1 & 2 1 x M.2 B key type 3042 (PCIe x2 / USB 3.0)
1 x M.2 M key type 2242 (PCIe x4 / SATA), supports NVMe / SATA

Model 3 1 x M.2 B key type 2242 / 3042 (PCIe x2 / USB 3.0)
1 x M.2 B key type 2242 (PCIe x2 / USB 2.0) supports NVMe only

Model 4 1 x M.2 B key type 3042 (PCIe x2 / USB 3.2 / 2.0)
1 x M.2 M key type 2280 (PCIe x4 3.0 / SATA) supports NVMe

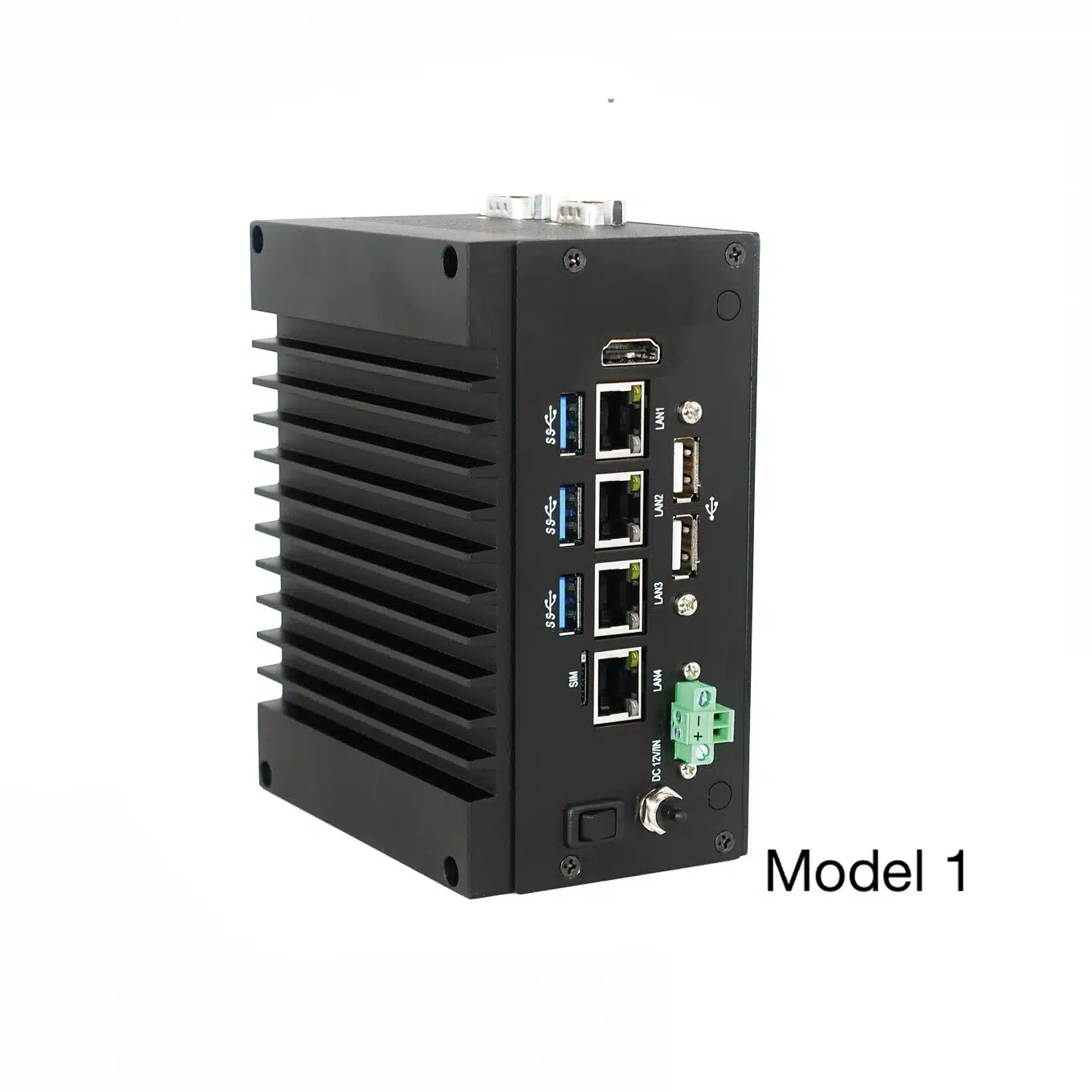

Model 1 4 x Intel GbE (1 x I219LM and 3 x I210IT)
3 x USB 3.0, 2 x USB 2.0
2 x RS232 / 422 / 482
1 x HDMI
1 x Push-push Nano SIM slot (Internal M.2 Modem required)
(Option for 4DI / 4DO)

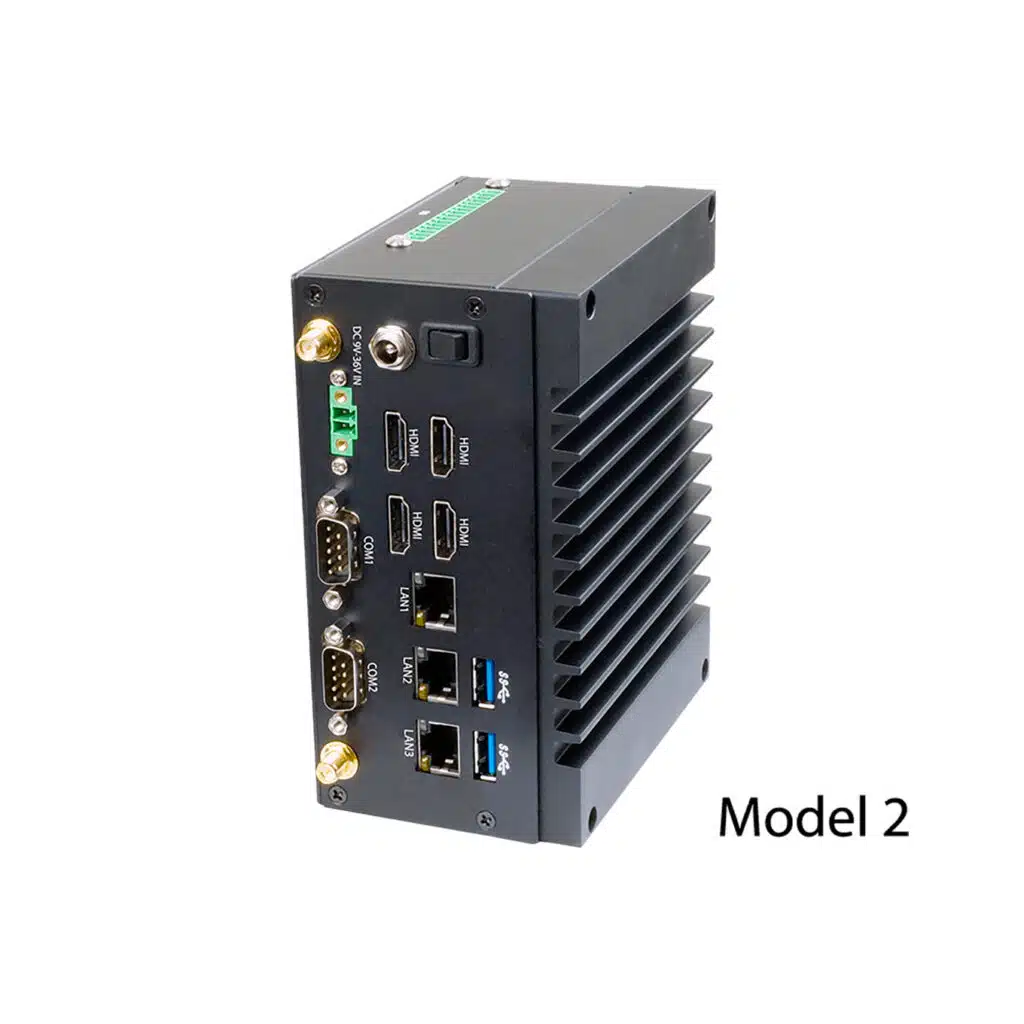

Model 2 3 x 2.5GbE (Intel I225IT)
2 x USB 3.0, 4 x USB 2.0
2 x RS232 / 422 / 485
4 x HDMI
1 x Push-push Nano SIM slot (Internal M.2 Modem required)
(Option for 4DI / 4DO)

Model 3 3 x 2.5GbE (Intel I225IT)
2 x USB 3.0, 3 x USB 2.0
2 x RS232 / 422 / 485
2 x HDMI
1 x Push-push Nano SIM slot (Internal M.2 Modem required)
(Option for 4DI / 4DO)

Model 4 4 x 2.5GbE (Intel I226)
3 x USB 3.2 Gen1, 2 x USB 2.0
2 x RS232 / 422 / 485
1 x HDMI
1 x Push-push Nano SIM slot (Internal M.2 Modem required)
(Option for 4DI / 4DO)

Model 1 & 2 1 x M.2 B key type 3042 (PCIe x2 / USB 3.0)
1 x M.2 M key type 2242 (PCIe x4 / SATA)

Model 3 1 x M.2 B key type 2242 / 3042 (PCIe x2 / USB 3.0)
1 x M.2 B key type 2242 (PCIe x2 / USB 2.0)

Model 4 1 x M.2 B key type 3042 (PCIe x2 / USB 3.2 / 2.0)
1 x M.2 M key type 2280 (PCIe x4 3.0 / SATA)

Windows 10 / 11

Windows 10 IoT Enterprice

Linux

Model 1 DC-Jack or 2-pin input: +12V

Model 2 & 4 DC-Jack or 2-pin input: Wide range +9 to 36V

Model 3 DC-Jack or 2-pin input: Wide range +9 to 24V

TBD

Model 1, 2, 3 & 4 H 71.9 x W 141 x D 111.2mm Net weight: 1.5kg / gross weight: 1.7kg

Wall / stand

DIN RAIL

GPS modulmoduletenna kit

Bluetooth / WiFi module + antenna kit

5G / 4G LTE module + antenna kit

Hailo-8 AI acceleration module (only for model 3)

SuperCAP / Battery UPS (Extended Chassis neede)

Digital Input & Output 4DI / 4DO, 2x 5Pin 2.0 wafer Connector, Range DC 80V/50mA max, isolation protection 3750Vrms

60W AC to DC external power adapter

Wall mount kit

DIN RAIL mounting kit

Standard 1 year (option for 3 years)

488

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
