What are the benefits of investing in the Blue Line Telecom Network Appliance TNA-4000?

The Blue Line Telecom Network Appliance TNA-4000 is designed for secure and high performance network processing in telecom and datacom environments. Its hardware acceleration capabilities, enterprise class networking interfaces, and compact 1U design help organizations improve throughput, reduce latency, and simplify deployment of advanced network services.

What applications is the TNA-4000 designed for?

The TNA-4000 is ideal for telecom infrastructure, network security appliances, SD-WAN solutions, edge computing, virtualized network functions, packet processing, and data center networking. Its architecture is optimized for applications requiring high bandwidth and secure data processing.

Why choose the TNA-4000 instead of a standard rack server?

Unlike a general purpose rack server, the TNA-4000 is purpose built for networking applications with integrated packet acceleration and hardware cryptographic engines. This improves network performance while reducing CPU utilization, making it well suited for modern telecom infrastructure and secure networking workloads.

How does the TNA-4000 improve network security?

The TNA-4000 includes dedicated hardware security features such as secure boot, secure storage, and cryptographic acceleration for RSA, ECC, and other encryption algorithms. These capabilities help protect sensitive network traffic while maintaining high processing performance.

Can the Blue Line Telecom Network Appliance TNA-4000 be integrated into existing network infrastructure?

Yes. The TNA-4000 offers multiple 10 GbE SFP+ and Gigabit Ethernet interfaces together with PCIe expansion options, making it easy to integrate into existing telecom, enterprise, and edge networking environments while supporting future expansion requirements.

Why is the TNA-4000 a future ready telecom platform?

The TNA-4000 combines scalable hardware, advanced network acceleration, and enterprise connectivity in a compact rackmount platform. This enables organizations to support evolving telecom services, edge computing applications, and next generation network architectures without replacing their entire infrastructure.

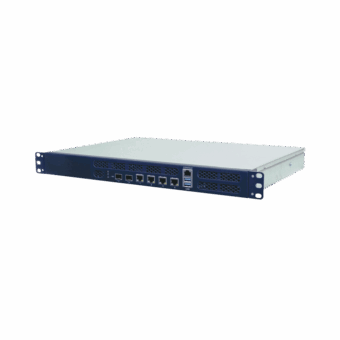

Blue Line Telecom Network Appliance TNA-4000

Keep your network infrastructure secure and responsive with a telecom platform designed for demanding applications. The Blue Line Telecom Network Appliance TNA-4000 combines high-performance processing, hardware security acceleration and flexible connectivity to help you manage increasing network complexity with confidence.

Marvell® Armada® 8040 ARM v8 A72 4C, System-on-Chip (SoC) up to 2.0GHz
1 x DDR4 2400MHz ECC/Non-ECC/RDIMM, Max. up to 16 GB
1 x 2.5″ SSD/HDD Bay: support SATA 3.0 (6 Gbps) + 1 x eMMC: 32GB
Ethernet: 2 x SFP+: 10 GbE SFP+, plus 4 x LAN: 1 GbE RJ45
2 x external USB 3.2 generation 1 x 1, plus 2 x internal USB 2.0 (Pin header)
1 x PCIe x16: (FHHL) PCIe 3.0 x2 signal
Power input: 100 V to 240 V (Power Supply 250W)
Operating temperature: 0°C to 40°C (32°F to 104°F)

Build-to-order configured to the requirements

Download datasheet

Specifications

Download datasheet

Rackmount Network Appliance

2 x cooling fans with smart fan

Operating temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 75°C (-4°F to 167°F)

Humidity 5% to 90% non-condensing

CE / FCC / RoHS

Marvell Armada 8040 ARM v8 A72 4C, System-on-Chip (SoC) up to 2.0GHz

1 x DDR4 2400MHz ECC/Non-ECC/RDIMM – up to 16GB

1 x 2.5” SSD/HDD Bay : support SATA 3.0 (6 Gbps)

1 x eMMC: 32GB

Front I/O:

Ethernet 2 x SFP+: 10 GbE SFP+ 4 x LAN: 1 GbE RJ45

I/O Interface 2 x External USB 3.2 Gen1x1 2 x Internal USB
2.0: Pin header

1 x PCIe x16: (FHHL) PCIe 3.0 x2 signal

1 x M.2(NGFF): M.2 B Key (3042/2260) (SATA 3.0 and USB 3.2 Gen 1) Support SATA SSD or 4G LTE module (USB signal)

Ubuntu 16.04.04

Input 100V to 240V

Power supply 250W

Dimension: H 44.2 x W 430 x D 320mm

Weight: 5kg

Rackmount

1 x Power cord

2 x Rack mounting ears

6 x Screws for rack mounting ears

USB to console cable

RS-232 to console cable

Standard 1 year (option for 3 years)

Accelerate secure network performance

Growing network traffic demands fast and reliable processing. The TNA-4000 helps you accelerate data handling and security workloads with high-performance computing, giving you the power to support demanding telecom and network infrastructure applications.

Simplify deployment across network infrastructure

Expanding network capacity should not increase system complexity. The TNA-4000 offers flexible connectivity and scalable architecture that simplify integration into telecom, datacom and edge network environments while supporting future growth.

Product features

Powerful Marvell® Armada® 8040 Quad-Core processor with dedicated network acceleration

Telecom engineer working in a modern data center with network racks, realistic high-tech environment.

Built for telecom infrastructure

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
