Blue Line Fanless FPC-6800

Blue Line Fanless FPC-6800 is a high-performance industrial computer supporting DIN-RAIL solution with front I/O. In the least possible space, you get an efficient and modern industrial computer for 24/7 operation in many types of environments. High performance industrial PC with a large range of options and configurations.

9th generation Intel Core i3/i5/i7/i9 processor
Supports DIN-RAIL and Wall mount
Supports 2 x 2.5” drives w. RAID
Option for PCIe x16, PCIe x4

2 x COM, 4 x USB, 2 x GbE
Windows 10/11 & Linux
Wide temp -20°C to 60°C
Wide range DC input (9 to 36V)
Fanless operation
Build-to-order configured to your requirements

Download datasheet

Reliable operation

Designed for 24/7 operation, this fanless system ensures reliable continuous operation in industrial environments. With aluminum heatsink and black steel chassis construction, the FPC-6800 is durable while maintaining operational efficiency. The front I/O design maximizes accessibility in tight installations.

Product features

Fanless operation

Compact

Accessories

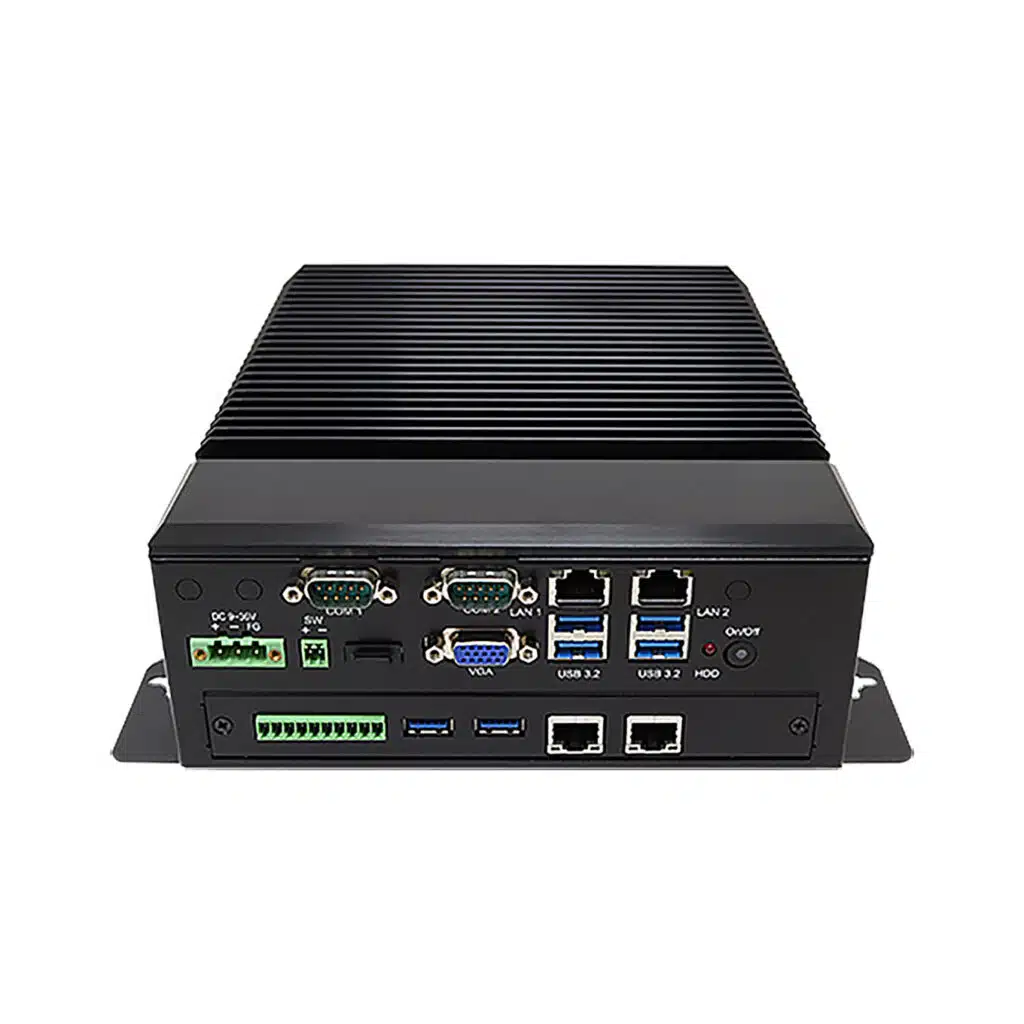

Option module for FPC-6800 series (2 x GbE, 2 x USB 3.2, 8 x GPIO terminal block with 1 x 10pin with isolation)

Specifications

Download datasheet

Fanless PC

Compact with front I/O only

Aluminum heatsink and black steel chassis

Model 1 Fanless

Model 2 & 3 Fanless (add-on GPU require fan)

Operating temperature -20°C to +60°C ambient w/ air flow (with wide temp MEM / SSD)
Only +50°C ambient w/ air flow for Core i7 CPU

Storage temperature -40°C to +85°C

Humidity 10% to 95% @40°C non-condensing

Vibration 1G / 5 to 500Hz (random) / operation

Shock 15G peak acceleration(11 msec. duration) / operation

CE / FCC class A

9th generation Intel Core i3 / i5 / i7 / i9 processor (up to 35W TDP)

Intel Q370 chipset

Up to 64GB, 2 x 260-pin DDR4 SO-DIMM 2666 MHz SDRAM

2 x 2.5″ SSD / HDD drive bays with easy access

Supports RAID 0/1

4 x USB 3.2 generation 1 type A

2 x GbE RJ45 port by Intel I210AT and I219LM

1 x RS-232/422/485 DB9 port – COM1

1 x RS-232 DB9 port – COM2

1 x VGA, 1 x HDMI

1 x 3-pin DC power input terminal, 1 x 2-pin power switch, 1 x power button with light

Option for I/O module (2 x GbE by Intel I211AT, 2 x USB 3.2, 8 x GPIO terminal block with 1 x 10pin with isolation)

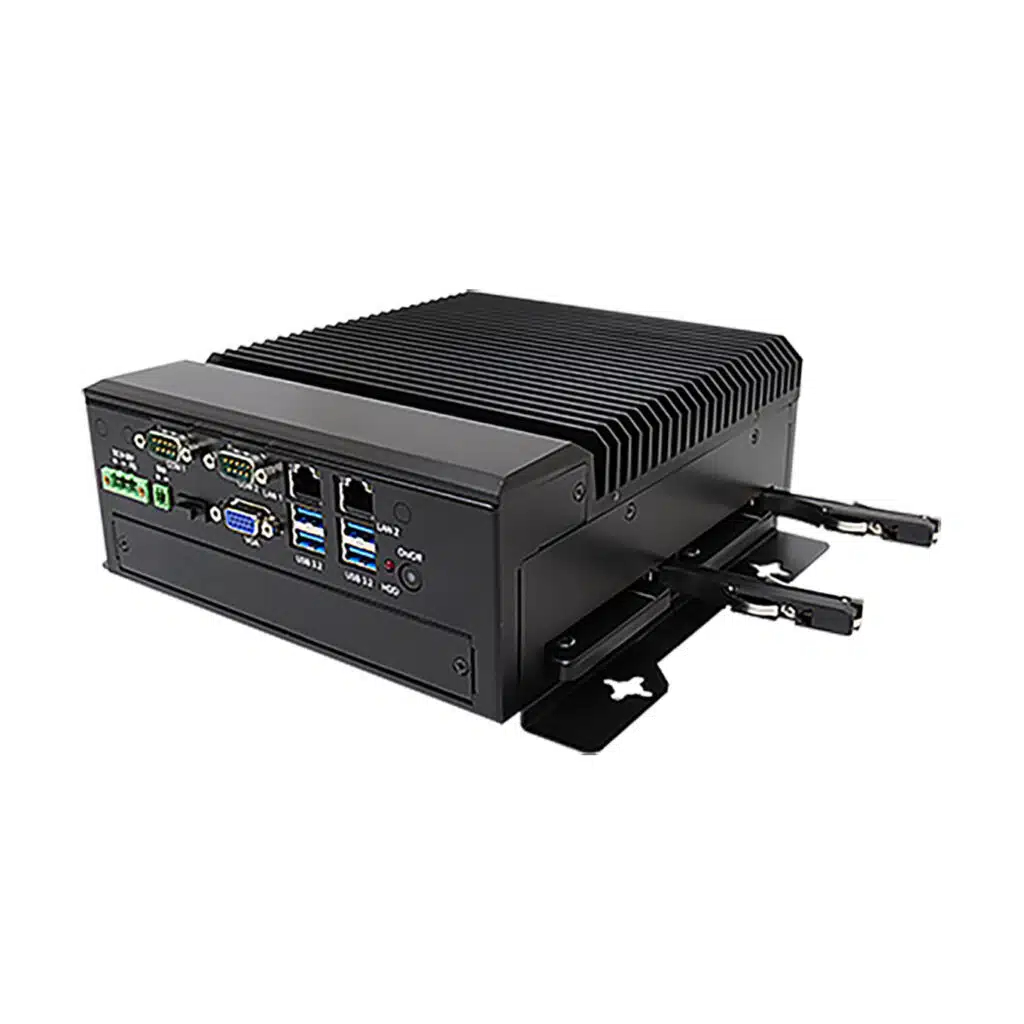

Model 1 1 x M.2 PCIe x4 or SATAIII M key 2280/2242
1 x Mini PCIe full-size for optional WIFI / 3G / 4G / GPS / I/O expansion

Model 2 1 x M.2 PCIe x4 or SATAIII M key 2280/2242
1 x Mini PCIe full-size for optional WIFI / 3G / 4G / GPS / I/O expansion
1 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot *

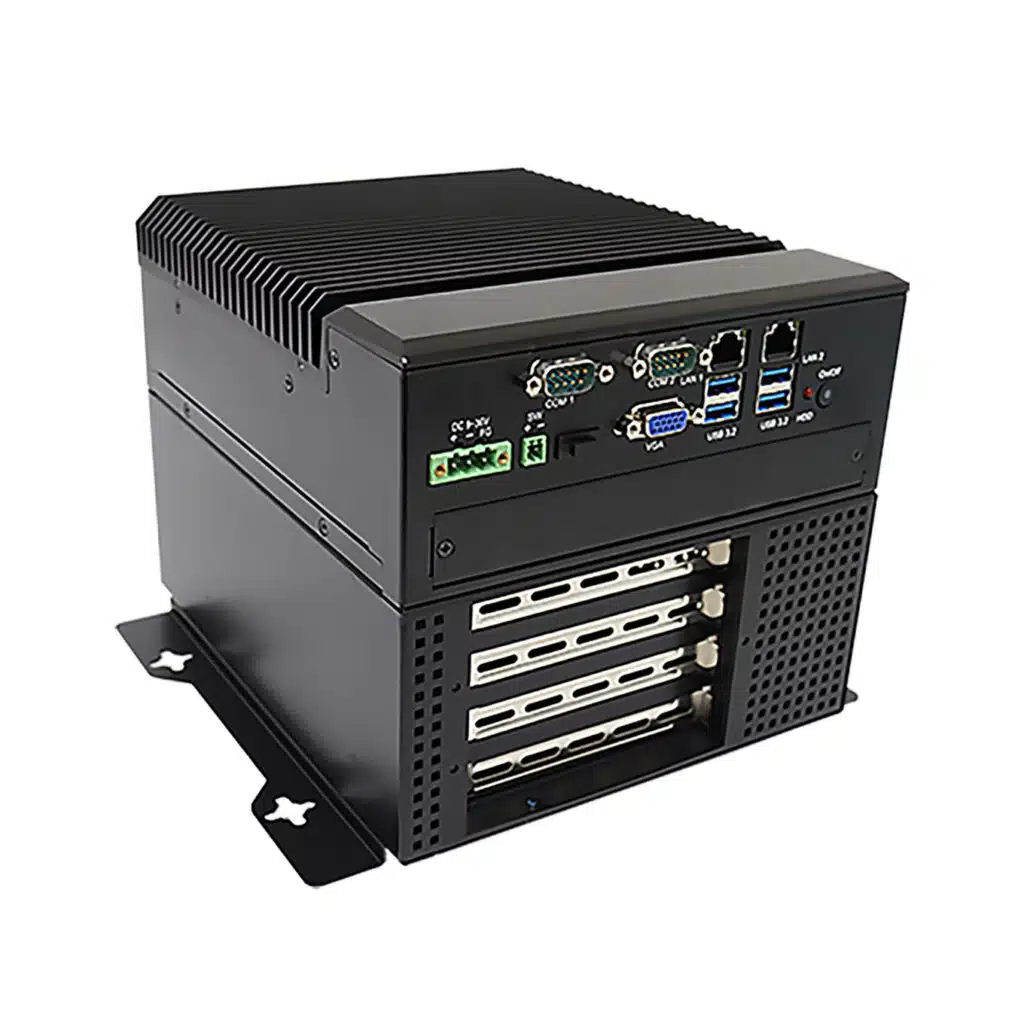

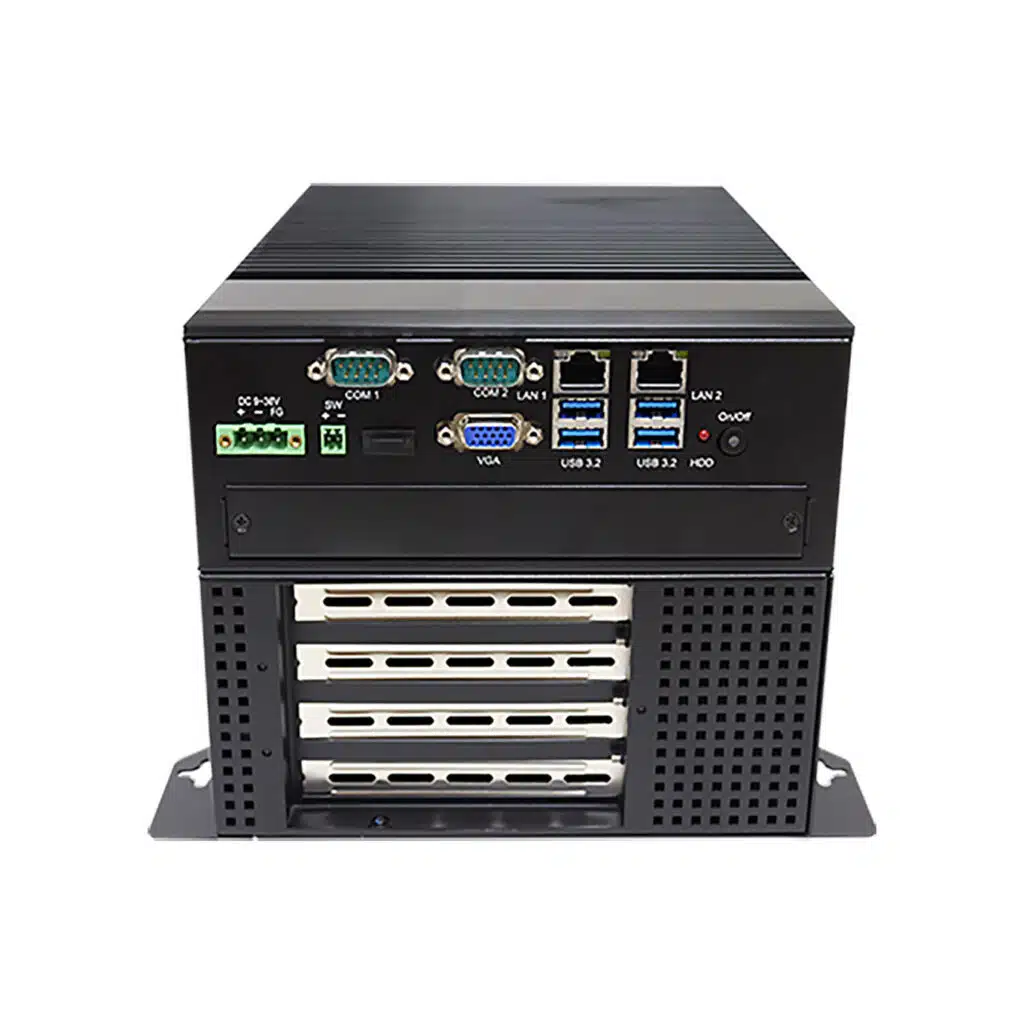

Model 3 1 x M.2 PCIe x4 or SATAIII M key 2280/2242
1 x Mini PCIe full-size for optional WIFI / 3G / 4G / GPS / I/O expansion
2 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot*

* Maximum add-on expansions card size H140 x L190mm

Windows 10 / 11

Windows 10 IoT Enterprise

Linux Kernel 4.15 (Ubuntu 16.04.4)

+9V to +36V DC-in by 3-Pin terminal block

Model 1 (w/o I/O card) Max 56W

Model 2 & 3 Max 150W

Model 1 (without DIN or wall mount) H 190 x W 77 x D 222mm 3.4kg (gross weight NNkg)

Model 2 (without DIN or wall mount) H 190 x W 127 x D 222mm 4.2kg (gross weight NNkg)

Model 3 (without DIN or wall mount) H 190 x W 168 x D 222mm 4.5kg (gross weight NNkg)

DIN-RAIL

Wall mount

Wall mount kit

2 x key lock for 2.5″ SSD / HDD drive bays

DIN-RAIL kit (model 1 one pcs, model 2 & 3 two pcs)

Option I/O modul (2 x GbE by Intel I211AT, 2 x USB 3.2, 8 x GPIO terminal block with 1 x 10pin with isolation)

GPS modul + antenna kit

WIFI / Bluetooth modul + antenna kit

4G/LTE modul + antenna kit

Add on card for model 2 & 3: LAN, PoE, Lighting control, Digital I/O, COM, CAN etc. (Please contact sales for support)

Add on GPU card for model 2 & 3: Support up to 75W TDP with fan (please contact sales for support)

180W AC/DC adapter kit w/3-pin block

Standard 1 year (option for 3 years)
