Blue Line Fanless FPC-7300

Blue Line Fanless FPC-7300 is the ultimate industrial computer designed for optimal performance and versatility in any environment. With its compact DIN-RAIL solution and front I/O, this innovative device offers a seamless and efficient solution for 24/7 operation.

  • 13th/12th generation Intel Core i3 / i5 / i7 / i9 processor
  • Supports DIN-RAIL and Wall mount
  • Supports 2 x 2.5” drives w. RAID
  • Option for PCIe x16, PCIe x4
  • 4 x COM, 4 x USB, 2 x 2.5GbE
  • Windows 10/11 & Linux
  • Wide temp -20°C to 60°C
  • Wide range DC input (9 to 32V)
  • Fanless operation
  • Build-to-order configured to your requirements

Compact computing

Whether you need it for Machine Vision, Edge Computing, Machine Learning/Inference, Robotic Control, or Automation, the FPC-7300 is equipped to handle it all.


Experience the power and convenience of this cutting-edge industrial PC, with a wide range of options and configurations to suit your specific needs.

FPC-7300

Product features

FPC-7300

Fanless operation

FPC-7300

Compact

Accessories

External SMA connector for WIFI-BT-4GLTE on FPC-7300 Series

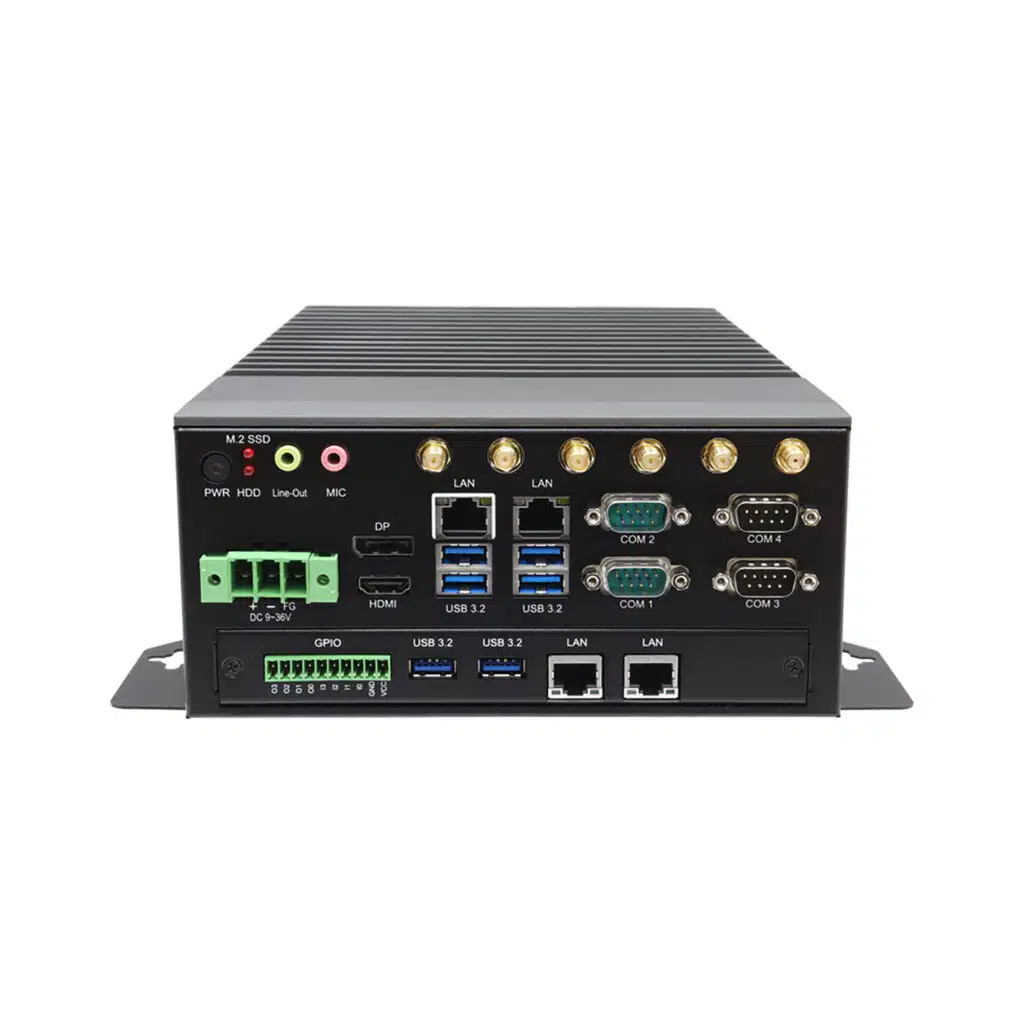

Optional module for FPC-7300 series (2 x GbE, 2 x USB 3.2, 8 x GPIO terminal block

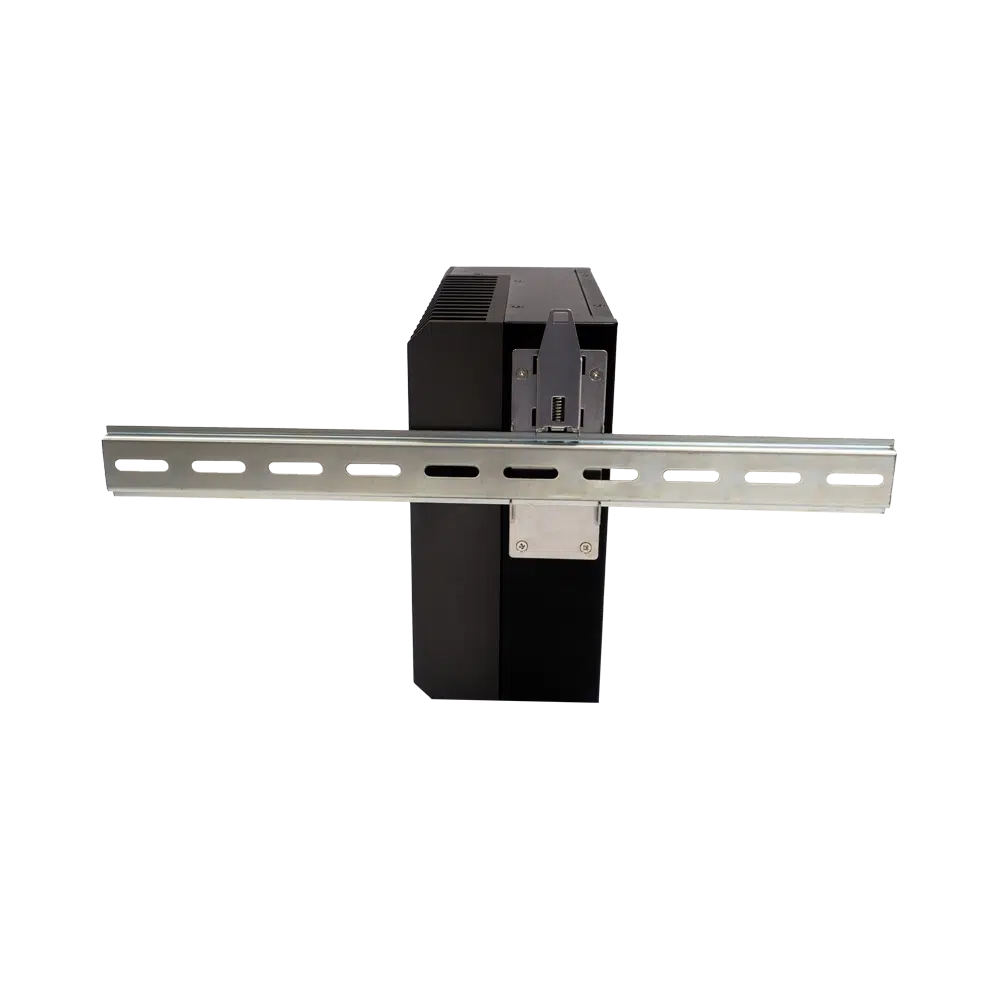

DIN RAIL – attachment kit

Specifications

Model Type

Fanless PC
Option for internal and external fan solution depending on configuration

Form Factor

Compact with front I/O only

Construction

Aluminum heatsink and black steel chassis

Cooling

Model 1 Fanless
Model 2 Fanless (add-on 75W~125W add on card require internal 40x40mm fan)
Model 3 Fanless (add-on 75W~125W add on card require internal 80x80mm fan)

Environment

Operating temperature -30°C to +60°C ambient w/ air flow for i3 / i5 CPU (with wide temp MEM / SSD)
Only +50°C ambient w/ air flow for i7 / i9 CPU (with wide temp MEM / SSD)
Storage temperature -40°C to +85°C
Humidity 10% to 90% @40°C non-condensing
Vibration IEC 60068-2-64 1G / 5 to 500Hz (random) / operation
Shock IEC 60068-2-27 15G peak acceleration (11 msec. Duration) / operation

Certification

Meet CE/FCC Class A

Processor

Fanless 12/13th generation Intel Core i3 / i5 / i7 / i9 (up to 35W TDP)
External smart fan kit 12/13th generation Intel Core i3 / i5 / i7 / i9 (up to 65W TDP)

Chipset

Intel Q670E chipset
TPM 2.0
Watchdog Timer (256 steps)

RAM

Up to 64GB, 2 x 262-pin DDR5 SO-DIMM 4800 MHz SDRAM (32GB per slot)

Storage

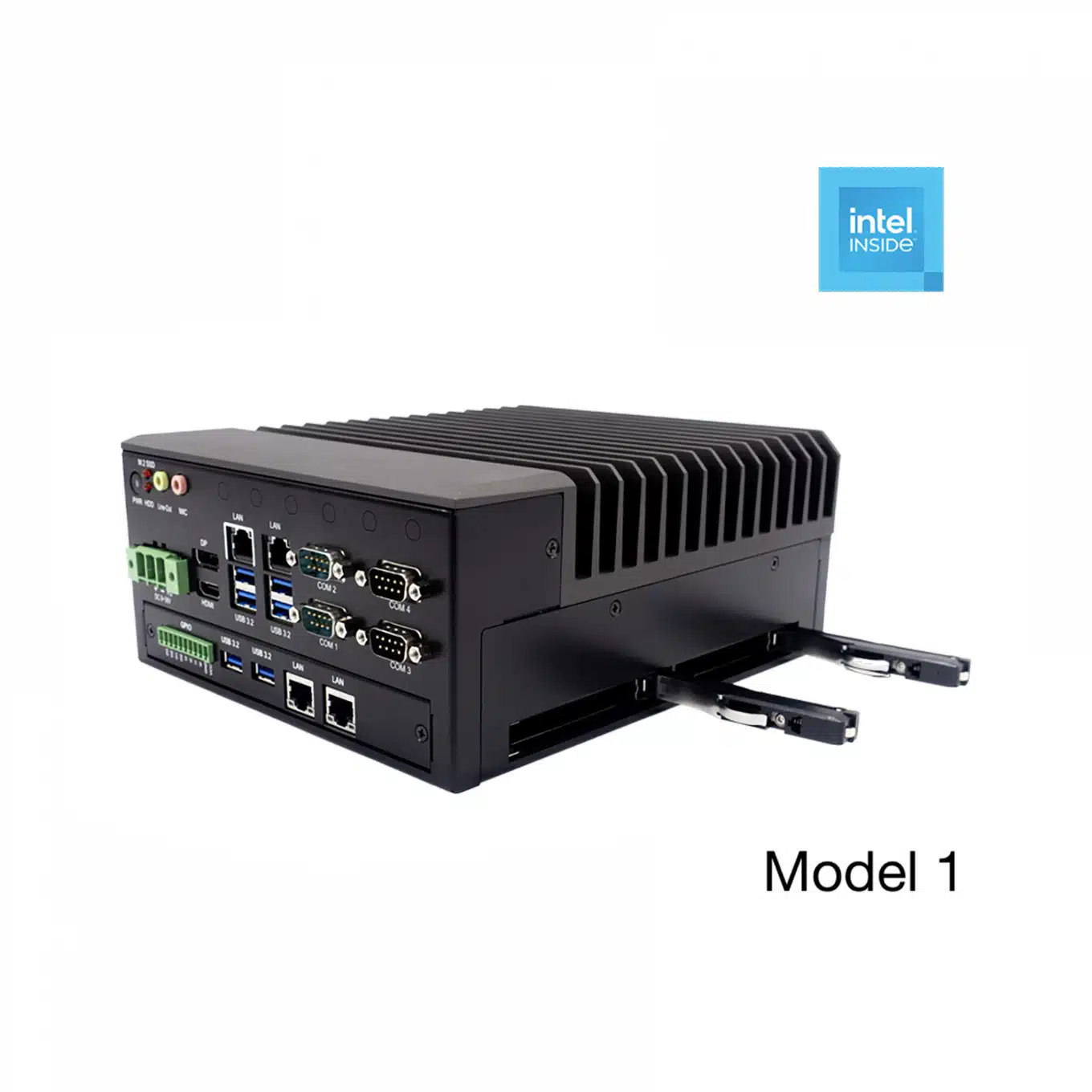

2 x 2.5″ SATA SSD / HDD drive bays with easy access
Supports RAID 0/1
1 x M.2 M key 2242/2280, supports PCIe x4

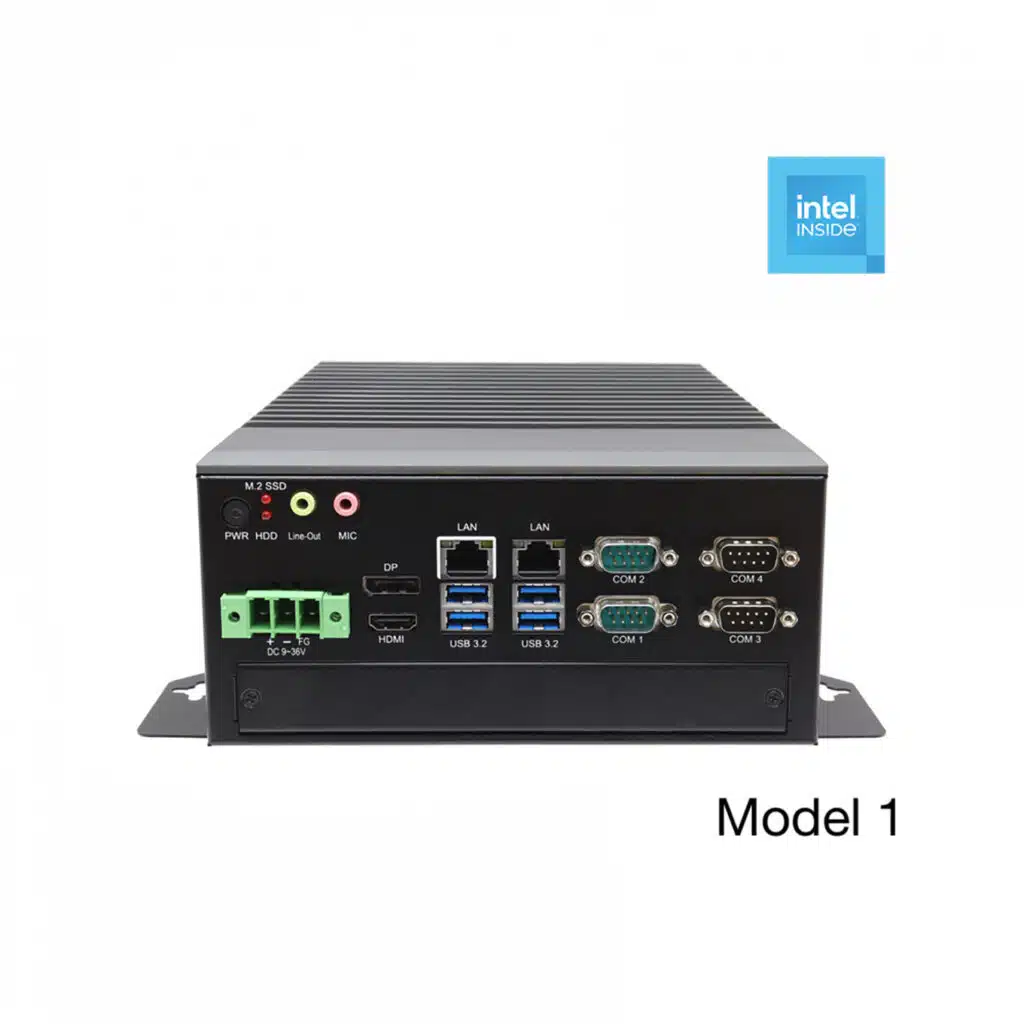

Front Input / Output

4 x USB 3.2 generation 1 Type A
2 x 2.5GbE RJ45 port by Intel i226LM (LAN port 1 support Intel vPro)
4 x RS-232/422/485 DB9 port – COM1 to 4
1 x DP++ 1.4A
1 x HDMI 2.1
1 x Line-out, 1 x Mic-in 3.5mm Phone Jack connector
1 x 3-PIN DC power input via Terminal Block, 1 x power button with Grenn LED light
1 x M.2 SSD and 1 x 2.5″ SSD Red LED indicators
6 x PreCut SMA holes for antennas
Option for I/O module (2 x GbE by Intel I211AT, 2 x USB 3.2, GPIO Isolated Digital I/O Terminal Block
(10-pin, 4 x SI, 4 x SO, 1 x 24V input, 1 x GND))

Expansion

Internal I/O Model 1, 2 & 3 1 x MIO for expansion additional function (TBD)
Model 1 1 x M.2 E key 2230 for WIFI/BT
1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
1 x M.2 E key 2230 for WIFI/BT  1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
1 x M.2 E key 2230 for WIFI/BT
1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
Model 2 1 x M.2 E key 2230 for WIFI / Bluetooth
1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
1 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot *
1 x M.2 E key 2230 for WIFI / Bluetooth 1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion 1 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot *
1 x M.2 E key 2230 for WIFI / Bluetooth
1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
1 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot *
Model 3 1 x M.2 E key 2230 for WIFI / Bluetooth
1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
2 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot*
Option for 2 x PCIe x8 slot, 2 x PCIe x2 slot
1 x M.2 E key 2230 for WIFI / Bluetooth 1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion 2 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot* Option for 2 x PCIe x8 slot, 2 x PCIe x2 slot
1 x M.2 E key 2230 for WIFI / Bluetooth
1 x M.2 B key for optional 4G / 5G / GPS / I/O expansion
2 x PCIe3.0 x4 slot, 1 x PCIe3.0 x16 slot*
Option for 2 x PCIe x8 slot, 2 x PCIe x2 slot
* Maximum add-on expansions card size H120 x L195mm

Operating System

Windows 10 / 11
Windows 10 IoT Enterprise
Linux Kernel 5.15 (Ubuntu 22.04)

Power Supply

+9V to +32V DC-in by 3-pin terminal block

Power Consumption

Model 1 (w/o I/O card) @24V DC input:
Idle mode: 1,6A ~ 40Watt
100% CPU load: 5,3A ~ 130Watt
(i7-13700TE, 2x8GB MEM, 2x 256GB 2.5″ SSD)
Model 2 & 3 TBD

Dimension and Weight

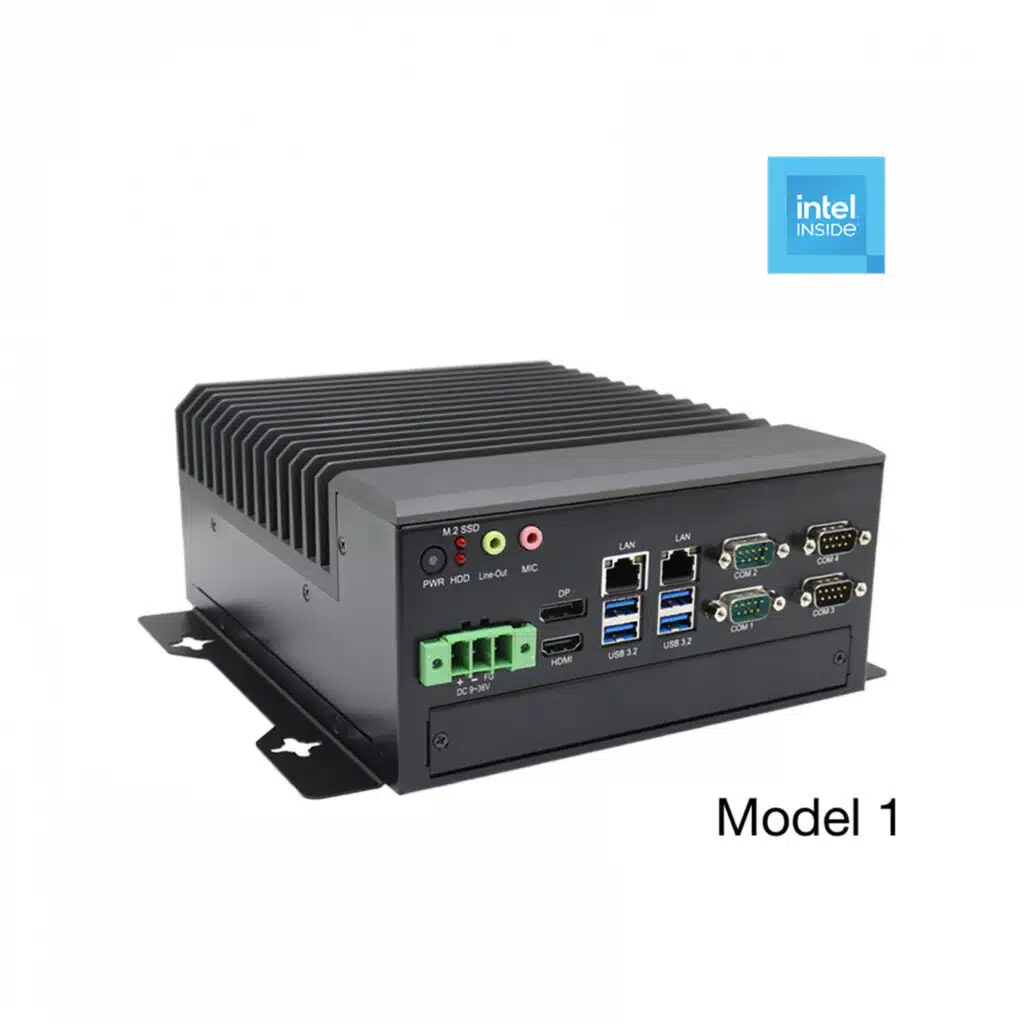

Model 1* H 190 x W 93 x D 222mm
  4kg (gross weight NNkg)
Model 2* H 190 x W 145 x D 222mm
  4.6kg (gross weight NNkg)

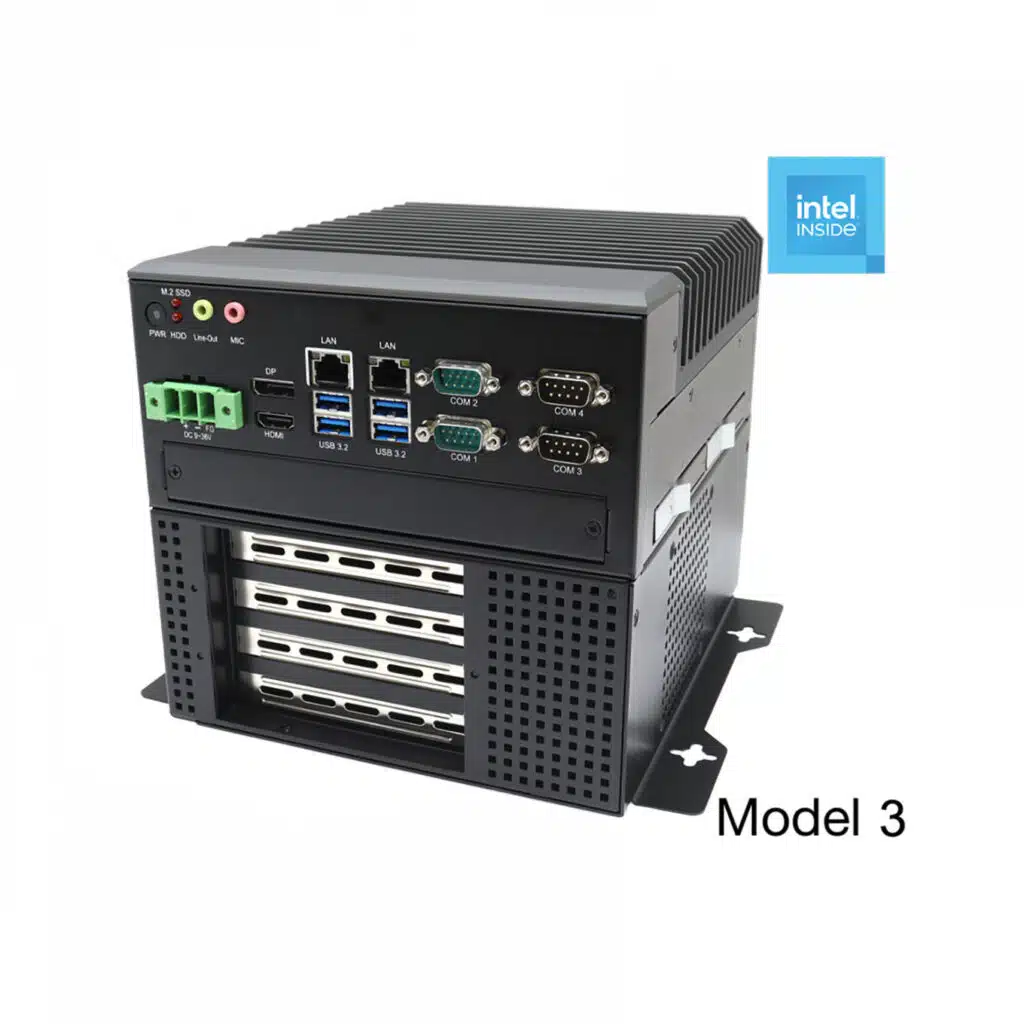

Model 3* H 190 x W 186 x D 222mm
  5.4kg (gross weight NNkg)
  *All dimension & weight are without DIN or Wall mount kit

Mounting

DIN-RAIL
Wall mount

Accessories Included

Wall mount kit
2 x Key lock for 2.5″ SSD / HDD drive bays
3-pin Terminal block – DC Power

Accessories Optional

DIN-RAIL kit (model 1 one pcs, model 2 & 3 two pcs)
I/O module (2 x GbE by Intel I211AT, 2 x USB 3.2, 8 x GPIO terminal block w/ 1 x 10pin with isolation)
GPS module + antenna kit
WIFI / Bluetooth module + antenna kit
4G/5G/LTE module + antenna kit
300W external AC/DC adapter kit w/2-pin block (100~240V AC to 24V DC @ 12.5A)
450W external AC/DC adapter kit w/2-pin block
240W DIN-RAIL AC/DC adapter (90~264V AC to 24V DC @ 10A)
480W DIN-RAIL AC/DC adapter (90~264V AC to 24V DC @ 20A)
External smart fan kit
Add on GPU card for model 2 & 3: Supports up to 75W /125W TDP with fan (please contact sales for support)
Add on internal 8-pin CPU to 6+2-pin PCIe power cable for model 2 & 3
Add on card for model 2 & 3: LAN, PoE, Lighting control, digital I/O, COM, CAN etc. (Please contact sales for support)


Warranty and After Sales Support

Standard 1 year (option for 3 years)
