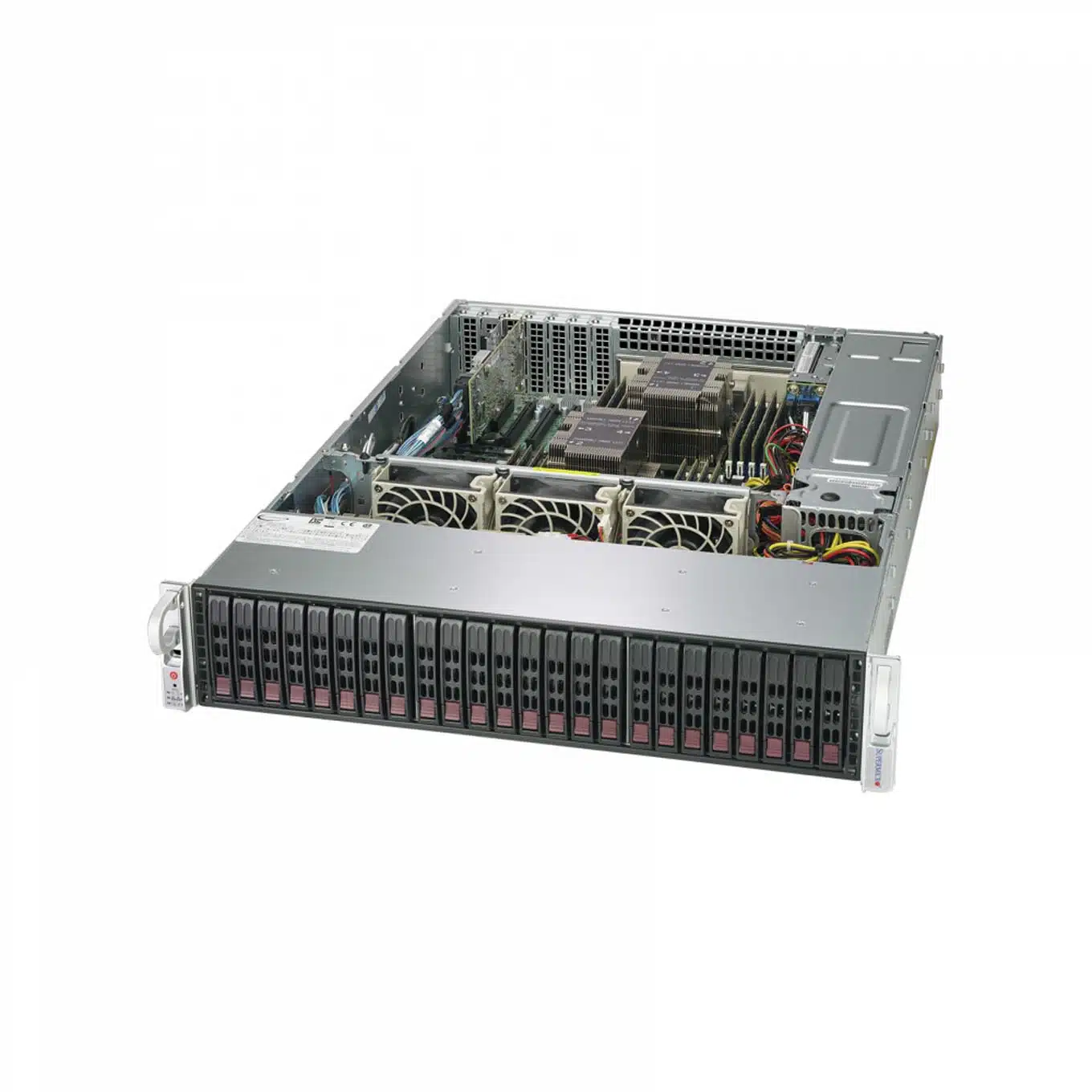

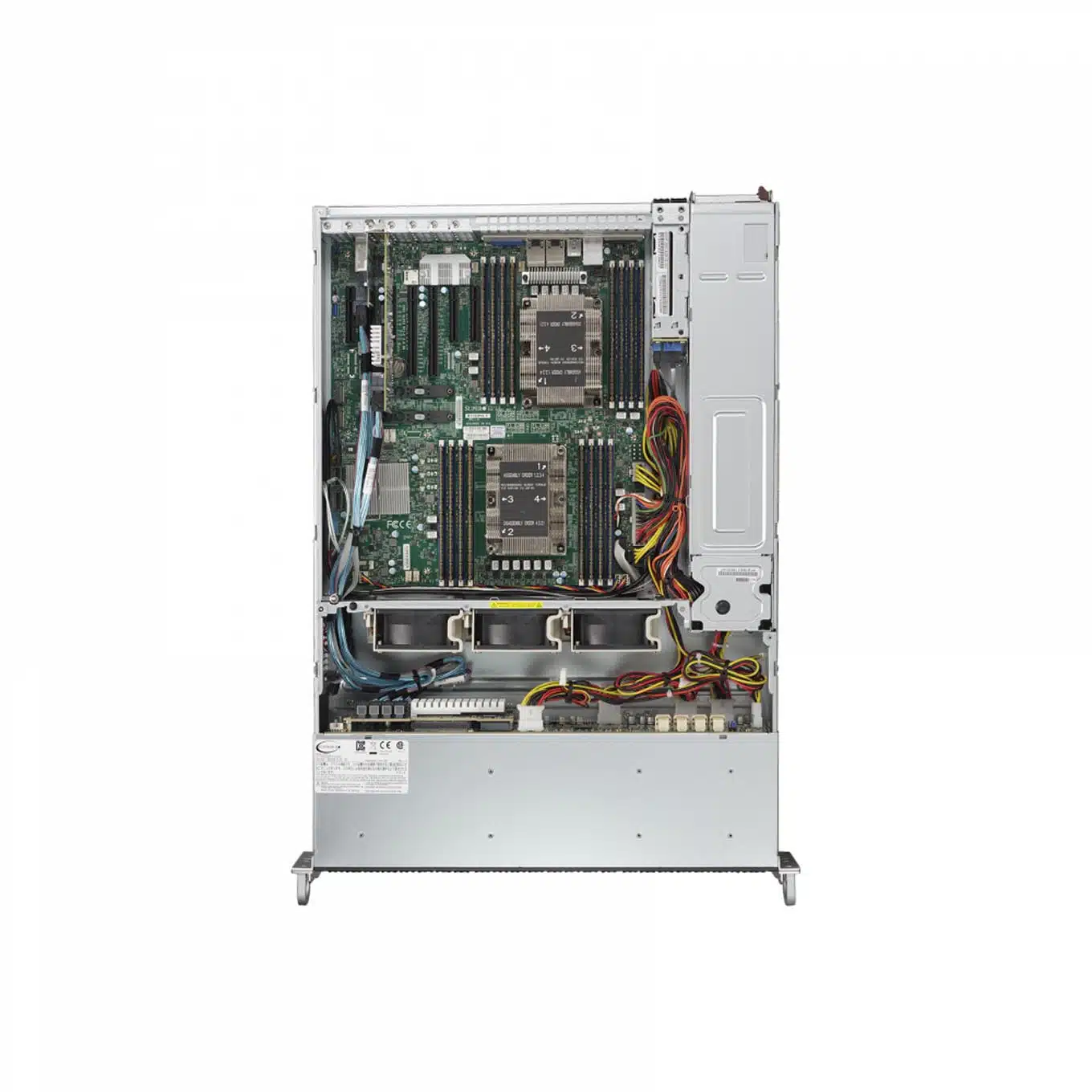

Supermicro Storage Server 2029P-E1CR24H/L

A powerful enterprise storage server delivering high-performance computing and database processing capabilities in a compact 2U rackmount design. Equipped with dual Intel 2nd generation Xeon Scalable processors, 24 hot-swap drive bays, and flexible expansion options.

2U rack mount chassis
2 x Intel 2nd gen. Xeon Scalable
Broadcom 3108 HW RAID (H)
Broadcom 3008 HBA (L)

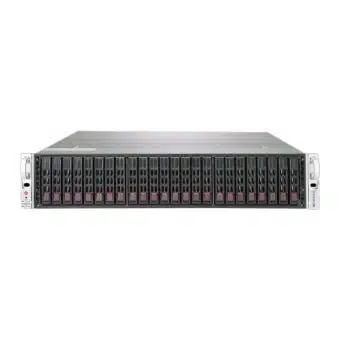

24 x Hot-swap 2.5″ drive bays and JBOD expansion port
Build-to-order configured to the requirements

Download datasheet

Compact server

The Supermicro Storage Server combines cutting-edge processing power storage capabilities, supporting up to 4TB of ECC DDR4 memory and featuring redundant power supplies for maximum reliability.

Product features

Dual Intel 2nd gen. Xeon Scalable processors

24 x Hot-swap 2.5″ drive bays and JBOD expansion port

Specifications

Download datasheet

Storage server

2U rackmount

3 x Hot-swap 8cm redundant PWM cooling fans

Operating temperature 10°C to 35°C

Non-operating temperature -40°C to 60°C

Operating humidity 8% to 90% (non-condensing)

Non-operating humidity 5% to 95% (non-condensing)

UL / cUL / CB / BSMI / CE / CCC

CPU 2. gen Intel® Xeon scalable (cascade lake / skylake) dual socket P
3 UPI up to 10.4GT/s
supports CPU TDP 70 to 205W

Cores/cache Up to 22 cores / up to 55MB cache

Intel® C622

Memory capacity 16 x DIMM slots
up to 4TB ECC 3DS DDR4-2933MHz RDIMM / LRDIMM

Memory type 2133 / 2400 / 2666 / 2933MHz ECC DDR4 RDIMM / LRDIMM

24 x Hot-swap 2.5″ SAS3 / SATA3 drive bays

2 x Hot-swap 2.5″ SATA3 drive bays (rear)

Option for 2 x onboard NVMe M.2

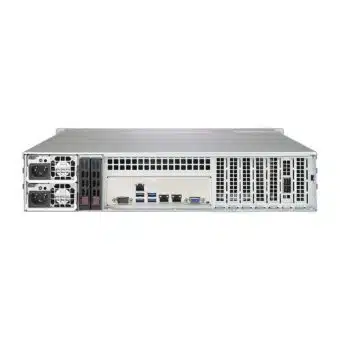

Rear 2 x RJ45 10GBase-T, 1 x RJ45 dedicated IPMI
1 x VGA
4 x USB 3.0

Internal 1 x fast UART 16550 port
1 x USB type A

3 x PCI-E 3.0 x16 slot

4 x PCI-E 3.0 x8 slots

Slot 2 & 3 occupied by controller and JBOD expansion port

WHQL

RHEL / Ubuntu / SUSE

1200W redundant power supplies with PMBus

Total output power 1000W / 1200W

Input 100V to 127V AC / 15 to 12A / 50 to 60Hz
200V to 240V AC / 8.5 to 7A / 50 to 60Hz
200V to 240V DC / 8.5 to 7A (for CCC only)

+12V max 83A / min 0A (100V to 127V AC)
max 100A / min 0A (200V to 240V AC)
max 100A / min 0A (200V to 240V DC)

12Vsb max 4A / min 0A

Output type 19 pairs gold finger connector

H 240 x W 210 x D 279mm

6.8kg

1 x Power extension cable, 1 HDD to 2 HDD & 2 FDD, 35 / 25 / 12cm, 22AWG

4 x Mini SAS HD, 12G, INT, 50cm, 30AWG

2 x AC – DC 1200W, titanium level, redundancy, 1U, PMBUS 1.2, +12V / +5Vsb, 360 x 76 x 40mm, HF, RoHS / REACH

24 x Black 3. gen hot-swap 2.5″ HDD tray

3 x Middle cooling fan 80 x 80 x 38mm, 10.5K RPM for x10 2U ultra & HFT series servers, RoHS / REACH

1 x Supercap module

1 x Mounting PCIe card

1 x HDD Y-split cable

Standard 1 year hardware warranty for barebone

3 year hardware warranty & 1 year cross shipment for complete system CPU / MEM / DISK

Option for 5 year hardware warranty & 1 year cross shipment / 3 year hardware warranty & 3 year cross shipment
