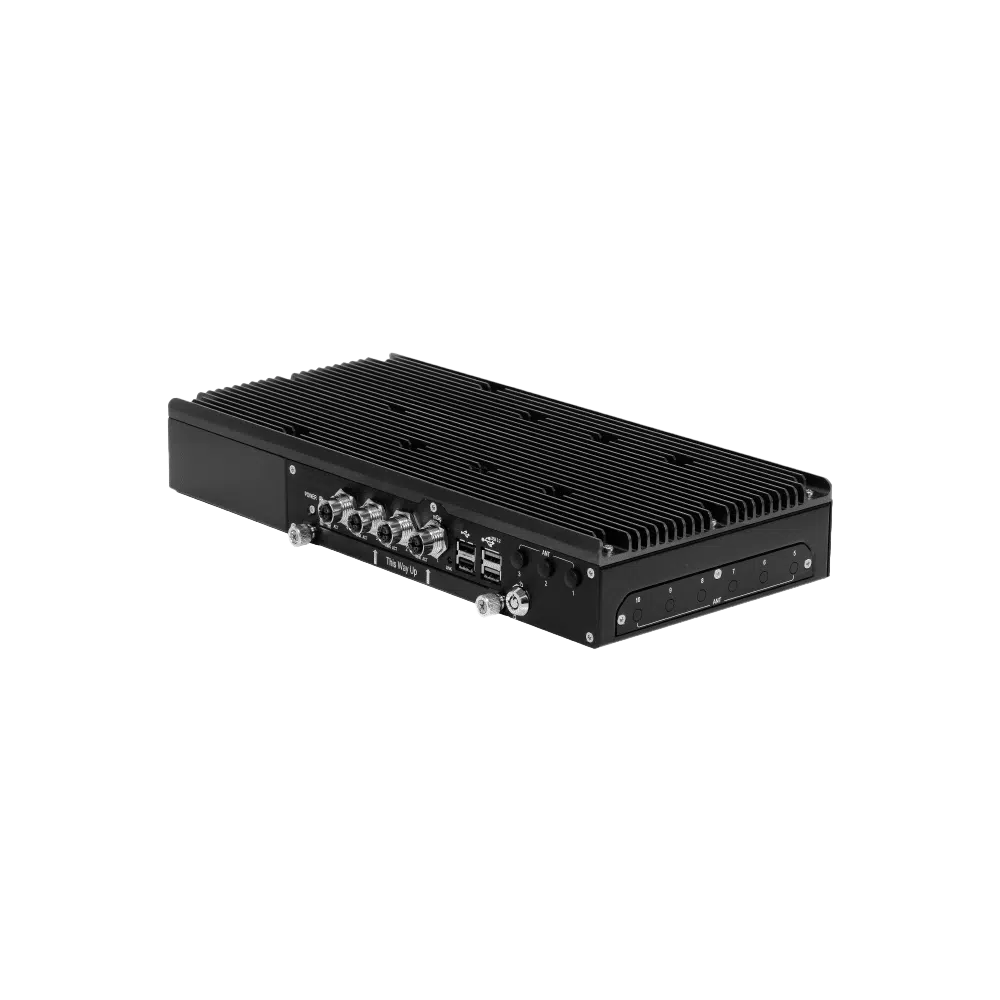

Blue Line Vehicle PC VPC-3000

Blue Line Vehicle PC VPC-3000

VPC-3000 is an ultra-compact, fanless in-vehicle computer with cutting-edge 5G connectivity.

  • Fanless in-vehicle computer
  • 11th generation Intel Core i7 processor
  • Supports Windows 10/11 & Linux
  • EN50155 certified
  • Expansion slots for WIFI / dual WWAN/GPS/CAN
  • 4 x PoE LAN w/M12 X-coded connector
  • Supports 4 independent display outputs: HDMI / DP / DVI-D
  • Isolated +24 to 110VDC-in for rolling stock applications
  • Supports optional battery backup kit
  • Wide temp -40°C to 70°C
  • Build-to-order configured to your requirements
Download datasheet

In-Vehicle Computing Solution

This powerful device is tailor-made for fleet management, in-vehicle digital signage, and mobile DVR applications.

Blue Line Vehicle PC VPC-3000
Blue Line Vehicle PC VPC-3000

Built for extreme weather conditions

Equipped with Smarter Vehicle Power Ignition and wireless remote control, the VPC-3000 is built to thrive in extreme weather and operating conditions, making it an ideal solution for vehicles like snowplows, trucks, buses, taxis, and forklifts.

Product features

Blue Line Vehicle PC VPC-3000

Slim and Compact

Blue Line Vehicle PC VPC-3000

Equipped with Smarter Vehicle Power Ignition and wireless remote control

Specifications

Download datasheet

Model Type

Fanless Vehicle PC

Form Factor

Slim and compact

Construction

Aluminum

Cooling

Fanless

Environment

Operating Temperature -40°C to 70°C, ambient w/ 0.6m/s airflow
Storage Temperature -40°C to 85°C
Humidity 10% to 90% , non-condensing
Vibration operating MIL-STD-810G, method 514.6, procedure I
IEC60068-2-64, random, 2.5G#5a500+z, 1hr/axis
Shock operating MIL-STD-810G, method 514.6, procedure I
Trucks and semi-trailers 15G (11ms with SSD)

Certification

CE, FCC Class A, E-Mark, EN50155. EN45545-2 (R25)

Processor

CPU Mobile Intel Celeron 6305E, up to 1.8GHz
  Mobile Intel Core 11th generation i3-1115G4E, up to 3.9GHz
  Mobile Intel Core 11th generation i5-1145G7E, up to 4.1GHz*
  Mobile Intel Core 11th generation i7-1185G7E, up to 4.4GHz*
  *Support vPro & PXE LAN boot ROM
Buil-in GPU Intel Iris Xe graphics / Intel UHD Graphics

Chipset

SoC

RAM

Up to 64GB, 2 x DDR4-3200MHz, SO-DIMM Slot

Storage

2 x 2.5″ drive bay for SATA SSD with easy access (supports RAID 0/1)
1 x M.2 2280 key M for NVMe SSD*
*NVMe SSD w/additional thermal heatsink is required

Front Input / Output

Power on/off button
LED indicators
2 x USB 2.0 type A
2 x USB 3.2 gen 2 Type A
9 x Pre-cut holes for external SMA antenna (3 front and 7 on the side)
3 x M12 X-coded PoE, Intel i210-AT GbE*
1 x M12 X-coded PoE, Intel i255-LM 2.5GbE supports mGig, iAMT and PXE LAN Boot RAM (i5 / i7)*
*60W PoE power budget

Rear Input / Output

1 x DP
2 x HDMI
1 x DIV-D
4 x RS-232 / 422 / 485 Serial port (auto direction control) (3 ports for M12 model)
2 x SIM card sockets supported onboard with eject
1 x LINE-out and 1 x MIC-in
6 x DI (5 to 60V) 4 x DO (5V/100mA) (option: 2 x 12V/1A output)
1 x M12 S-coded, 4-pin DC-in
1 x 3-pin for external on/off power switch
1 x Pre-cut holes for external SMA antenna

Expansion

1 x mPCIe full size (USB function only)
1 x mPCIe full size*
1 x M.2 3042/52 key B*
1 x M.2 2230 key A-E
*combo port (1 x M.2 3042/52 key B or 1 x mPCIe full card)

Operating System

Windows 10 / 11
Windows 10 IoT Enterprise
Linux Ubuntu 20.04.6 LTS (64-bit), 22.04 LTS (64-bit)

Power Supply

Power input isolated DC 24 to 110 VDC input for rolling stock
Power protection automatics recovery short circuit protection
Smart ignition power ignition for vehicle
Power-off delay control power-off delay time setting by software
Optional: Internal backup battery kit, 2350mAh (-20 to 55°C for discharge)*
UPS backup time for about 10mins operation. The time varies depending on actual overall system power consumption.

Power Consumption

TBD

Dimension and Weight

Dimension H 55 x W 365 x D 165mm
Weight 3.8kg

Mounting

Wall-mount

Accessories Included

Wall-mount kit

Accessories Optional

4G / 5G LTE modem + internal antenna kit
GPS modul + internal antenna kit
CAN bus module
350mAh 3S1P battery kit

Warranty and After Sales Support

Standard 1 year (option for 3 years)

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
