Blue Line Vehicle PC VPC-1000

Blue Line Vehicle PC VPC-1000

VPC-1000 is an ultra-compact, fanless in-vehicle computer with 5G or LTE connectivity, designed to seamlessly fit into tight spaces.

  • Fanless in-vehicle computer EV smart cockpit
  • NXP i.MX 8 QuadXPlus automotive grade Soc
  • Built-in accelerometer, gyroscope, and magnetic sensor
  • 3 x CAN / CAN FD
  • 8 x DI, 4 x DO and 2 x RS-232
  • 3 x M.2 slot
  • Wide temp -40°C to 70°C
  • Build-to-order configured to your requirements
Download datasheet

Vehicle Mounted Computing System

This innovative solution is ideal for digital clusters, intelligent cockpits, and efficient fleet management. Additionally, it boasts smarter vehicle power ignition and robust support for all types of vehicles in extreme weather and operating conditions, including snowplows, trucks, buses, taxis, and forklifts.

Blue Line Vehicle PC VPC-1000

Product features

Blue Line Vehicle PC VPC-1000

Ultra-compact

Blue Line Vehicle PC VPC-1000

5G/LTE connectivity with smart power ignition for extreme operating conditions

Specifications

Download datasheet

Model Type

Fanless vehicle PC

Form Factor

Ultra Compact

Construction

Steel

Cooling

Fanless

Environment

Operating Temperature -40°C to 70°C, ambient w/ 0.6m/s airflow
Storage Temperature -40°C to 85°C
Humidity 10% to 90% , non-condensing
Vibration operating MIL-STD-810G, method 514.6, procedure I, category 4, IEC 60068-2-64,
Shock operating MIL-STD-810G, method 516.6, procedure I, trucks and semi-trailers=15G (11ms) with SSD

Certification

CE, FCC, class A, E13, ECE, R118

Processor

CPU NXP i.MX 8QuadXPlus Automotive SoC (AEC-Q100 Grade 3)
  Integrated 4 x Arm Cortex-A35 Cores Up to 1.2 GHz
  1 x Am Cortex-M4F Core Up to 264 MHz
Built-in GPU 1 x GC700Lite with 4 x Vec4 shader cores (16 executio units)

Chipset

SoC

RAM

On-board LPDDR4 3 GB

Storage

Onboard eMMC 5.1, 32 GB
1 x Micro SD slot

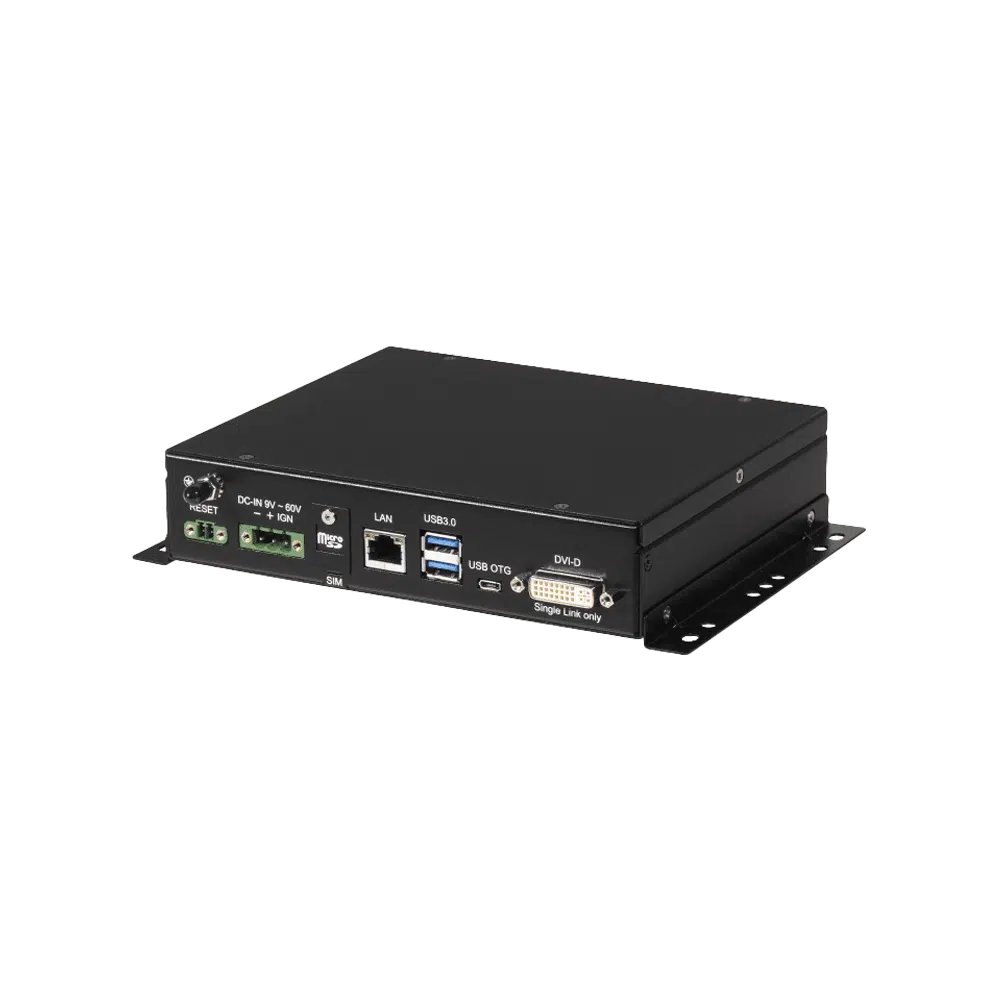

Front Input / Output

1 x DVI-D Single Link
1 x USB 2.0 OTG
2 x USB 3.2 Type A 5 Gbps
1 x GbE via RJ45 Port
1 x Nano SIM Slot*
1 x Micro SD Slot
* Internal 4G/5G LTE Modem required

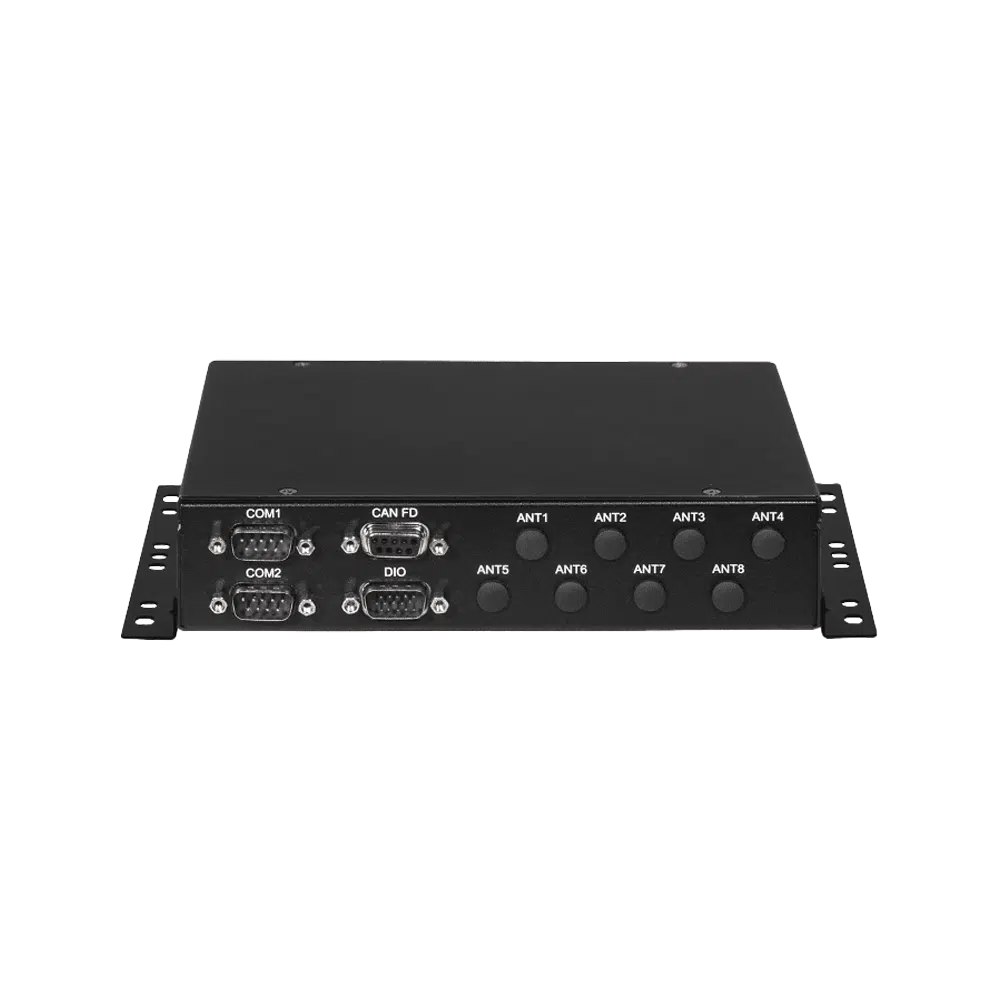

Rear Input / Output

1 x RS-232 COM1 DB9 Port
1 x RS-232 / 422 / 485 COM2 DB9 Port
3 x CAN /CAN FD in one DB9 Port
8 x DI (5 to 60VDC) & 4 x DO (5VDC, 100mA)
8 x Antenna output option
1 x Ground

Expansion

1 x M.2 3042/3052 key B for 4G/5G Modem (WWAN)
1 x M.2 2242 key B for GPS
1 x M.2 key A-E for WIFI

Operating System

Yocto Linux

Power Supply

+9V to 60V power input
Power protection automatics recovery short circuit protection
Power-off delay control vehicle power ignition for variety vehicle
Power off control
Power off delay time setting by software

Power Consumption

TBD

Dimension and Weight

Dimensions H 43 x W 214 x D 150mm
Weight  1kg

Mounting

Wall-mount

Accessories Included

Wall-mount kit

Accessories Optional

GPS module + internal antenna kit
 5G / 4G LTE module + internal antenna kit
Bluetooth / WIFI module + internal antenna kit
Micro SD Card 64/128/256GB 3D TLC WT
AC to DC Power adapter 12V/5A 60W with ignition

Warranty and After Sales Support

Standard 1 year (option for 3 years)
