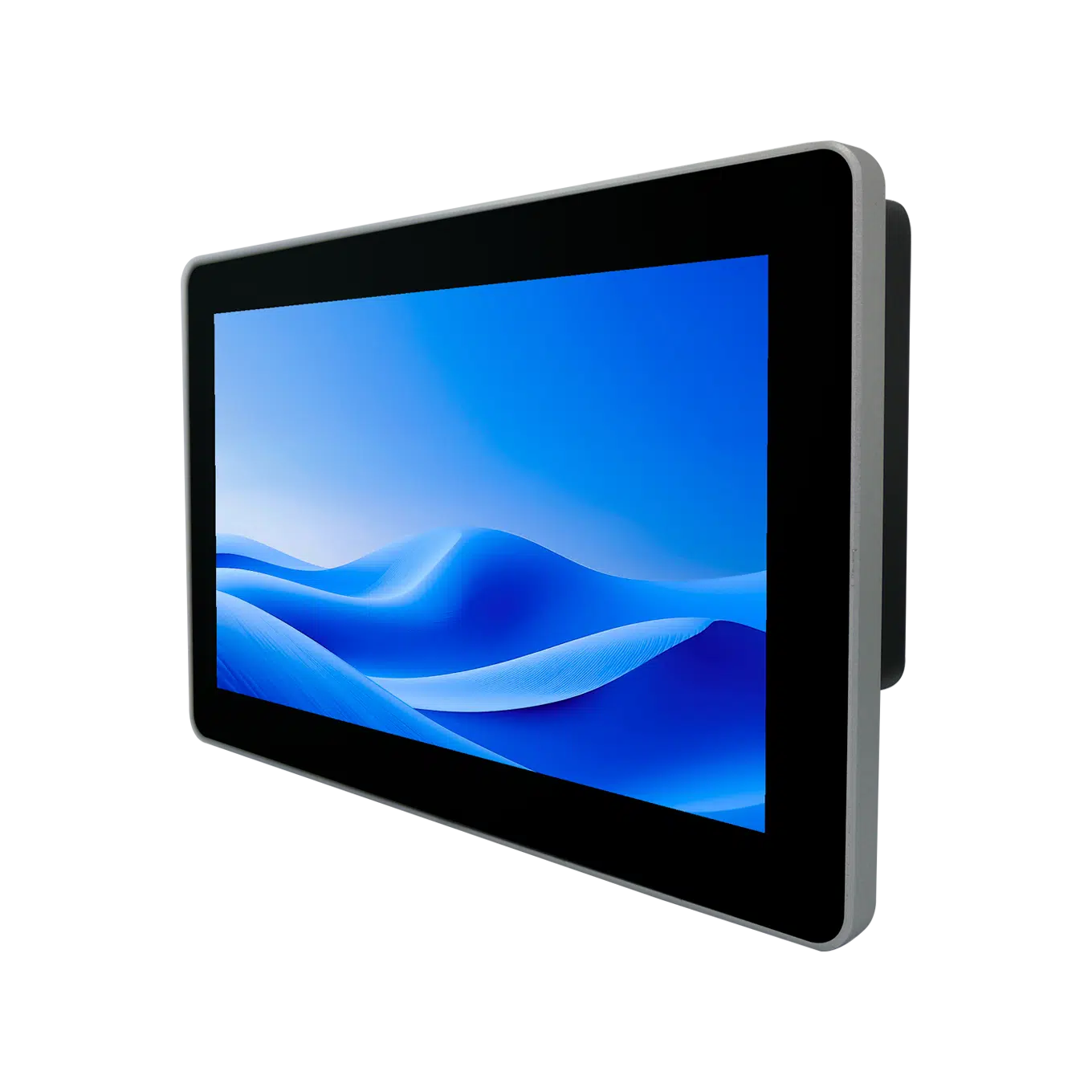

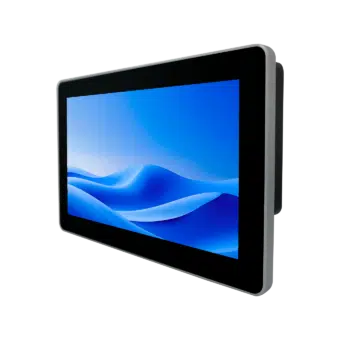

Blue Line Marine Dashboard Panel PC-8700

Make better use of valuable dashboard space without compromising functionality. The Blue Line Marine Dashboard Panel PC-8700 combines computing and touchscreen functionality in a single platform, giving you easy access to critical vessel and system information while reducing hardware and installation complexity.

Marine Panel PC
Available in 10.1″, 12.1″, 12.3″ and 14.9″
Intel® Pentium® N6415 processor
Supports Windows 10/11 and Linux

Projected capacitive multi-touch
IP66 front protection
Fanless operation for maximum reliability
Supports +9V to +36V DC input
Isolated +24V DC power input
Dual Gigabit Ethernet connectivity
RS232/422/485 serial communication
USB 3.2 connectivity
Optional HDMI output
VESA mounting
Built for demanding marine environments

Download datasheet

Get more information from less dashboard space

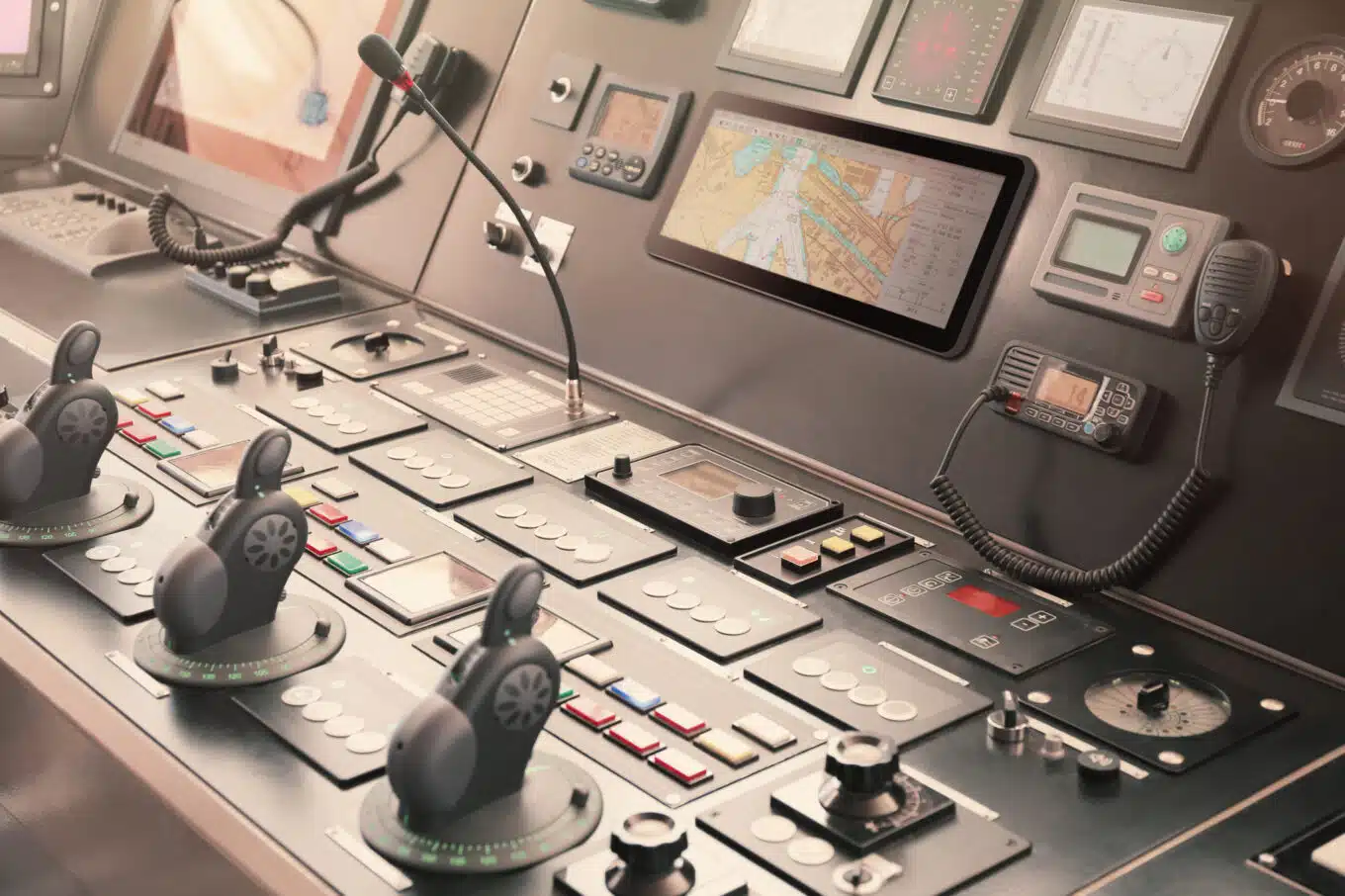

Whether installed in a bridge console, machinery control station or onboard dashboard, you need quick access to critical information without overcrowding the workspace. The Marine Dashboard Panel PC-8700 combines computing and display functionality in a single platform, helping you reduce hardware requirements while maintaining a clear operational overview.

With standard and ultra-wide display options, you can present more information in a single view and make better use of available dashboard space.

Connect your onboard systems with less complexity

Your monitoring, automation and control systems need to work together seamlessly. With support for Ethernet, serial communication, USB and optional HDMI connectivity, the Marine Dashboard Panel PC-8700 helps you integrate onboard systems without unnecessary complexity.

By combining computing and display functionality in one unit, you can simplify installation, reduce the number of components and make future maintenance easier.

Rely on stable performance at sea

Marine environments place high demands on operational equipment. The fanless design helps reduce maintenance requirements, while the rugged construction supports stable performance in environments exposed to vibration, humidity and continuous operation.

You get a responsive multi-touch interface and dependable performance that helps you maintain visibility and control throughout daily vessel operations.

Typical applications for your marine dashboard setup

See how you can use the Blue Line Marine Dashboard Panel PC-8700 across vessel monitoring, control and automation systems.

Bridge consoles

Keep critical vessel information easily accessible while making better use of available dashboard space.

Machinery monitoring

Monitor engine and machinery systems through a centralized interface that supports efficient daily operation.

Control stations

Access monitoring, alarm management and control functions through a single integrated platform.

Marine automation

Connect and manage onboard automation systems through a flexible platform designed for streamlined operation.

Product features

Built for modern vessel dashboards

Available in sizes of 10.1”, 12.1″, 12.3” and 14.9″

Case: Panel PCs supports the Danish Armed Forces’ naval operations

“For many years now Blue Line has delivered customized panel PCs that meet the Navy’s strict military requirements for functionality and security.”
The Royal Danish Navy, Danish Defence

View case study

Specifications

Download datasheet

Marine Panel PC

Metal housing with powder coating

Fanless

IP66 Front – IP54 Rear

Operating Temperature – 15°C to + 55°C

Operating Humidity 5% to 95% (non condensing)

Anti-Vibration 0.7g@DNV-CG-0339 (Class A)

Anti-Shock 15G, 11ms duraiton

Build to meet Marine standards

CE & FCC

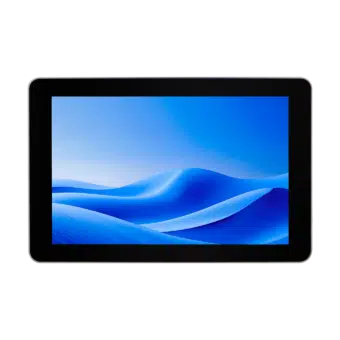

10.1″ 1280 x 800, 16:10 WXGA LCD

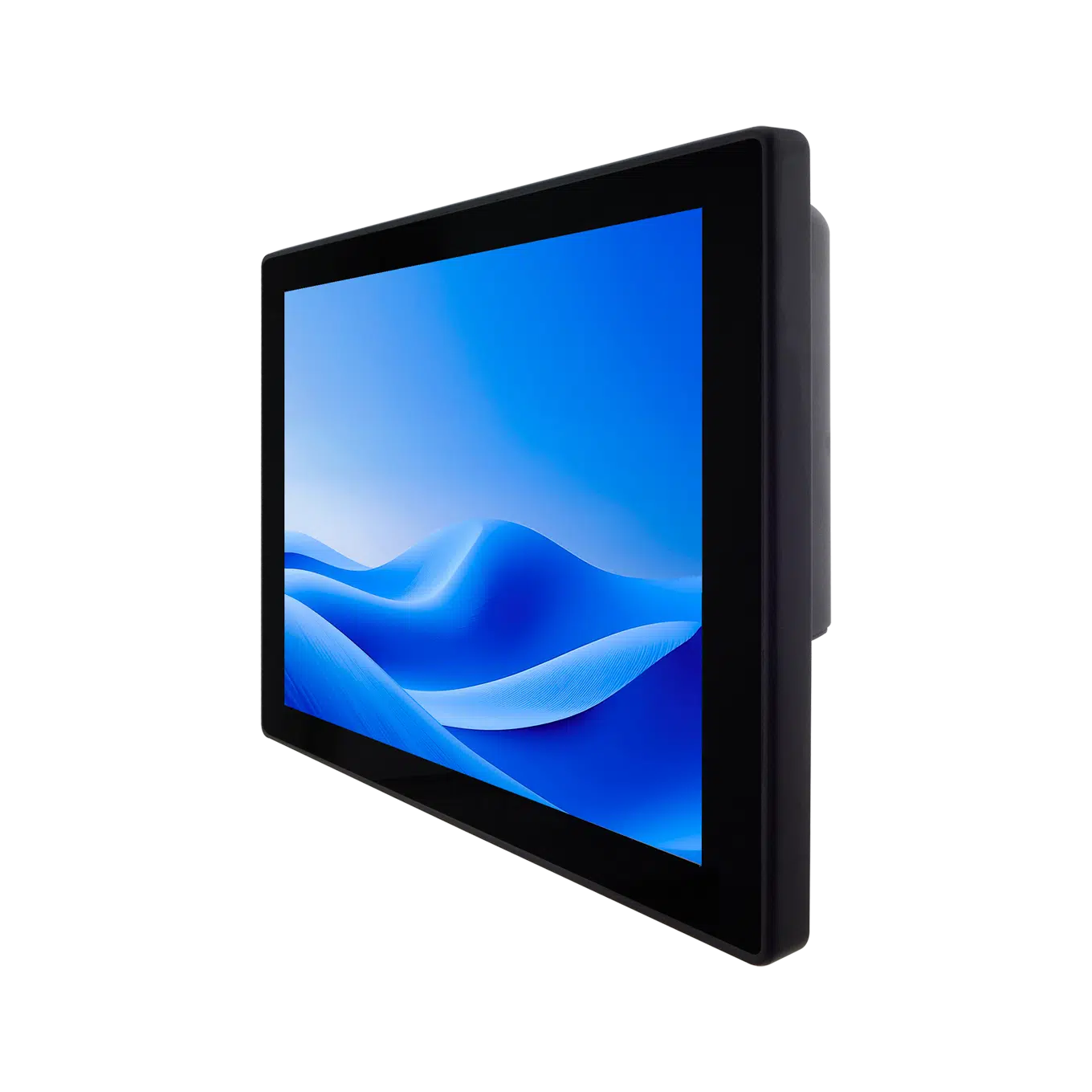

12.1″ 1024 x 768, 4:3, XGA LCD

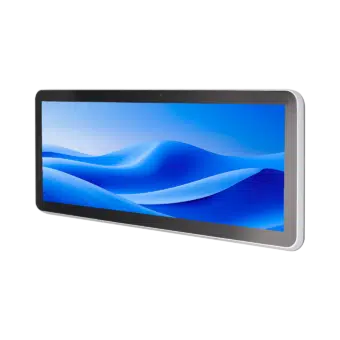

12.3″ 1920 x 720, 8:3, UW-HD LCD

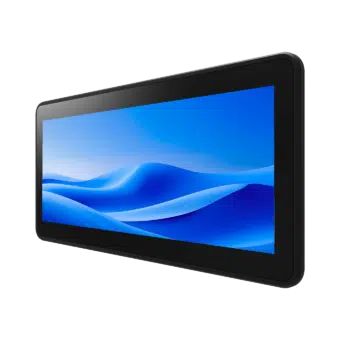

14.9″ 1920 x 720, 8:3, UW-HD LCD

Projected capacitive multi touch

10.1″ 350 nits

12.1″ 500 nits

12.3″ 1000 nits

14.9″ 950 nits

10.1″, 12.1″ 89°/89°/89°/89°

12.3″ 88°/88°/88°/88°

14.9″ 85°/85°/85°/85°

Intel Pentium N6415 4C/4T (1.5M Cache, up to 3.0GHz)

Intel SoC

Watchdog Auto reset for unresponsive system (custom 1-255 sec/min settings in BIOS)

1 x SO-DIMM DDR4 3200 MHz, Support up to 16GB

1 x Internal M.2 B-Key 2242 256GB NVMe SSD (up to 2TB)

Ethernet LAN: 2 x Intel Controller I211AT + PHY I219LM 1GbE via RJ45 Port

COM (D-SUB): 2 x RS232/422/485

USB (Type-A): 2 x USB3.2 Gen1x1

HDMI: 1 x HDMI (Optional)

Power input isolated +24V DC In w/ 3-PIN terminal block (+9~36V acceptable)

Windows 10 / 11
Windows 10 / 11 IoT Enterprise
Linux

110~230V AC to DC External Power Adapter w/ EU Power Core

10.1″, 12.1″,12.3″ and 14.9″ TBD W typical, normal operation

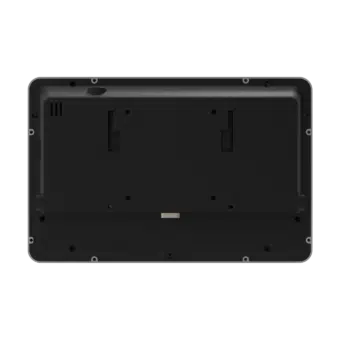

VESA 75×75 mounting

10.1″ H172.0 x W263.28 x D 35.7mm 3.0Kg

12.1″ H226.7 x W296.2 x D 45.5mm 2.3Kg

12.3″ H 146.5 x W 325.02 x D 44.9mm 3.5Kg

14.9″ H 187.6 x W 400.1 x D 59.0mm 4.8Kg

+110V to +240V AC to DC power supply

AR Safety Glass Options 3mm Anti-reflective protection glass

Standard 1 year (option for 3 years)
