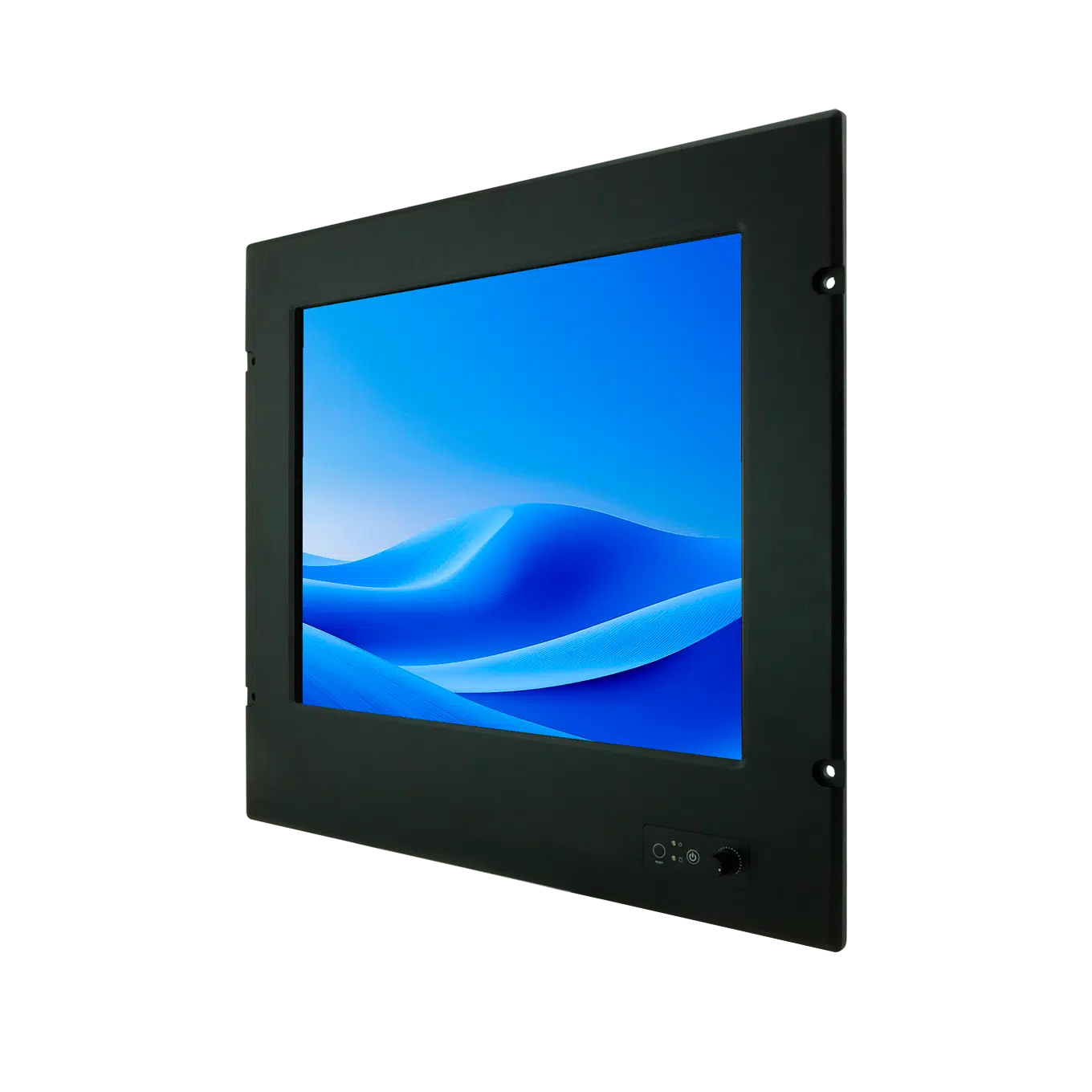

Blue Line Marine Panel PC-8800

The Blue Line Marine Panel PC-8800 combines marine-certified computing and display technology in a single platform for bridge systems and maritime applications. With integrated computing power, brightness dimming control and flexible connectivity, it supports reliable operation and efficient system integration in demanding marine environments.

Marine Panel PC
Available in sizes of 10.4”, 12.1″, 15”, 17″, 19”, 21.3” and 24”
11th generation Intel® Core™ i5 processor
Optional Intel® Core™ i7 processor
Available with or without touch

IEC 60945 certification
DNV certification
IACS E10 certification
Brightness dimming control from nearly 0% to 100%
Fanless operation for maximum reliability
Flush mount installation
Supports +9V to +36V DC input
Extensive interface connectivity

Download datasheet

Integrated computing for maritime applications

The Marine Panel PC-8800 combines computing performance and display functionality in a single platform, helping you simplify bridge and control system installations. Powered by 11th Gen Intel® Core™ processors and equipped with flexible connectivity options, it supports ECDIS, monitoring, automation and other onboard applications that require reliable operation around the clock.

Flexible integration into bridge systems

Integration into existing bridge and navigation systems is straightforward with support for Ethernet, serial communication, USB and optional HDMI connectivity. Whether you are upgrading existing equipment or building a new installation, the platform can be adapted to your operational requirements while reducing system complexity.

Built for continuous marine operation

The fanless design, marine certifications and rugged construction support stable performance under vibration, humidity and changing environmental conditions at sea. Precise brightness control and optional touch functionality help you operate efficiently in both daylight and night-time conditions.

Typical applications for your marine display setup

See how you can use the Blue Line Marine Monitor-8800 for clear and reliable visual output in bridge operations.

Navigation display

Present radar, ECDIS and chart information with sharp and stable image quality.

Bridge overview

Keep critical navigation and system information visible in one clear interface.

Watchkeeping

Support continuous visual monitoring during long operational shifts.

Visual control

Ensure clear display of vessel and system data across bridge environments.

Product features

Available with or without touch

Blue Line marine Panel PC in diffrent sizes

Available in sizes of 10.4”, 12.1″, 15”, 17″, 19”, 21.3” and 24”

Case: Panel PCs supports the Danish Armed Forces’ naval operations

“For many years now Blue Line has delivered customized panel PCs that meet the Navy’s strict military requirements for functionality and security.”
The Royal Danish Navy, Danish Defence

View case study

Specifications

Download datasheet

Marine Panel PC

Aluminum Bezel and metal housing with powder coating

Fanless

IP66 Front – IP54 Rear

Operating Temperature – 15°C to + 55°C

Operating Humidity 5% to 95% (non condensing)

Anti-Vibration 0.7g@DNV-CG-0339 (Class A)

Anti-shock 15G, 11ms duraiton

Build to meet Marine standards

CE & FCC

12.1″ 1024 x 768, 4:3, XGA LCD

15″ 1024 x 768, 4:3, XGA LCD

17″ 1280 x 1024, 5:4, SXGA LCD

19″ 1280 x 1024, 5:4, SXGA LCD

24″ 1920 x 1080, 16:9, HD LCD

5 wire resistive single touch

Front VR knob for brightness dimming control from nearly 0% to 100% Optional for high brightness 1000 nits

12.1″, 15″ 500 nits

17″, 19″ 350 nits

24″ 300 nits

12″ 89°/89°/89°/89°

15″ 88°/88°/88°/88°

17″, 19″ 85°/85°/80°/80°

24″ 89°/89°/89°/89°

Intel 11th Gen. Core i5-1135G7 2.4GHz, 4C/8T (up to 4.2GHz)

Intel 11th Gen. Core i7-1165G7 2.8GHz, 4C/8T (up to 4.7GHz) (Optional)

Intel SoC

Watchdog Auto reset for unresponsive system (custom 1-255 sec/min settings in BIOS)

1 x SO-DIMM DDR4 2400 MHz, Support up to 32GB

1 x Internal M.2 M-Key 2280 128GB NVMe SSD (up to 2TB)

Ethernet LAN: 2 x Intel controller I211AT + PHY I219LM 1GbE via RJ45 Port

COM (D-SUB): 1 x RS232

4 x RS232 or 4 x isolation RS422/485 (optional)*

*12.1″ only 2 x RS232 or 2 x isolation RS422/485 (optional)

USB (type-A): 2 x USB3.0

HDMI: 1 x HDMI (optional)

Power input isolated +24V DC In w/ 2-PIN terminal block (+9 to 36V acceptable)

Windows 10 / 11*
Windows 10 / 11 IoT Enterprise*
Linux

* Only Windows 11 support Wake on touch

110~230V AC to DC External Power Adapter w/ EU Power Core

12.1″, 15″ 55 W typical, normal operation

17″, 19″ 65 W typical, normal operation

24″ 70 W typical, normal operation

10.4″ to 24″ Panel (Flush) mount, VESA, Bracket mounting

12.1″ H293.2 x W337.2 x D 65.8mm 4.5Kg

Sugg. Cut-out: H 253.0 x W 307.0 mm

15″ H 345.0 x W 412.0 x D 71.7mm 6.2Kg

Sugg. Cut-out: H 302.0 x W 360.0 mm

17″ H 410.0 x W 460.0 x D 77.2mm 8.4Kg

Sugg. Cut-out: H 356.0 x W 405.0 mm

19″ H 444.0 x W 483.0 x D 77.5mm 9.6Kg

Sugg. Cut-out: H 396.0 x W 429.0 mm

24″ H 384.0 x W 593.0 x D 68.5mm 10.3Kg

Sugg. Cut-out: H 362.0 x W 566.0 mm

+110V to +240V AC to DC power supply

AR safety glass options 3mm anti-reflective protection glass

Transflective options Enhance visibility

Bracket mounting options bracket mount (can adjust from -10°C to +30°C)

Standard 1 year (option for 3 years)
