Blue Line Jetson Orin AGX IGPU-1200

A compact, powerful and configurable GPU solution ideal for deep learning in robots and machine vision. Blue Line Jetson Orin AGX IGPU-1200 delivers high performance and is designed for 24/7 operation in diverse environments. With its range of options and configurations, it offers efficient and modern deep-learning inference capabilities.

Fanless AI edge embedded box PC
Up to 12-core Arm Cortex A78AE v8.2 64-bit CPU
Up to 2048-core Ampere GPU with 64 Tensor Cores
Up to 64GB onboard memory

8 x PoE 30W for camera
Supports Linux (NVIDIA JetPack 5.1 and above)

Download datasheet

Advanced AI computing

The Jetson Orin AGX IGPU-1200 delivers exceptional AI processing power in a rugged, industrial-grade package.

With NVIDIA Ampere architecture featuring up to 2048 CUDA cores and 64 Tensor Cores, it provides the computational muscle needed for complex deep learning and machine vision tasks.

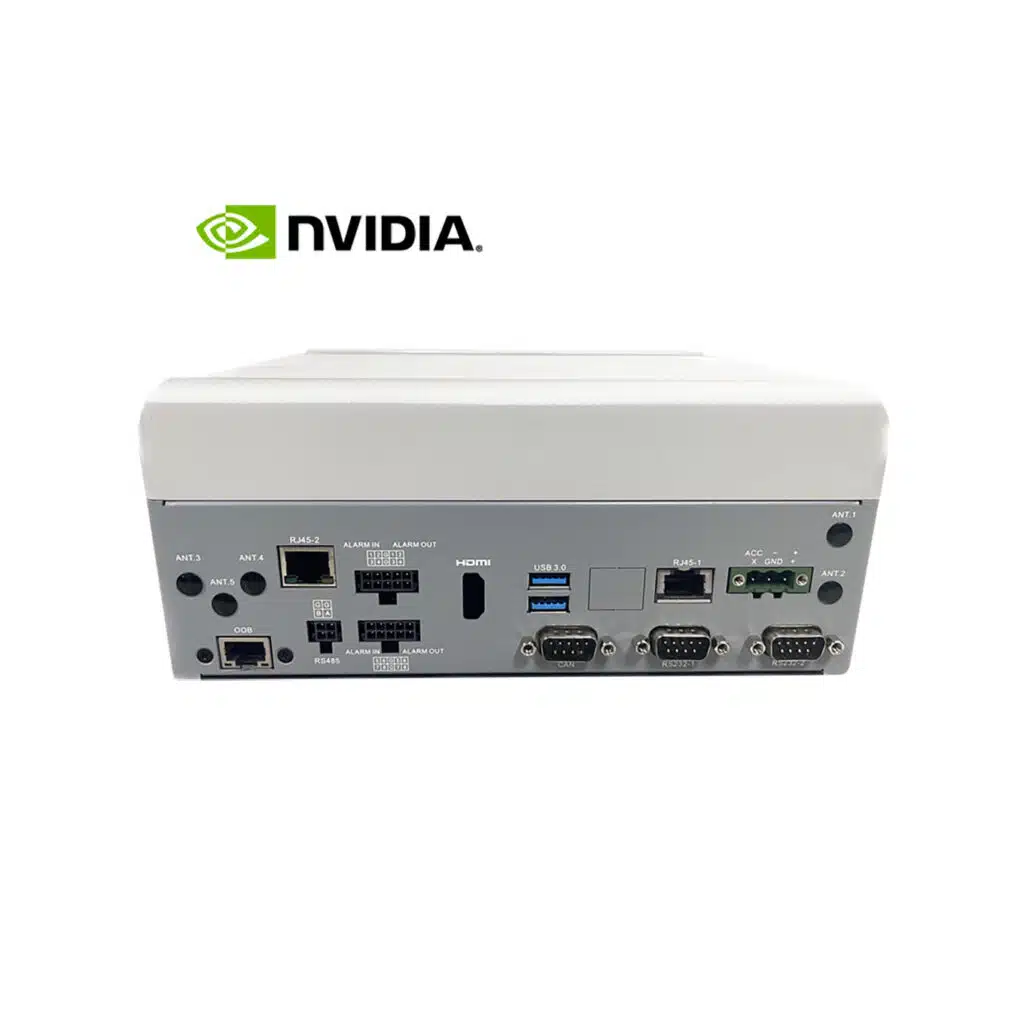

Blue Line Jetson Orin AGX IGPU 1200 shown from the back

Reliable fanless design

This fanless system operates reliably in temperatures from -20°C to 60°C and meets MIL-STD-810G standards for vibration and shock resistance, making it suitable for deployment in harsh industrial environments.

Product features

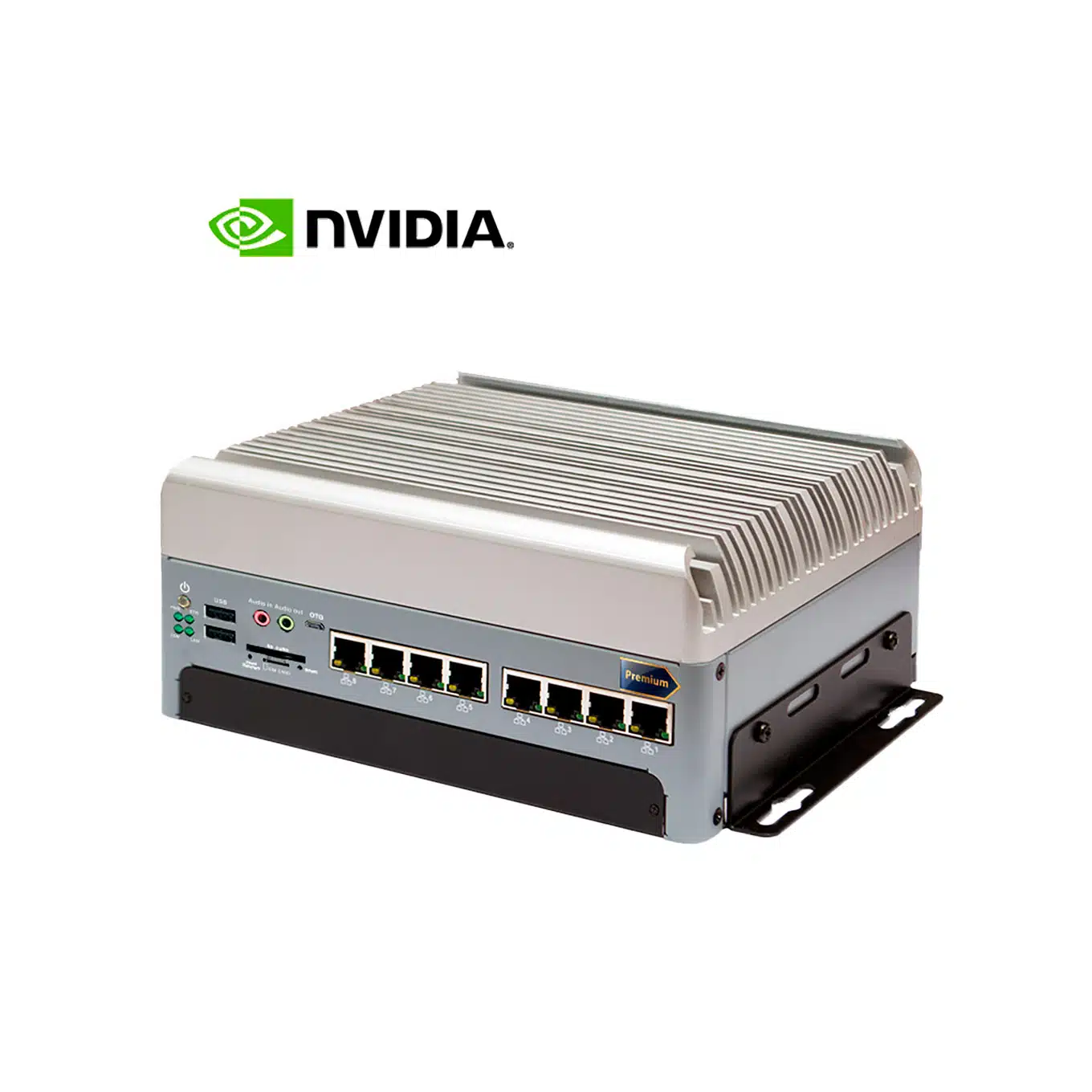

Blue Line Jetson Orin AGX IGPU 1200 shown at an angle

Compact aluminium construction

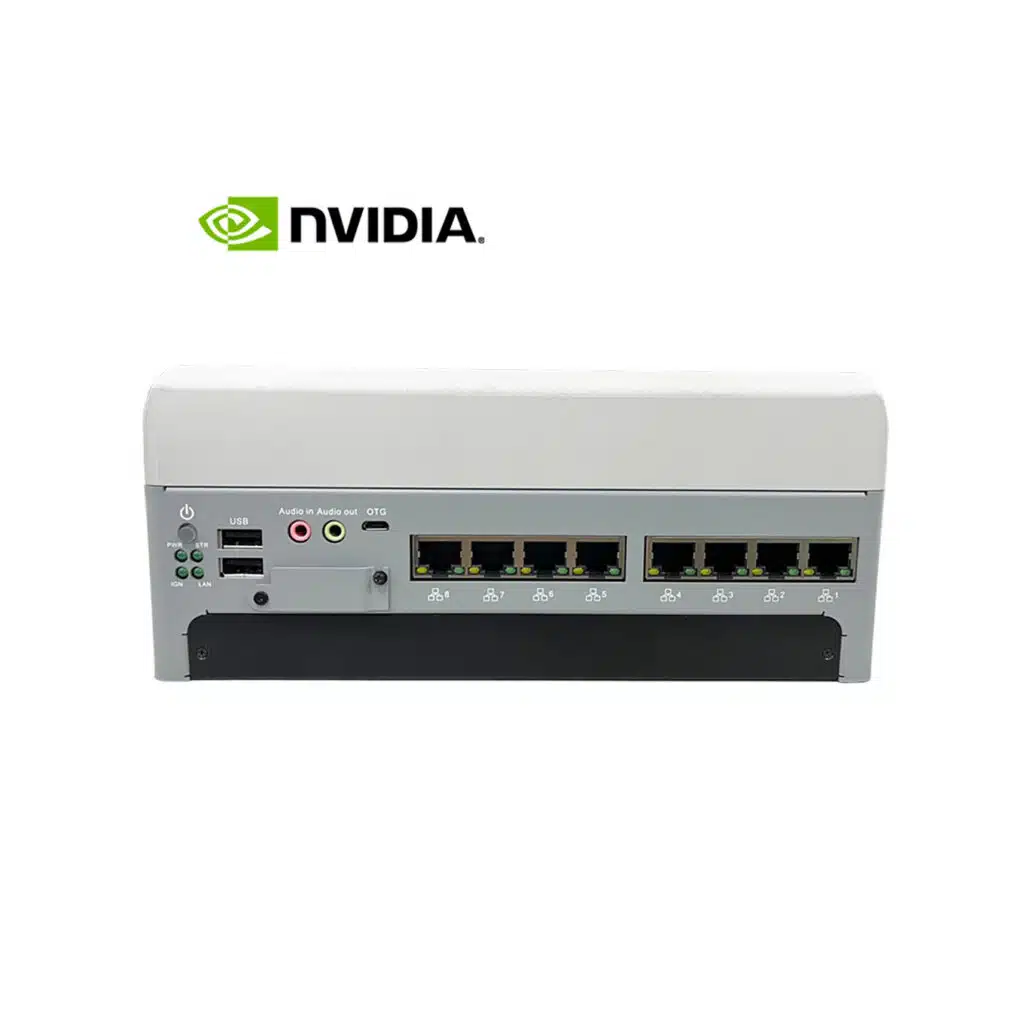

Blue Line Jetson Orin AGX IGPU 1200 shown from the front

Vibration- and shock resistant

Specifications

Download datasheet

AI box PC

Compact

Aluminium

Fanless

Operating temperature -20°C to 60°C, according to IEC60068-2 with 0.5 m/s AirFlow

Storage temperature -40°C to 85°C

Humidity 10% to 90%, non-condensing

Vibration MIL-STD-810G, method 514.7, category 4

Shock MIL-STD-810G, method 516.7, procedure I

CE/FCC Class A, according to EN 55032/55035

Model 1 8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

NVIDIA Ampere GPU w/1792 Cuda core and 56 Tensor Cores

Model 2 12-core Arm Cortex A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

NVIDIA Ampere GPU w/2048 Cuda core and 64 Tensor Cores

SoC

Model 1 Onboard 32GB 256-bit LPDDR5 204.8 GB/s

Model 2 Onboard 64GB 256-bit LPDDR5 204.8 GB/s

2 x 2.5″ SATA internal bay

1 x M.2 key-M 2280 for NVMe SSD

1 x SD card slot

Front I/O 1 x Power switch

1 x reset & recovery switch

1 x SIM card slot*

1 x SD card slot

1 x audio In/Out

2 x USB 2.0 type-A

1 x Micro USB – OTG function

8 x PoE+ (10/100 MbE, Single-30W/Total-120W)

Rear I/O 5 x SMA connector button**

1 x RS485 via 4-PIN port

2 x RS232 via DB9 port

1 x CAN via DB9 port (isolated)

1 x 10GbE via RJ45 port

1 x 1GbE via RJ45 port

1 x HDMI 2.0 a/b audio

2 x USB 3.0 type-A

8 x GPIO

1 x PWR Input, 3-pin terminal block

*Internal 4G/LTE module required

** antenna kit required

1 x M.2 key-B 3042/3052 (for 4G/5G module)

1 x M.2 key-M 2230 (for Wi-Fi/BT module)

Linux (NVIDIA JetPack 5.0 and above)

+9 to 55V DC-in by 3-Pin terminal block with ACC function

TBD

H 94 x W 242 x D 177mm

Net weight 4.5kg

Gross weight TBD

Wall mount kit

1 x power harness cable

2 x alarm I/O cable

1 x RS485 cable

Mounting bracket kit

AC to DC Power Adapter, AC100-240V – DC24V, 9.1A, 218.4W

Standard 1 year (option for 3 years)

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
