Blue Line IGPU-2000

Blue Line IGPU-2000, an advanced and rugged GPU solution designed specifically for AI and deep learning inference platforms in robotics and machine vision applications.

Fanless AI edge embedded box PC
Up to 60W GPU MXM module expansion
12/13th generation Intel Core i3 / i5 / i7 / i9 CPU
HDMI, DVI and 2x DP (support 4 independent displays)

Configurable ignition power on/off delay control
Wide range of I/O & Option for PoE
Build-to-order configured to the requirements

Download datasheet

Advanced AI computing

This cutting-edge industrial computer offers high AI computing performance, making it ideal for edge AI applications. With the Blue Line IGPU-2000, you can significantly reduce costs and save time.

Reliable fanless design

The IGPU-2000 delivers exceptional performance for AI and deep learning applications. Its fanless design ensures reliable operation in harsh environments, while the powerful GPU expansion capabilities enable complex machine vision and robotics applications.

Operating in temperatures from -20°C to +50°C ambient (up to +65°C with external SMART fan kit), this robust system is built for continuous industrial use.

Product features

Compact AI box PC

Specifications

Download datasheet

AI Box-pc

Compact

Aluminium

Fanless

Option external SMART fan kit

Operating Temperature -20°C to +50°C ambient w/ air flow
-20°C to +65°C w/ external SMART fan kit

Humidity 10% to 95% @ 65°C non-condensing

Vibration Endurance 5 to 500Hz 3G rms X,Y, Z axis w/SSD, according to IEC 60068-2-64

Shock 50 Grms, half-sine 11m sec. duration w/ SSD according to IEC60068-2-27

CE, FCC Class A, E mark

Intel Core 13th generation i3 / i5 / i7 / i9 (up to 35W CPU)

Intel R680E

2 x 262-pin DDR5 SO-DIMM sockets, supports 4800 MHz SDRAM up to 64GB (ECC/ Non-ECC)

1 x M.2 M key 2242/2280, supports PCIe x4 + SATA (support boot up function)

1 x M.2 B key 2242/2280, supports PCIe + USB + SATA

2 x 2.5” outside accessible drive bays

Front I/O:

1 x DVI-I female connector for digital/analog video output*

1 x HDMI 2.0b female connector*

1 x Mic-in/line-out

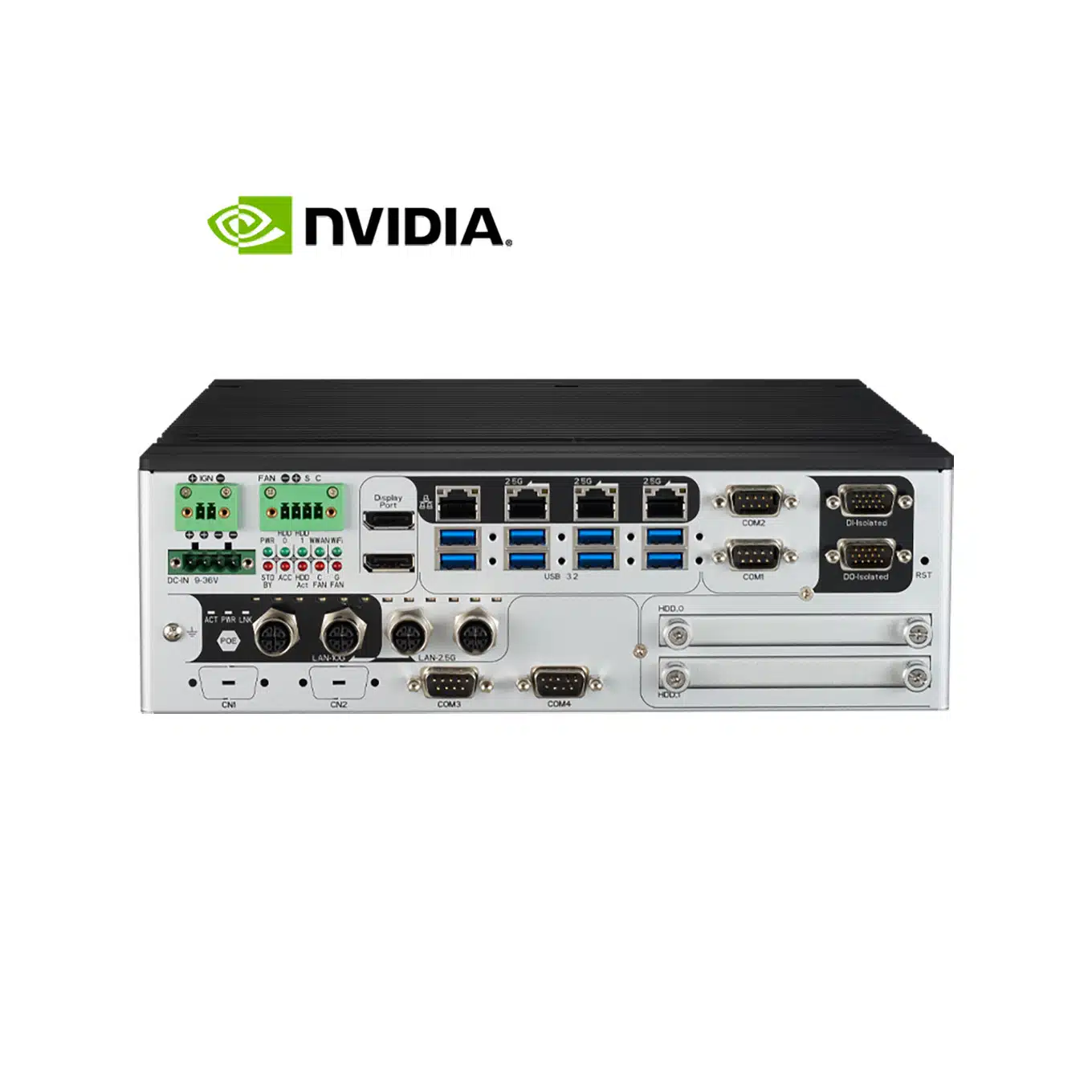

Rear I/O:

8 x USB 3.2/2.0 type A ports

1 x Intel WGI219LM GbE controller w/ iAMT 16.0 via RJ-45 Port

3 x Intel I226 2.5GbE controllers via RJ-45 Port

2 x RS-232/422/485 configurable ports via DB-9 connectors (default RS232, switch via BIOS)

1 x DB15 connector for 8 x digital input (dry/wet contact) with 2KV isolation

1 x DB15 connector for 8 x digital output with 2KV isolation

2 x DP 1.4a from MXM module or Intel graphics*

1 x DB15 connector for 8 x digital input (dry/wet contact) with 2KV isolation

1 x DB15 connectoror 8 x digital output with 2KV isolation

Power Input DC +9 to 36V input ( w/ 4-pin DC input terminal block, (V+, V+, V-, V-)

Ignition switch 2-pin teminal block: IGN, GND

* Supports 4 independent displays

1 x MXM3.1 type A/B GPU Slot (PCIe gen5 x 16), supports up to 60W MXM A2000

2 x mPCIe Slots interconnected with SIM card sockets for optional WiFi/BT/3G/LTE/ GPS (PCIe x 1 + USB2.0, full size)

1 x M.2 B key (2242/3052/2280 ) w/ (PCIe x 2 + USB3.0 + SATA ) interconnected with SIM for 5G / LTE expansion or for storage ( either one)

1 x M.2 E key (2230) with PCIe x 1 + USB2.0 + CNVi) for Wireless

Watchdog Timer 1 to 255 levels reset

Time-Sensitive Networking (TSN)

Onboard TPM 2.0

Windows 10 IoT Enterprice 64-bit

Linux Ubuntu 20.04 or later

+9 to 36V DC-in by 4-pin terminal block

Ignition switch 2-pin teminal block: IGN, GND

Max. 180W

Dimensions H 90 x W 285 x D 230mm
H 110 x W 285 x D 230mm, w/ fan

Weight 5.83kg

Wall mount

AC to DC 280W power adapter kit w/ 2-pin/3-pin/4-pin block

Wall mount kit

GPS modul + antenna kit

WIFI/BT modul + antenna kit

4G/LTE modul + antenna kit

External smart fan kit (80 x 80 x 15mm, 4-pin terminal block, mounting bracket, support smart fan function)

Standard 1 year (option for 3 years)

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
