Blue Line Edge AI Computer

Edge AI computing that brings intelligence closer to you

Blue Line Edge AI Computer is a powerful and flexible computer designed for real time data processing, video analytics and industrial automation directly at the source of your data. It enables you to run AI workloads at the edge, reducing latency, lowering your network load and improving system reliability in demanding environments.

Edge AI computing without cloud dependency
Optional NVIDIA RTX™ or Intel® Arc™ GPU acceleration
2 x 2.5GbE networking + 8 x 1GbE with PoE+ option for cameras
14th Gen Intel® Core™ platform
Fanless rugged industrial design
Flexible I/O for easy system integration
Scalable architecture for future growth
Build-to-order configured to your requirements

Download datasheet

Built for industrial grade AI and continuous operation

With its high performance Intel® Core™ platform and optional NVIDIA RTX™ or Intel® Arc™ GPU acceleration, this Edge AI computer gives you a flexible and scalable solution for AI, video analytics and automation.

It is designed for demanding industrial environments where you need reliable, real time processing and continuous operation.

Move intelligence closer to your operations

This system brings data processing closer to where your data is generated, enabling faster response times and reducing your reliance on centralized cloud infrastructure.

It is designed for industrial environments where your operations depend on reliability and real time performance, such as surveillance, manufacturing and transportation systems.

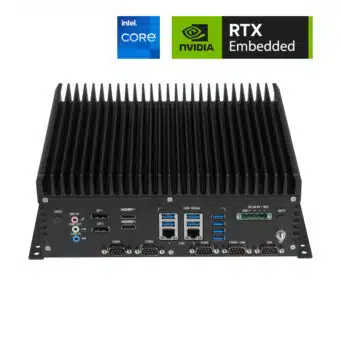

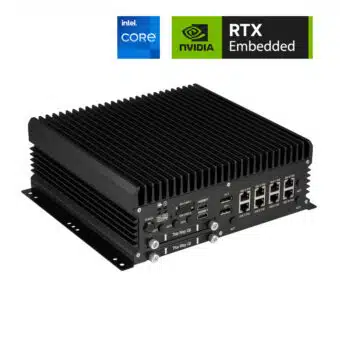

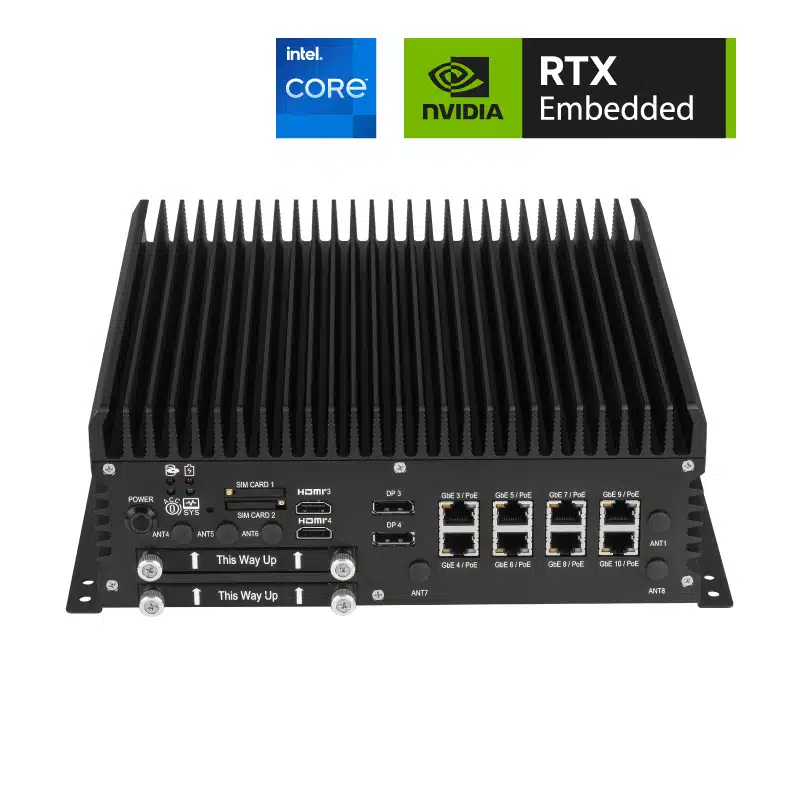

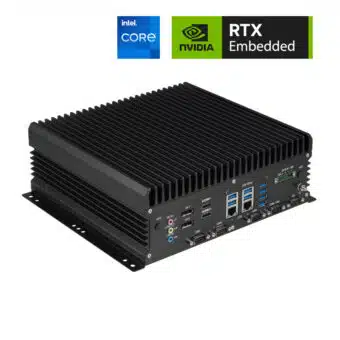

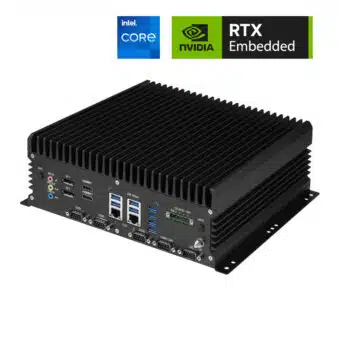

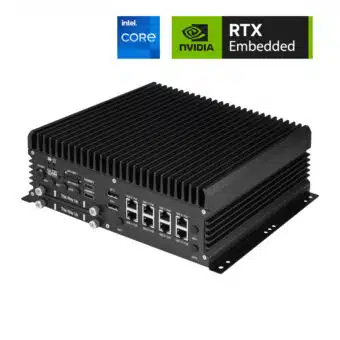

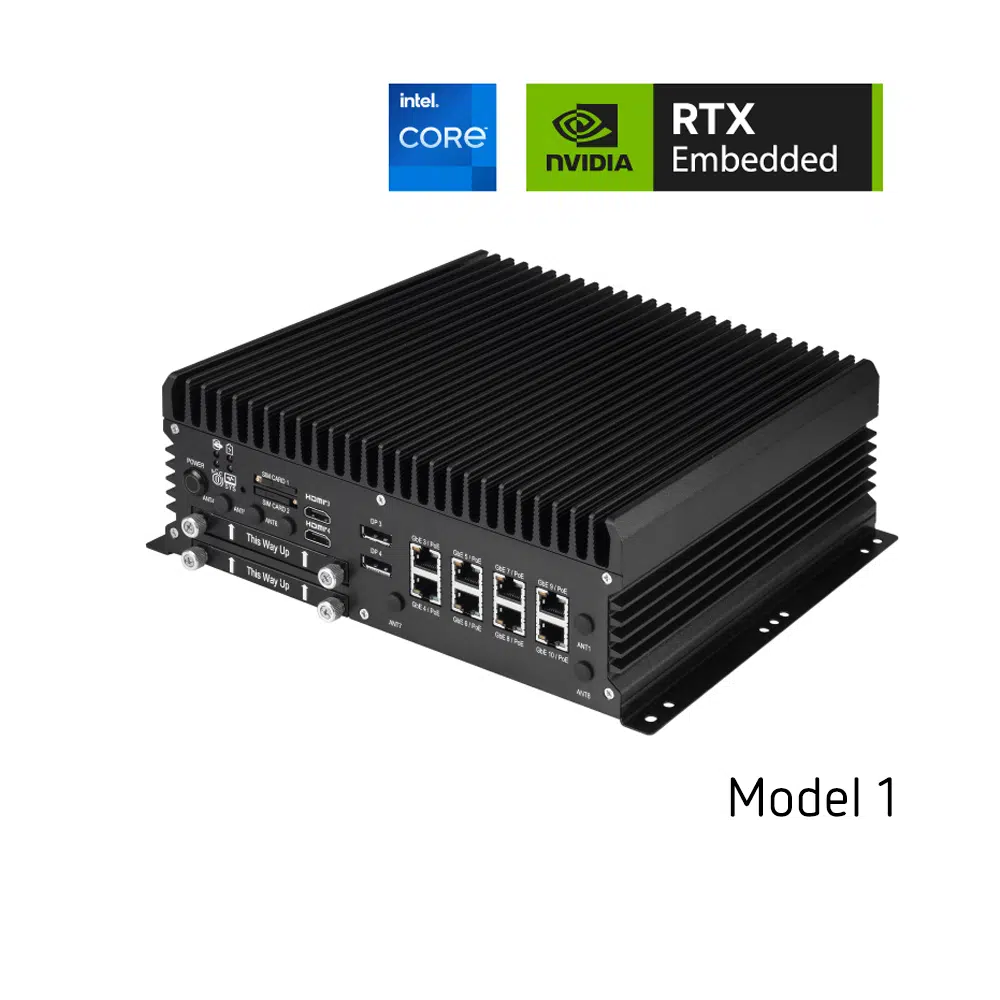

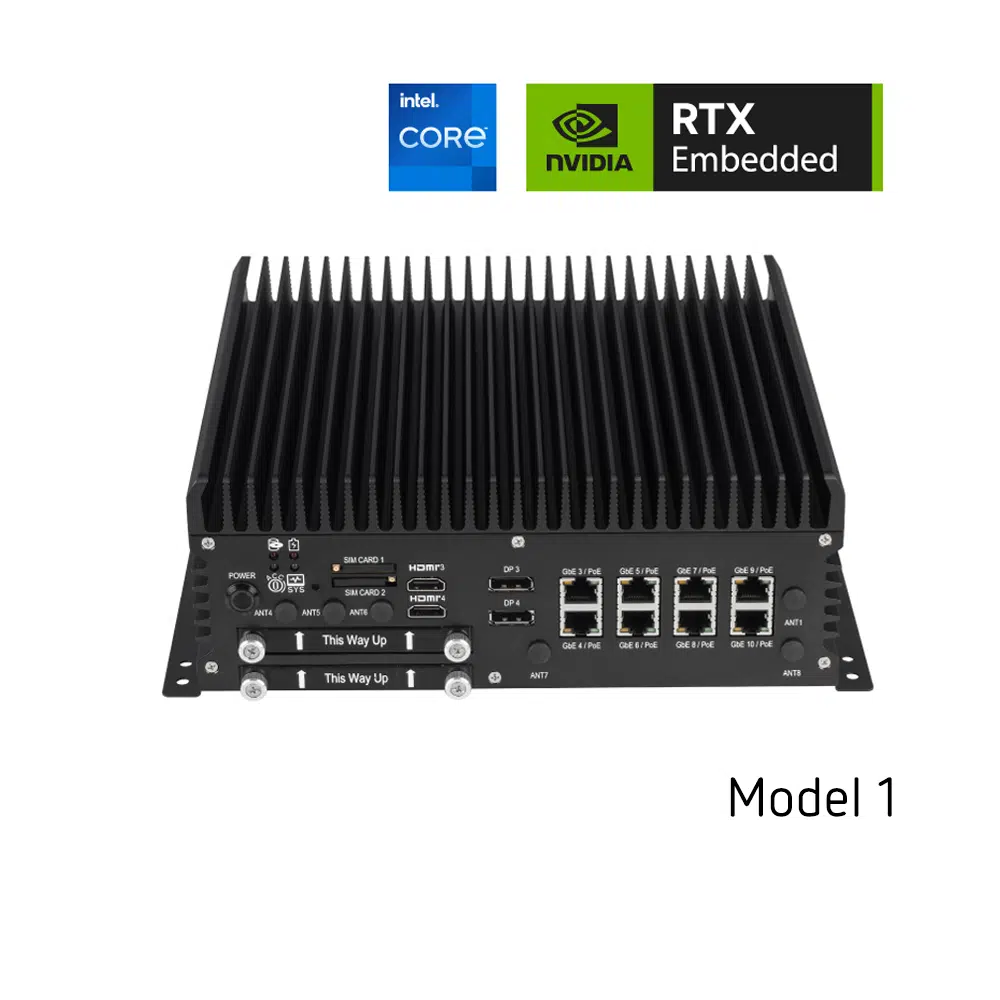

Fanless industrial Edge AI computer with Intel Core CPU, NVIDIA RTX Embedded GPU, and multiple Gigabit PoE ports for AI video processing

High performance AI built for industrial workloads

High performance Intel® Core™ processors combined with optional GPU acceleration allow you to handle both traditional industrial workloads and advanced AI applications on a single platform.

This enables you to collect, process and analyze your data locally, improving your efficiency, responsiveness and overall system performance.

Specifications

Download datasheet

Edge AI Industrial Computer

Ultra Compact

Aluminium chassis

Fanless passive cooling design

Heat pipe and chassis conduction cooling

Ingress Protection IP40

Operating temperature -40°C to +70°C with 0.6 m/s airflow*
*Operating temperature varies by accessories installed

Storage temperature -40°C to +80°C

Humidity 10% to 90% (non-condensing)

Vibration IEC 60068-2-64, random, 2.5G (Z) 0.21G (Y) 0.76 (Z)@5 to 500Hz, 1hr/axis
MIL-STD-810H, Method 514.8, Category 4
EN 61373:2010, Clause 8

Shock MIL-STD-810H, Method 516.8, 20G (11ms)
EN 61373:2010, Clause 10

CE / FCC Class A / UKCA / E-Mark EN 50155 EN 45545-2 IEC 62368-1

Intel 14th Gen Core platform CPU options: i9-14900T / i7-14700T / i5-14500T / i3-14100T

Intel R680E

Intel UHD Graphics 770

Infineon TPM 2.0

Watchdog Auto reset for unresponsive system (custom 1-255 sec/min settings in BIOS)

2 x DDR5-5600 SO-DIMM, up to 96GB (ECC support with ECC DRAM)

1 x M.2 2280 Key M for NVMe/SATA SSD

2 x M.2 2280 Key M for NVMe SSD

2 x Removable tray for 2.5″ SATAIII SSD*

*RAID 0/1/5 support via Intel® VMD.

Power on/off button with LED Indicators

4 x LED Indicators
HDD/SSD
BBU
ACC
SYS

2 x mini SIM Card slot (Internal M.2 Modem required)

2 x DP++ up to 7680 x 4320 @ 60Hz*
*with optional discrete GPU SKU only
** Only support one DP for NVIDIA RTX 2000 Ada GPU

2 x HDMI 2.0b up to 3840 x 2160 @ 60Hz*
*with optional discrete GPU SKU only

8 x 1GbE (Intel I210) Option for PoE+*
via RJ-45 Port Option for M12 X-code Port.
* PoE supports 25.5W per port with total power budget: 120W

6 x Pre-cut holes for SMA antenna connectors

1 x Line in / 1 x Line out / 1 x Mic in via jack

2 x 2.5GbE LAN (Intel i226) via RJ-45 Port
* Port NB:1, 2.5G supports Intel® AMT & vPro
** All Ethernet ports support PXE boot and Wake-on-LAN

2 x DP++ up to 7680 x 4320@60Hz via onbord Intel UHD Graphics 770

2 x HDMI 2.0b up to 3840 x 2160@60Hz via onbord Intel UHD Graphics 770

8 x USB 3.2 Gen 2 (10Gbps) Type A Port

4 x RS-232/422/485 COM Port*
Optional: 1 x CAN bus (isolated) Via COM port NB. 4

8 x DI (DC 5-60V), 4 x DO (DC 5V/100mA) 2 x ADC (DC 0-60V) via DB15 Port

2 x Pre-cut holes for SMA antenna connectors

1 x Power input (5-pin terminal block)

1 x Ground screw (M5 Bolt)

2 x M.2 3042/3052 Key B (WWAN) w/ dual SIM support
* Thermal solution is required for M.2 5G module.

1 x M.2 2230 Key E (WiFi / Bluetooth)

2 x Mini PCIe (full-size)

Windows 10 & 11 IoT Enterprice

Ubuntu 22.04 LTS

+9 to 60V DC input
*Power input of DC 24V or above is required for system with discrete GPU and PoE

Ignition support

Power Protection: OVP / OCP / surge protection, reversed polarity protection

Up to 250W with i9 and RTX 5000 Ada

H 98 x W 250 x L 290mm (11.42 x 9.84 x 3.86 in.) with mounting brackets

Net weight 5.7kg barebone Net weight 8.75kg With CPU/MEM/SSD/GPU and BBU Gross weight TBD

Wall Mount

Mounting kit

AC/DC power adapter 100-240V/24V 280W bare wire + C14 Power core

4G / 5G module

WiFi / Bluetooth module

CAN module

GNSS module

Internal battery kit, charging Temp. 0°C ~ 45°C, discharging Temp. -10°C to 60°C

Optional Discrete GPU: NVIDIA RTX Embedded 5000 Ada Generation, GDDR6 16GB, 9728 CUDA / 304 Tensor (System Operating Temp. 0°C ~ 60°C)

NVIDIA RTX Embedded 3500 Ada Generation, GDDR6 12GB, 5120 CUDA / 160 Tensor (System Operating Temp. 0°C to 60°C)

NVIDIA RTX Embedded 2000 Ada Generation, GDDR6 8GB, 3072 CUDA / 96 Tensor (System Operating Temp. 0°C to 70°C)

Intel Arc A370E, GDDR6 4GB, 8 Xe-cores / 128 Execution Units (System Operating Temp. 0°C to 70°C)

Standard 1 year (option for 3 years)

Typical applications for your Edge AI deployment

See how you can use the Blue Line Edge AI Computer to process data locally, reduce latency and enable real time decision making in demanding environments.

Video Analytics

Process video streams locally for instant detection and response.

Industrial Automation

Run AI-driven monitoring and control directly on the factory floor.

Quality Control

Detect defects in real time and improve production consistency.

Smart Infrastructure

Support transportation, energy and other critical systems with reliable local processing.

Product features

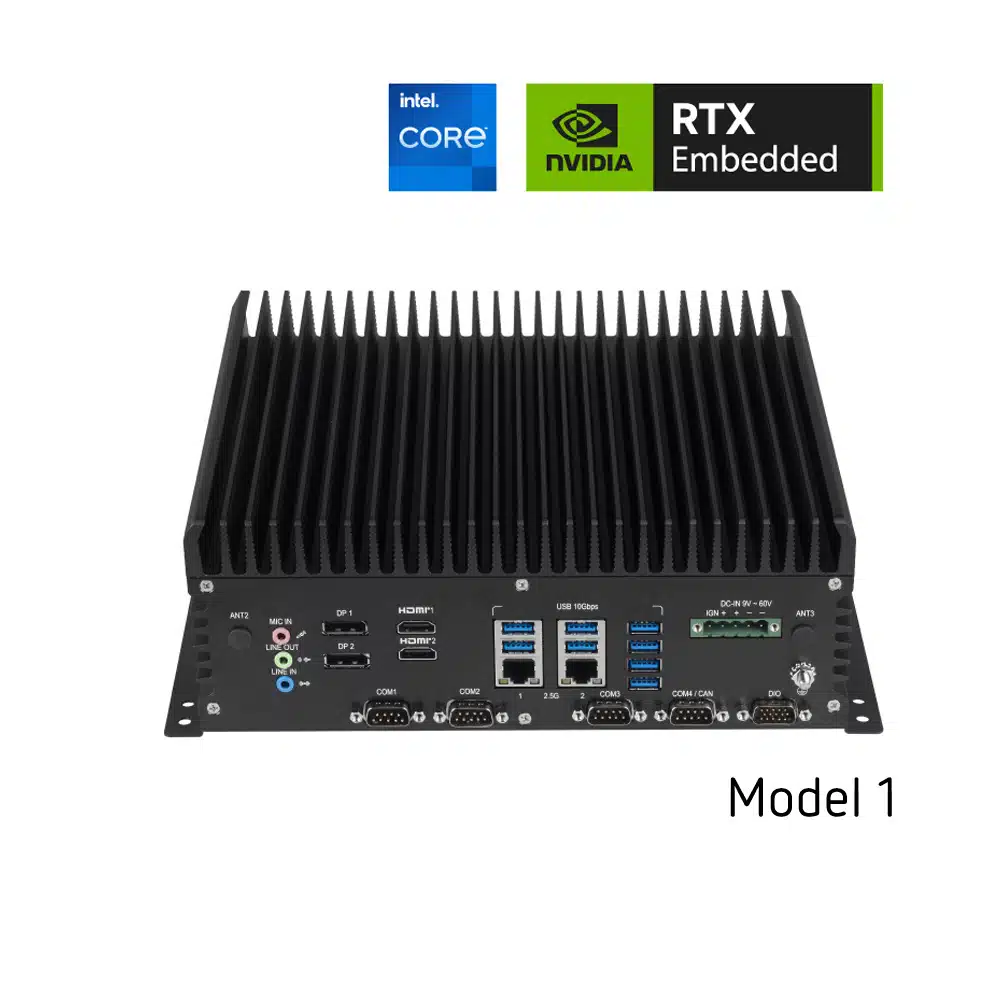

Black Edge AI Computer with I/O possibilities. Front view

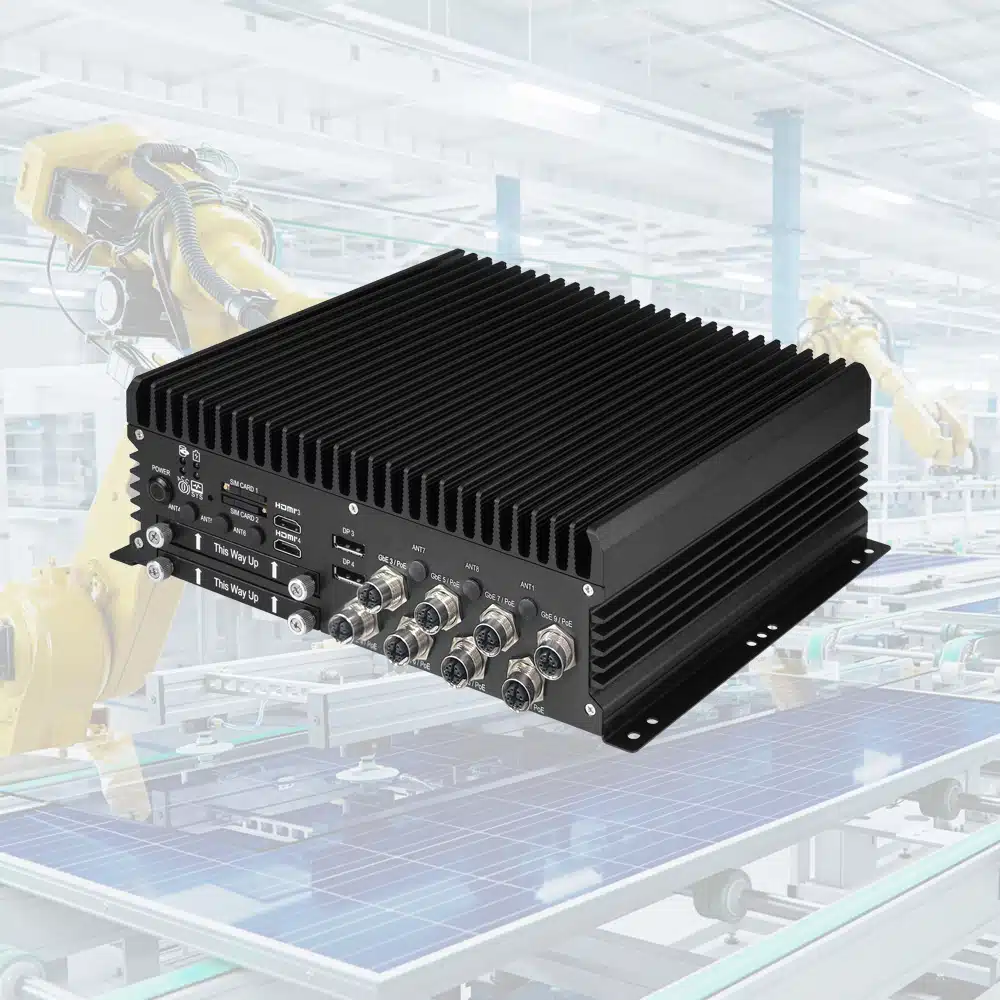

Option for model 1 – M12X Version

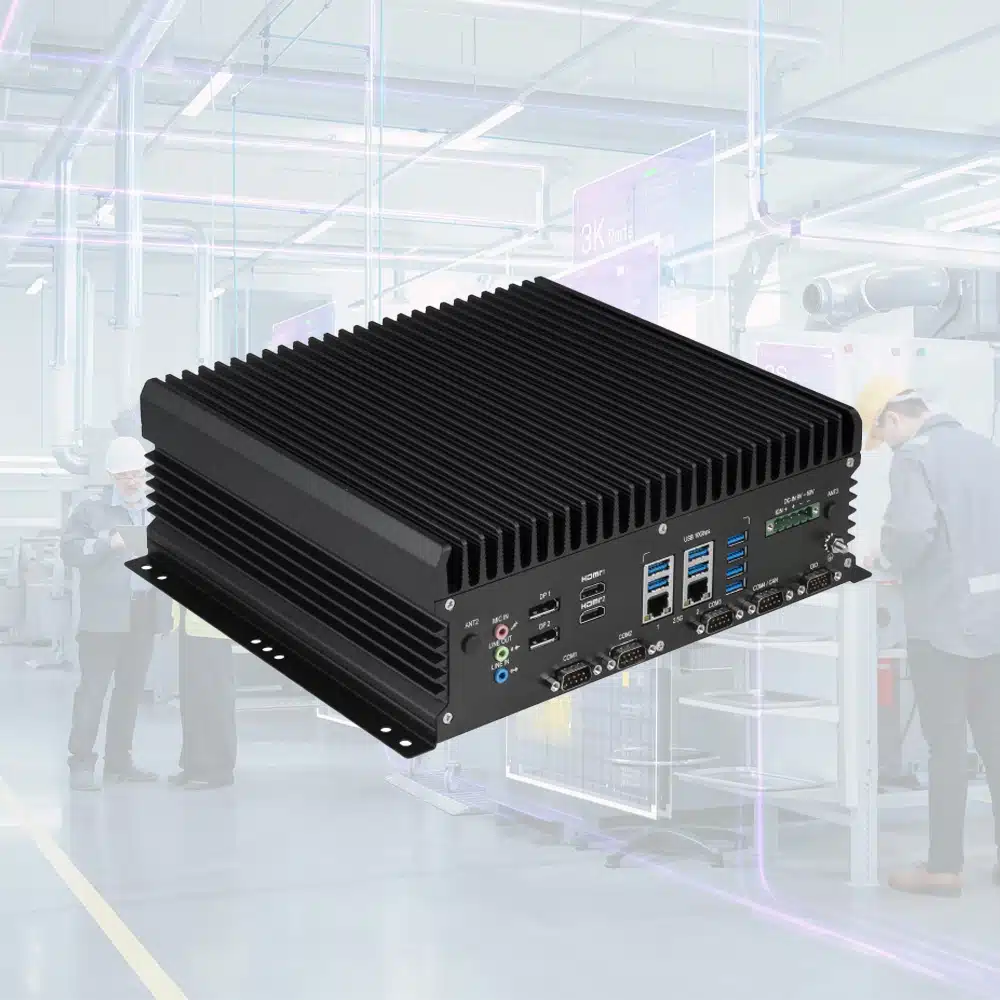

Blue Line server in a factory floor production
