Blue Line 3U VPX Switch ComEth-4682e
Blue Line 3U VPX switch ComEth-4682e is a rugged 3U VPX 1/10/25/40/100 gigabit Ethernet switch and IP router, based on a new generation of multi-layer Ethernet matrix for high-speed embedded interconnect applications requiring 10/25/40/100 gigabit connectivity.
- 3U VPX switch
- Managed layer 2+/3 switch
- 1GBASE-T, 1GBASE-KX, 10/25GBASE-KR, 40/100GBASE-KR4
- Up to 57 ports – 24 optical ports (2 front MPO)
- Aligned with the SOSA™ technical standard

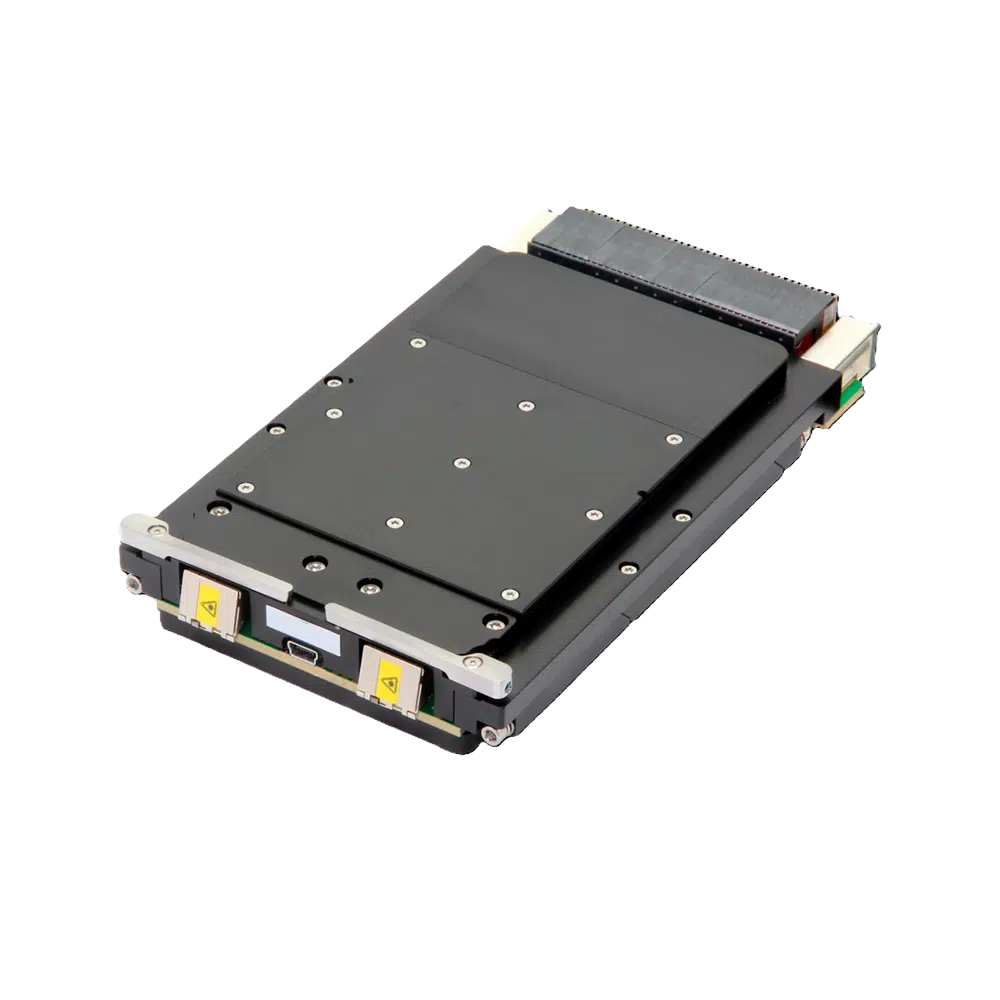

- Front MPO connectors: 24x optical ports (1GBASE-SR, 10GBASE-SR or 25GBASE-SR mode)
- VITA 65.0 SLT3-SWH-2F24U-14.4.3
- VITA 65.0 SLT3-SWH-6F1U7U-14.4.14 (optional)
- Wide temp -40 to 85°C
- Various temperature grades available
- Ports build option
- Switch management
- Customization according to your requirements
Network performance
The design integrates a layer 2 (Ethernet) and layer 3 switch, and a control processor to support virtually separated control and data planes for highly secured 3U VPX systems.
The Ethernet packet processor, managed by the dual-core ARM processor, offers remarkable switching capabilities with 1, 10, 25, 40, and 100 gigabit Ethernet configurations.
Product features
Advanced switching capabilities
Specifications
Model Type
Cooling
Environment
Storage
Front Input / Output
Each set of 4 ports can be merged in 40GBASE-SR4 or 100GBASE-SR4 mode
Rear Input / Output
Input / Output
Special Function
Management Software
Dimension and Weight
Accessories Optional
Warranty and After Sales Support
From setup to delivery
Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.
Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
