Waterproof HMI Panel PC 7500 Series

A complete, all-in-one waterproof HMI panel PC solution in stainless steel, combining powerful computing capabilities with industrial-grade durability.The fully sealed enclosure is IP66 dust and waterproof as well as IP69K high pressure proof, enabling independent operation in environments requiring extensive cleaning.

IP69K high pressure waterproof design
Stainless steel construction (AISI 304/316L)
10” or 24” multi-touch display
HMI for Food & Life Science

Up to full HD resolution (1920 x 1080)
Touch on/off button on the side
Integrated PC / client
Intel Core i3 / i5 / Celeron
Fanless operation
ThinManager support
Windows 10/11 & Linux
Flexible VESA mounting
Large range of options

Download datasheet

24/7 operation

This standalone computing and monitor solution is designed for 24/7 operation, featuring integrated processing power with Intel Core i3/i5 or Celeron options.

Product features

Stainless steel construction

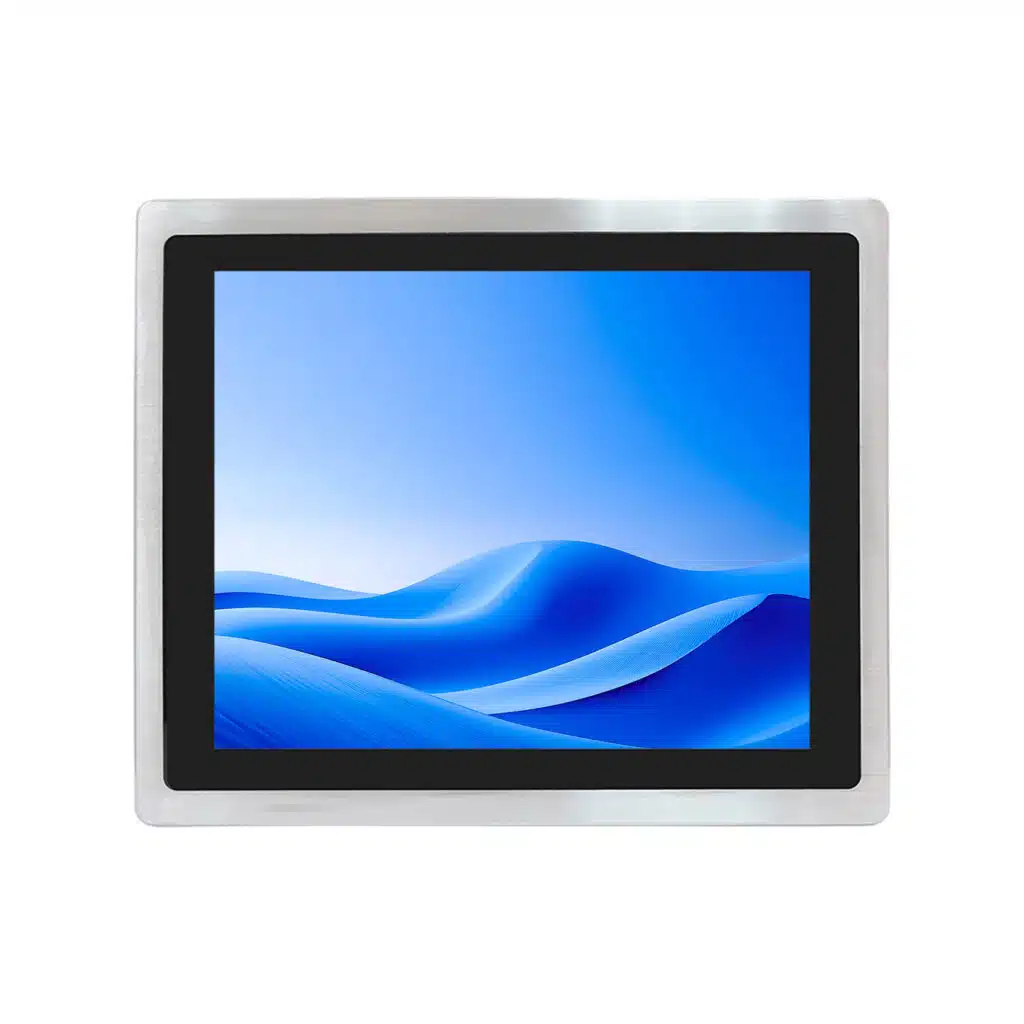

Multi-touch display

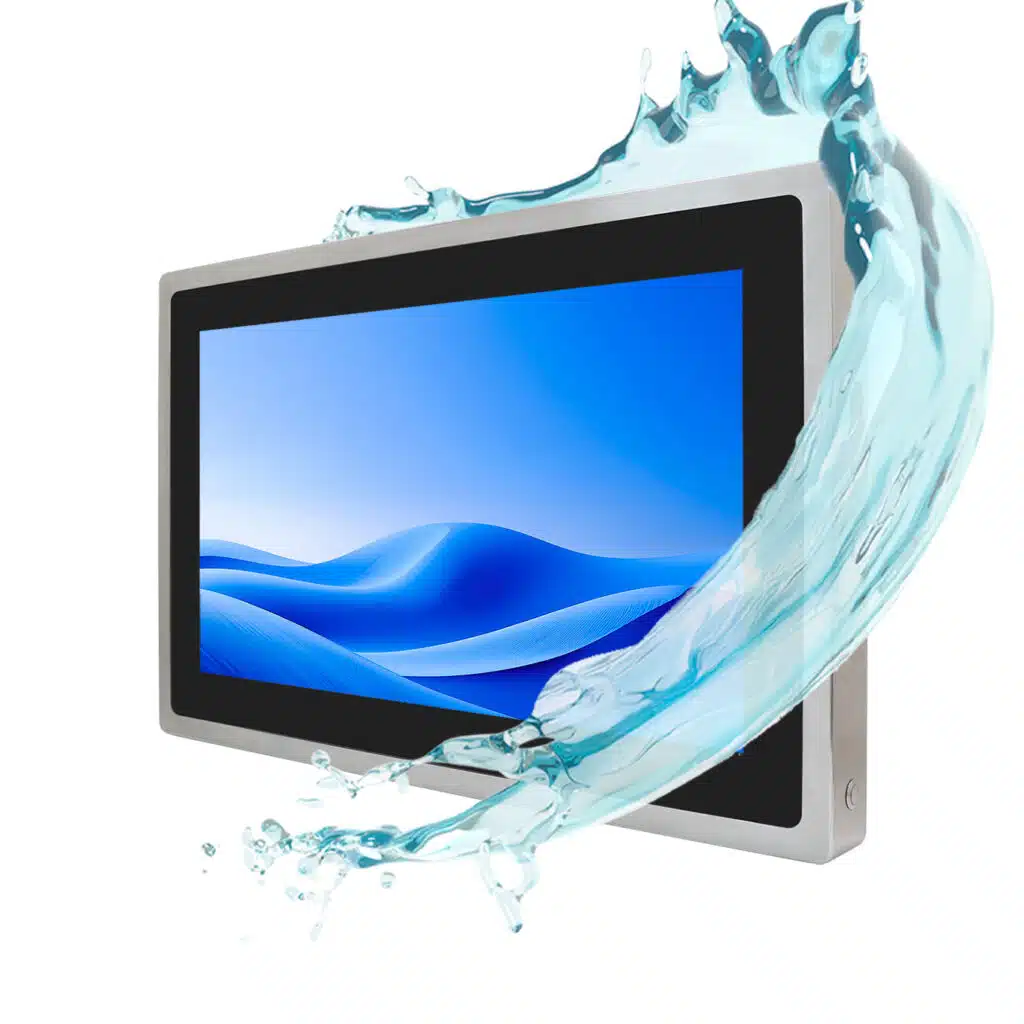

Fully sealed and Waterproof

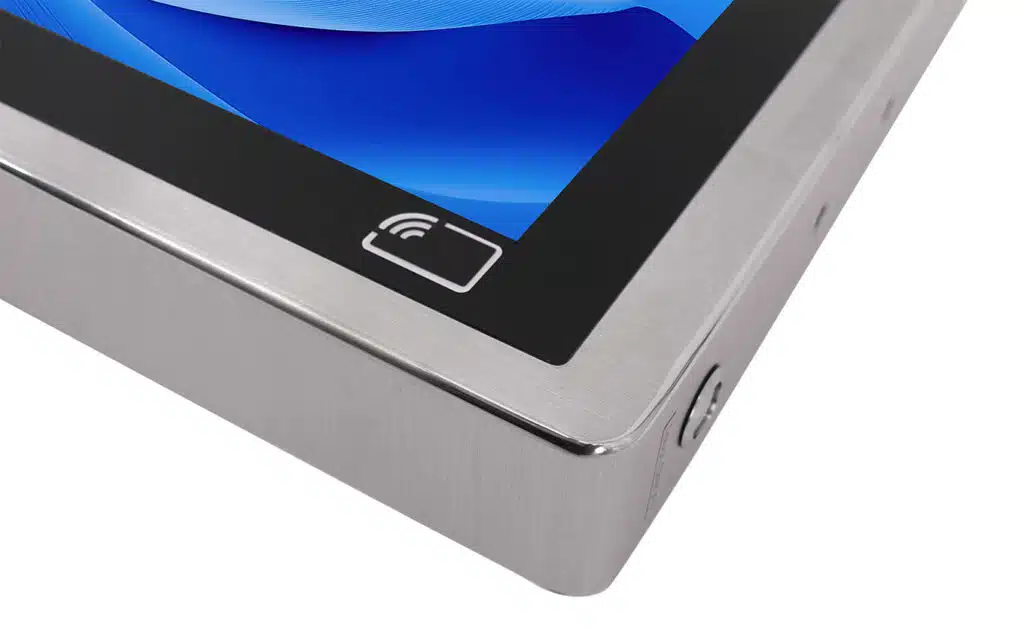

Close-up of RFID module on HMI 7500 Series

Optional RFID module

Waterproof IP69K design with flexible mounting

The durable IP69K enclosure allows for fast and complete cleaning while providing long-term protection against high-pressure water treatment.

This all-in-one solution eliminates the need for separate computer hardware, reducing installation complexity and maintenance requirements.

Seamless integration

Benefit from our experience from numerous installations around the world. Let us prepare a proposal that ensures the best functionality, ergonomics and occupies as little space as possible, such as integration with food processing equipment.

Mounting options

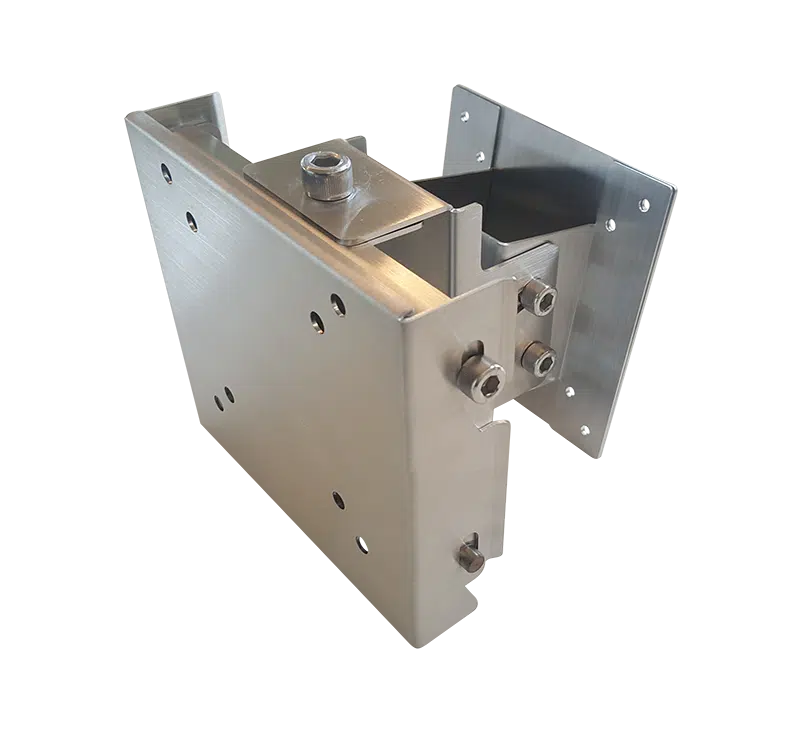

2-axis wall mount

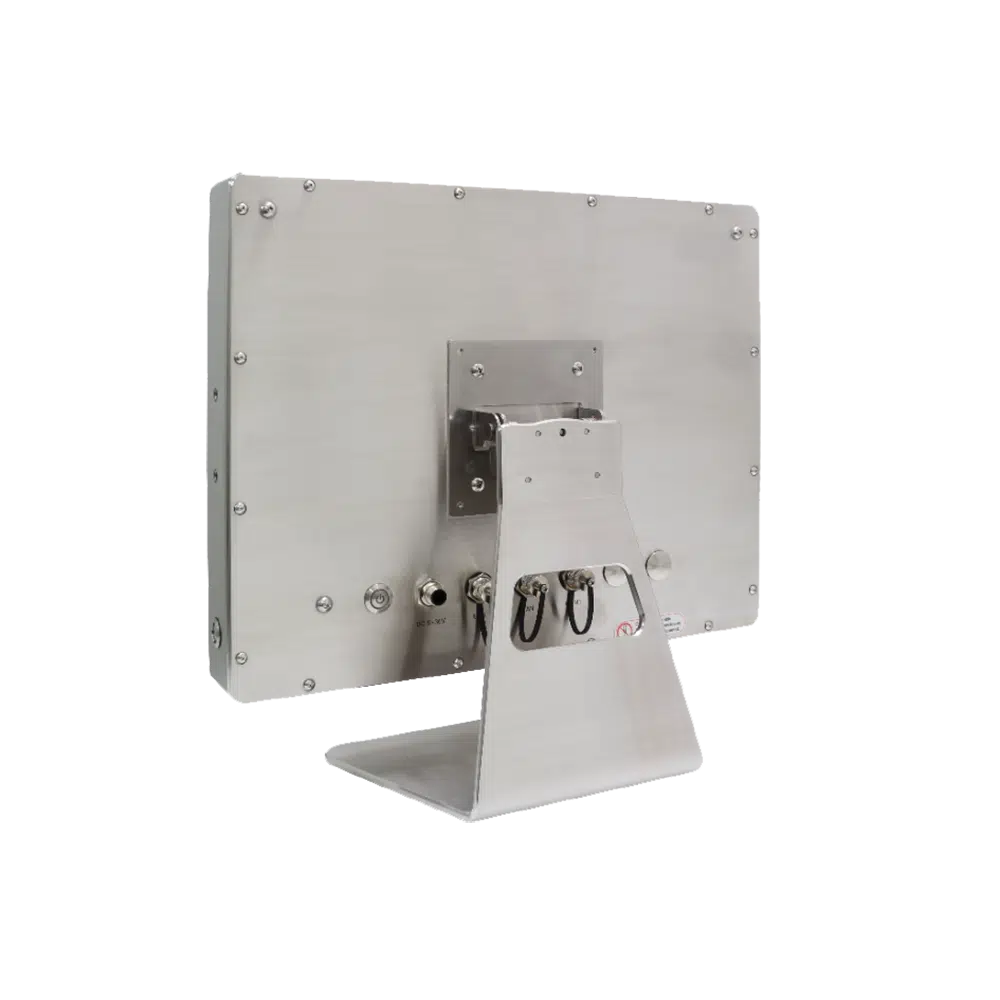

Desktop stand

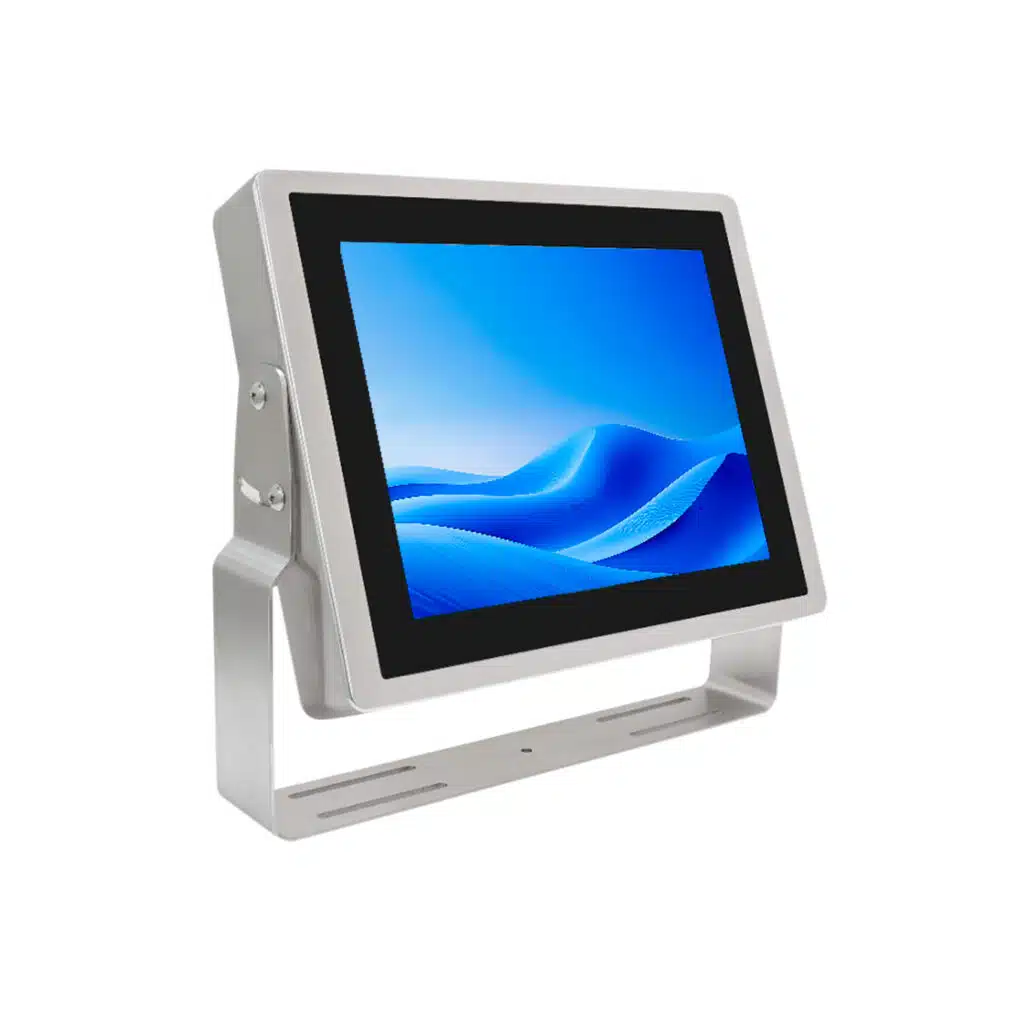

Yoke mount table stand

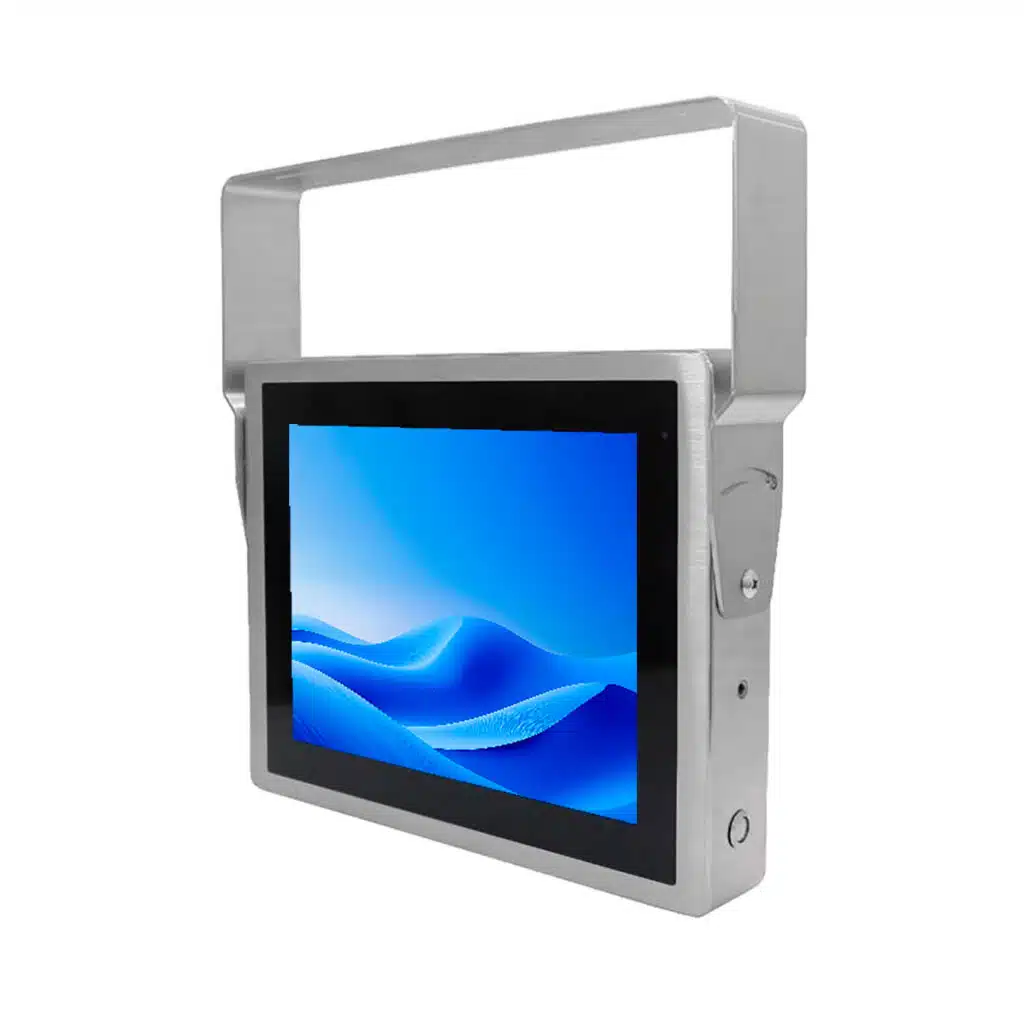

Yoke ceiling mount

Accessories

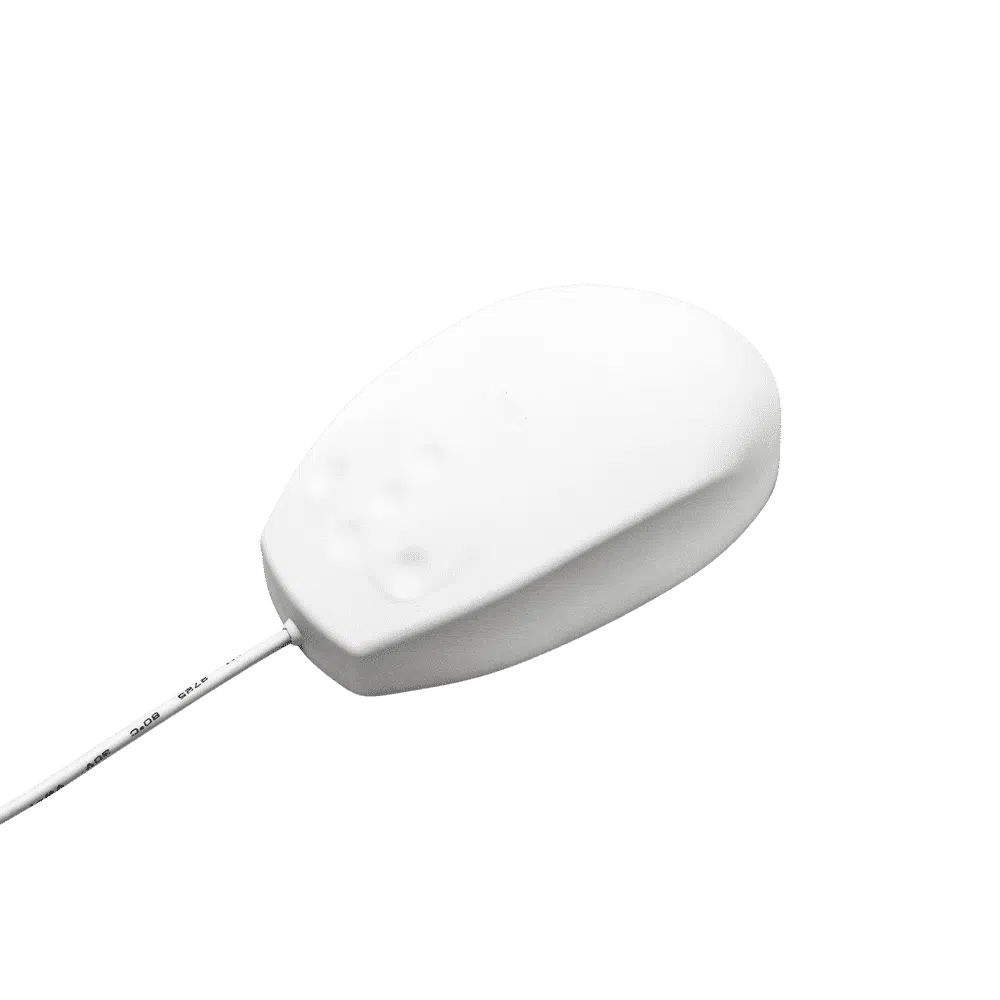

Cleanroom Laser Mouse

Explore product

Waterproof and Dustproof keyboard

Explore product

Cleanroom Touch Keyboard

Explore product

RFID module

Wireless connection antenna

Combine with Mobile Operator Station

Explore products

Specifications

Download datasheet

Waterproof HMI stainless steel Panel PC

Fully sealed enclosure in stainless steel AISI 304

Optional acid resistant stainless steel AISI 316L

Fanless

IP66/IP69K

Operating temperature 0°C to +50°C
(For sizes 10″, 12″, 15″, 15.6″, 17″, 19″ option for -20°C to +60°C)

Storage temperature -30°C to +70°C

Humidity 10 to 90% @ +40°C, (non- condensing)

Intel 8th Gen Core i3/i5 UL

Intel Celeron J6412, 8th Gen, 12th Gen Core i3/i5 CE / FCC CLASS A

10.1″ 1280 x 800, 16:10, WXGA color TFT LCD

12.1″ 800 x 600, 4:3, SVGA color TFT LCD

15″ 1024 x 768, 4:3, XGA color TFT LCD

15.6″ 1366 x 768, 16:9, HD (option for FHD) color TFT LCD

17″ 1280 x 1024, 5:4, SXGA color TFT LCD

19″ 1280 x 1024, 5:4, SXGA color TFT LCD

21.5″ 1920 x 1080, 16:9, FHD color TFT LCD

24″ 1920 x 1080, 16:9, FHD color TFT LCD

Projected capacitive multi touch (supports gloves)

Anti Shatter Film for projected capacitive multi touch (optional)

Resistive touch (optional)

No touch (optional)

Optical bonding (optional)

10.1″ 350 nits

12.1″ 450 nits

15″ 420 nits

15.6″ 300 nits

17″ 350 nits

19″ 350 nits

21.5″ 300 nits

24″ 250 nits

All sizes Option for high brightness 1000 nits

16.7M

160/160 – 178/178

10.1” to 24” Intel Celeron J6412 4C/4T 2.0GHz

15” to 24” Intel Core i3-8145UE 2C/4T 2.2GHz
Intel Core i5-8365UE 4C/8T 1.6GHz

15”, 17″, 19″ & 21.5” Intel Core i3-1215U 6C/8T 3.3GHz
Intel Core i5-1235U 6C/12T 3.3GHz

Integrated SoC

Intel Celeron J6412 1 x DDR4 SO-DIMM socket, max 32GB 3200MHz

8th / 12th Gen Core i3/i5 2 x DDR4 SO-DIMM socket, max 64GB 2400MHz

Celeron J6412 1 x M.2 B-Key 2242 SATA

8th Gen Core i3/i5 1 x M.2 B-Key 2280 SATA/PCIe & 1 x 2.5″ SATA HDD / SSD

12th Gen Core i3/i5 1 x M.2 B-Key 2280 PCIe

1 x M12 8pin for LAN

1 x M12 8pin for 2 x USB 2.0 (option for USB 3.0)

1 x M12 3pin for DC power

1 x M12 8pin for COM1/RS-232/422/485

1 x Power switch

All connectors come with waterproof cap

8th Gen Core i3/i5 1 x Mini PCIe slot for WIFI/BT (optional)

Celeron J6412 & 8th / 12th Gen Core i3/i5 1 x M.2 E-Key 2230

12th Gen Core i3/i5 1 x M.2 2402/3052 B-Key (PCIe x1, USB3.2 Gen1)

Touch on/off button on the side edge for hygienic cleaning

Windows 10 / 11

Windows 10 / 11 IoT Enterprise

Linux

ThinManager, Microsoft Remote Desktop (RPD), NoTouch OS, VNC, Citrix and others

+9V to +36V DC-in by M12 3-pin

Max 43W

10.1″ to 17″ VESA 75

19″ and 21.5″ VESA 100

24″ VESA 200 x 100

All sizes Yoke

10.1″ H 220 x W 300 x D 53mm 4kg

12.1″ H 265 x W 335 x D 53mm 5kg

15″ H 324 x W 399 x D 53mm 7.4kg

15.6″ H 290 x W 440 x D 55mm 7kg

17″ H 358 x W 432 x D 55.3mm 8kg

19″ H 388.6 x W 470 x D 60mm 9.5kg

21.5″ H 362 x W 571 x D 55mm 10kg

24″ H 423 x W 656 x D 53mm 12.6kg

AC to DC power adapter with M12

USB Y-cable (From M12 to two USB female)

Stainless steel table stand (only available for 15” to 21.5”)

Stainless steel yoke mount

Stainless steel wall mount with tilt

Stainless steel tube mount

M12 LAN cable 3m / 10m /15m

RFID reader module integrated in design

WIFI / BT modul

2 x Optional M12 Connector for 2 x USB 2.0 or 1 x USB 3.0 or 1 x LAN or 1 x PoE LAN or 1 x COM or 1 x CAN

IP65 Waterproof power adapter AC input +90 ~ +305V, DC output +24V, 60W, power cord type G (EU type) or B (US type)

Standard 1 year (option for 3 years)

507-1

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
