Blue Line IGPU-5200

Blue Line IGPU-5200 is a high-performance GPU solution designed specifically for AI and deep learning inference platforms.

Extended product life cycle
Short-depth industrial chassis
2U rack mount chassis
1 x double-slot GPU / FPGA / VPU

11th generation Intel Core CPU
Supports PCIe & PCI
Supports Windows 10/11 & Linux
Build-to-order configured to the requirements

Download datasheet

Advanced AI computing

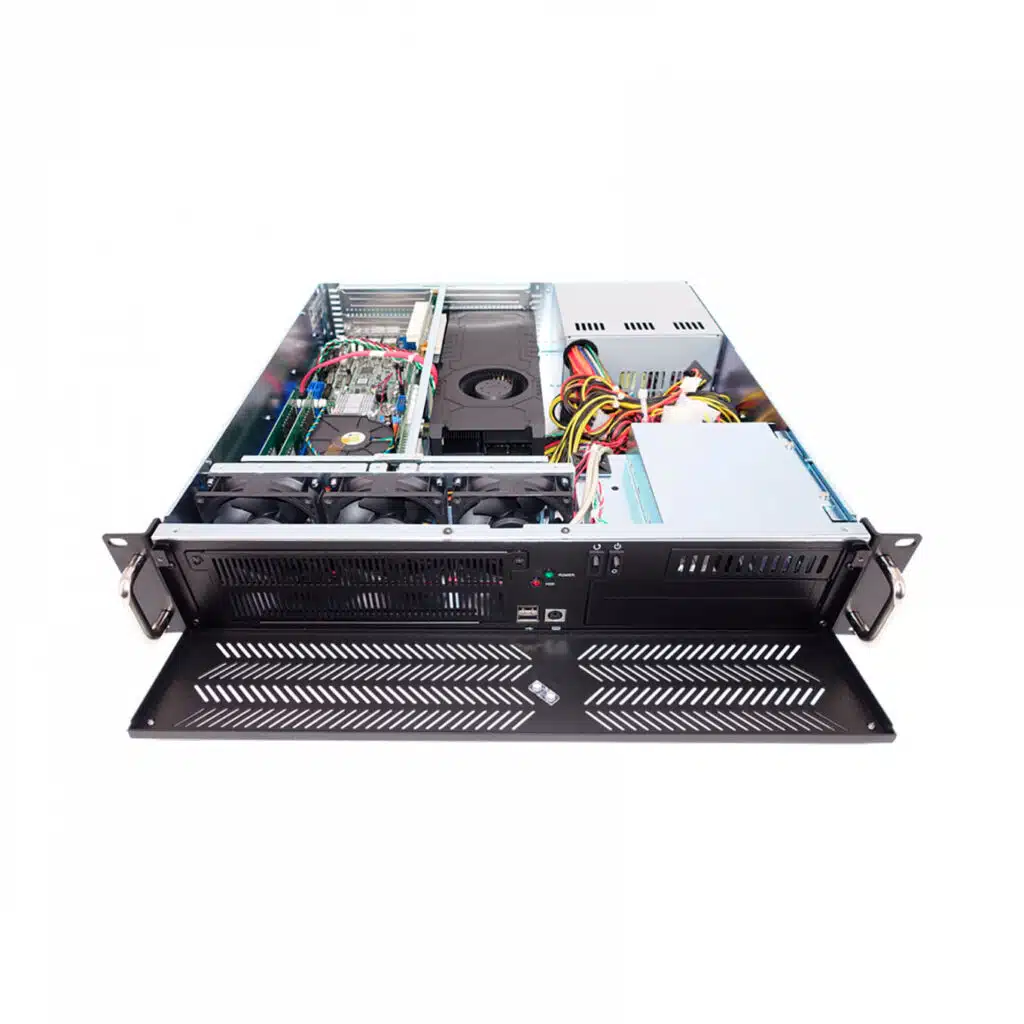

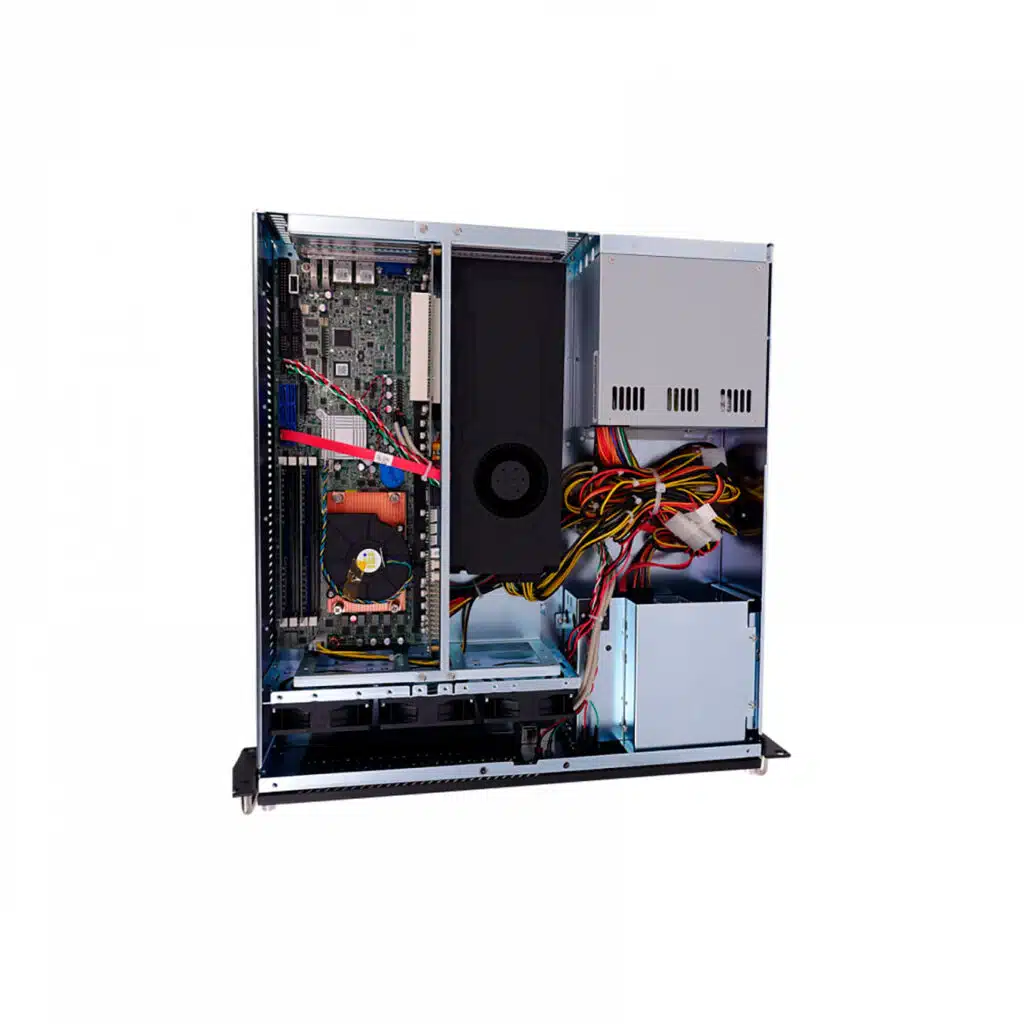

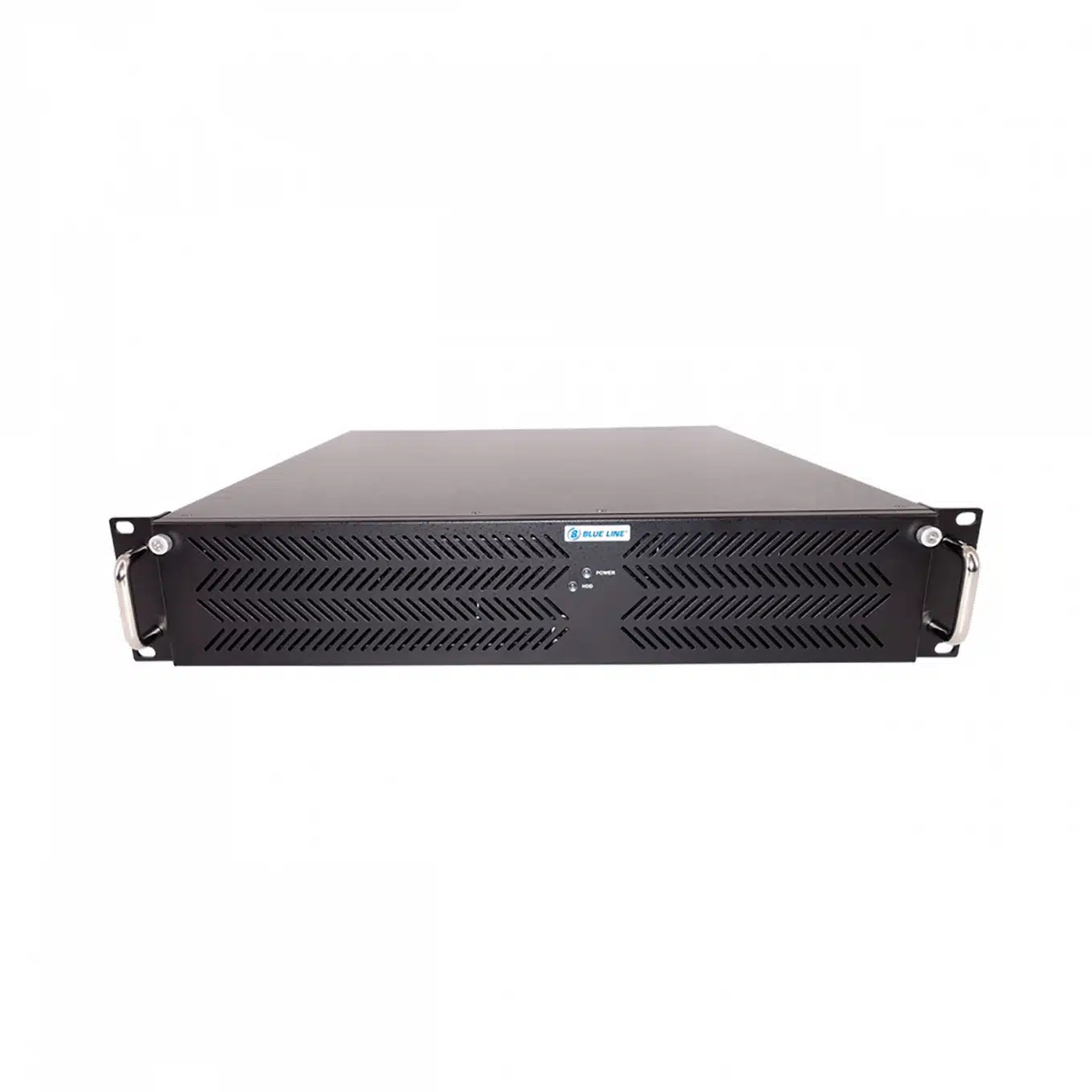

This powerful 2U rackmount system combines industrial-grade reliability with advanced GPU capabilities, making it ideal for demanding computing environments that require consistent performance and durability.

Reliable design

The IGPU-5200 delivers exceptional processing power through its double-slot GPU configuration, supported by 6th/7th generation Intel Core processors.

The system’s ATX architecture and efficient cooling design with a 92mm front fan ensure reliable 24/7 operation, while the compact form factor (H 163 x W 310 x D 310mm) makes it ideal for space-constrained environments.

Product features

Short-depth industrial chassis

High-performance GPU inference platform

Specifications

Download datasheet

GPU

2U rackmount

Heavy duty cold rolled steel

3 x front fan 80mm for GPU/CPU air cool (with dust filter)

Operating temperature 0°C to 60°C (-20°C to 60°C w/wide temp. Grade SSD & MEM)

Humidity 5% to 95%, non-condensing

CE / FCC class A

Intel Core 11th generation i3 / i5 / i7 / i9 (up to 125W TDP)

Intel Pentium Gold Series

Intel Celeron G Series

Intel Q470

Integrated Intel UHD graphics 750/710, supports OpenGL 4.5 and DirectX 12.1

Intel PTT (TPM 2.0)

Watchdog timer software programmable supports 1 to 255 sec. System reset

4 x 288-Pin DDR4 2933MHz UDIMM, supports up to 128GB

1 x 5.25″ drive bay

1 x 3.5″ drive bay

(Option for internal 2.5″ / 3.5″ HDD / SSD)

Front:

2 x USB 2.0

Power on/off button

Power status LED & HDD activity LED

Panel door with keylock & thumbscrew

1 x PCIe x16 3.0

1 x PCIe x1 3.0

2 x PCI

1 x M.2 A key (2230) w/PCIe x2/USB 2.0

1 x M.2 M key (2280/2242) w/PCIe x4/SATA

1 x M.2 B key (3042/3052/2242/2280) w/PCIe x2/USB 2.0

Windows 10 / 11

Windows 10 IoT Enterprice

Linux

Industrial PSU 650W ATX 12V v2,3, 80mm double ball bearing FAN, full range AC input, 80 PLUS Gold

IEC 62368-1 compliant

ErP Lot 6 2013 compliant

EMI/EMC: CE Class B and FCC Class B, RCM

Safety: cTUVus , TUV, CB, CCC, BSMI, RCM (SAA)

Option for 350W, 750W, 850W & 1000W PSU

Option for redundant 500W PSU

TBD

19″ H 88 x W 427 x D 450mm

Package TBD

Net weight 16 kg (standard configuration)

Gross weight 21 kg (standard configuration)

Rack mount

Rack mount kit

1 x 2.5″ rugged hot swap w/Thumbscrews and key lock in 3.5″ bay

2 x 2.5″ trayless hot swap w/key lock in 3.5″ bay

4 x 2.5″ trayless hot swap w/key lock in 5.25″ bay

Rack mount slide rail kit

Standard 1 year (option for 3 years)
