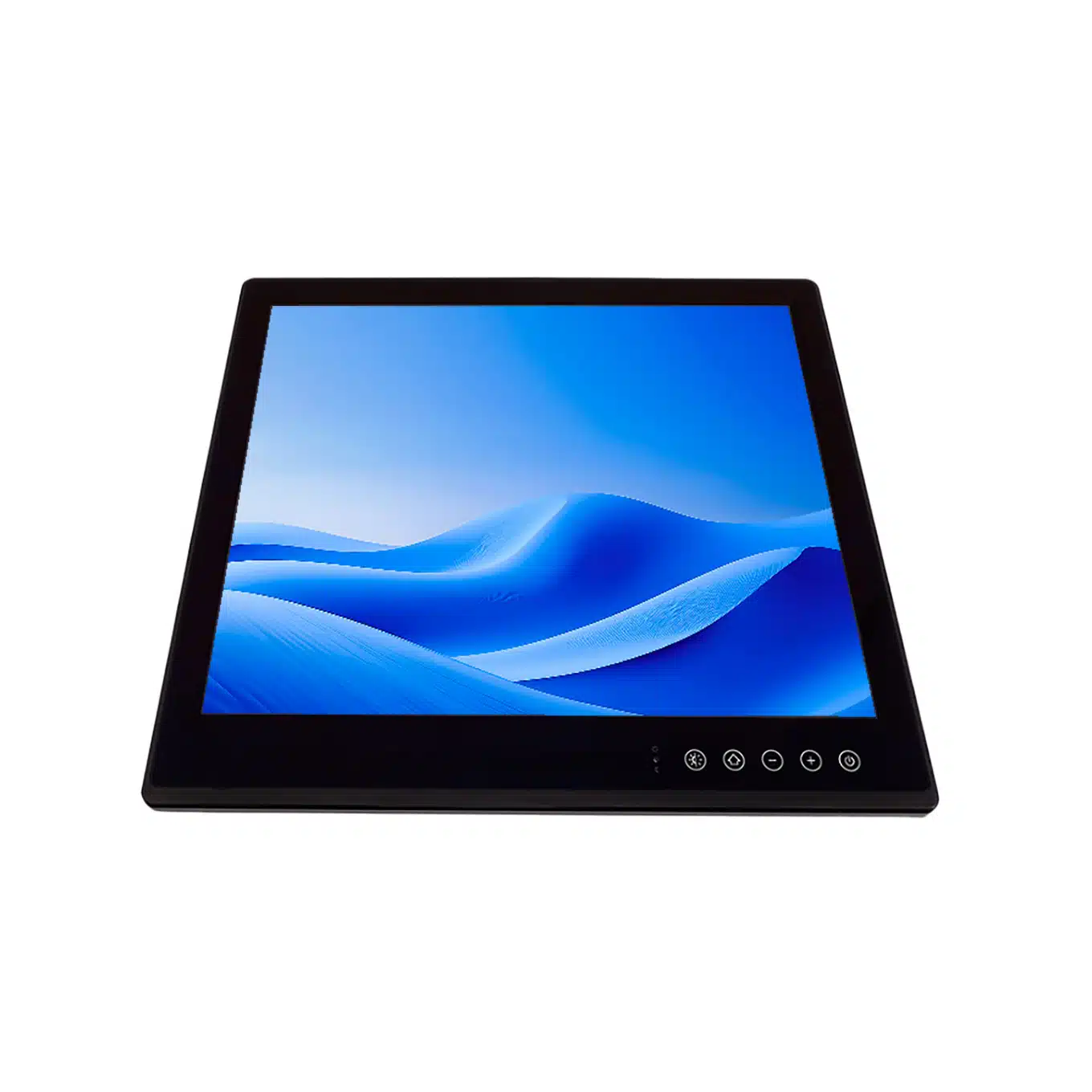

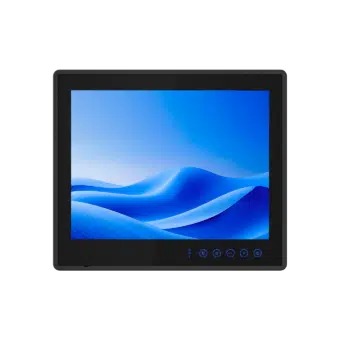

Blue Line ECDIS Marine Panel PC-8800

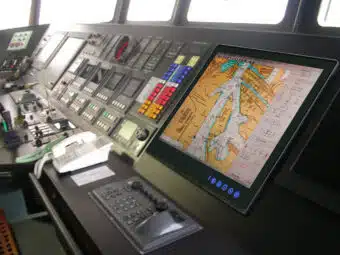

Blue Line ECDIS Marine Panel PC series are certified and specifically designed for maritime applications on bridge systems with ECDIS compliance, brightness dimming and projective capacitive multi touch.True flat, elegant edge to edge design. This Marine Panel PC will provide powerful computing and connectivity that ensures the integrated bridge system will run effortlessly.
- Marine Panel PC

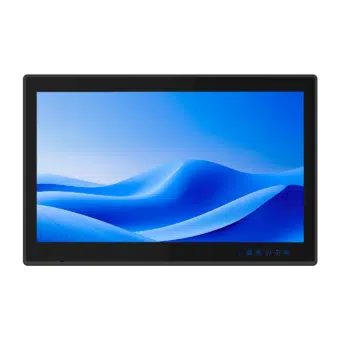

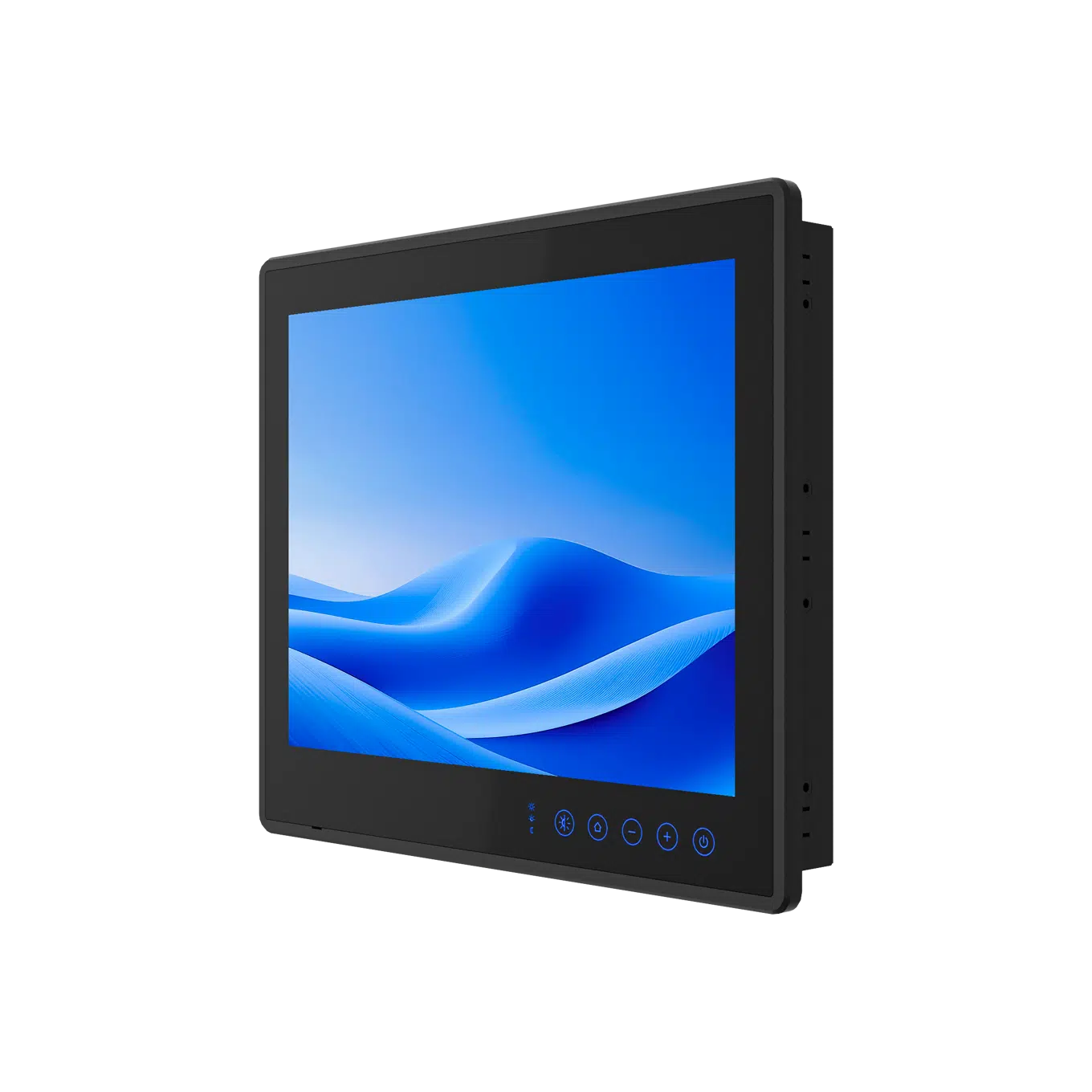

- Available in sizes of 15”, 19”, 24” and 26”
- 5th generation Intel Core i5 processor
- IEC 60945 certification
- DNVGL certification
- IACS E10 certification
- ECDIS bridge display compliance
- Color calibrated for ECDIS compliance (optional)
- Capacitive touch keys for quick function access and display control (Supports DAY, DUSK, and NIGHT mode switching)
- Brightness dimming control from nearly 0% to 100%
- True flat multi PCAP touch
- IP66 front ingress protection
- Elegant edge to edge design
- Fanless operation for maximum reliability
- +24V DC input with 1.5KV DC isolation resistance
- Supports +9 to +36V DC input
- Extensive interface connectivity

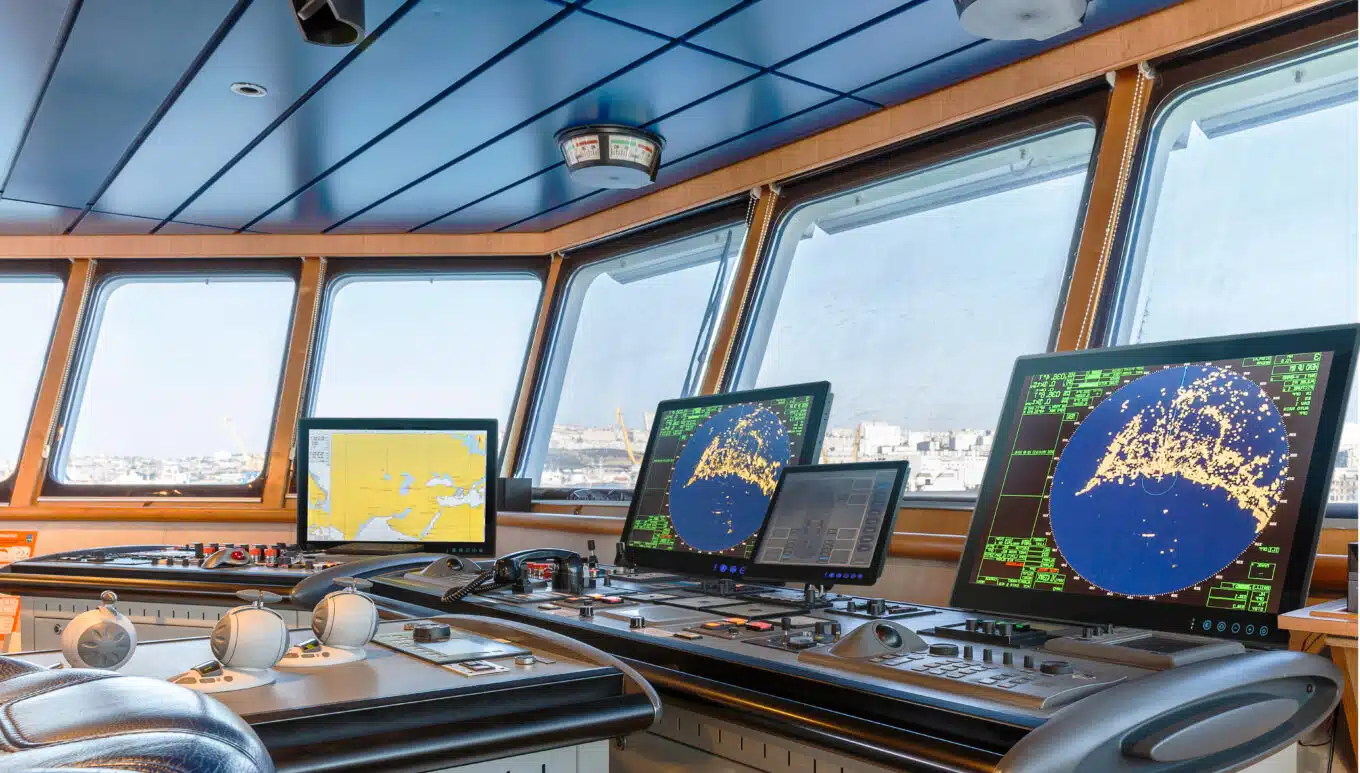

Powerful marine computer
The ECDIS Marine Panel PC-8800 delivers exceptional performance in demanding maritime environments. Powered by a 5th generation Intel Core i5 processor, it ensures smooth operation of critical navigation systems.
Reliable operation
The fanless design and robust construction guarantees 24/7 operation, while the IP66-rated front protection shields against harsh marine conditions.
With extensive connectivity options including NMEA ports and multiple USB interfaces, it integrates seamlessly with existing bridge systems.
Suited to your requirements
The Marine Panel PC-8800 offers additional features including optional digital I/O channels and NMEA 0183 ports for comprehensive maritime system integration.
The system comes with various storage options and operating system choices to suit specific requirements.
Product features

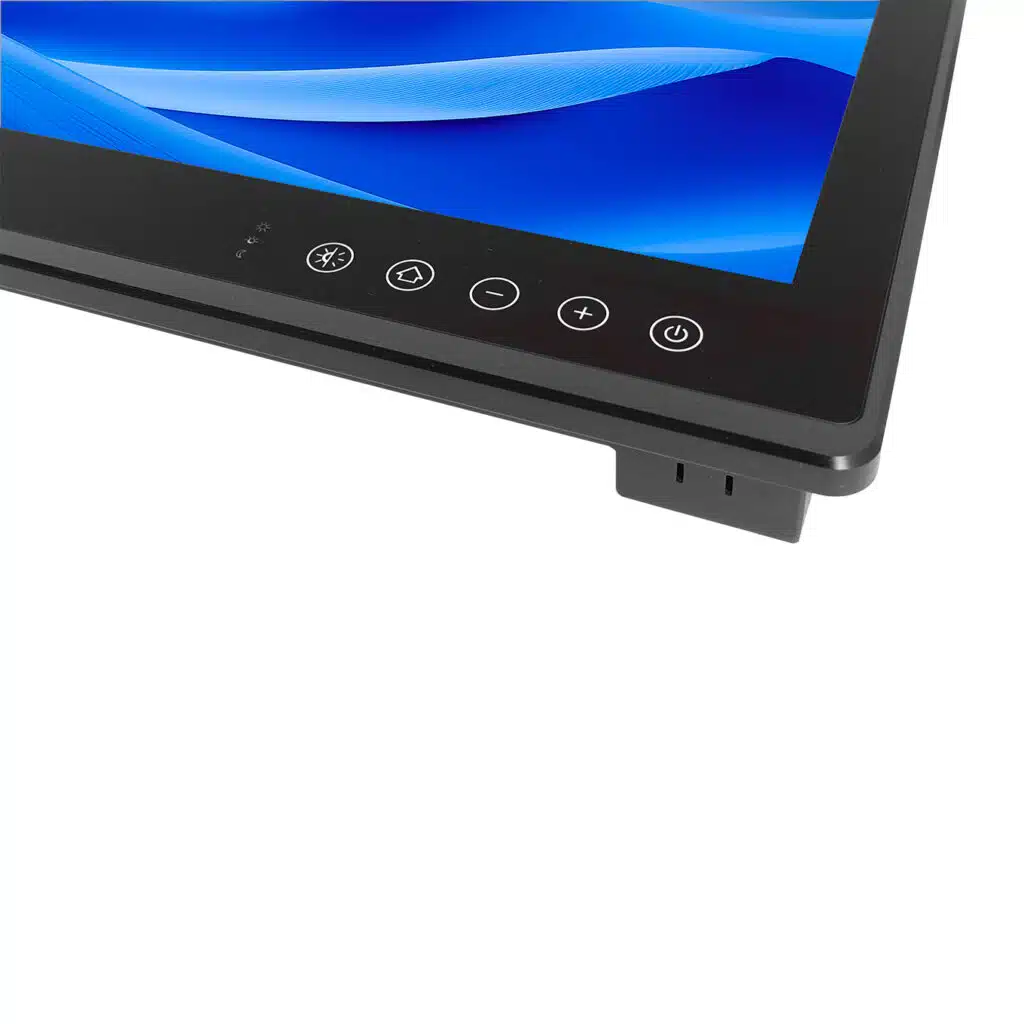

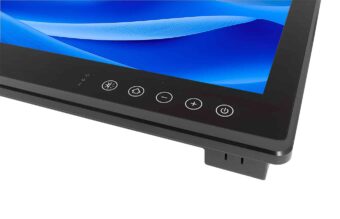

Capacitive touch keys

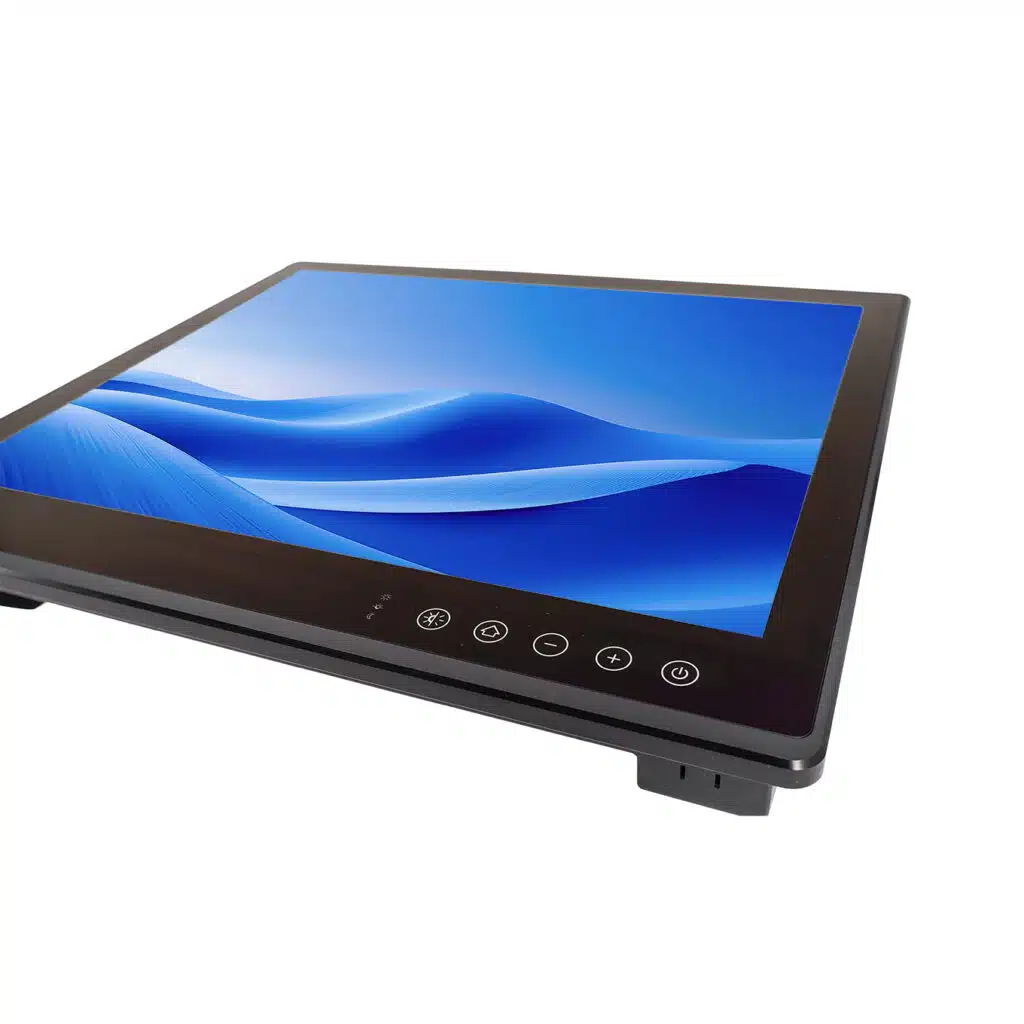

True flat, edge to edge design
Specifications
Model Type
Construction
Cooling
Ingress Protection
Environment
Certification
Display
Touch
Brightness
Colors
Viewing Angle
Processor
Chipset
RAM
Storage
Rear Input / Output
Operating System
Power Supply
Power Consumption
Mounting
Dimension and Weight
Warranty and After Sales Support
Ordering Information
From setup to delivery
Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.
Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
