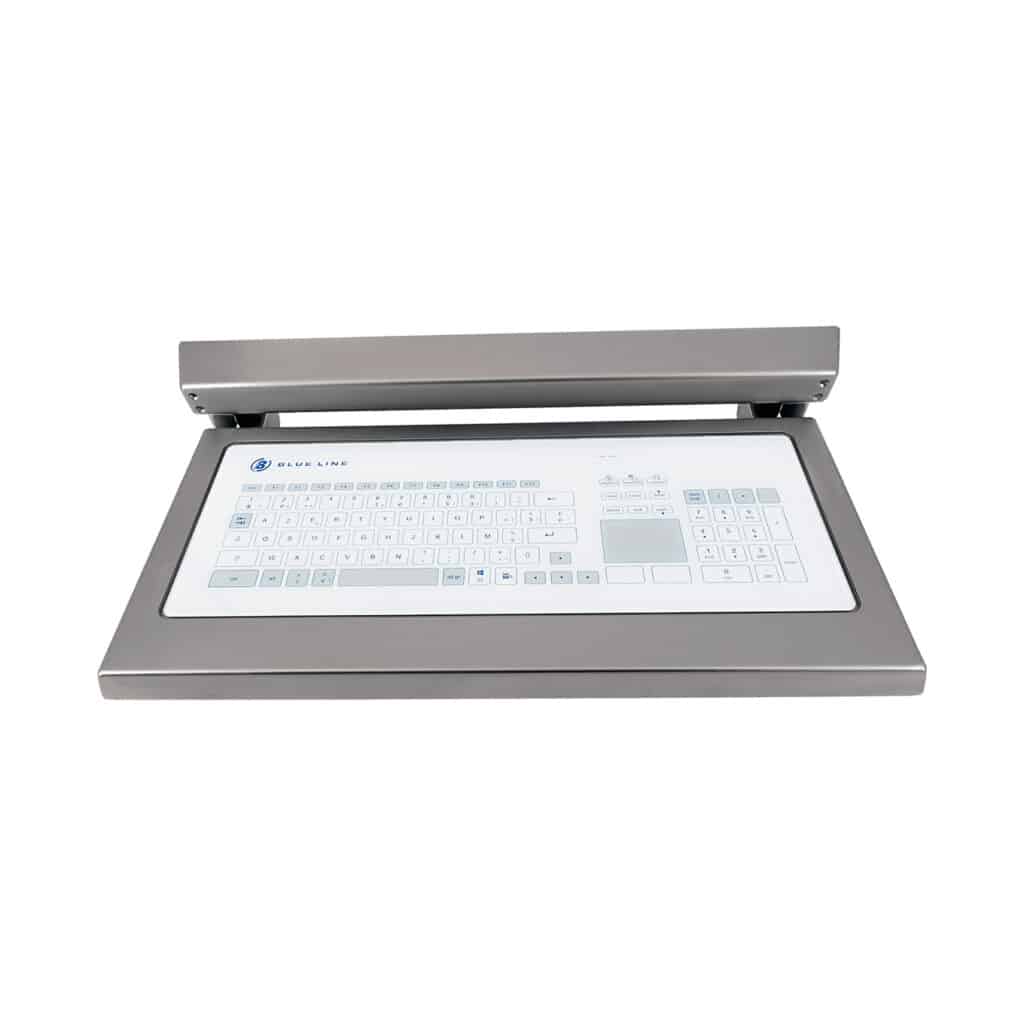

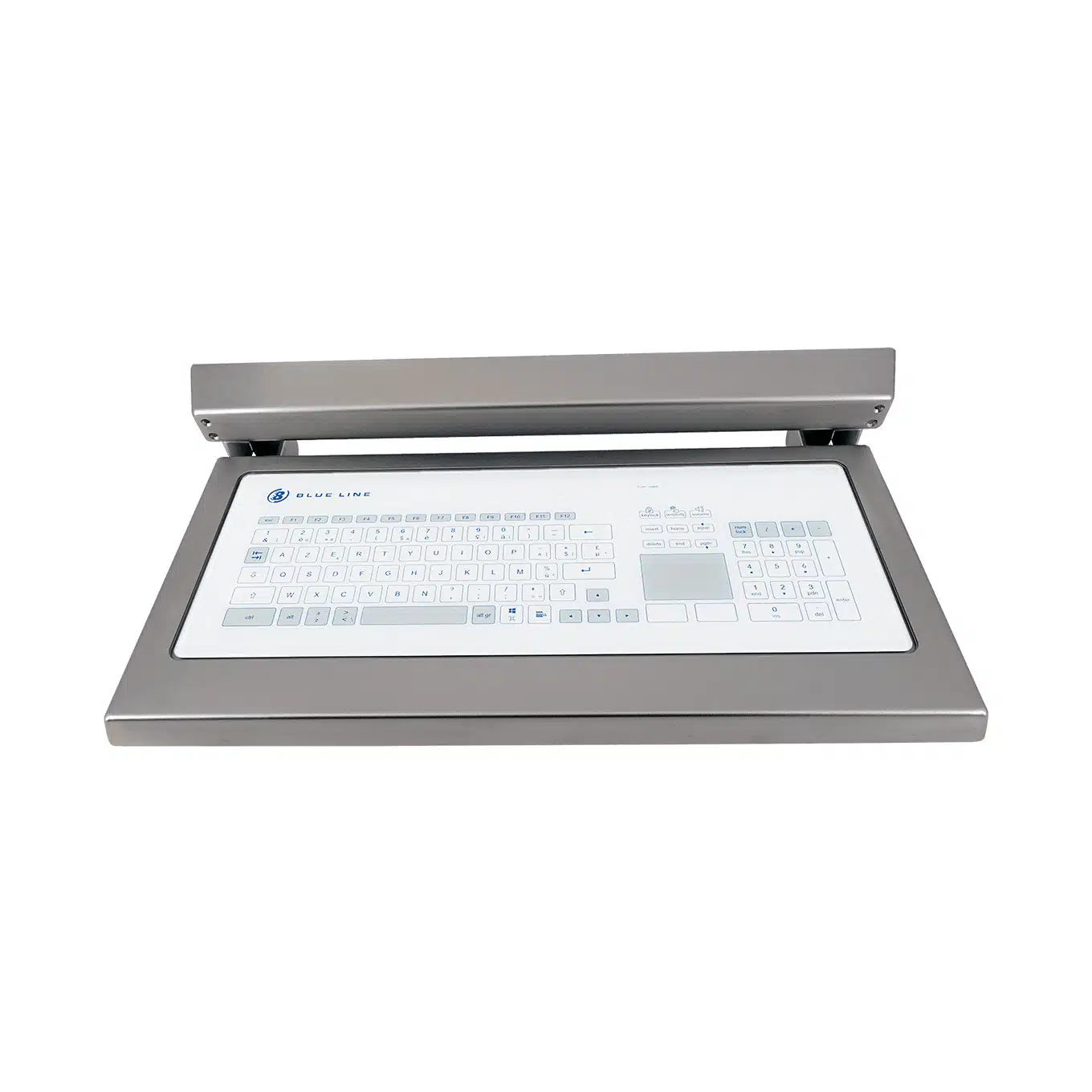

Cleanroom Touch Keyboard in Stainless Steel Housing

A specialized cleanroom touch keyboard with a completely clean and smooth surface, designed for sterile environments such as cleanrooms, life science facilities, pharmacies, and laboratories. Leading pharmaceutical manufacturers choose this touch keyboard technology because traditional keyboards can’t be thoroughly cleaned and often compromise regulatory requirements.

  • Stainless steel housing AISI 304 or AISI 316L
  • Mount on wall, HMI or machine with fixed or adjustable hinges
  • Choose between Gorilla® touch glass or membrane keyboard
  • GMP-compliant
  • Capacitive touch keyboard & pad
  • Operation with gloves
  • Easy to clean & disinfect
  • Withstands tough detergents: iso-propyl alcohol, non-deionized water, VHP, Spor-Klenz™, Klercide, Actisan, LpH®, Vesphene® and more
  • No moving parts for maximum reliability
  • Various language layouts
  • IP65 protection rating
  • Keylock function
  • Various designs / integrations

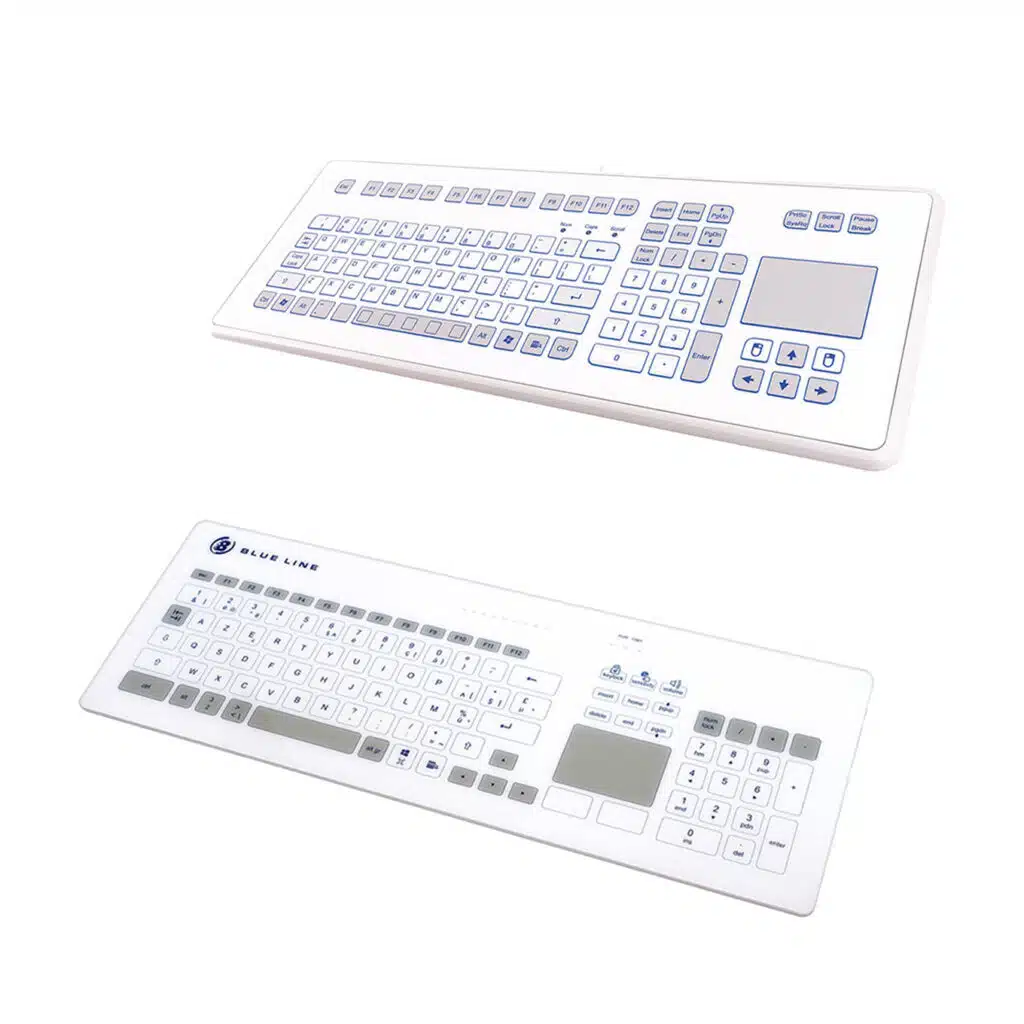

Available with Glass Keyboard & Membrane Keyboard

Flexible cleanroom integration

Built with either secure Gorilla® touch glass or durable membrane construction, this keyboard is fully disinfectable without compromises.

The sealed stainless steel housing can be mounted on walls, HMIs, or machines using adjustable or fixed hinges. Without moving parts, Blue Line’s touch keyboards ensure long-term reliability and durability in demanding environments.

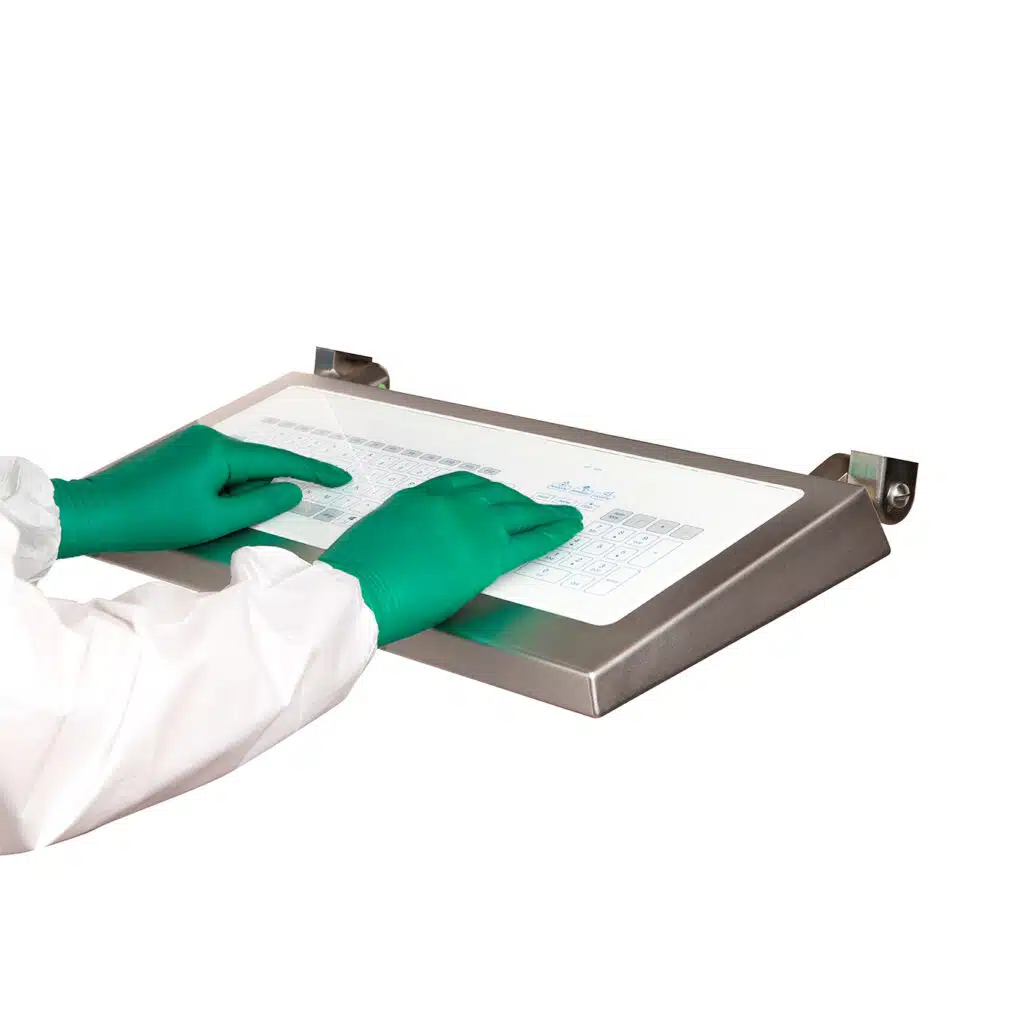

Up to three layers of gloves

This keyboard works with various types and layers of gloves made of nitrile/latex and silicone. A typical use case would be 3 layers of gloves, one layer of cotton gloves and two layers of nitrile/latex or silicone gloves.

It is also possible to combine with thicker safety gloves. The sensitivity of the touch keyboard can be adjusted to accommodate the number of glove layers.

Product features

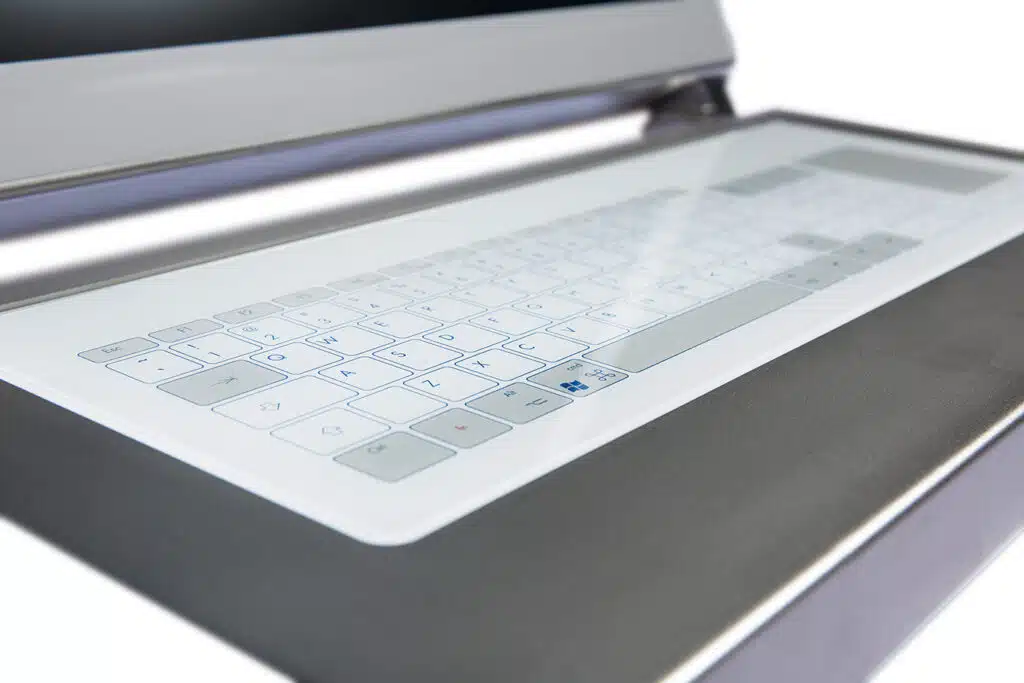

Close-up of Cleanroom Touch Keyboard in Stainless Steel Housing

Capacitive touchpad

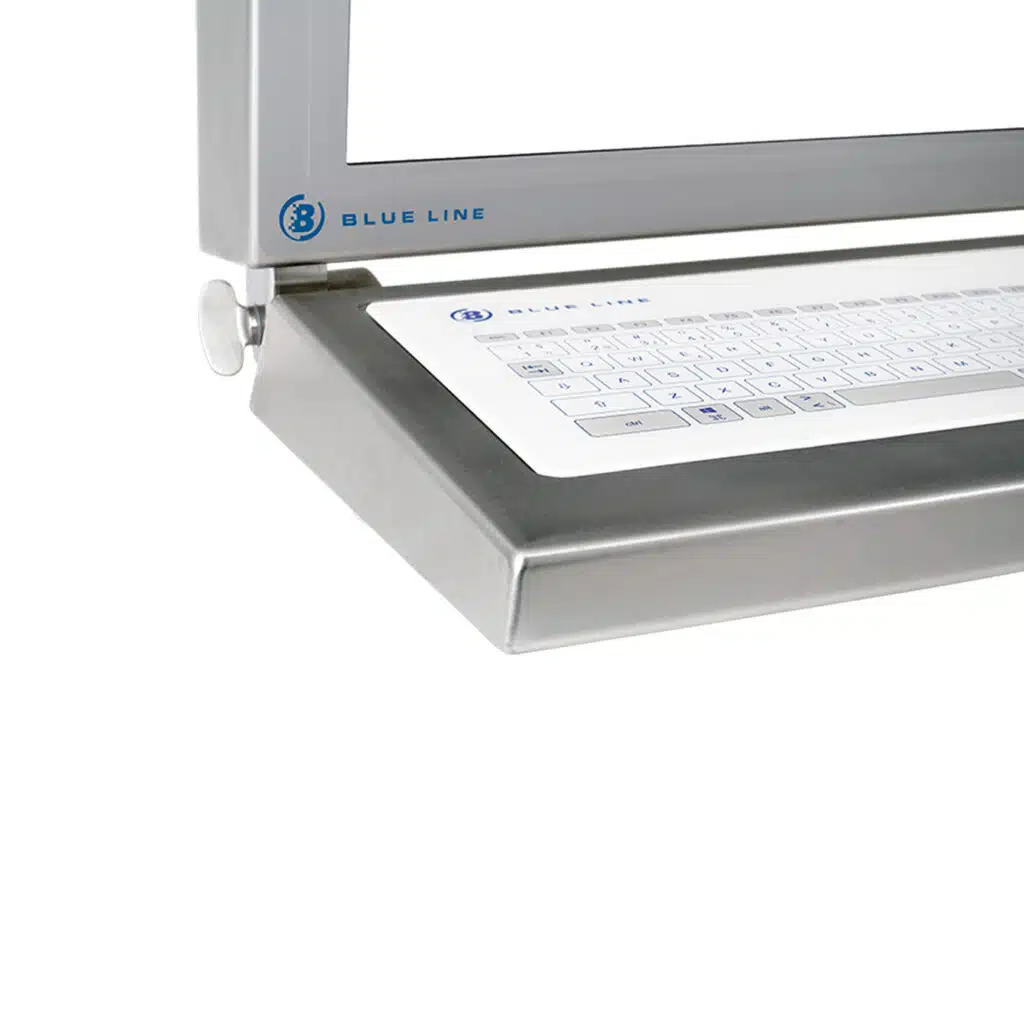

Close up of Blue Line Cleanroom HMI with hinged keyboard

Stainless steel housing

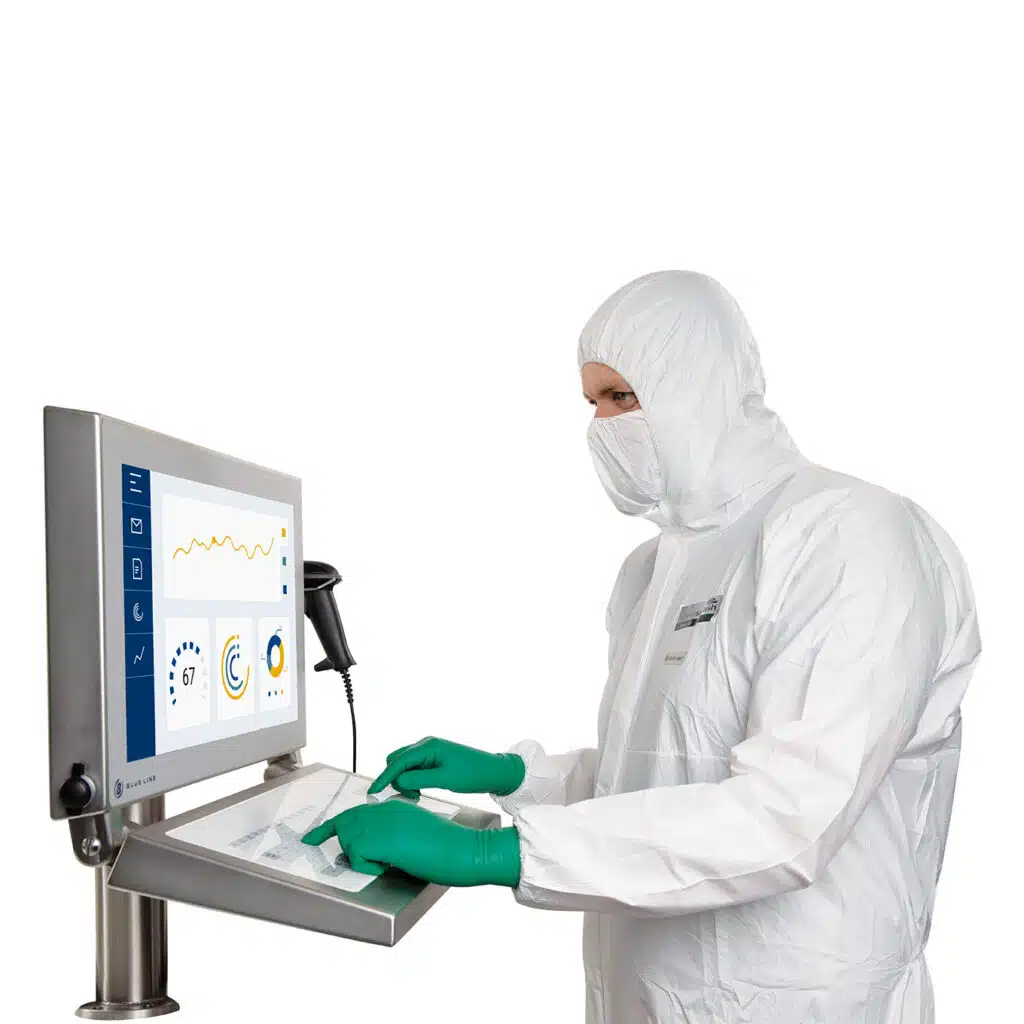

Blue Line Cleanroom HMI with hinged keyboard being operated by cleanroom operator

Can be mounted on wall, on HMI or on machine

Specifications

Model Type

Cleanroom Touch Keyboard in Stainless Steel Housing

Construction

Fully sealed enclosure in stainless steel AISI 304 or 316L

Ingress Protection

IP65(front)

Environment

Operating temperature 0°C to +60°C
Storage temperature -40°C to +65°C

Input Type

Capacitive multi touch (supports gloves)

Number of Keys

103

Mouse Function

Capacitive touchpad

Interface

USB

Operating System

Windows
MacOSX
Linux

Dimension and Weight

H 50 x W 540 x D 250mm 6.5kg

Warranty and After Sales Support

Standard 1 year (option for 3 years)

Ordering Information

1577-1

From setup to delivery

Reduce cost and time spending with our global partner model based on your specific requirements. Let Blue Line take responsibility for delivery on time.

Blue Line’s ultimate goal is to help our customers get peace of mind by handling all relevant details such as securing the right configuration, software setup, mounting, packaging, labeling etc. Ask for references from your industry.
