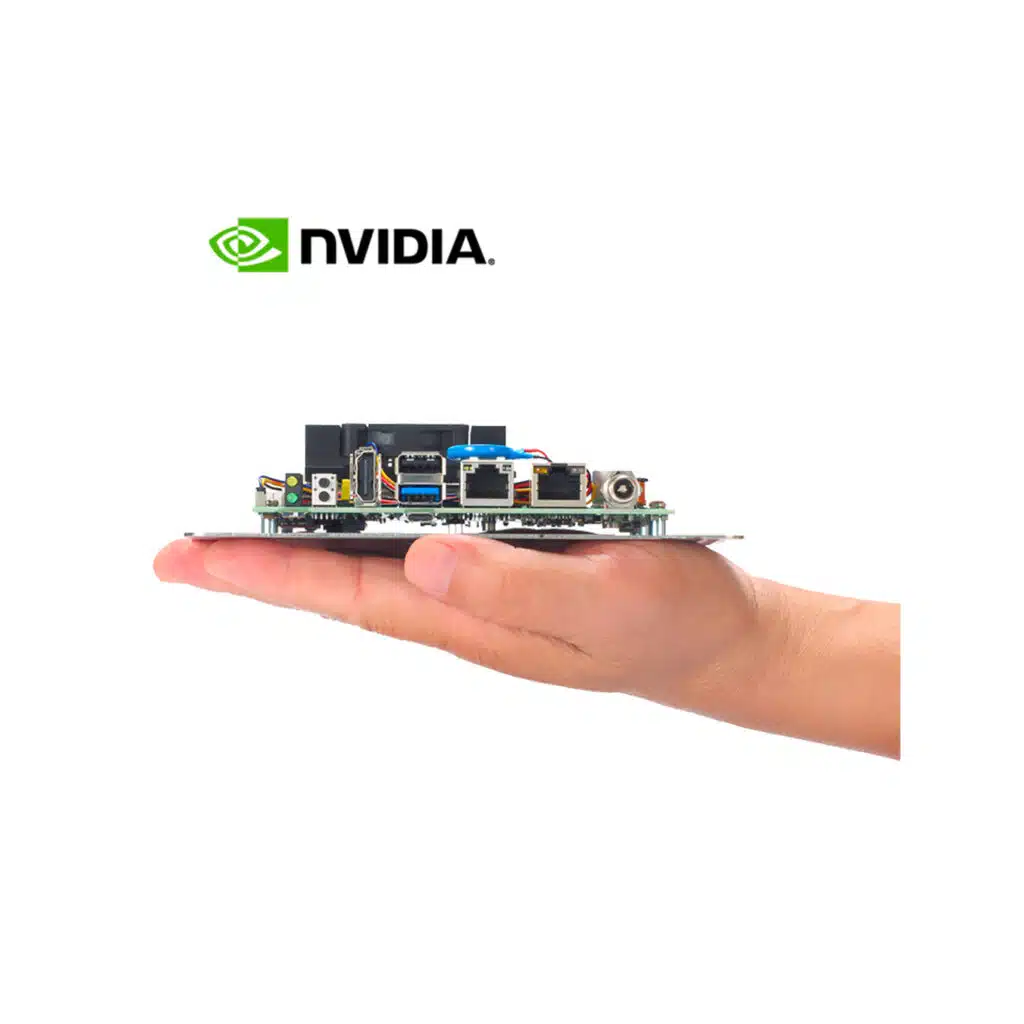

Blue Line Jetson Orin IGPU-1000

Ultra-compact GPU Solution for AI and deep learning inference platform for robots and machine vision.The IGPU-1000 leverages NVIDIA’s Jetson Orin Nano to deliver exceptional AI performance with up to 1024-core NVIDIA Ampere architecture GPU and 32 Tensor Cores.

Powered by NVIDIA Jetson Orin Nano (up to 40 TOPS)
1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE
Supports one 15W GbE PoE for camera
1 M.2 M-Key NVMe SSD slot

1 PCI express mini card slot
JetPack supported

Download datasheet

Compact computing

This compact SOM solution provides up to 40 TOPS of computing power, making it ideal for robots, machine vision, and other AI applications requiring significant processing capabilities.

With its small dimensions of just H 37.7 x W 165 x D 117mm and weighing only 0.3kg/0.9kg, it delivers powerful AI computing in a space-efficient design.

Product features

System-on-Module (SOM)

Ultra compact

Specifications

Download datasheet

GPU

SOM

Fan

Operating temperature -10°C to +60°C

Humidity 10% to 95% (non-condensing)

Vibration Endurance 3 Grms with M.2

CE / FCC class A

CPU 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

Model 1 Onboard 4GB 64-bit LPDDR5

Model 2 Onboard 8GB 128-bit LPDDR5

1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot

1 x HDMI 1.4 supported

1 x 10/100/1000 Mbps Ethernet (via Jetson Orin Nano)

1 x 10/100/1000 Mbps PoE (Intel I210-IT; max. up to 15W)

1 x USB 3.2 Gen2, 1 x USB 2.0

1 x DIO (pin header)

1 x Micro USB

1 x Recovery switch

1 x Reset button

1 x Power button

1 x 12 VDC power input connector

1 x Full-size PCI express mini card slot (USB + PCI express signal)

1 x SIM slot

Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

OS Support Linux Ubuntu 20.04 or later

12 VDC screw type

Dimension H 37.7 x W 165 x D 117mm

Weight 0.3kg/0.9kg

1 x DIO cable

M.2 NVMe SSD 128GB or more
*The models require an SSD for image installation. Kindly order the SSD if you need image installation service.

LTE module

Wi-Fi module

Power cord

12V/60W adapter

Standard 1 year (option for 3 years)
