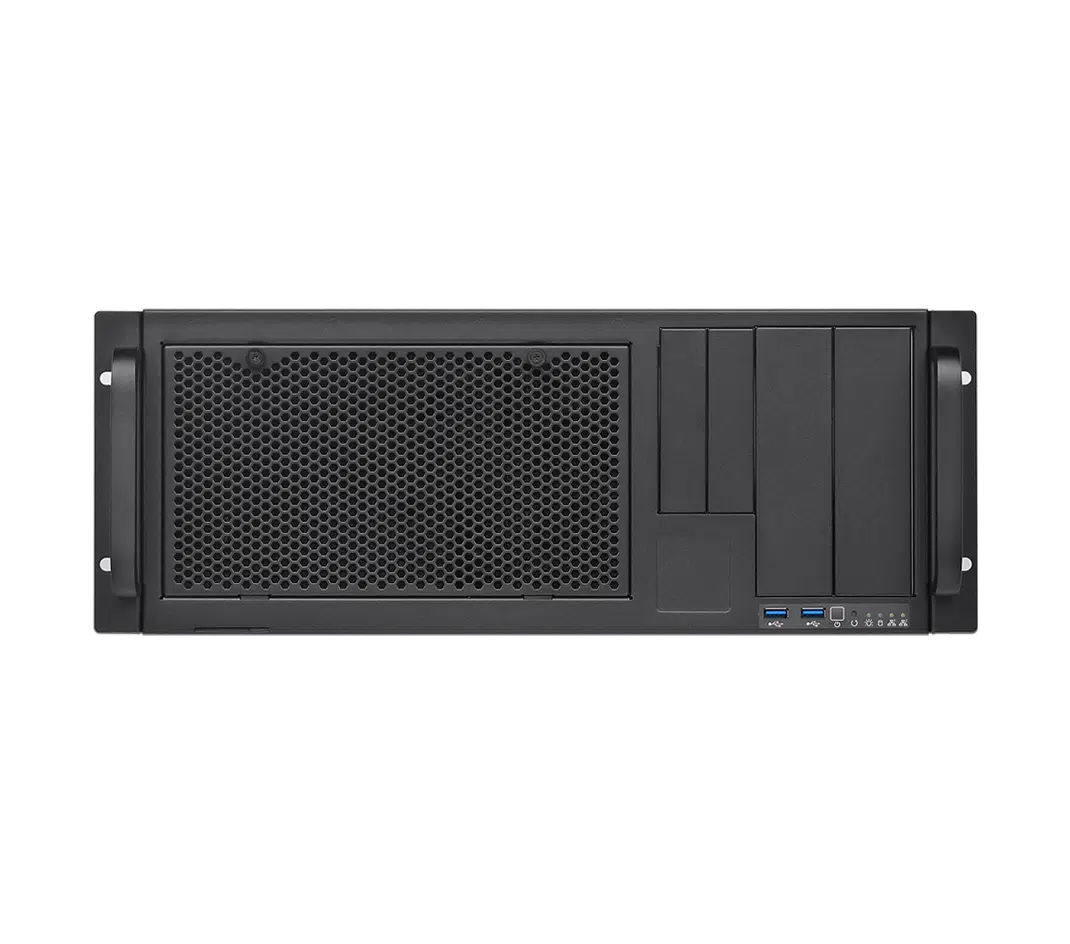

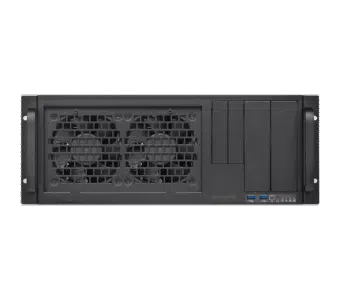

A black and grey server. The server has two handles extending from the end.

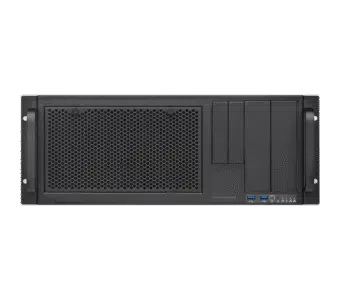

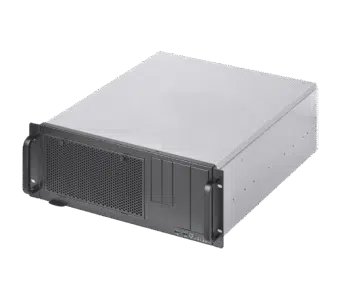

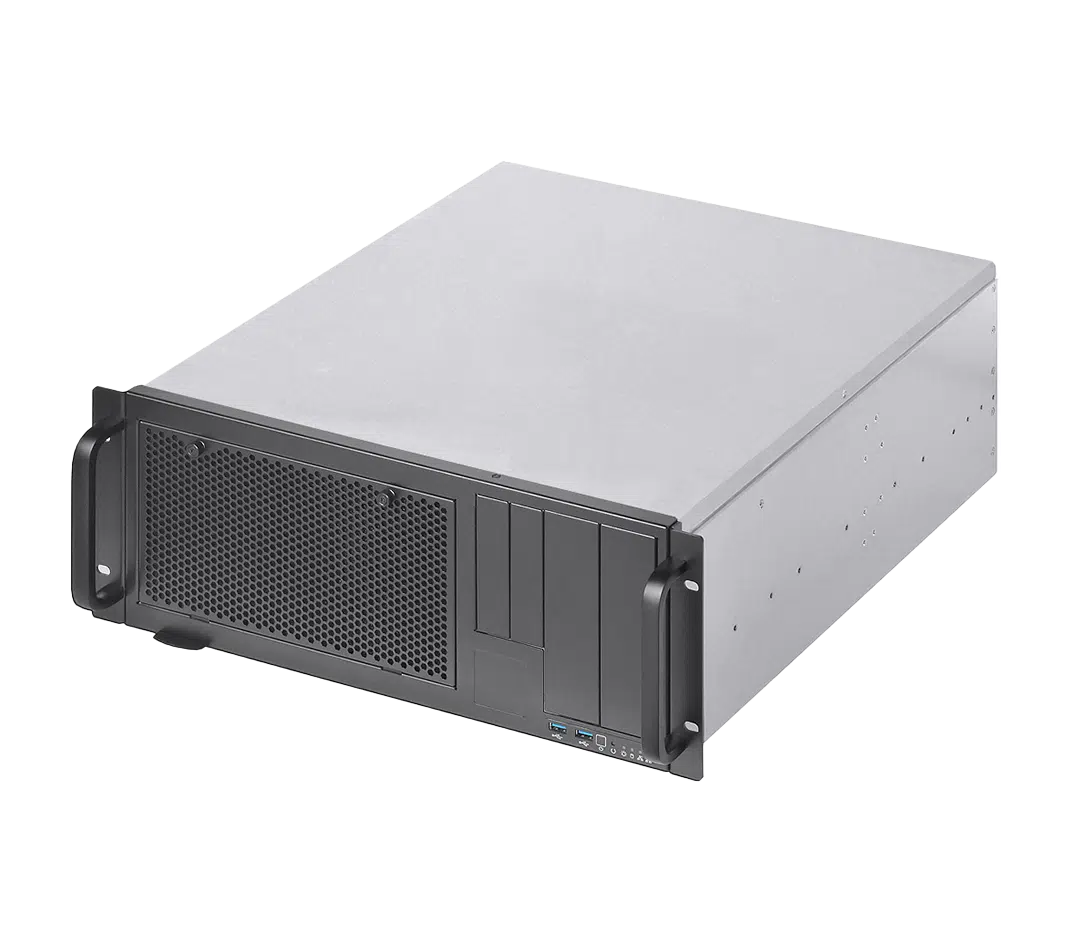

Blue Line Industrial Server-1000

Blue Line Industrial Server-1000 is designed for demanding industrial applications where high performance, reliability, and flexibility are essential. Built in a 4U rack mount format, it supports full height PCIe cards, enabling powerful GPUs, AI accelerators, and advanced expansion. This platform is ideal for Edge AI and real-time data processing.

Fast & flexible industrial server
Intel Granite Rapids Workstation processor
Windows 10/11, Server 2022/2025 & Linux
Support wide range of GPU and FPGA

Option for COM, USB, DIO, LAN
Long product life cycle
Short depth chassis (480mm)
Build-to-order configured to the requirements

Download datasheet

High performance industrial computing you can rely on

This industrial computing platform gives you reliable performance and the flexibility to configure the system exactly to your application, reducing integration time and enabling future upgrades. Designed for demanding environments, it provides a stable foundation for long term industrial deployment.

The 4U rack mount industrial PC delivers high computing power while supporting full height PCIe cards, allowing you to add GPUs, accelerators, or specialized I/O as your needs grow. The result is a scalable, space-efficient solution that helps you handle complex industrial workloads with confidence.

Accessories

Optional fix rear rack mounting kit for server chassis

Optional Nvidia Quadro RTX Series

Optional Nvidia Blackwell RTX Pro 6000 Series

Specifications

Download datasheet

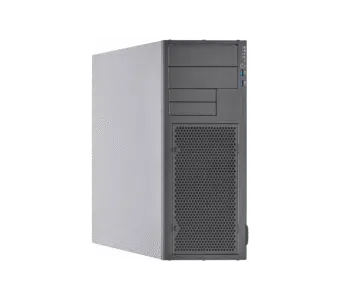

Rack PC / Tower

Heavy duty cold rolled steel 1.2mm~2.0mm thick

Two 120 x 120 x 38mm system front fan

Easy acces to front dustfilter (Washable)

Option for 240mm liquid cooling radiator

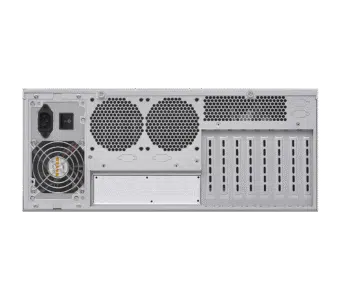

Support up to two 80 x 80 x 25mm rear fan

Option for low noise PWM fan

Option for high performance PWM fan

Operating temperature 0°C to 60°C (-10°C to 70°C w/wide temp. Grade SSD & MEM)

Storage temperature -30°C~70°C

Humidity 10% to 95%, non-condensing @ 40°C

Intel Xeon 600 Series Granite Rapids Workstation Processor

Single Socket E2, LGA4710-2 (Up to 350W TDP)

Intel W890 Chipset

AST2600 graphics engine

WINBOND BIOS. Model Name: W25Q512JVEIN

Watchdog Timer Software Programmable supports 1 to 255 sec. System reset

ST TPM 2.0 module. Model Name: ST33KTPM2X32CKE2

8 x DDR5 RDIMM & 3DS RDIMM Slots. (3DS RDIMM Up to 5200MT/s (2DPC) support up to 2TB / 256GB Pr. slot

2 x 5.25″ drive bay

2 x 3.5″ drive bay

Option for 3.5″ or 2.5″ Hotswap drive bay

Option for 2 x 2.5″ internal drive

2 x USB 3.2 Gen1 Type A via internal header

Power on/off & reset button

Power status LED, HDD activity LED & dual LAN activity LED

Pull-out TAG 10 to 55mm, for COA labels / serial number identification

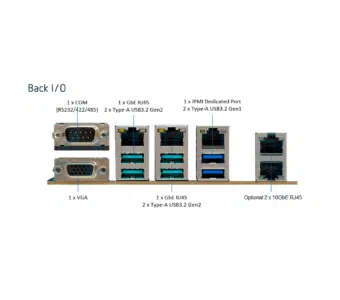

External 1 x VGA

2 x Intel i210-AT 1GbE controller via RJ-45 LAN Port
1 x Realtek RTL8211F (RGMII from AST2600, for IPMI) Via RJ-45 LAN Port

4 x USB 3.2 Gen2 Type A (Support Wake on USB)
2 x USB 3.2 Gen1 Type A (Support Wake on USB)

1 x RS-232/422/485 via DB9 Port

Option for onborad Dual Intel E610 XAT2 10GbE via RJ-45 LAN Port

Internal 4 x USB 3.2 Gen1 via header
2 x Vertical Type-A USB 2.0 Connector
1 x RS-232 via header
2 x Vertical Slimline SAS connector, Support 8 x SATA3.0, or 2 x PCIe 4.0 x4 device*
1 x 8 Bit GPIO via header
Line In & Line Out via header (Codec ALC897)
1 x SPI TPM header

*PCIe Device support Intel VROC

Total PCIe Slots 7 (8 Slots Chassis Support up to 413mm expansion cards length)
Slot 1 – 1 x PCIe 5.0 x16 Slot (Activated by Expert1s)*
Slot 2 – 1 x PCIe 5.0 x16 Slot (Activated by Expert1s)*
Slot 3 – 1 x PCIe 5.0 x16 Slot (Mainstream)
Slot 4 – 1 x PCIe 5.0 x16 Slot (Only x8 Speed, Mainstream)
Slot 5 – 1 x PCIe 5.0 x16 Slot (Mainstream)
Slot 6 – 1 x PCIe 5.0 x16 Slot (Mainstream)
Slot 7 – 1 x PCIe 5.0 x16 Slot (Mainstream)
All slot are with Dedicated PCIe holder

2 x MCIO PCIe 5.0 x8 (2 x activated by Expert1s)*

*(Slot #1, #2 & MICIO will be activated by Expert1s SKU processor)

2 x M.2 M-key, Type 22110/2280 (PCIe 5.0 x4 from CPU, Support IntelVROC*)
*Note: Intel VROC offers basic functionality included with the Platform Controller Hub (PCH) with the
option to add three RAID enabled feature sets (Standard, Premium, RAID1 Only).

Windows 10/11

Windows 10/11 IoT Enterprice

Windows Server 2022/2025

Ubuntu 24.04.3 LTS

Industrial PSU 850W ATX 12V v3.1, 80mm double ball bearing FAN, AC input, 80 PLUS Platinum

IEC 62368-1 compliant

ErP Lot 6 2013 compliant

EMI/EMC: CE and FCC Class B

Safety: CB 62368, TUV 62368, UL 62368

Option Option for Industrial PSU 2000W ATX 12V v3.1, 80mm FAN, 200~240V AC IEC-C19 input, Dual PCIe Gen5, 80 PLUS Platinum, FCC and CE approved

Option for hotswap Mini-Redundant 500W, 700W, 900W, 80 PLUS Gold PSU

Option for Marine graded PSU with Safety clamp at AC inlet and Reinforced Protection against shock and vibration

TBD

19″/Tower H 177,30 x W 430,00 x D 480,00mm

19″ w/Rack mount kit H 177,30 x W 482,00 x D 516,50mm

Package H 260,00 x W 550,00 x D 600,00mm

Net weight About 15 kg (standard configuration)

Gross weight About 16 kg (standard configuration)

Rack mount

Rack Monunting kit

Hold down retention bar with clamps for PCI/PCIe Cards (Maximum high for expansion crads with this bar install is 130mm and 145mm without)

Fix Rear rack mounting kit for server chassis

Rack mount slide rail kit for server chassis (600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant))

Chassis intrusion detector

Dedicated HW Raid controller

Intel Virtual RAID on CPU
Intel VROC Standard SKU (RAID 0/1/10) VROCSTANMOD Licensing*
Intel VROC Premium SKU (RAID 0/1/5/10) VROCPREMMOD Licensing*

*Intel VROC Hardware key is required

Ethernet Add on card (Copper or Fiber connector)

Video frame grabber Add on card

Power over Ethernet Add on card (2 x 30W port or 4 x 30W port) w/Intel I226V controller

1 x 3.5″ Bay in 5.25″ bay bracket

1 x 2.5″ Rugged Hot-swap w/Thumbscrews and key lock in 3.5″ bay

2 x 2.5″ Trayless Hot-swap w/key lock in 3.5″ bay

4 x 2.5″ Trayless Hot-swap w/key lock in 5.25″ bay

Air-shroud bracket for Nvidia A100/H100/Pro6000 GPU

Standard 1 year (option for 3 years)
