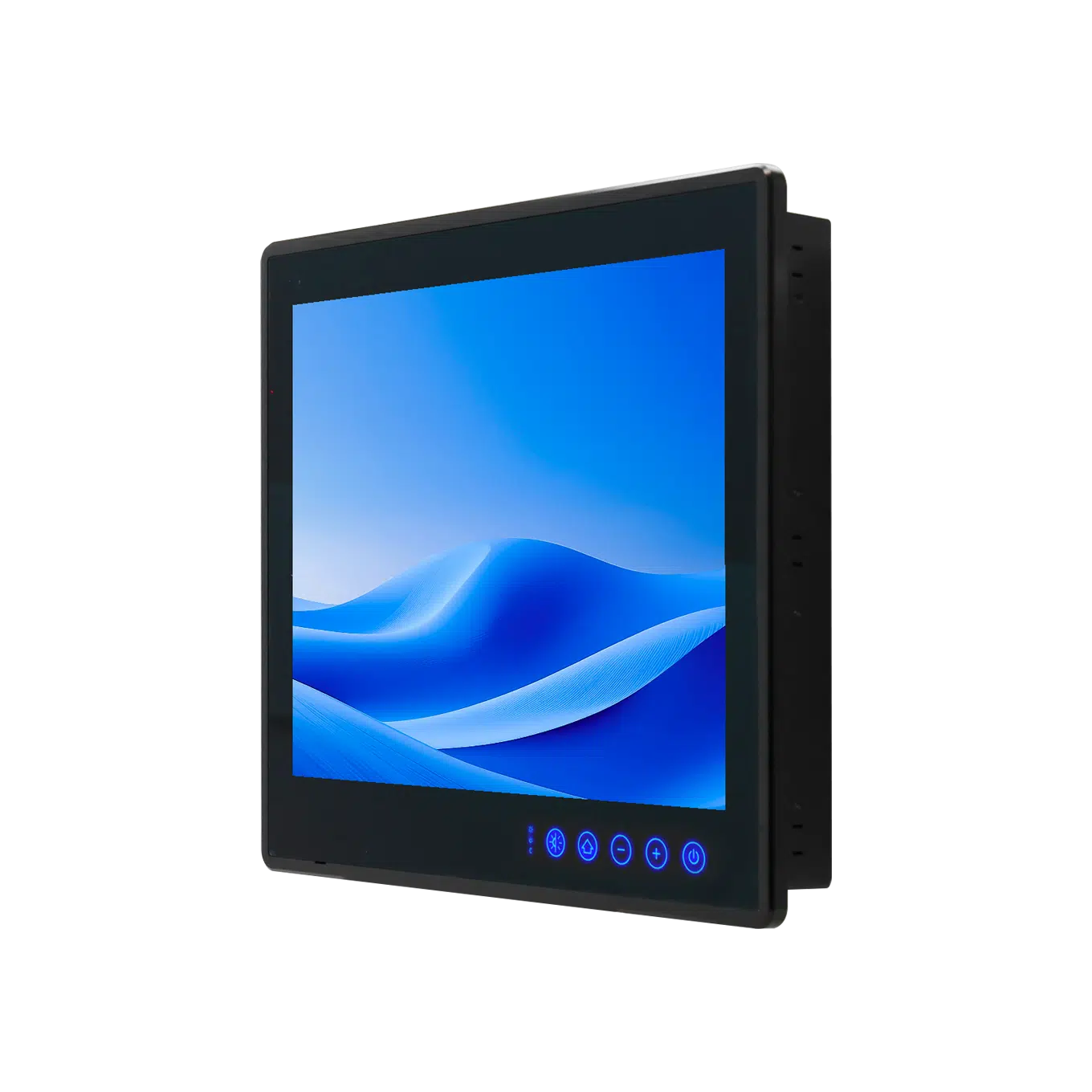

Blue Line ECDIS Marine Monitor-8800

Blue Line ECDIS Marine Monitor-8800 is a purpose-built display solution for maritime bridge systems, offering ECDIS compliance and advanced display capabilities. This standalone monitor provides exceptional visual performance with professional-grade brightness dimming and multi-touch functionality, all in a true flat, elegant edge-to-edge design.

Marine Monitor
Available in sizes of 15”, 19”, 24” and 26”
5th generation Intel Core i5 processor
IEC 60945 certification

DNVGL certification
IACS E10 certification
ECDIS bridge display compliance
Color calibrated for ECDIS compliance (optional)
Capacitive touch keys for quick function access and display control (Supports DAY, DUSK, and NIGHT mode switching)
Brightness dimming control from nearly 0% to 100%
True flat multi PCAP touch
IP66 front ingress protection
Elegant edge to edge design
Fanless operation for maximum reliability
+24V DC input with 1.5KV DC isolation resistance
Supports +9 to +36V DC input
Extensive interface connectivity

Download datasheet

Monitor for maritime applications

The Marine Monitor-8800 can be paired with navigation systems, radar displays, or any maritime application requiring a professional-grade display. Its standalone nature makes it perfect for upgrading existing systems or as part of a new installation.

High-grade visualization

The Marine Monitor-8800 delivers professional-grade visualization for maritime applications, featuring precise color calibration and brightness control from 0% to 100%.

The true flat PCAP touch screen ensures accurate input even in challenging conditions, while the robust aluminum construction provides long-term reliability.

Product features

Blue Line ECDIS Marine Panel PC-8800 - Touch Panel

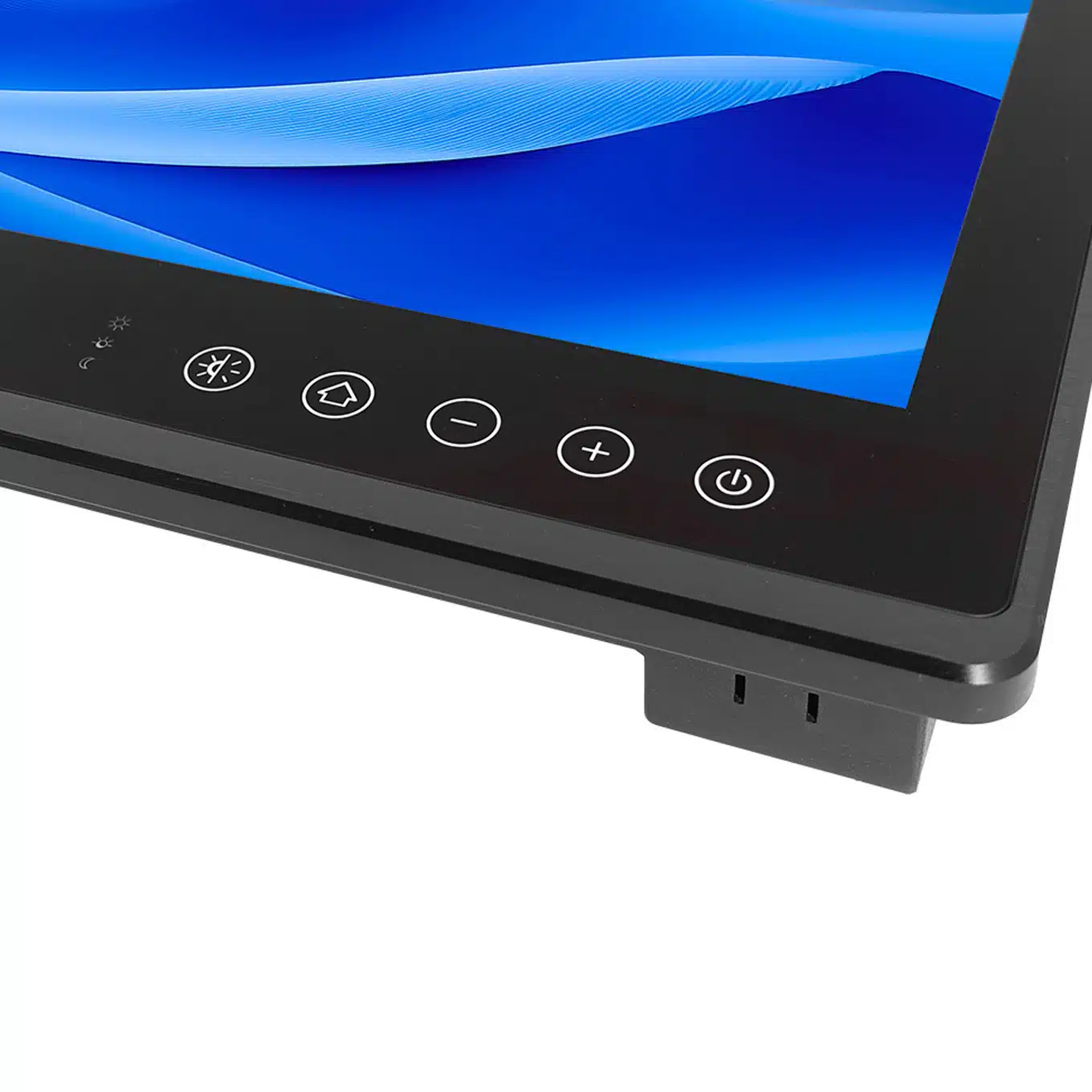

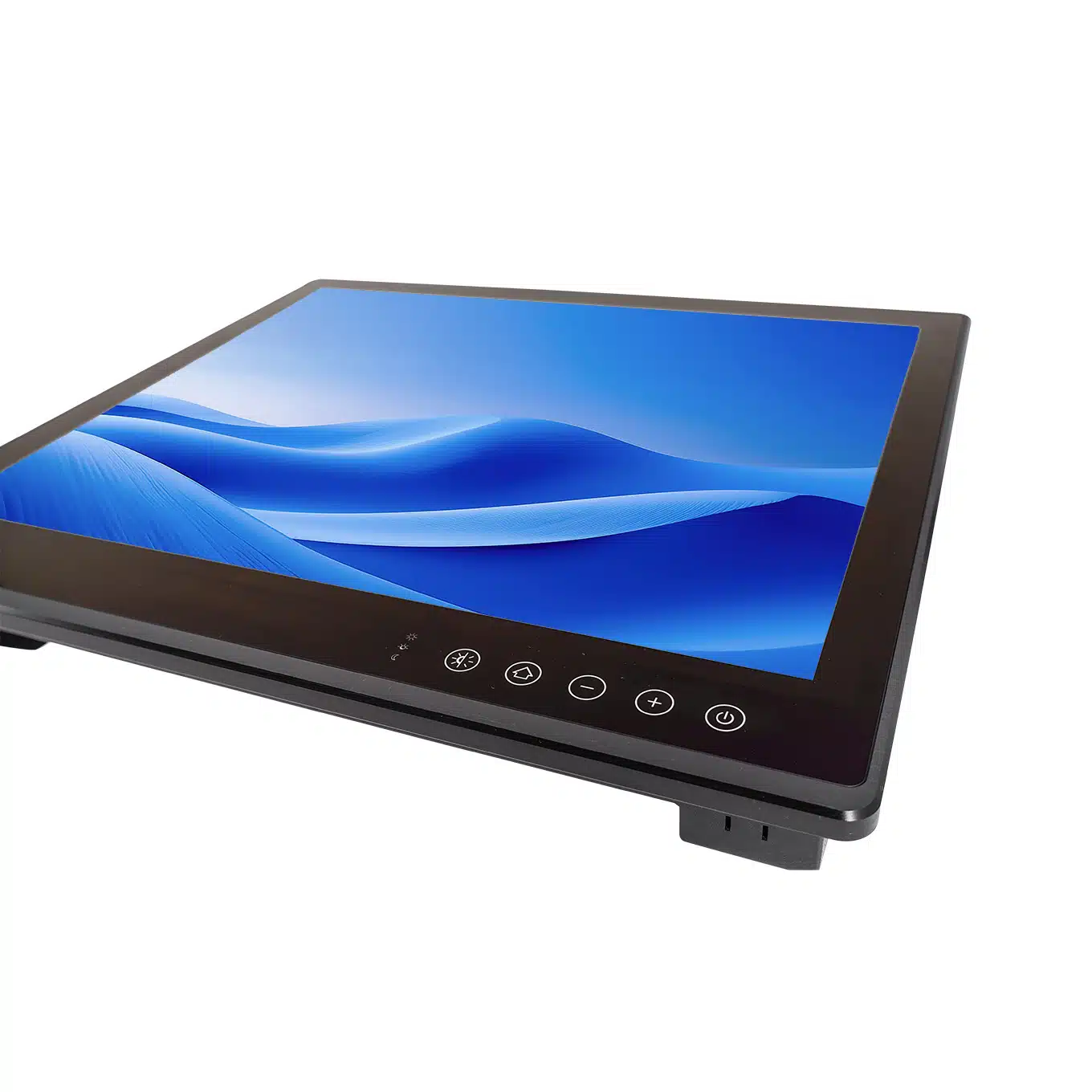

Capacitive touch keys

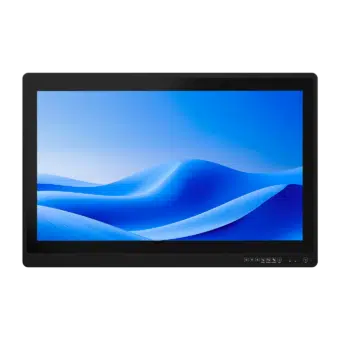

True flat, edge to edge design

Specifications

Download datasheet

Marine Monitor

Aluminum front frame and rear metal housing

Fanless

IP66 Front

Operating Temperature -15°C to +55°C

Operating Humidity 5% to 95%(non condensing)

Anti-Vibration 0.7g@DNVGL CG-0339 (Class A)

Anti-Shock 15G,11ms duration

DNV

IEC60945

IACS E10

FCC

15″ 1024 x 768, 4:3, XGA LCD

19″ 1280 x 1024, 5:4, SXGA LCD

24″ 1920 x 1080,16:9, HD LCD

26″ 1920 x 1200,16:10, WUXGA LCD

Projective capacitive multi-touch

Brightness dimming control from nearly 0% to 100%

15″ 16.2 M colors, 8 bits/color

19″ to 26″ 16.7 M colors, 8 bits/color

15″ 88°/88°/88°/88° (typ.) (Up/Down/Left/Right)

19″ 85°/85°/80°/80° (typ.) (Up/Down/Left/Right)

24″ 89°/89°/89°/89° (typ.) (Up/Down/Left/Right)

26″ 88°/88°/88°/88° (typ.) (Up/Down/Left/Right)

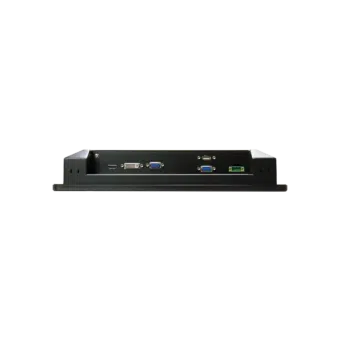

DVI input: DVI-D 24pin (female)

HDMI input: 1 x HDMI 1.4

VGA input: D-SUB 15pin (female)

Remote control via RS232: D-SUB 9pin (female)

Touch: USB type A (female)

DC input: Terminal block 3pin (phoenix type)

15″ to 26″ +24V DC-in with Isolation (+9 to +36V acceptable)

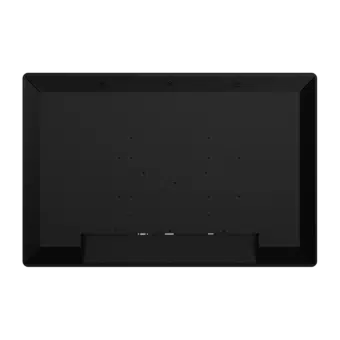

15″ to 26″ Panel Mount / VESA Mount

15″ H 363mm x W 312mm x D 66.5mm

19″ H 429mm x W 382mm x D 72.8mm

24″ H 595mm x W 385mm x D 63.8mm

26″ H 621mm x W 432.4mm x D 85.5mm

Support ECDIS DAY, DUSK, and NIGHT mode switching

Color for ECDIS compliance (Optional)

Panel Mount Kit

AC to DC Power Adapter

Kable Kit HDMI, DVI, VGA, COM-Touch, USB-Touch

Standard 1 year (option for 3 years)
